D28 M11 H15 Double Layer High Speed Laser Cutting Nozzle for Fiber Laser Cutting Head
D28 M11 H15 double layer high speed laser cutting nozzle designed for compatible fiber laser cutting heads. Featuring a 28 mm outer diameter, M11 thread and 15 mm overall height, this precision laser nozzle is available in aperture sizes from Ø1.0 mm to Ø6.0 mm for different sheet metal cutting requirements.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description

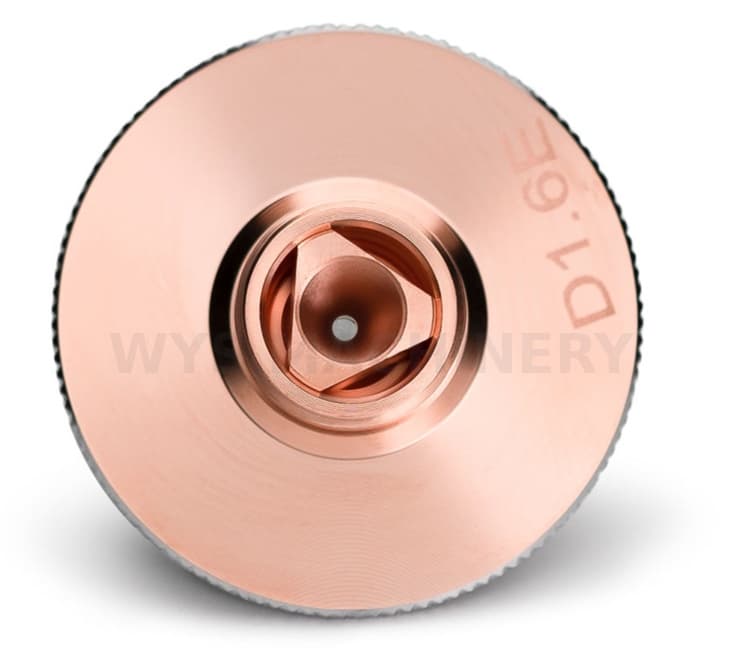

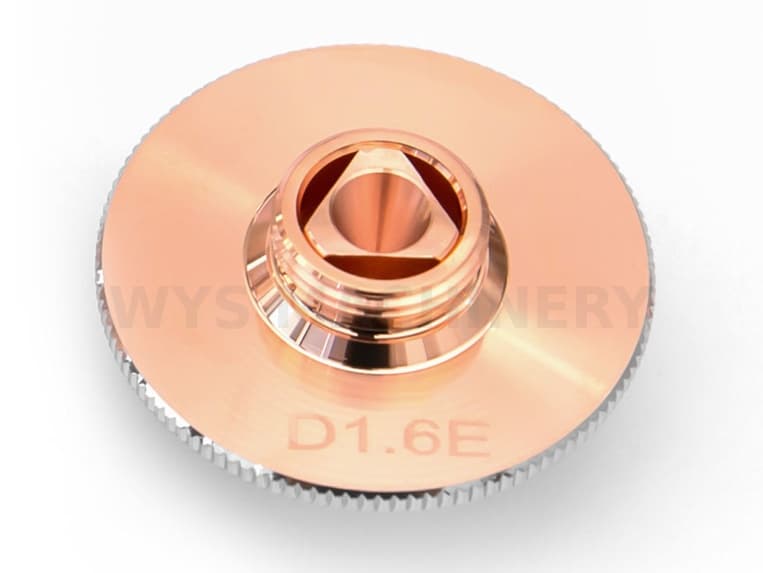

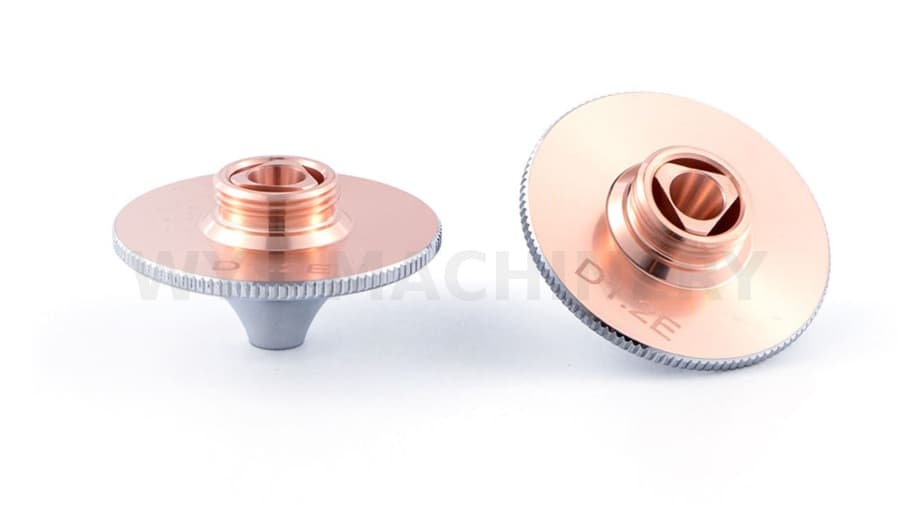

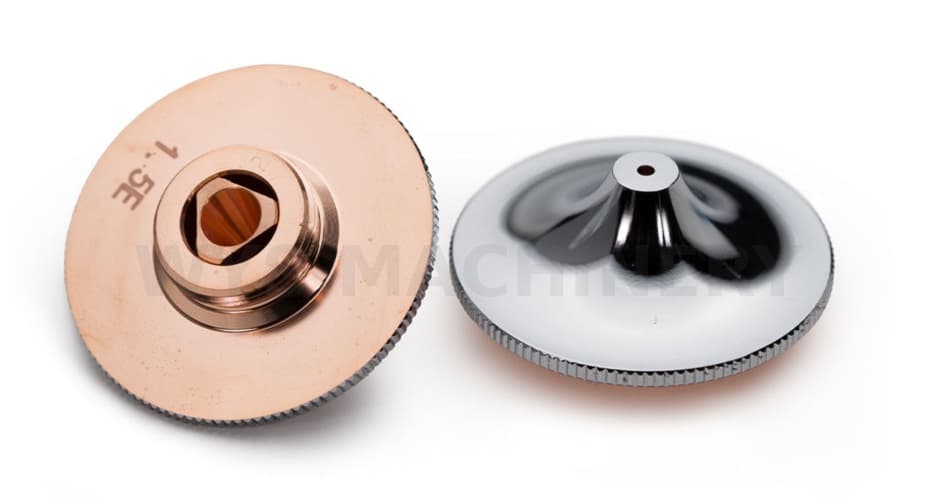

D28 M11 H15 Double Layer High Speed Laser Cutting Nozzle
The D28-C-15-DP double layer laser cutting nozzle is a precision consumable designed for compatible fiber laser cutting heads and CNC fiber laser cutting machines. With a 28 mm outer diameter, M11 thread and 15 mm overall height, it provides a precise connection between the nozzle and cutting head for stable laser cutting operation.
The double layer structure is designed for high-speed fiber laser cutting applications where controlled assist-gas flow, nozzle concentricity and consistent cutting performance are important.
A wide selection of nozzle apertures from Ø1.0 mm to Ø6.0 mm is available, allowing the nozzle to be selected according to laser power, sheet material, material thickness, assist gas and cutting parameters.
The D28 M11 H15 nozzle can be used as a replacement laser consumable for compatible cutting heads in sheet metal fabrication and fiber laser cutting applications.
Key Features
Double Layer Design
The double layer construction is suitable for high-speed fiber laser cutting applications and supports controlled assist-gas delivery during cutting.

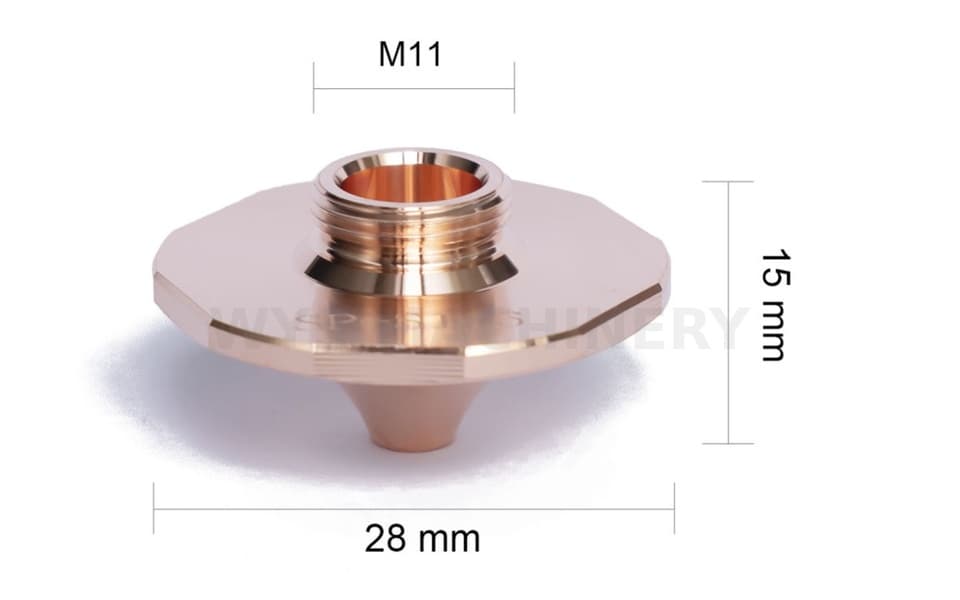

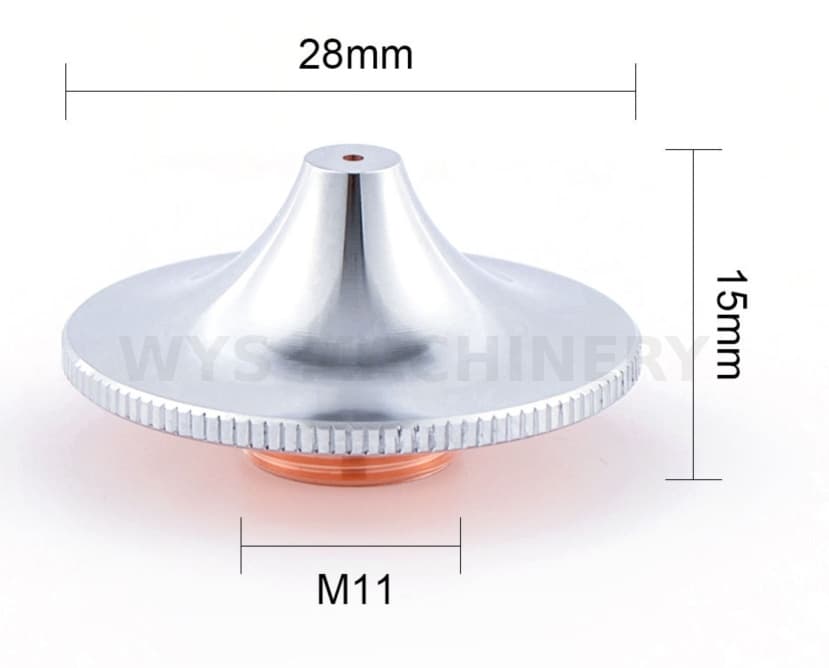

D28 / 28 mm Outer Diameter
The nozzle features a 28 mm outer diameter for compatible laser cutting head configurations.
M11 Thread Connection
Precision-machined M11 threads provide secure installation and convenient nozzle replacement.
H15 / 15 mm Overall Height
The 15 mm overall height provides a compact nozzle configuration for corresponding fiber laser cutting heads.
Wide Aperture Range
Multiple nozzle aperture sizes from Ø1.0 mm to Ø6.0 mm are available for different materials, thicknesses and cutting conditions.
Precision Nozzle Opening
Accurate aperture machining helps maintain stable assist-gas flow and proper alignment around the laser cutting area.
High-Quality Surface Finish
Precision machining and surface finishing help maintain dimensional consistency and reliable performance during laser cutting.
Easy Replacement
The threaded structure allows convenient nozzle replacement during regular laser cutting machine maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Double Layer Laser Cutting Nozzle |
| Model | D28-C-15-DP |
| Outer Diameter | 28 mm |
| Thread | M11 |
| Overall Height | 15 mm |
| Nozzle Structure | Double Layer |
| Cutting Application | High Speed Fiber Laser Cutting |
| Aperture Range | Ø1.0–Ø6.0 mm |
| Installation Type | Threaded Connection |
| Product Category | Fiber Laser Cutting Consumables |
Available Nozzle Aperture Sizes
| Parameter | Available Sizes |
|---|---|
| Nozzle Aperture | Ø1.0 / Ø1.2 / Ø1.3 / Ø1.4 / Ø1.5 / Ø1.6 / Ø1.7 / Ø1.8 / Ø1.9 / Ø2.0 / Ø2.5 / Ø3.0 / Ø3.5 / Ø4.0 / Ø4.5 / Ø5.0 / Ø6.0 mm |
Selection Note: The appropriate nozzle aperture should be selected according to laser power, material type, sheet thickness, assist gas and actual cutting parameters.
Typical Applications
The D28 M11 H15 double layer laser cutting nozzle is designed for compatible fiber laser cutting systems used in sheet metal processing and fabrication.
Typical applications include:
- Stainless steel laser cutting
- Carbon steel laser cutting
- Mild steel sheet cutting
- Galvanized steel cutting
- Aluminum sheet cutting
- Sheet metal fabrication
- High-speed fiber laser cutting
- CNC fiber laser cutting applications
Depending on the laser cutting system and process parameters, different nozzle apertures can be selected for cutting processes using oxygen, nitrogen or compressed air as the assist gas.
How to Select the Correct Laser Nozzle
Choosing the correct fiber laser cutting nozzle is important for maintaining stable assist-gas flow and consistent cutting performance.
The following factors should be considered when selecting the nozzle aperture:
Laser Power
Different laser power levels and cutting processes may require different nozzle aperture sizes.
Material Type
Carbon steel, stainless steel, aluminum and other materials may require different assist gases and cutting parameters.
Sheet Thickness
Thin-sheet high-speed cutting and thicker plate cutting may require different nozzle diameters and gas-flow conditions.
Assist Gas
Oxygen, nitrogen and compressed air have different pressure and flow requirements during laser cutting.
Cutting Parameters
Nozzle size should be matched with the cutting head configuration, cutting speed, focal position, gas pressure and other process parameters.
For applications where the correct nozzle specification is uncertain, the existing nozzle model, dimensions, laser cutting head model or product sample can be used for identification.
Product Advantages
Stable Assist-Gas Delivery
Precision-machined nozzle geometry supports controlled assist-gas flow around the laser cutting zone.
Accurate Dimensions
The D28 outer diameter, M11 thread and H15 overall height are precisely controlled for reliable installation in compatible cutting heads.
Multiple Aperture Options
A wide range of nozzle diameters allows one nozzle series to cover different laser powers, materials, sheet thicknesses and cutting conditions.
Suitable for High-Speed Cutting
The double layer configuration is designed for fiber laser cutting applications where stable gas flow and consistent cutting performance are required.
Convenient Maintenance
The threaded design makes nozzle inspection and replacement simple during routine laser cutting machine maintenance.
Manufacturing & Quality Control
Dimensional accuracy is particularly important for fiber laser cutting nozzles because nozzle geometry, aperture concentricity and thread accuracy can influence assist-gas distribution and cutting stability.
Quality control focuses on:
- Nozzle aperture accuracy
- Aperture concentricity
- M11 thread accuracy
- Outer dimensional consistency
- Internal gas passage geometry
- Surface finish
- Batch-to-batch dimensional consistency
Each nozzle specification is manufactured to provide reliable installation and consistent performance in compatible fiber laser cutting head applications.
Ordering Information
To identify and order the correct laser cutting nozzle, please provide as much of the following information as possible:
| Required Information | Example |
|---|---|
| Nozzle Model | D28-C-15-DP |
| Outer Diameter | 28 mm |
| Thread | M11 |
| Overall Height | 15 mm |
| Nozzle Aperture | Ø1.5 mm |
| Nozzle Structure | Double Layer |
| Laser Cutting Head Model | If available |
| Required Quantity | According to requirement |
If the exact nozzle model is unknown, customers can provide the nozzle dimensions, cutting head model, existing nozzle markings, product photos or physical sample for identification.
Compatibility
This D28 M11 H15 double layer nozzle is designed for use with compatible fiber laser cutting heads.
Please confirm the outer diameter, thread specification, overall height, nozzle aperture and cutting head configuration before ordering.
Compatibility can be checked according to the nozzle model, laser cutting head model, dimensions, photos or customer sample.
