TRUMPF Type 5-Station Multi-Tool – SQ10 Punch & Die Sub-Tool
TRUMPF Type 5-Station Multi-Tool punching system designed to accommodate multiple independent punch and die sets within one multi-tool assembly. The SQ10 square punch and die shown here is one sub-tool example for a 10 × 10 mm square punching profile. Different stations can be configured with different shapes and sizes, including round, square, rectangle, obround and custom profiles according to punching requirements.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description
The TRUMPF Type 5-Station Multi-Tool is a multi-station punch tooling system designed to accommodate multiple independent punch and die sets within one tooling assembly.
Unlike a conventional single-station punching tool, a multi-tool provides several tooling stations in one system. Each station can be equipped with its own corresponding punch and lower die, allowing different punching profiles and dimensions to be incorporated into the same multi-tool configuration.
The product shown on this page is an SQ10 square punch and die sub-tool manufactured as an example for the 5-station multi-tool system. SQ10 represents a nominal 10 × 10 mm square punching profile.
Importantly, SQ10 is only one example of an available sub-tool configuration. A 5-station multi-tool does not require all five stations to use the same shape or dimension. Different stations can be configured with different punching profiles and sizes according to the customer's sheet metal components and production requirements.
Key Features
- Designed for TRUMPF Type 5-Station Multi-Tool systems
- Multiple independent punch and die sets can be integrated into one multi-tool assembly
- Each station can use a different punch profile and dimension
- SQ10 shown as a 10 × 10 mm square sub-tool example
- Supports round, square, rectangular and obround punching profiles
- Special and irregular punching profiles can be customized
- Individual sub-tools can be manufactured according to customer requirements
- Corresponding lower dies available for each punch profile
- Die clearance can be selected according to sheet material and thickness
- Suitable for applications requiring multiple punching geometries
- Helps increase tooling flexibility without relying on multiple separate full-size tooling assemblies
- Custom punch and die sub-tools available according to drawings
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Multi-Tool Punching System / Sub-Tool |
| Tooling System | TRUMPF Type Multi-Tool |
| Number of Stations | 5 Stations |
| Sample Sub-Tool | SQ10 |
| Sample Shape | Square |
| Sample Punching Size | 10 × 10 mm |
| Sub-Tool Structure | Independent Punch & Die Set |
| Station Profiles | Can be different |
| Station Dimensions | Can be different |
| Lower Die | Matched to each punch |
| Die Clearance | According to material and thickness |
| Available Profiles | RO, SQ, RE, OB & Custom Shapes |
| Custom Dimensions | Available |
| Custom Profiles | Available according to drawing |
| Application | Multi-profile Sheet Metal Punching |
What Is a 5-Station Multi-Tool?
A 5-station multi-tool combines five tooling positions within one multi-tool system.
Each position functions as an independent tooling station with its corresponding punch and lower die.
The key advantage is that the stations do not have to use identical punching geometries.
For example, depending on the application, one multi-tool configuration could include:
Station 1 – RO Round
Station 2 – SQ Square
Station 3 – RE Rectangle
Station 4 – OB Obround
Station 5 – Custom Profile
The actual combination is determined by the customer's workpiece and punching requirements.
This enables multiple commonly used punching profiles to be available within one multi-tool configuration.
SQ10 Square Sub-Tool Example

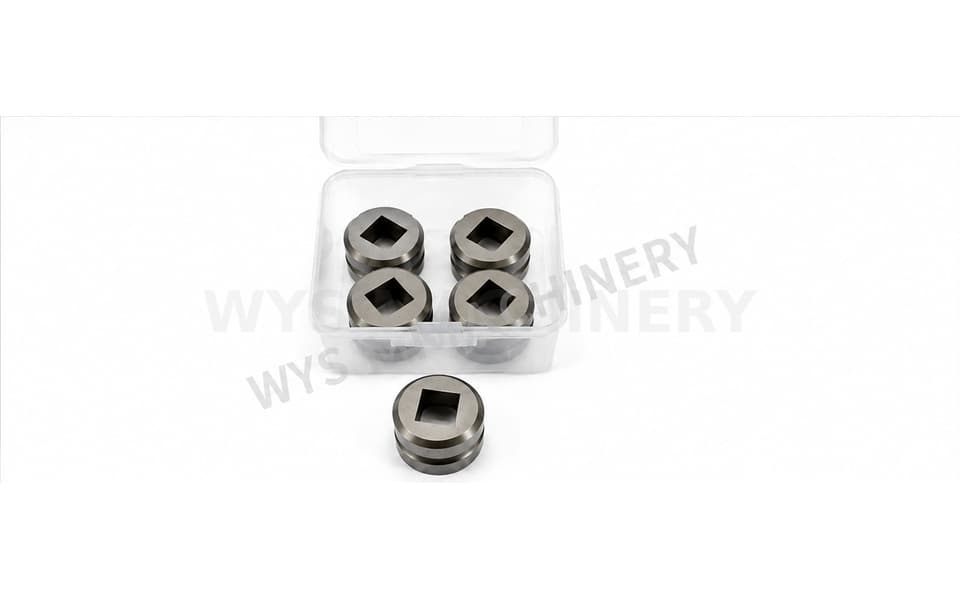

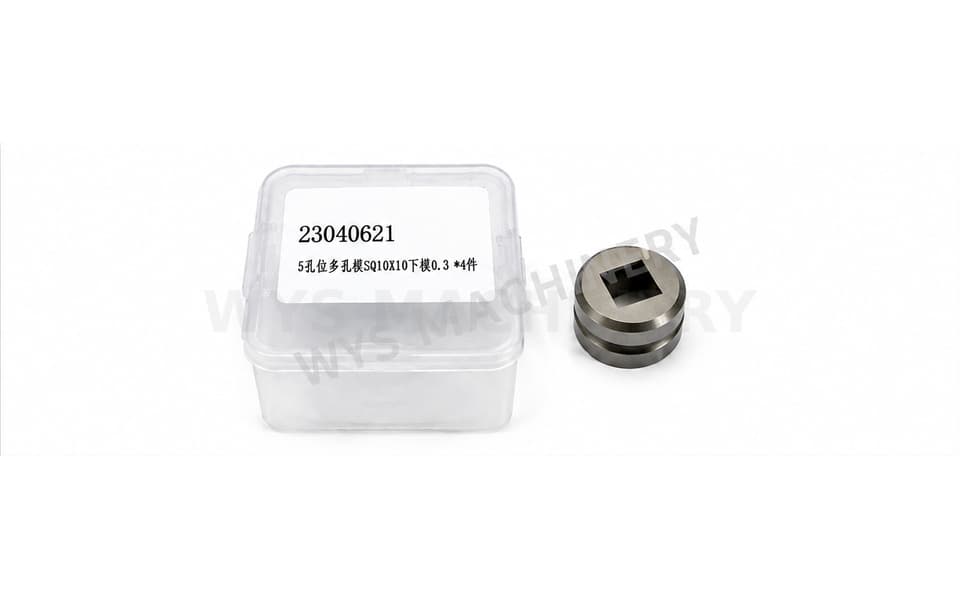

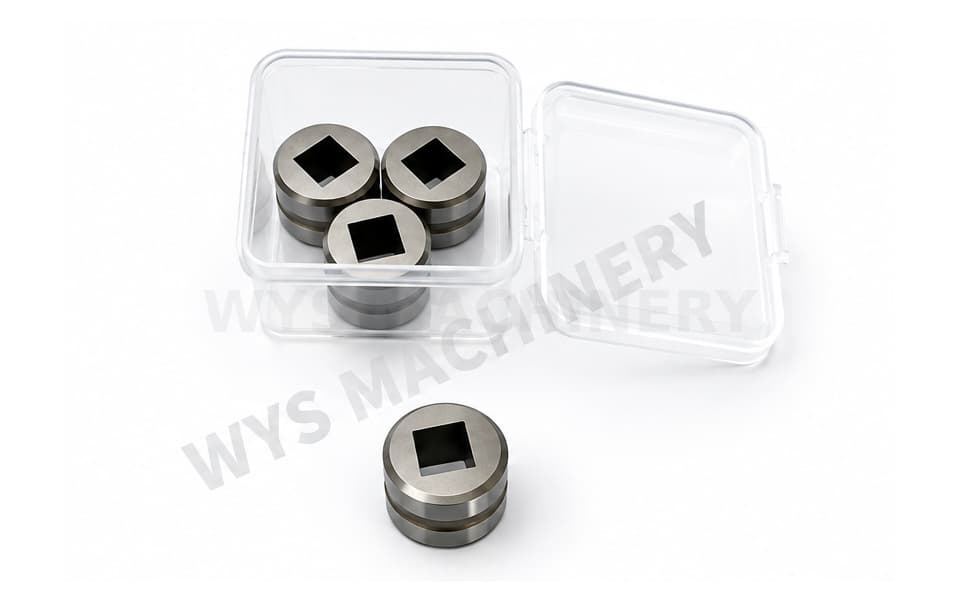

The photographs on this page show an SQ10 sub-tool manufactured for a TRUMPF Type 5-station multi-tool.
The designation can be understood as:
SQ = Square
10 = Nominal 10 mm dimension
Therefore, SQ10 represents a nominal 10 × 10 mm square punching profile.
The SQ10 shown here is a product sample used to demonstrate one possible sub-tool configuration. It does not define or limit the other stations within the multi-tool.
Other stations can use different shapes and dimensions according to the customer's production requirements.
Different Shapes and Sizes in One Multi-Tool
One of the main advantages of a multi-tool system is its flexibility.
Instead of configuring every station with the same geometry, customers can select different punching profiles for different positions.
Typical available shapes include:
- RO – Round
- SQ – Square
- RE – Rectangle
- OB – Obround / Oblong
- Slot
- Polygonal profiles
- Keyhole-type profiles
- Notching profiles
- Special contours
- Custom punching profiles
Dimensions can also vary between stations.
For example, a customer may require several commonly used round-hole diameters together with one square and one rectangular profile. These requirements can be evaluated when configuring the individual sub-tools.
Multi-Tool vs. Multi-Hole Punch Tool
This distinction is important when selecting punch tooling.
| 5-Station Multi-Tool | Multi-Hole Punch Tool |
|---|---|
| Contains multiple independent tooling stations | Contains multiple punching points in one tool |
| Each station has its own punch and die set | Designed to create multiple holes in one stroke |
| Different shapes can be installed | Hole shapes are typically identical for a specific multi-hole application |
| Different dimensions can be installed | Hole dimensions are typically identical |
| Machine selects/uses the required tooling station | Multiple holes are punched simultaneously |
| Main benefit is tooling flexibility and station capacity | Main benefit is producing multiple holes per stroke |
Therefore, a 5-station multi-tool should not be confused with a multi-hole punch.
A multi-tool provides several independent tooling options within one assembly, whereas a multi-hole tool is designed to produce several holes during a single punching operation.
Independent Punch & Die Sets
Each sub-tool requires a corresponding punch and lower die.
The punch defines the required cutting profile, while the lower die provides the corresponding opening and appropriate punching clearance.
Because different stations can contain different geometries, each punch-and-die combination can be manufactured according to its specific requirements.
This means one 5-station configuration can contain several technically different sub-tool sets while operating within the same multi-tool system.
Customized Die Clearance
The correct punch-to-die clearance depends on factors such as:
- Sheet material
- Material thickness
- Punch profile
- Punch dimensions
- Required edge quality
- Punching conditions
Therefore, the lower die specification can be customized according to the actual sheet metal application.
Even when two customers use the same SQ10 punch profile, their corresponding die requirements may differ because of different sheet materials or thicknesses.
Why Use a Multi-Tool System?
For sheet metal components requiring several different hole shapes or dimensions, changing between multiple conventional tools can occupy additional tooling positions and increase tool-management requirements.
A multi-tool system provides multiple punching options within one tooling assembly.
Depending on the machine configuration and production requirements, this can help:
- Increase available punching flexibility
- Provide several commonly used profiles in one system
- Reduce reliance on separate full-size tooling assemblies
- Improve tooling organization
- Support parts containing several different hole geometries
- Improve flexibility for high-mix sheet metal production
The actual productivity benefit depends on the machine, workpiece program and tooling configuration.
Typical Applications
TRUMPF Type 5-station multi-tool punching systems can be used for components requiring several different punched features, including:
- Electrical cabinets
- Control panels
- Switchgear
- Machinery enclosures
- Equipment housings
- HVAC components
- Mounting plates
- Sheet metal brackets
- Industrial panels
- Machine covers
- Automotive sheet metal components
- General precision sheet metal fabrication
They are particularly useful when one workpiece or production environment regularly requires multiple hole shapes and dimensions.
Custom Multi-Tool Sub-Tools from Your Drawing
The SQ10 shown on this page is only one example of our multi-tool manufacturing capability.
Customers can provide:
- Required punching shape
- Punch dimensions
- Sheet material
- Sheet thickness
- Existing multi-tool information
- Number or arrangement of required sub-tools
- DXF / CAD drawings
- Finished workpiece drawings
Based on these requirements, we can manufacture corresponding punch and lower die sub-tools for TRUMPF Type multi-tool systems.
Different shapes and dimensions can be combined according to the actual application, allowing the multi-tool configuration to be adapted to the customer's sheet metal production requirements.
