TRUMPF Type Five-Station MultiTool SQ10 Square Punching Die
TRUMPF Type five-station MultiTool punching die designed for multi-station punch tooling applications. The SQ10 square die shown here produces a 10 × 10 mm square punching profile and demonstrates our custom tooling capability for TRUMPF punching machines. Different hole shapes, punching sizes and die specifications can be manufactured according to customer drawings and sheet metal processing requirements.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description
The TRUMPF Type Five-Station MultiTool SQ10 Square Punching Die is manufactured for use with five-station multi-tool punching systems, allowing multiple punching tools to be integrated into one tooling configuration for flexible sheet metal fabrication.

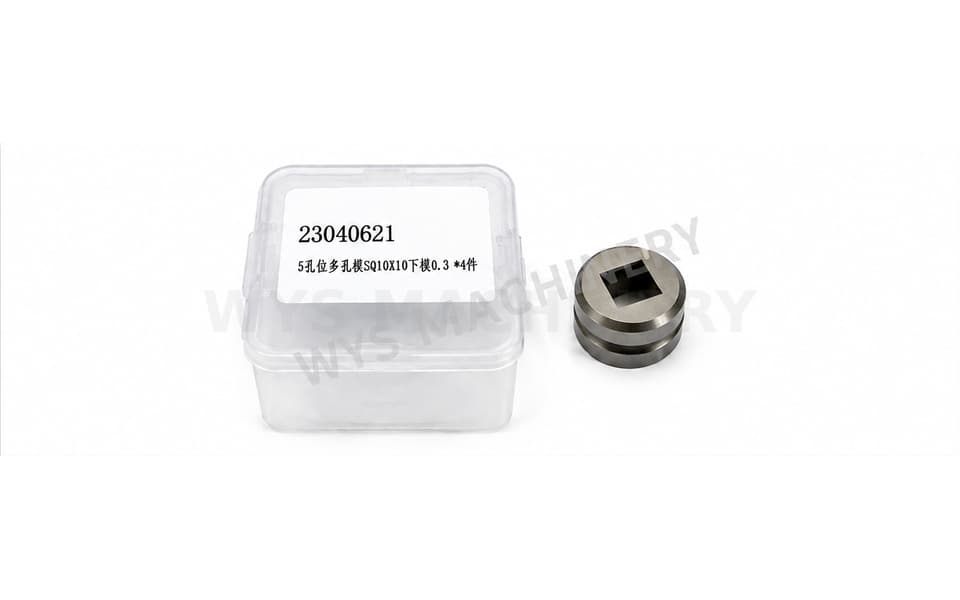

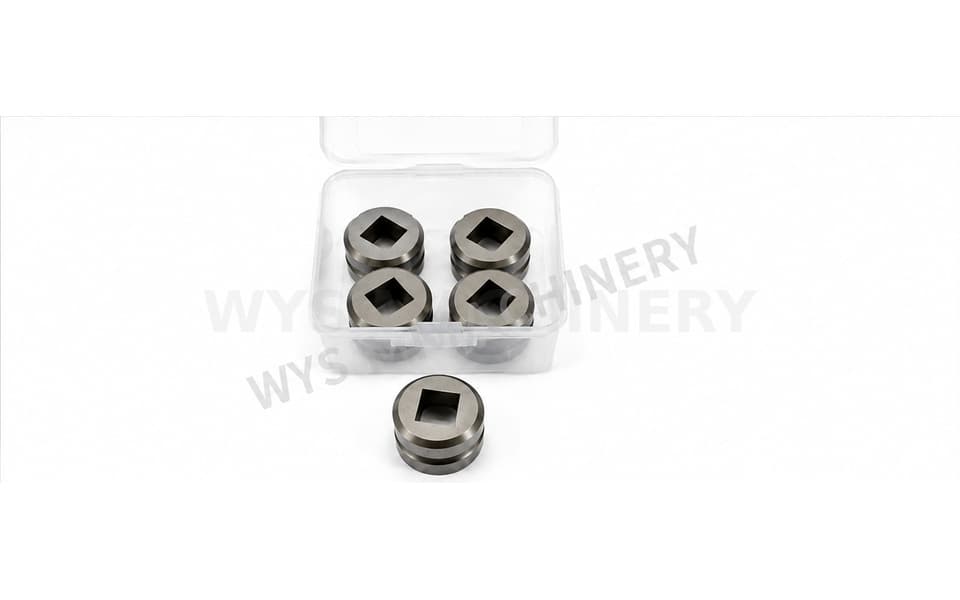

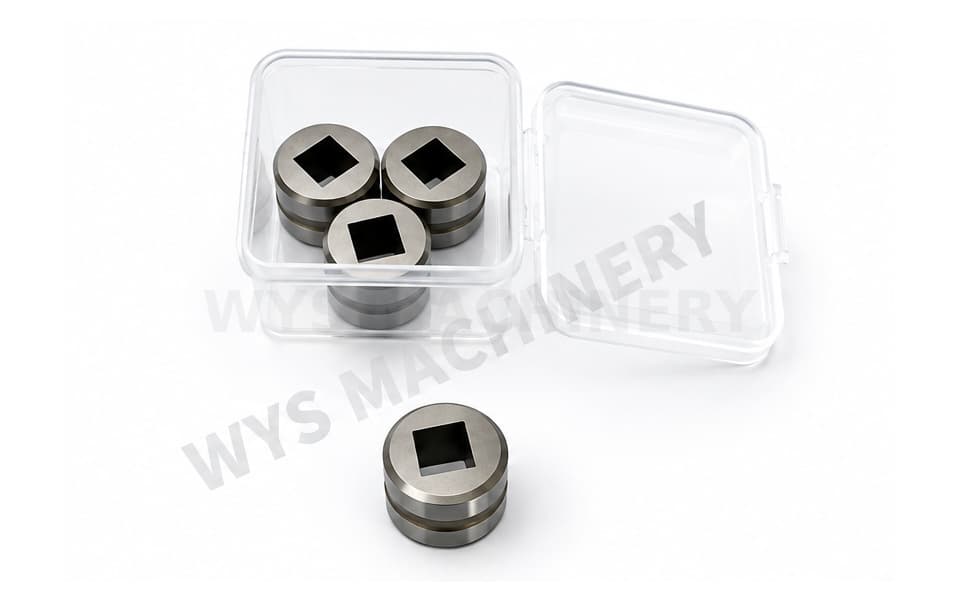

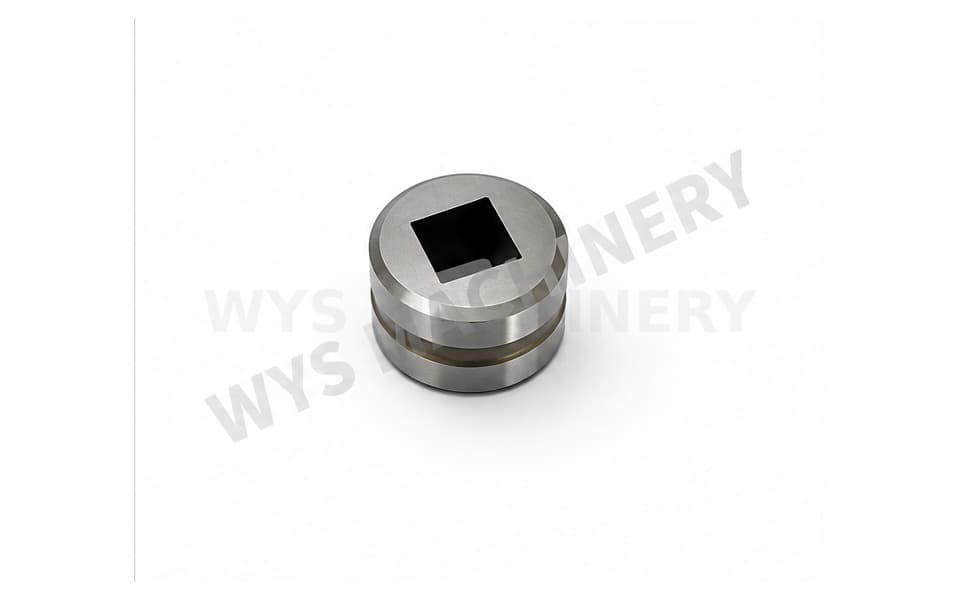

The product shown is an SQ10 square punching die, providing a 10 × 10 mm square opening. It is an example of our custom TRUMPF MultiTool punching tooling capability rather than a limitation to one standard size.
For manufacturers processing different sheet metal components, we can produce five-station MultiTool dies in a wide range of round, square, rectangular, obround and special-shaped profiles. Punching dimensions and die clearance can also be manufactured according to the customer's workpiece drawing, material type and sheet thickness.
The multi-station concept allows several punching profiles or sizes to be prepared within the same tooling system. This can help reduce tool-change requirements and provides greater flexibility when different holes or features need to be produced during sheet metal punching.
Key Features
- Designed for TRUMPF Type five-station MultiTool punching systems
- SQ10 example produces a 10 × 10 mm square punching profile
- Suitable for precision sheet metal hole punching
- Multiple tooling positions provide flexible punching capability
- Custom round, square, rectangular, obround and special shapes available
- Punching dimensions can be manufactured according to customer drawings
- Die clearance can be selected according to sheet thickness and material
- Suitable for standard and customized TRUMPF punching tooling requirements
- Precision-machined working surfaces for stable punching performance
- Custom tooling design support available for special sheet metal parts
Technical Specifications
| Item | Specification |
|---|---|
| Tooling Type | Five-Station MultiTool Punching Die |
| Machine Compatibility | TRUMPF Type Punching Machines / MultiTool Systems |
| Example Shape | Square |
| Example Size | SQ10 / 10 × 10 mm |
| Number of Tool Positions | 5 Stations |
| Available Shapes | Round, Square, Rectangle, Obround & Custom Profiles |
| Punching Size | Customizable |
| Die Clearance | Customized according to material and sheet thickness |
| Tooling Configuration | Standard or Custom |
| Custom Design | Available according to customer drawings |
Five-Station MultiTool for Flexible Sheet Metal Punching
A five-station MultiTool provides several tooling positions within one multi-tool system. Compared with using individual tooling for every punching feature, this configuration is particularly useful when a sheet metal component requires several different hole sizes or profiles.
The SQ10 tooling shown on this page demonstrates a square-hole configuration. Depending on the application, customers can order other dimensions and profiles for their TRUMPF MultiTool punching system, allowing the tooling configuration to better match actual production requirements.

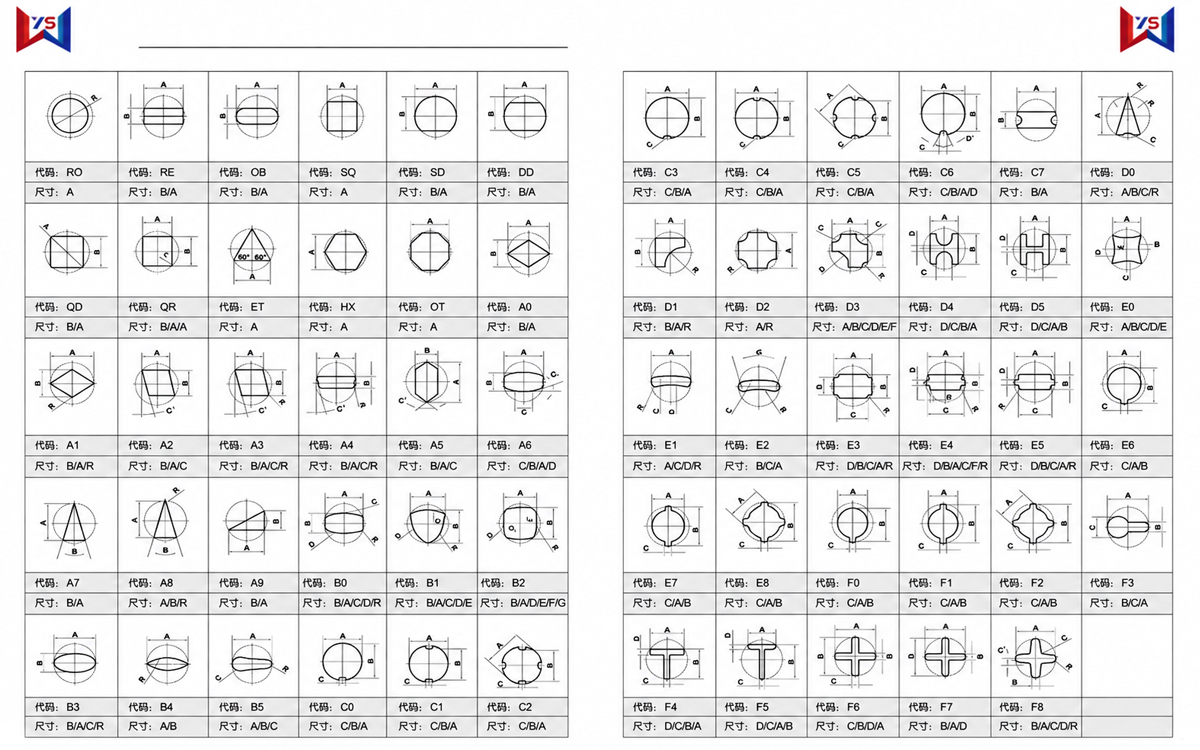

Available Shapes and Custom Sizes
Although SQ10 square punching tooling is used as the example on this page, we are not limited to 10 × 10 mm square profiles.
Custom tooling can be manufactured for:
- Round holes (RO)
- Square holes (SQ)
- Rectangular holes (RE)
- Obround / slot profiles
- Special-shaped punching profiles
- Customer-specific hole dimensions
For non-standard parts, customers can provide the sheet metal component drawing, required punching shape, dimensions, material and sheet thickness. We can then recommend or manufacture a suitable punching tool configuration.
Typical Applications
This five-station MultiTool punching die is suitable for sheet metal punching operations involving:
- Electrical cabinets and enclosures
- Control panels
- Sheet metal housings
- Machinery covers
- Metal cabinets
- HVAC sheet metal components
- Automotive sheet metal parts
- Industrial equipment panels
- Custom fabricated sheet metal components
- Components requiring multiple hole sizes or punching profiles
It is particularly useful for production environments where several punching operations are required and multi-station punch tooling can improve tooling flexibility.
Custom TRUMPF Punch Tooling
In addition to standard punching shapes and dimensions, we manufacture custom TRUMPF Type punch tooling according to individual production requirements.
Customers can send us their workpiece drawings or punching specifications. Our engineering team can assist with tooling selection and design, including the required punch shape, punching dimensions, die clearance and tooling configuration.
This makes the five-station MultiTool suitable not only for standard square and round holes but also for customized sheet metal punching applications.
