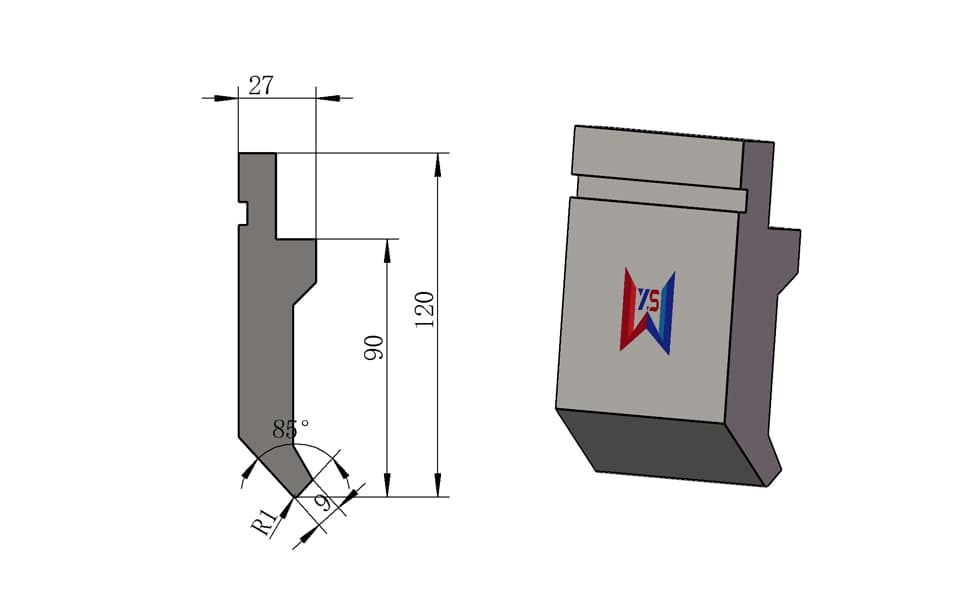

85° R1 Standard Press Brake Upper Punch – 120 mm Height, 27 mm Width, 100 Ton/m
Standard 85° R1 press brake upper punch designed for general sheet metal bending applications. With a 120 mm overall height, 27 mm total width, 9 mm tip width, and 100 ton/m load capacity, this upper punch is commonly supplied with new press brake machines and is suitable for CNC bending, replacement tooling, and general fabrication applications.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description
Key Features
- 85° punch angle for versatile and accurate sheet metal bending
- R1 tip radius for consistent bending performance
- 120 mm overall height matching a common standard press brake tooling configuration
- 27 mm total width for standard tooling compatibility
- 9 mm tip width for reliable workpiece contact
- 100 ton/m load capacity for demanding industrial bending applications
- Standard upper punch configuration commonly used with new press brake machines
- Suitable for general-purpose CNC press brake bending
- Manufactured from 42CrMo alloy steel
- Heat treated to HRC 54 ± 2 for wear resistance and long service life
- Suitable for replacement and additional press brake tooling
- Custom dimensions and profiles available
- Free tooling design service available for special applications
Technical Specifications
| Specification | Details |
|---|---|
| Tool Type | Standard Press Brake Upper Punch |
| Punch Angle | 85° |
| Tip Radius | R1 |
| Overall Height | 120 mm |
| Total Width | 27 mm |
| Tip Width | 9 mm |
| Load Capacity | 100 ton/m |
| Material | 42CrMo Alloy Steel |
| Hardness | HRC 54 ± 2 |
| Application | General Sheet Metal Bending |
| Tooling Type | Standard CNC Press Brake Tooling |
| Customization | Available |
Typical Applications
This 85° R1 standard press brake upper punch is designed as a versatile general-purpose tooling solution for CNC press brake machines.
It is commonly used for:
- General sheet metal bending
- Carbon steel bending
- Stainless steel bending
- Mild steel fabrication
- Electrical cabinets and enclosures
- Machinery and equipment manufacturing
- Automotive components
- Metal brackets and structural parts
- General industrial fabrication
- Replacement press brake tooling
- Additional tooling for production lines
- New press brake machine tooling configurations
With its standard geometry and 100 ton/m load capacity, this punch is suitable for a broad range of everyday sheet metal bending operations.
This type of standard upper punch is commonly selected as part of the tooling configuration supplied with new press brake machines, making it a practical choice for machine manufacturers, distributors, fabricators, and end users looking for compatible replacement or additional tooling.
The tooling can be manufactured for applications involving major press brake brands and tooling systems, including Amada, TRUMPF, LVD, Bystronic, and WILA, according to the specific machine interface and tooling requirements.
Product Details & Manufacturing Quality
The punch is manufactured from 42CrMo alloy steel, providing a combination of high strength, toughness, wear resistance, and durability required for repeated press brake operations.
The working area is heat treated to approximately HRC 54 ± 2, helping maintain the tooling profile and dimensional stability during long-term production.
The 85° working angle and R1 tip radius provide a balanced configuration for general sheet metal forming. The 120 mm overall height offers a practical working height for standard press brake applications while maintaining stable tooling performance.
With a 100 ton/m load capacity, this standard upper punch is suitable for a wide range of industrial bending requirements. Actual allowable bending force should always be evaluated according to the workpiece material, thickness, bending length, die opening, bending method, and machine specifications.
Standard & Custom Press Brake Tooling
As a manufacturer of press brake tooling, we provide both standard replacement punches and fully customized tooling solutions.
For customers purchasing a new press brake machine, this type of standard 85° R1 upper punch can be supplied as part of the machine's tooling package or as additional tooling for production requirements.
For customers who need replacement tooling, we can manufacture compatible punches according to existing tooling dimensions, machine specifications, drawings, or samples.
We also provide free press brake tooling design services for customers with special bending requirements.
Customization options include:
- Overall tooling height
- Total tooling width
- Tip width
- Tip radius
- Punch angle
- Tooling length
- Special clearance structures
- Relief areas
- Gooseneck punches
- Special-shaped punches
- Machine-specific tooling
- Customized upper and lower tooling sets
If you have a 2D/3D workpiece drawing or bending drawing, you can send it to us. Our engineering team can evaluate the bending requirements and recommend a suitable tooling configuration before production.
This allows us to provide both standard press brake tooling for general applications and custom press brake tooling for complex or specialized bending requirements.
