V80 85° Single-V Press Brake Lower Die for Large V-Opening Bending

This V80 press brake lower die is designed with a robust single-V structure for sheet metal bending applications requiring a large V-opening and a wide, stable die body.

The illustrated model features an 80 mm V-opening, 85° die angle, 90 mm overall height and 100 mm overall width, with a rated load capacity of 100 ton/m.

The V80 opening provides substantial bending clearance and is suitable for applications requiring a larger inside bend radius, wider forming clearance or heavier-gauge sheet metal within the allowable bending capacity.

The 85° V-groove geometry is suitable for air bending applications and provides additional forming allowance when material springback must be considered.

Large V-Opening for Wider Bending Clearance

The 80 mm V-opening provides considerably more forming space than smaller V-dies.

This makes the lower die suitable for applications requiring:

• Large inside bending radii
• Wider workpiece clearance
• Medium and heavier-gauge sheet metal bending
• Larger flange geometries
• Reduced interference around the workpiece during forming

The actual V-opening should be selected according to the material grade, sheet thickness, required inside radius, minimum flange length and bending tonnage.

100 Ton/m Load Capacity

The V80 lower die has a rated load capacity of 100 ton/m.

Its 100 mm wide die body provides a broad and stable support structure around the V-groove for reliable production bending.

Before use, the actual bending force should be evaluated according to the material strength, sheet thickness, bending length and selected V-opening.

Flexible Effective Tool Height

The illustrated lower die has an overall height of 90 mm and a standard effective working height of 75 mm.

Depending on the customer's machine and tooling configuration, the effective height can also be manufactured as:

70 mm or other customized dimensions.

This allows the die to be matched with different punch heights, machine daylight, clamping systems and existing tooling combinations.

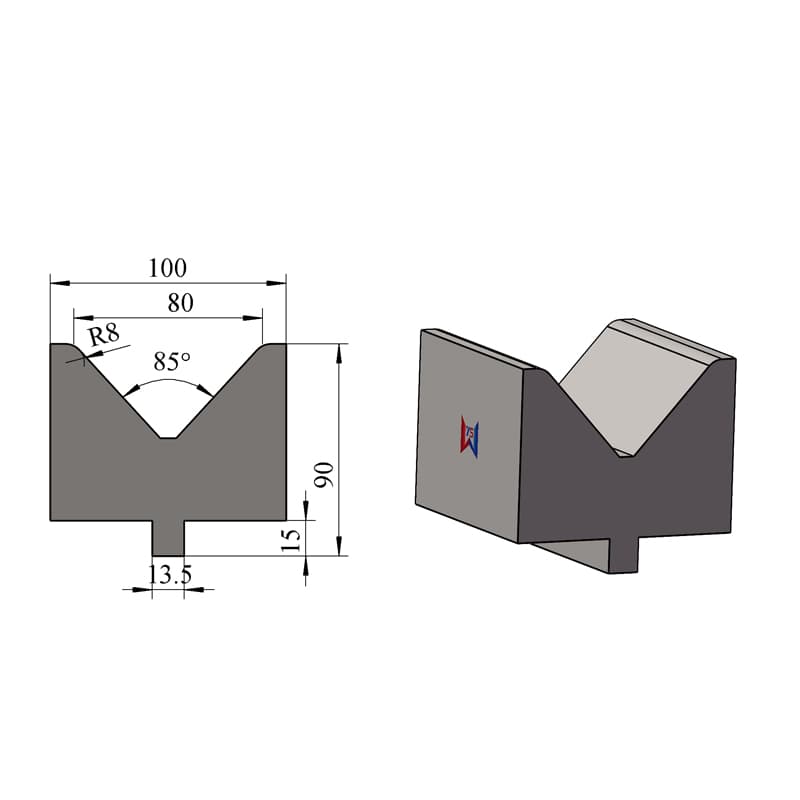

V80 Single-V Die Geometry

The illustrated configuration includes:

• V80 / 80 mm V-opening
• 85° die angle
• 90 mm overall height
• 75 mm effective height
• 100 mm overall width
• Approx. R8 shoulder radius
• 100 ton/m load capacity

The V-opening, die angle, shoulder radius, edge dimensions and surrounding geometry can also be customized according to the customer's workpiece and bending requirements.

Key Features

• Single-V lower die structure
• V80 / 80 mm V-opening
• 85° die angle
• 90 mm overall height
• 75 mm standard effective height
• 70 mm or customized effective height available
• 100 mm overall body width
• 100 ton/m load capacity
• Approx. R8 shoulder radius
• Large V-opening for increased forming clearance
• Suitable for larger inside bending radii
• Suitable for medium and heavier-gauge sheet metal
• Wide and stable lower-die body
• Custom V-openings available
• Custom die angles available
• Custom edge and radius geometry available
• Custom tool lengths and segmentation available
• Custom mounting structures available

Technical Specifications

Typical Applications

This V80 85° single-V lower die is suitable for a wide range of press brake bending applications, including:

• Large V-opening air bending
• Medium and heavier-gauge sheet metal bending
• Larger inside-radius forming
• Stainless steel fabrication
• Mild steel fabrication
• Machinery structural components
• Industrial equipment parts
• Heavy sheet metal enclosures
• Machine covers and housings
• Fabricated steel structures
• General CNC press brake forming

The appropriate lower die should be selected according to the material type, material strength, sheet thickness, bending angle, required inside radius, minimum flange length and bending tonnage.

Standard & Custom Options

The V80 lower die shown on this page represents one typical tooling configuration only.

WYS Machinery can customize:

• V-opening
• die angle
• overall height
• effective working height
• overall die width
• shoulder radius
• edge geometry
• tool length
• segmented length
• load capacity
• bottom mounting profile
• positioning structure
• clamping interface

In addition to V80, smaller and larger V-openings can be manufactured according to the customer's material thickness, required bending radius and forming requirements.

Single-V, multi-V and other customized lower die structures are also available.

Compatible Press Brake Tooling Systems

WYS Machinery can manufacture customized lower dies for different press brake brands, tooling standards and clamping systems.

Available configurations include:

TRUMPF Type, WILA Type, LVD Type, Bystronic Type, Amada / Promecam Type, European Type and other customized press brake tooling systems.

The lower die is not limited to the mounting structure shown in the drawing. The bottom mounting interface, positioning geometry, overall height, effective height and die cross-section can all be adapted according to the customer's machine.

Customers can provide a machine model, existing tooling drawing, lower die cross-section, tooling sample or workpiece drawing for technical evaluation.

Custom V-Opening, Angle and Die Geometry

The V80 opening and 85° angle shown on this page are one available configuration.

Different V-openings and die angles can be manufactured according to:

• Sheet thickness
• Material grade and strength
• Required bending angle
• Required inside radius
• Minimum flange dimension
• Material springback
• Required bending force
• Press brake configuration

The shoulder radius, edge geometry and lower die body dimensions can also be customized as part of the complete tooling solution.

Custom Press Brake Tooling Design Service

Customers who are unsure which V-opening or lower die structure should be selected can provide:

workpiece drawing, material grade, sheet thickness, required bending angle and press brake model.

Our engineering team can evaluate the actual bending requirement and recommend an appropriate lower die configuration.

The tooling can then be manufactured with the required V-opening, angle, overall height, effective height, width, radius, length and mounting structure.

Why Choose WYS Machinery

WYS Machinery manufactures both standard and customized press brake punches, lower dies and sheet metal bending tooling for different forming applications.

Our lower die manufacturing capabilities include:

• Single-V dies
• Multi-V dies
• Large V-opening dies
• High-capacity lower dies
• Segmented press brake dies
• Customized die angles
• Customized effective heights
• Customized radius geometry
• Special lower-tool profiles
• Custom mounting interfaces
• Replacement tooling for different press brake systems
• Tooling designed according to customer workpiece drawings

This allows customers to obtain both standard replacement tooling and application-specific bending solutions according to their actual production requirements.
