TRUMPF Type Size I RO26 Round Punch & Die Tooling

The TRUMPF Type Size I RO26 Round Punch & Die Tooling is designed for precision circular-hole punching in sheet metal fabrication applications using TRUMPF-style Size I tooling systems.

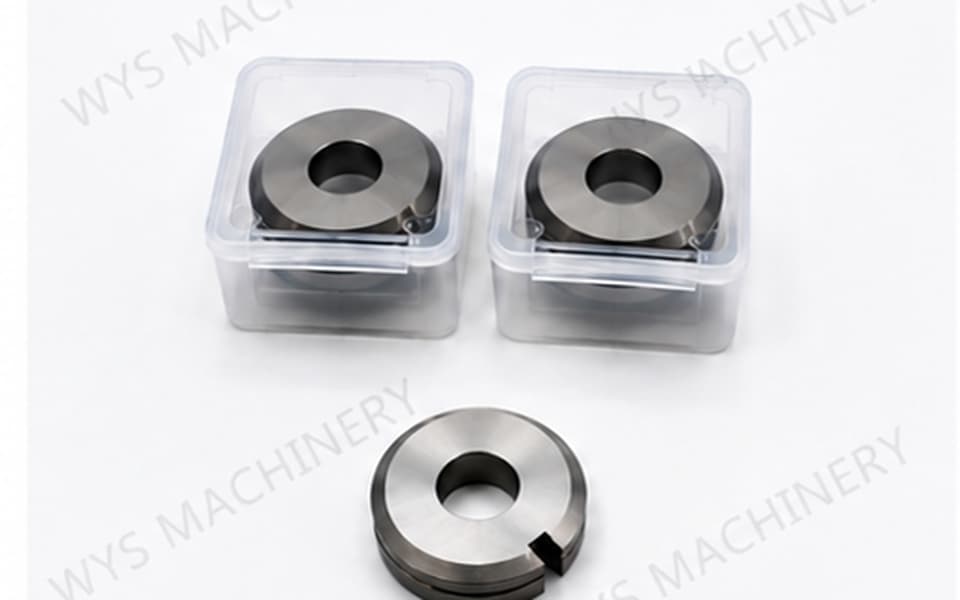

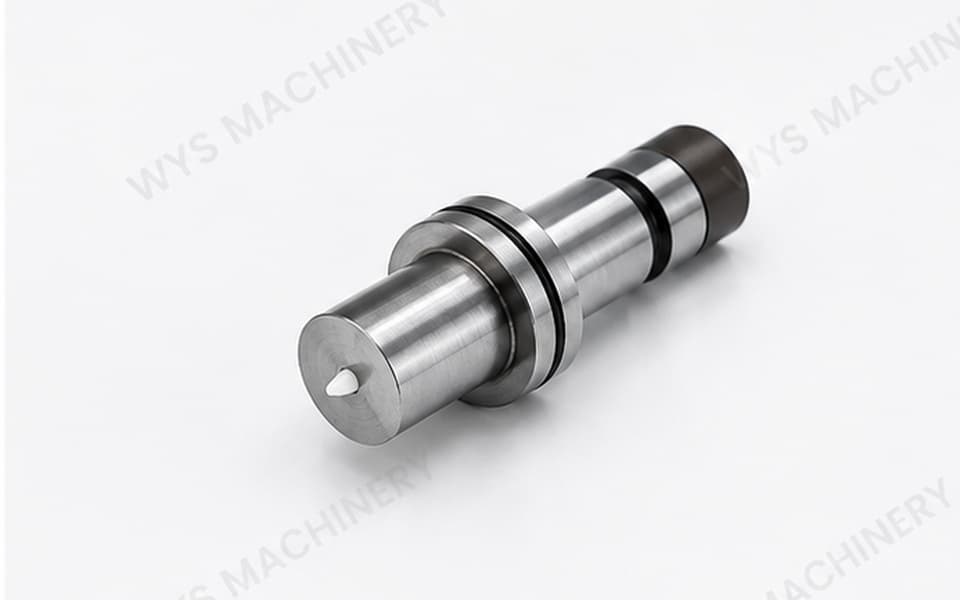

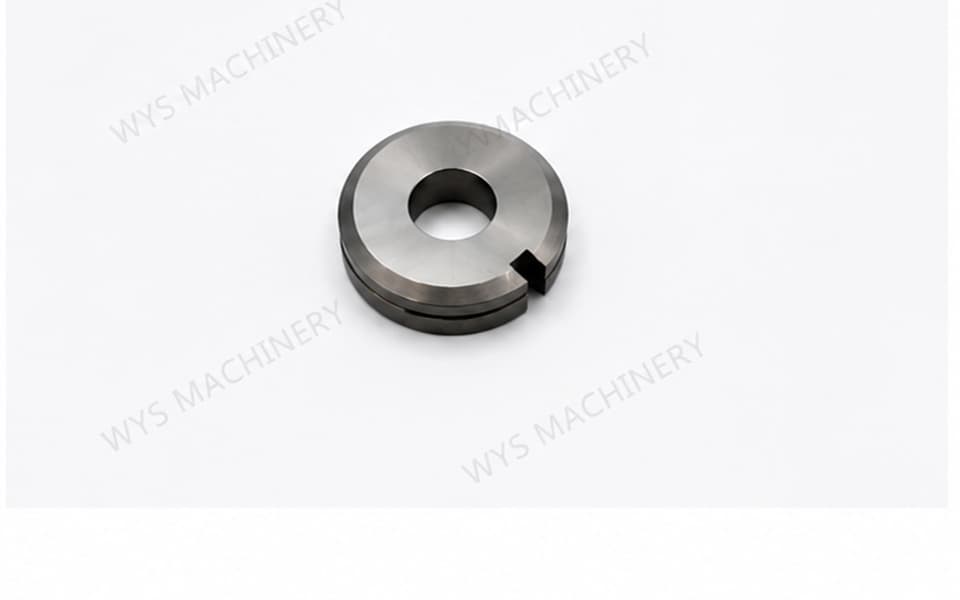

The product shown here is an RO26 round punch with corresponding lower die tooling. In the tooling designation, RO represents a round punching profile and 26 indicates a nominal diameter of 26 mm.

The RO26 tooling therefore represents a nominal Ø26 mm round-hole punching application.

The products shown in the photographs are manufacturing samples. RO26 is not a limitation of our production range. Different round punch diameters, lower die specifications and die clearances can be customized according to the customer's sheet metal material, thickness and required hole dimensions.

Key Features

• Designed for TRUMPF Type Size I / Size 1 punch tooling systems
• RO26 represents a nominal Ø26 mm round punching profile
• Punch and corresponding lower die tooling available
• Precision-machined circular cutting profile
• Suitable for accurate round-hole punching
• Custom round punch diameters available
• Lower die clearance can be matched to sheet material and thickness
• Punches and lower dies can be supplied according to application requirements
• Standard and special punching profiles available
• Custom tooling can be manufactured according to DXF or CAD drawings
• Suitable for industrial sheet metal fabrication and punching applications

Technical Specifications

RO26 – Ø26 mm Round Punching Profile

The designation RO26 provides a simple identification of the punching geometry:

RO = Round
26 = Nominal diameter of 26 mm

The tooling is therefore intended for a nominal 26 mm circular punching profile.

Round holes are among the most widely used features in sheet metal components. A Ø26 mm punched opening may be used for mounting, component installation, cable or tube passage, assembly features and other industrial applications depending on the workpiece design.

The RO26 shown here is one example. Different diameters can be manufactured according to the required finished hole.

Round Punch and Die System

A round-hole punching operation relies on the coordinated geometry of the punch and lower die.

The punch provides the circular cutting profile, while the lower die provides the corresponding opening and necessary clearance for material shearing.

For an RO26 application, the nominal punching profile may remain Ø26 mm, while the actual lower die specification can vary according to the material being processed.

This is why the punch diameter alone is not sufficient when specifying a complete punch-and-die solution.

Die Clearance for Different Sheet Materials

Correct punch-to-die clearance is an important consideration when configuring punching tooling.

The required clearance can vary according to:

• Sheet material
• Material thickness
• Punching conditions
• Required hole quality
• Tooling configuration

For example, two applications may both require an RO26 / Ø26 mm hole, but the corresponding lower dies may require different clearances when punching different materials or thicknesses.

We can manufacture the lower die according to the customer's actual application rather than limiting RO26 to one fixed die specification.

Custom Round Punch Diameters

Although this page shows an RO26 sample, our round punch tooling is available in different diameters.

Customers can provide the required hole diameter together with the sheet material and thickness. The corresponding punch and lower die can then be manufactured according to the actual punching requirement.

This provides flexibility for applications requiring:

• Small round holes
• Medium-diameter holes
• Mounting holes
• Cable or tube openings
• Component installation holes
• Custom circular features

For non-standard requirements, customers can also provide a component drawing instead of specifying the tooling dimensions directly.

Standard & Custom Punching Profiles

In addition to RO round punch tooling, we manufacture other common and customized punching profiles, including:

• RO – Round
• SQ – Square
• RE – Rectangle
• OB – Obround / Oblong
• Slot profiles
• Polygonal profiles
• Keyhole-type profiles
• Notching profiles
• Irregular contours
• Special-shaped punching tools

Customers requiring a non-standard profile can provide a DXF, CAD or finished-part drawing. We can manufacture the corresponding punch and lower die according to the required geometry.

Typical Applications

TRUMPF Type Size I RO26 round punch tooling can be used for circular holes in products such as:

• Electrical cabinets and switchgear
• Control panels
• Machinery enclosures
• Equipment housings
• Sheet metal cabinets
• HVAC components
• Mounting plates
• Industrial brackets
• Machine covers and guards
• Automotive sheet metal components
• Electrical and mechanical assemblies
• Custom fabricated sheet metal parts

The Ø26 mm round profile is suitable for applications requiring a medium-diameter circular opening, while other diameters can be manufactured for different product designs.

Custom Punch Tooling from Your Drawing

The RO26 product displayed on this page demonstrates our manufacturing capability for TRUMPF Type Size I round punch tooling.

Customers are not limited to the Ø26 mm sample size.

For custom tooling, you can provide:

• Required hole shape and dimensions
• Sheet material
• Sheet thickness
• Existing tooling information, if available
• DXF or CAD drawing
• Finished workpiece drawing

Based on the actual punching requirement, we can manufacture the corresponding punch and lower die with customized profile, dimensions and die clearance.

This service covers standard round punching tools as well as square, rectangular, obround and complex special-shaped punch tooling.
