V6 / V10 85° Double-V Press Brake Lower Die – H26 × W50 mm, 80 Ton/m
Compact 85° double-V press brake lower die with integrated V6 and V10 openings, a 50 mm overall width, 26 mm overall height and 80 ton/m load capacity. The plug-in mounting configuration provides a practical lower tooling solution for sheet metal bending applications requiring two V-opening options within one die body. V-openings, angles, dimensions, lengths and mounting interfaces can be customized for different press brake systems.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description
V6 / V10 85° Double-V Press Brake Lower Die
This double-V press brake lower die combines V6 and V10 openings within one compact lower tool, allowing two V-groove sizes to be available in a single die body.

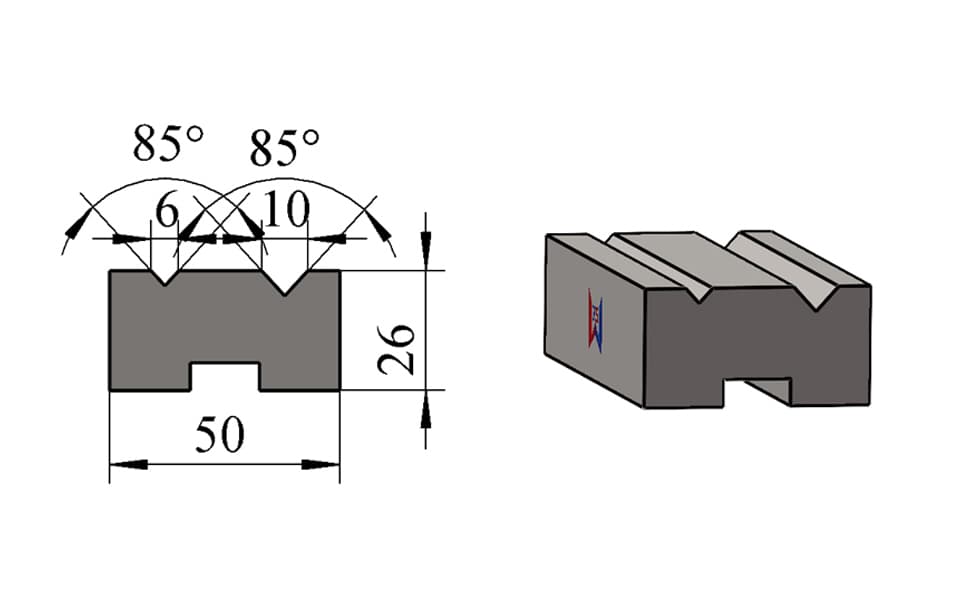

Both V-grooves are manufactured at an 85° die angle. The illustrated configuration has an overall width of 50 mm, an overall height of 26 mm, and a rated load capacity of 80 ton/m.
The integrated double-V structure can help simplify tooling preparation in production environments where different V-opening sizes are required for varying sheet thicknesses, bend radii or workpiece specifications.
The illustrated lower die uses a plug-in mounting system, providing a defined positioning interface with the corresponding lower die holder or press brake table system.
The V6 / V10 combination shown here is one available configuration. Other V-opening combinations, die angles, dimensions, capacities and mounting profiles can be manufactured according to customer requirements.
Key Features
- Double-V / 2V lower die design
- Integrated V6 and V10 openings
- Both V-grooves manufactured at 85°
- Overall width: 50 mm
- Overall height: 26 mm
- Rated load capacity: 80 ton/m
- Plug-in mounting system
- Two V-openings integrated into one compact die body
- Suitable for multiple sheet metal bending requirements
- Precision-machined V-groove geometry
- Custom V-opening combinations available
- Custom angle, height, width and mounting profile available
- Continuous and segmented lengths can be manufactured
Technical Specifications
| Parameter | Specification |
|---|---|
| Tool Type | Double-V Press Brake Lower Die / 2V Die |
| V-Opening 1 | V6 |
| V-Opening 2 | V10 |
| Die Angle | 85° / 85° |
| Overall Height | 26 mm |
| Overall Width | 50 mm |
| Load Capacity | 80 ton/m |
| Number of V-Grooves | 2 |
| Mounting System | Plug-in System |
| Tool Length | Customizable |
| Segmentation | Customizable |
| V-Opening Combination | Customizable |
| Bottom Mounting Profile | Customizable |
Double-V Die Configuration
The V6 / V10 combination shown in this product is one example of a compact double-V lower die.
Different two-groove combinations can be engineered according to:
- Sheet thickness
- Material grade
- Required inside bending radius
- Bending angle
- Press brake configuration
- Tooling load requirement
- Existing lower die holder
- Production flexibility requirements
Available customization includes:
- V-opening size
- Combination of two V-openings
- V-groove angle
- Overall height
- Overall width
- Shoulder geometry
- V-bottom geometry
- Tool length
- Segmented length
- Bottom mounting profile
- Plug-in interface
- Complete lower die cross-section
This allows the double-V tooling concept to be adapted to different bending processes instead of being limited to the V6 / V10 specification shown here.
Typical Applications
This V6 / V10 double-V press brake die is suitable for:
- General sheet metal bending
- Thin and medium sheet fabrication
- Precision metal enclosure production
- Electrical cabinet manufacturing
- Equipment housing fabrication
- Stainless steel sheet bending
- Carbon steel sheet bending
- Mixed-production bending
- Small-batch production
- Applications requiring two commonly used V-openings in one lower die
The appropriate V-opening should be selected according to sheet thickness, material strength, required inside radius, bend angle and bending method.
Plug-In Lower Die System
The illustrated tooling uses a plug-in lower die mounting system.
This type of mounting configuration provides a defined connection between the lower die and its corresponding die holder or press brake table interface.
The plug-in structure shown in the drawing is only one available mounting solution.
WYS Machinery can manufacture different bottom profiles and positioning structures according to the customer's:
- Press brake model
- Existing lower die holder
- Tooling drawing
- Existing die sample
- Required tooling standard
The complete lower die mounting structure can therefore be customized together with the V-opening and die body geometry.
Custom Double-V Press Brake Dies
WYS Machinery manufactures standard and customized double-V press brake dies for different sheet metal bending applications.
The dimensions and V-openings shown on this product represent one reference configuration rather than a fixed manufacturing limitation.
Customers can specify different:
V-openings, angles, overall heights, widths, lengths, segmented lengths, load capacities, mounting profiles and positioning structures.
For non-standard applications, customers can provide:
- Workpiece drawings
- Existing tooling drawings
- Press brake model
- Material grade
- Sheet thickness
- Required bending angle
Our engineering team can evaluate the application and recommend a suitable lower die structure.
Compatible Press Brake Tooling Systems
WYS Machinery can manufacture double-V and multi-V lower dies for different press brake tooling standards and machine configurations.
Available configurations include:
AMADA / Promecam Type, TRUMPF Type, WILA Type, LVD Type, Bystronic Type, European Type and other customized press brake tooling systems.
The dimensions and plug-in structure shown in this product drawing are therefore reference specifications only.
The lower die can be redesigned according to the customer's existing machine and tooling interface.
Standard & Custom Lower Die Solutions
WYS Machinery manufactures a wide range of press brake lower tooling, including:
Single-V Dies · Double-V Dies · Multi-V Dies · Acute-Angle Dies · Wide-Opening Dies · High-Tonnage Dies · Segmented Dies · Special Lower Dies · Custom Press Brake Tooling
This allows the tooling configuration to be selected according to the actual bending requirement instead of being restricted to one standard die design.
