V60 85° Single-V Press Brake Lower Die – H90 × W80 mm, 100 Ton/m
This V60 85° single-V press brake lower die features a 60 mm V-opening, 90 mm overall height, 75 mm effective height and 80 mm overall width, with a rated load capacity of 100 ton/m. Designed for applications requiring a large V-opening and increased bending clearance, this lower die is suitable for medium and heavier-gauge sheet metal bending. The V-opening, die angle, effective height, overall width, edge dimensions, radii, tool length and mounting structure can all be customized according to the customer's workpiece and press brake configuration.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description
V60 85° Single-V Press Brake Lower Die for Large V-Opening Bending
This V60 press brake lower die is designed with a robust single-V structure for sheet metal bending applications requiring a large die opening and stable lower-tool support.
The illustrated model features a 60 mm V-opening, 85° die angle, 90 mm overall height and 80 mm overall width, with a rated load capacity of 100 ton/m.
The V60 opening provides substantial bending clearance and is suitable for applications requiring a larger inside bend radius, wider flange clearance or thicker sheet material within the allowable bending capacity.
The 85° V-groove geometry is suitable for air bending and provides additional forming range when material springback needs to be considered.
Large V-Opening for Increased Forming Clearance
The 60 mm V-opening provides significantly more working space than smaller V-dies.
This makes the die suitable for applications requiring:
- Larger inside bending radii
- Wider forming clearance
- Medium and heavier-gauge sheet bending
- Larger flange geometry
- Increased clearance around the workpiece during bending
The actual V-opening should always be selected according to the sheet thickness, material properties, required inside radius and bending tonnage.
100 Ton/m Load Capacity
This V60 lower die has a rated load capacity of 100 ton/m.
The 80 mm wide die body provides a stable support structure around the V-groove, helping maintain reliable performance during repeated CNC press brake bending operations.
For production use, the required bending force should be calculated according to the material grade, tensile strength, sheet thickness, bending length and selected V-opening.
Flexible Effective Tool Height
The illustrated die has an overall height of 90 mm and a standard effective working height of 75 mm.
Depending on the customer's machine configuration and tooling setup, the effective height can also be manufactured as:
70 mm or other customized dimensions.
This allows the lower die to be matched with different punch heights, machine daylight, clamping systems and existing tooling arrangements.

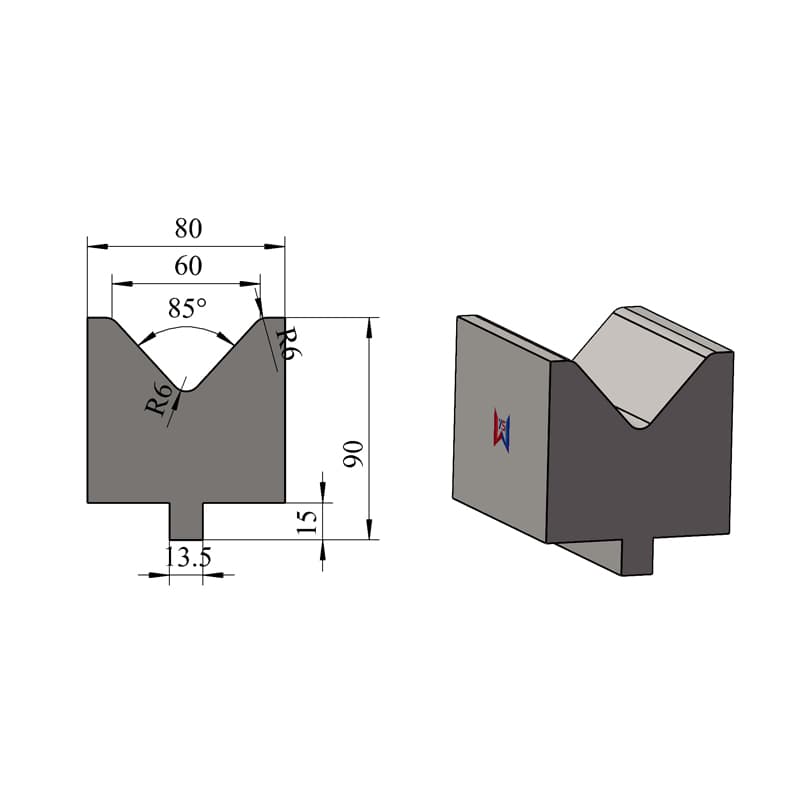

V60 Single-V Die Geometry
The illustrated configuration includes:
- V60 / 60 mm V-opening
- 85° die angle
- 90 mm overall height
- 75 mm effective height
- 80 mm overall width
- Approx. R6 V-bottom radius
- Approx. R6 shoulder radius
- 100 ton/m load capacity
The V-opening, die angle, V-bottom radius, shoulder radius, edge dimensions and surrounding geometry can also be customized according to the customer's workpiece and bending requirements.
Key Features
- Single-V lower die structure
- V60 / 60 mm V-opening
- 85° die angle
- 90 mm overall tool height
- 75 mm standard effective height
- 70 mm or customized effective height available
- 80 mm overall body width
- 100 ton/m load capacity
- Approx. R6 V-bottom radius
- Approx. R6 shoulder radius
- Large V-opening for increased bending clearance
- Suitable for larger inside-radius bending
- Suitable for medium and heavier-gauge sheet metal
- Stable wide-body tooling structure
- Custom V-openings available
- Custom die angles available
- Custom radii and edge geometry available
- Custom tool lengths and segmentation available
- Custom mounting structures available
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Single-V Press Brake Lower Die |
| V-Opening | V60 / 60 mm |
| Die Structure | Single-V |
| Die Angle | 85° |
| Overall Tool Height | 90 mm |
| Effective Tool Height | 75 mm / 70 mm / Customized |
| Overall Width | 80 mm |
| V-Bottom Radius | Approx. R6 |
| Shoulder Radius | Approx. R6 |
| Load Capacity | 100 ton/m |
| Tool Length | Standard or Customized |
| Segmentation | Available |
| Mounting Interface | Customized |
| Main Application | Large V-Opening Sheet Metal Bending |
Typical Applications
This V60 85° single-V lower die is suitable for a wide range of press brake bending applications, including:
- Medium and heavier-gauge sheet metal bending
- Large V-opening air bending
- Larger inside-radius bending
- Stainless steel fabrication
- Mild steel fabrication
- Industrial machinery components
- Structural sheet metal parts
- Heavy sheet metal enclosures
- Machine covers and housings
- Fabricated steel components
- General CNC press brake forming
The appropriate lower die should be selected according to the material type, material strength, sheet thickness, bending angle, required inside radius, minimum flange length and bending tonnage.
Standard & Custom Options
The V60 lower die shown on this page represents one typical tooling configuration only.
WYS Machinery can customize:
- V-opening
- die angle
- overall height
- effective working height
- overall die width
- V-bottom radius
- shoulder radius
- shoulder geometry
- edge dimensions
- tool length
- segmented length
- load capacity
- bottom mounting profile
- positioning structure
- clamping interface
In addition to V60, smaller and larger V-openings can be manufactured according to the customer's material thickness, bend radius and forming requirements.
Single-V, multi-V and other customized lower die structures are also available.
Compatible Press Brake Tooling Systems
WYS Machinery can manufacture customized lower dies for different press brake brands, tooling standards and clamping systems.
Available configurations include:
TRUMPF Type, WILA Type, LVD Type, Bystronic Type, Amada / Promecam Type, European Type and other customized press brake tooling systems.
The lower die is not limited to the mounting structure shown in the drawing. The bottom mounting interface, positioning geometry, overall height, effective height and die cross-section can all be adapted according to the customer's machine.
Customers can provide a machine model, existing tooling drawing, lower die cross-section, tooling sample or workpiece drawing for technical evaluation.
Custom V-Opening, Angle and Die Geometry
The V60 opening and 85° angle shown on this page are one available configuration.
Different V-openings and die angles can be manufactured according to:
- Sheet thickness
- Material grade and strength
- Required bending angle
- Required inside radius
- Minimum flange dimension
- Material springback
- Required bending force
- Press brake configuration
The V-bottom radius, shoulder radius, edge geometry and die body dimensions can also be customized as part of the complete tooling solution.
Custom Press Brake Tooling Design Service
Customers who are unsure which V-opening or lower die structure should be selected can provide:
workpiece drawing, material grade, sheet thickness, required bending angle and press brake model.
Our engineering team can evaluate the bending requirement and recommend an appropriate tooling solution.
The lower die can then be manufactured with the required V-opening, angle, overall height, effective height, width, radius, length and mounting structure.
Why Choose WYS Machinery
WYS Machinery manufactures both standard and customized press brake punches, lower dies and sheet metal bending tooling for different forming applications.
Our lower die manufacturing capabilities include:
- Single-V dies
- Multi-V dies
- Large V-opening dies
- High-capacity lower dies
- Segmented press brake dies
- Customized V-bottom radii
- Customized die angles
- Customized effective heights
- Special lower-tool profiles
- Custom mounting interfaces
- Replacement tooling for different press brake systems
- Tooling designed according to customer workpiece drawings
This allows customers to obtain both standard replacement tooling and application-specific bending solutions according to their actual production requirements.
