Tool-Free Punch Length Adjustment with Ultra Thick Turret Tooling

Tool-Free Punch Length Adjustment with Ultra Thick Turret Tooling

Punches gradually become shorter after repeated sharpening and regrinding. To maintain the correct working length and ensure reliable sheet penetration, the punch length must be adjusted to compensate for the material removed during sharpening.

With conventional thick turret punch tooling, this adjustment may require the tooling to be removed from the machine and manually adjusted using a tooling disassembly or setup fixture.

Ultra thick turret tooling provides a faster and more convenient solution.

The Problem: Punch Length Changes After Regrinding

During normal turret punch operation, the punch cutting edge gradually wears and requires periodic sharpening.

Each sharpening operation removes a small amount of material from the punch tip. As the punch is repeatedly reground, its effective working length gradually decreases.

If this reduction is not compensated for, the punch-to-stripper relationship and effective punching position can change, potentially affecting punching performance.

The tooling therefore needs a convenient way to restore the required punch working length after regrinding.

The Conventional Adjustment Method

With conventional thick turret tooling, punch length compensation may require the operator to remove the tool assembly and perform a manual adjustment.

Depending on the tooling design, a Turret Punch Tooling Disassembly Fixture or other setup equipment may be used to hold and adjust the assembly.

Although effective, this process adds handling and setup time, especially in production environments where punches are frequently sharpened and returned to service.

The Ultra Solution: Tool-Free Quick Length Adjustment

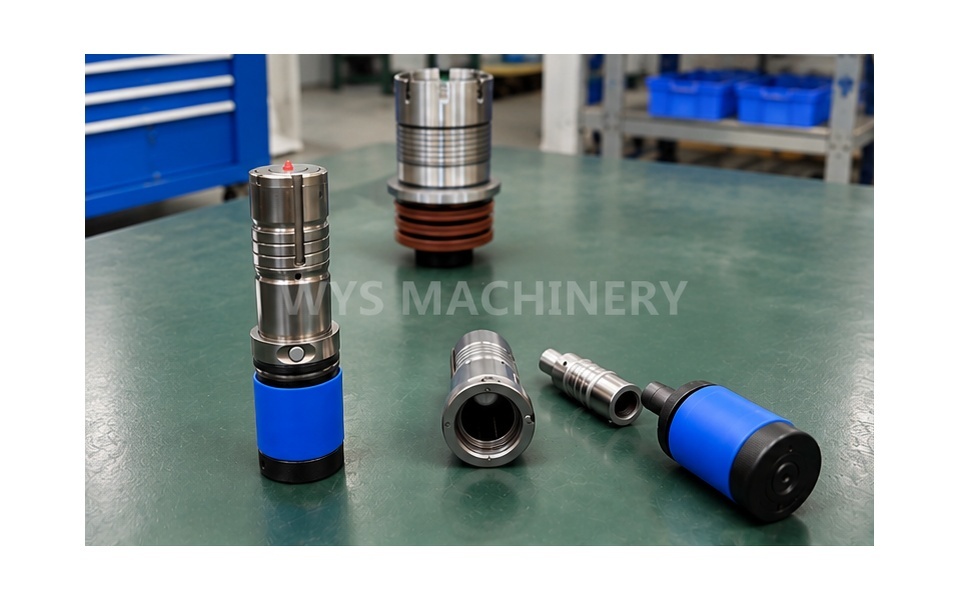

Ultra-style thick turret tooling simplifies this process through an integrated quick punch length adjustment mechanism.

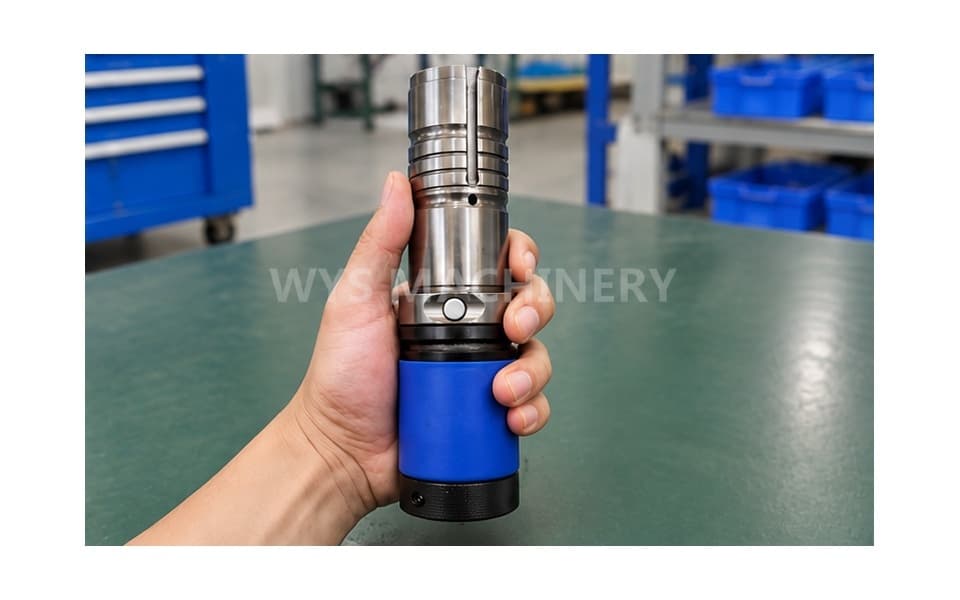

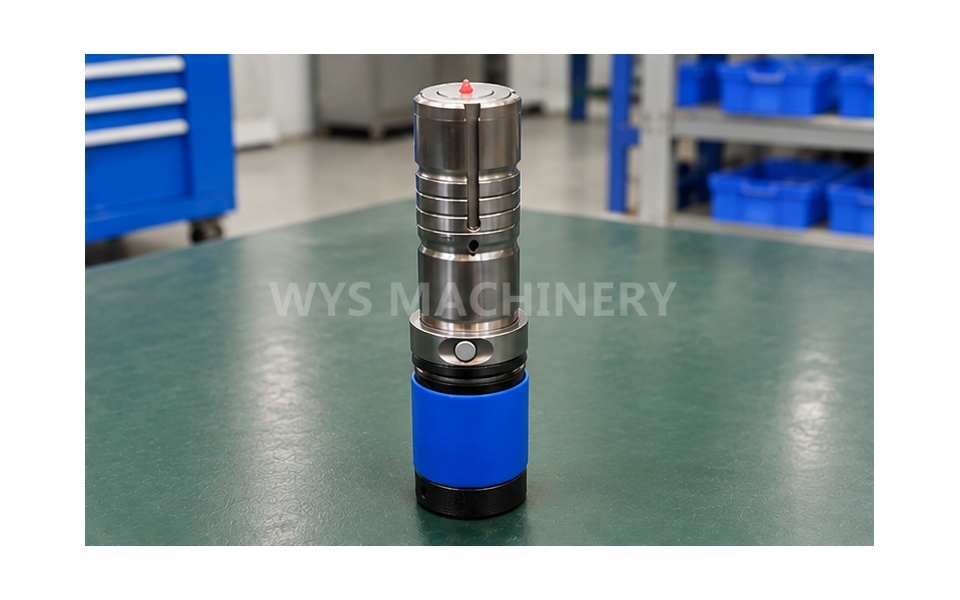

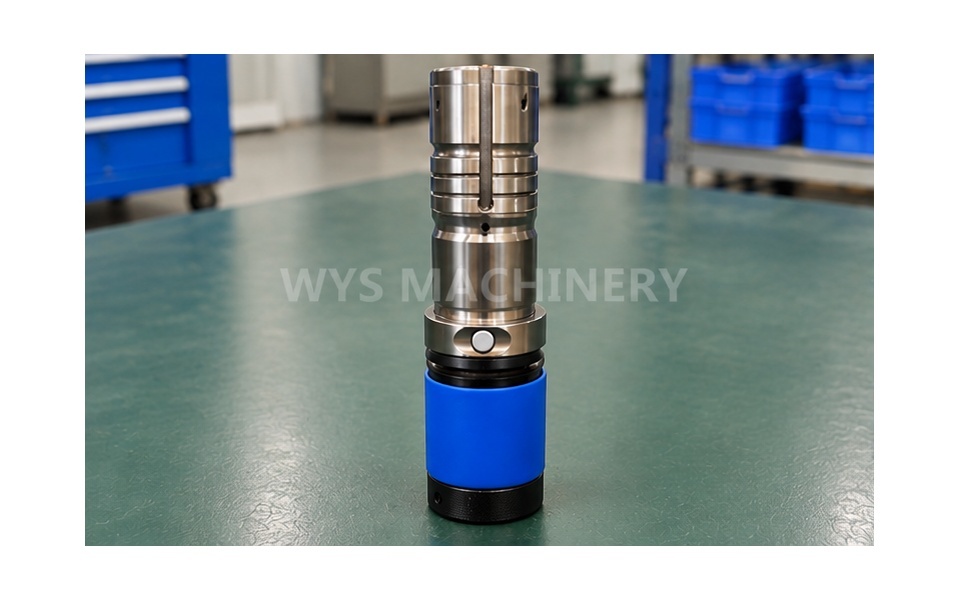

The operator presses the adjustment button on the guide assembly and rotates the guide or adjustment section to increase or decrease the effective punch length.

Once the required position is reached, the mechanism locks into the selected adjustment position.

No separate adjustment tool or shim is required for the length adjustment.

This type of quick adjustment is an established feature of Ultra thick turret tooling systems and is designed to reduce the time required to compensate for punch length after sharpening.

How Does the Quick Adjustment Work?

The adjustment process is straightforward:

1. Press the quick-adjustment button.
2. Rotate the guide or adjustment section by hand.
3. Increase or decrease the effective punch length as required.
4. Release the button to lock the selected position.

Industry documentation for Ultra-style tooling describes the same principle: pressing the quick-length-adjustment button and rotating the guide changes the punch length without requiring conventional adjustment tools.

Why Is Tool-Free Adjustment Useful?

The main advantage is not simply that the mechanism is easier to operate.

It helps reduce unnecessary tooling handling during routine punch maintenance.

For production environments using multiple turret punch tools, this can provide several practical benefits:

• Faster punch length compensation after regrinding
• Tool-free adjustment
• Reduced setup and maintenance time
• Less dependence on separate adjustment fixtures
• Faster return of sharpened punches to production
• Easier operation for maintenance personnel
• Improved overall punching productivity

Ultra vs. Conventional Thick Turret Tooling

The key difference in this application is the adjustment process.

With conventional tooling, the operator may need to remove and manually set the tooling assembly to compensate for the reduced punch length.

With Ultra-style tooling, the integrated quick-adjustment mechanism allows the operator to make the required length correction directly by pressing the button and rotating the adjustment section.

This makes routine punch maintenance more convenient and helps reduce machine and tooling setup time.

Custom Thick Turret Tooling from WYS Machinery

WYS Machinery manufactures thick turret punch tooling for different punching applications, including standard and high-performance tooling configurations.

Tooling can be supplied according to the required station size, punch shape, sheet material and machine tooling system.

For customers who frequently regrind punches or want to simplify routine tooling maintenance, an Ultra-style quick-adjustment structure provides a practical solution for reducing adjustment time while maintaining the required punch working length.
