85° R1 Press Brake Upper Punch – 97 mm Height, 27 mm Width, 100 Ton/m

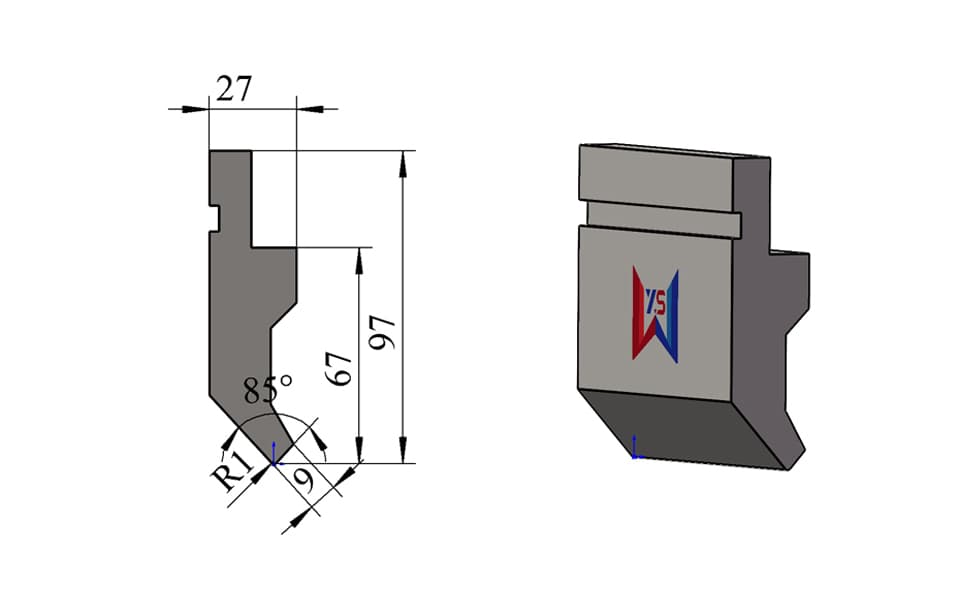

High-performance 85° R1 press brake upper punch manufactured from 42CrMo alloy steel. With a 97 mm overall height, 27 mm total width, 9 mm tip width, and 100 ton/m load capacity, this punch is designed for precise and reliable sheet metal bending applications.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description
Key Features
- 85° punch angle for controlled and accurate sheet metal forming
- R1 tip radius for precision bending applications
- 97 mm overall height for stable tooling setup
- 27 mm total width for a compact and practical tooling configuration
- 9 mm tip width for precise contact with the workpiece
- 100 ton/m load capacity for demanding bending applications
- Manufactured from 42CrMo alloy steel
- Heat treated to HRC 54 ± 2 for excellent wear resistance and service life
- Suitable for standard and customized press brake tooling applications
- Free tooling design service available based on customer drawings
Technical Specifications
| Specification | Details |
|---|---|
| Tool Type | Press Brake Upper Punch |
| Punch Angle | 85° |
| Tip Radius | R1 |
| Overall Height | 97 mm |
| Total Width | 27 mm |
| Tip Width | 9 mm |
| Load Capacity | 100 ton/m |
| Material | 42CrMo Alloy Steel |
| Hardness | HRC 54 ± 2 |
| Application | Sheet Metal Bending |
| Customization | Available |
Typical Applications
This 85° R1 press brake upper punch is designed for precision sheet metal bending applications and can be used for:
- General sheet metal fabrication
- Stainless steel and carbon steel bending
- Electrical cabinets and enclosures
- Machinery and equipment manufacturing
- Automotive and industrial components
- Precision metal component manufacturing
- Multi-step bending operations
- Customized sheet metal forming applications
The tooling can be used for various press brake machines and tooling systems, including applications involving Amada, TRUMPF, LVD, Bystronic, and WILA.
Product Details & Manufacturing Quality
The punch is manufactured from 42CrMo alloy steel, offering high strength, toughness, wear resistance, and long-term durability. The working area is heat treated to HRC 54 ± 2, helping maintain the accuracy and stability of the punch profile during repeated bending operations.
The 85° working angle and R1 tip radius provide a controlled bending contact point, making this punch suitable for applications requiring consistent bending angles and repeatable forming quality.
With a rated load capacity of 100 ton/m, the tooling can be applied to demanding sheet metal bending operations, depending on the actual material, thickness, bending method, and press brake working conditions.
Standard & Custom Press Brake Tooling
We provide both standard and customized press brake tooling according to customers' machines, workpieces, and production requirements.
If a standard punch cannot meet your application requirements, simply send us your workpiece drawing, bending drawing, tooling drawing, or technical requirements. Our engineering team can provide free tooling design assistance and recommend a suitable punch and die configuration.
Customization options include:
- Overall tooling height
- Tooling width
- Punch angle
- Tip radius
- Tip width
- Special clearance and relief structures
- Gooseneck and special-shaped punches
- Machine-specific tooling dimensions
- Customized tooling profiles based on customer drawings
Our technical team can analyze the workpiece geometry and bending requirements and help design a practical and cost-effective tooling solution.
