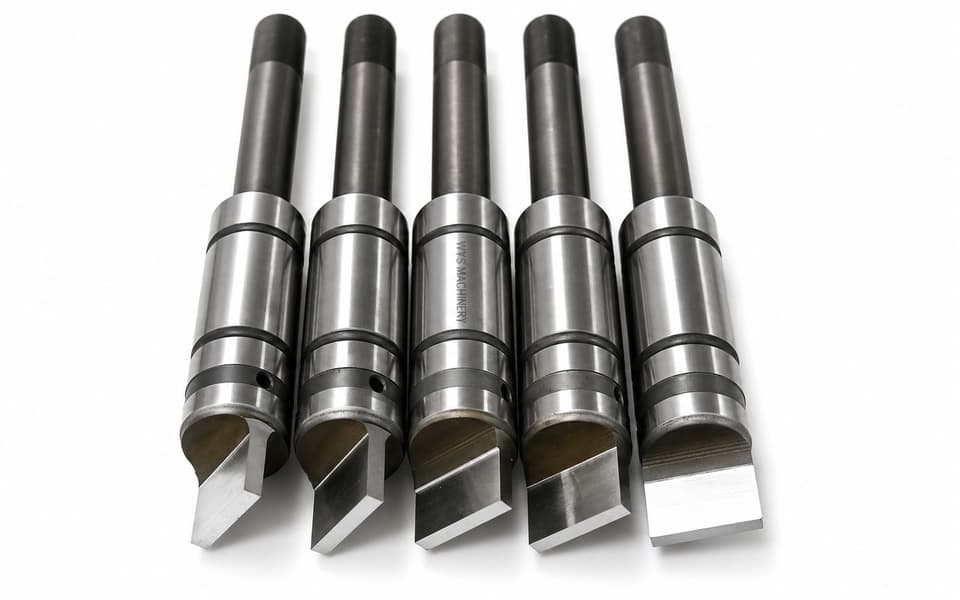

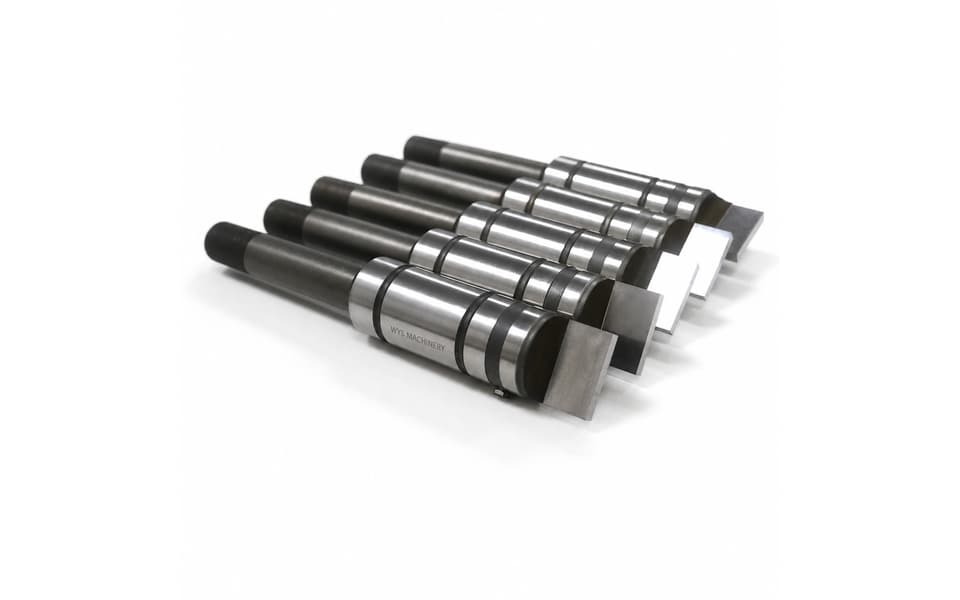

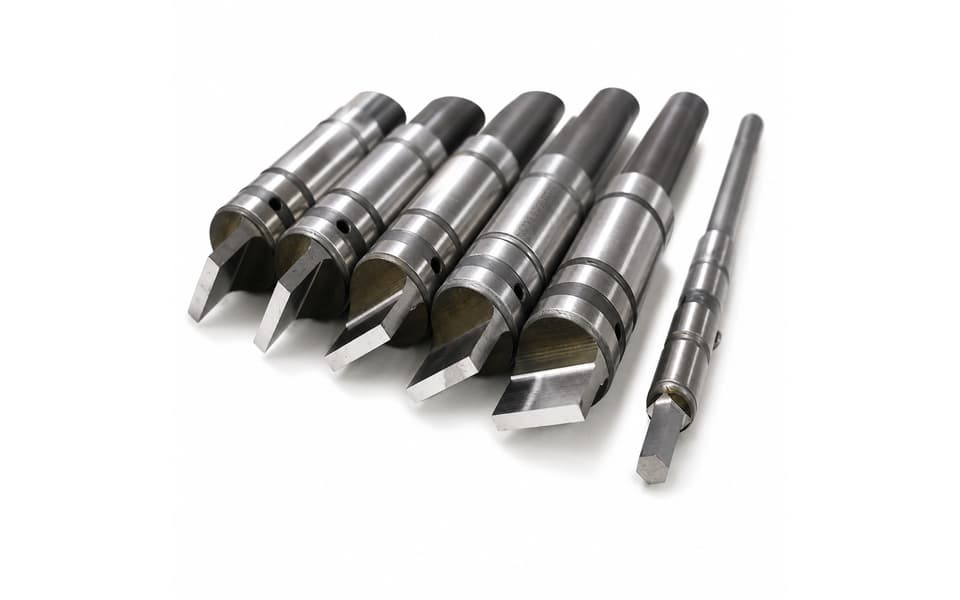

85 Series B Station RE2X20 Rectangular Thick Turret Punch

The 85 Series B Station RE2X20 Rectangular Thick Turret Punch is a precision cutting component designed for producing nominal 2 × 20 mm rectangular holes in sheet metal.

In the designation “RE2X20,” “RE” identifies the rectangular profile, while “2X20” represents the nominal width and length of the punching profile. The narrow 2 mm width makes accurate tool manufacturing, correct punch-to-die alignment and suitable cutting clearance especially important.

This product is supplied as a punch, not as a complete punch assembly. A complete assembly may include the punch, guide, stripper, spring components and other supporting parts. These components, together with the matching lower die, can be supplied separately or as a complete tooling set when required.

The RE2X20 punch is manufactured from M2 high-speed steel and heat-treated to a working hardness of HRC 58–60. M2 provides the toughness and wear resistance required for repeated punching while helping reduce premature edge breakdown in narrow rectangular profiles.

Optional TiN or TiCN coatings can be applied to improve surface hardness, reduce friction and minimize adhesive material buildup. WYS Machinery can also customize the punch-tip geometry, matching die opening, cutting clearance and tooling configuration according to the customer’s sheet material, thickness, machine model and finished-part drawing.

Key Features

• 85 Series thick turret tooling configuration
• B Station replacement punch
• RE2X20 rectangular profile
• Nominal punching size of 2 × 20 mm
• Designed for narrow rectangular holes and slot profiles
• M2 high-speed steel construction
• Working hardness of HRC 58–60
• Precision-ground cutting edges
• High cutting-edge toughness and wear resistance
• Optional TiN or TiCN coating
• Matching die available separately
• Custom material-specific cutting clearance
• Custom punch-tip and shear geometry available
• Suitable for stainless steel, mild steel, aluminum and other sheet metals
• Available as an individual punch or part of a complete tooling set
• Free tooling design support based on customer drawings

Technical Specifications

Punch vs. Punch Assembly

This distinction helps customers order the correct replacement component. If a customer requires the guide, stripper or matching die, the machine model and existing tooling configuration should be provided.

RE2X20 Profile and Die Clearance

RE2X20 identifies the nominal 2 × 20 mm punch profile. The matching lower-die opening must be manufactured with the appropriate cutting clearance.

Correct clearance helps:

• Reduce punching force
• Control burr height
• Improve slug release
• Reduce adhesive material buildup
• Prevent premature punch wear
• Protect the narrow cutting edges
• Improve finished-hole consistency
• Extend the service life of the punch and die

Because the punch width is only 2 mm, insufficient clearance, excessive side loading or incorrect alignment may increase the risk of chipping or breakage.

Typical Hits Before Regrinding

These are typical reference values rather than guaranteed limits. Actual performance depends on:

• Sheet material and tensile strength
• Material thickness
• Punch-to-die clearance
• Punching frequency
• Punching speed
• Tool alignment
• Lubrication
• Coating selection
• Punch-tip geometry
• Machine condition
• Maintenance and regrinding practices

For a narrow RE2X20 rectangular punch, regular cutting-edge inspection is recommended. Regrinding should be performed before excessive rounding, chipping or burr growth develops.

Typical Tool Service Life

RE2X20 is classified as shaped tooling. Its actual service life may vary because its narrow rectangular geometry produces different stress distribution from a round punch.

Correct die clearance, accurate alignment, suitable lubrication and timely regrinding are essential for maximizing total service life.

Optional TiN and TiCN Coatings

TiN Coating

TiN provides a hard, low-friction surface that helps reduce adhesive wear and material buildup on the sides of the punch. It is suitable for many general-purpose mild-steel and sheet metal punching applications.

TiCN Coating

TiCN provides higher hardness and enhanced resistance to abrasive and adhesive wear. It is particularly useful when processing stainless steel, higher-strength sheet materials or high-volume production runs.

The appropriate coating should be selected according to the sheet material, thickness, punching frequency and required tool life.

Punch-Tip Geometry

The cutting end of the RE2X20 punch can be produced with a standard flat profile or customized shear geometry according to the application.

Suitable shear geometry may help:

• Reduce peak punching force
• Lower punching noise
• Improve load distribution
• Reduce machine vibration
• Support punching of demanding materials
• Improve slug control in suitable applications

The selected tip geometry must match the sheet material, thickness, machine tonnage and required part quality. Custom shear designs should be confirmed during tooling engineering.

Typical Applications

The RE2X20 B Station rectangular punch is suitable for producing narrow rectangular holes in:

• Electrical cabinets and control enclosures
• Switchgear and distribution equipment
• Sheet metal panels and housings
• Electronic equipment enclosures
• HVAC and ventilation components
• Machinery covers and protective guards
• Metal furniture and storage systems
• Automotive sheet metal components
• Appliance panels
• Mounting plates and brackets
• Precision sheet metal assemblies

Typical hole functions include:

• Narrow ventilation slots
• Cable-routing openings
• Locating and positioning features
• Assembly interfaces
• Tab and fastening slots
• Anti-rotation features
• Component mounting holes
• Repeated slot patterns
• Functional rectangular openings

The punch may also be used for programmed nibbling or extended slot production when the overlap, feed direction and side-load conditions are properly evaluated.

Manufacturing Quality

The RE2X20 punch is manufactured using M2 high-speed steel, controlled heat treatment and precision grinding processes.

Special attention is given to:

• 2 mm narrow cutting width
• Parallelism of the long cutting edges
• Accuracy of the short ends
• Cutting-edge sharpness
• Punch-tip geometry
• Profile dimensions
• Concentricity and alignment
• Surface finish
• Heat-treatment consistency

Accurate geometry helps the punch align correctly with the matching die and produce consistent rectangular holes. Controlled heat treatment provides a balance between hardness, toughness and resistance to premature chipping.

Each punch can be inspected for dimensional accuracy, hardness, surface finish and fit with the corresponding thick turret tooling system.

Tool Maintenance and Regrinding

The punch should be inspected regularly for:

• Cutting-edge rounding
• Corner chipping
• Adhesive material buildup
• Uneven side wear
• Increased burr height
• Abnormal punching noise
• Excessive stripping force
• Misalignment with the die

Regrinding should be carried out before serious wear develops. Light and timely regrinding removes less material and helps preserve the total usable length of the punch.

After regrinding, the punch length and assembly setup should be adjusted where necessary before returning the tool to production.

Standard and Custom Thick Turret Punch Tooling

WYS Machinery supplies individual replacement punches, dies and complete thick turret tooling assemblies for round, square, rectangular, obround and special-shaped punching applications.

Customers can provide:

• Punch press manufacturer and model
• Tooling series
• Station size
• Required hole dimensions
• Sheet material
• Material thickness
• Required cutting clearance
• Existing punch or assembly drawings
• Coating requirements
• Finished-part drawings

Available customization options include:

• Custom rectangular dimensions
• Custom punch profiles
• Matching lower dies
• Material-specific die clearance
• Flat or sheared punch tips
• TiN and TiCN coatings
• Replacement punches
• Replacement dies
• Complete punch assemblies
• Punch-and-die sets
• Special-shaped thick turret tooling
• OEM and private-label manufacturing

Custom Forming Tool Capabilities

WYS Machinery can also design and manufacture:

• Cluster Tools
• Knockout Tools
• Embossing Tools
• Extrusion Forming Tools
• Extrusion and Tapping Tools
• Bridge Forming Tools
• Pedestal Extrusion and Embossing Tools
• Louver Forming Tools
• Multi-Scribe Tools
• Sheet Marking Tools
• Lance-and-Form Tools
• Progressive Rib Tools
• Up-Bending Tools
• Hinge Tools
• Rolling Pincher Tools
• Rolling Shear Tools
• Rolling Rib Tools
• Rolling Offset Tools

Tooling can be developed according to the finished-part drawing, sheet material, thickness, station size and punch press configuration.
