90° R1 Gooseneck Press Brake Upper Tool – 120 mm, 8 mm Tip

The WYS 90° R1 gooseneck press brake upper tool is a specialized upper punch designed for sheet metal bending applications requiring additional clearance around formed parts and return flanges. Its gooseneck profile provides increased clearance between the punch body and the workpiece, helping reduce interference during the bending of complex or previously formed components.

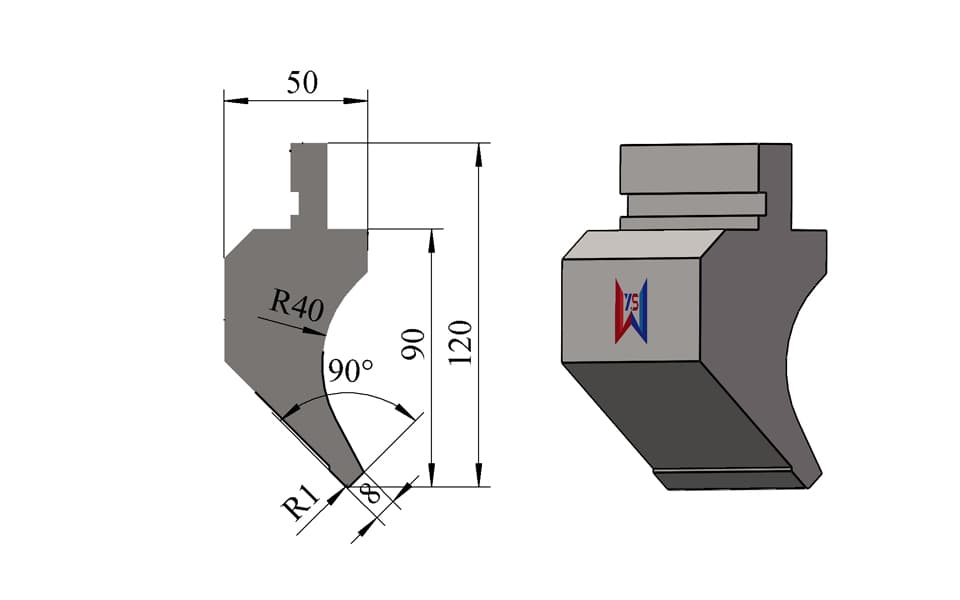

Featuring a 90° punch angle, R1 mm tip radius, 120 mm overall height, 50 mm total tool width, and 8 mm tip width, this gooseneck punch combines a practical working geometry with additional tool clearance for specialized bending operations.

Manufactured from 42CrMo alloy steel and precision-machined for dimensional consistency, the tool is hardened to HRC 54 ± 2 to provide excellent strength, wear resistance, and service life. With a maximum load capacity of 60 ton/m, this upper tool is suitable for general and medium-duty bending applications when used within the appropriate machine and tooling configuration.

Key Features

• 90° punch angle for general-purpose sheet metal bending

• Gooseneck punch profile for increased clearance around the workpiece

• R1 mm tip radius for applications requiring a smaller inside bend radius

• 8 mm tip width for a practical and stable bending configuration

• 120 mm overall height for applications requiring additional tooling clearance

• 50 mm total tool width with a specialized gooseneck configuration

• Made from 42CrMo alloy steel for high strength, durability, and wear resistance

• HRC 54 ± 2 hardness for improved service life under regular production conditions

• 60 ton/m maximum load capacity for general and medium-duty bending applications

• Precision-machined working surfaces for accurate and repeatable bending

• Suitable for conventional and CNC press brake machines

• Custom gooseneck profiles and tooling configurations available on request

Technical Specifications

Typical Applications

• General sheet metal air bending for mild steel and other commonly processed sheet metal materials

• Bending parts with return flanges or previously formed sections where additional punch clearance is required

• Cabinet, enclosure, electrical panel, and ductwork fabrication

• Complex sheet metal components requiring reduced interference between the punch body and workpiece

• General industrial sheet metal fabrication, metal forming, and manufacturing applications

• Suitable for workshops using Amada, LVD, Bystronic, and other compatible press brake machines

• Compatible tooling solutions available for major press brake systems, including Amada, TRUMPF, LVD, Bystronic, and WILA, subject to the required machine and tooling configuration

Segmented lengths, custom gooseneck profiles, special tip radii, customized dimensions, and OEM-compatible shanks are available on request. Contact WYS Machinery for a tailored press brake tooling solution and quotation.

Product Details & Manufacturing Quality

Each WYS gooseneck press brake upper tool is manufactured with controlled dimensions and precision-machined working surfaces to ensure reliable tooling performance and consistent bending accuracy.

The gooseneck profile is designed to provide additional clearance around the workpiece compared with conventional straight upper punches. This makes the tool particularly useful when the geometry of the bent component could otherwise interfere with the punch body during the bending sequence.

The use of 42CrMo alloy steel combined with HRC 54 ± 2 hardness provides an excellent balance of strength, wear resistance, and service life. The R1 mm tip radius and 8 mm tip width provide a practical working configuration for applications requiring a relatively small inside bend radius while maintaining a stable contact area.

The 120 mm overall height and 50 mm total tool width provide the dimensional foundation for the gooseneck configuration. Actual bending performance depends on material type, material thickness, lower die opening, machine capacity, bend length, and the geometry of the workpiece.

With a 60 ton/m maximum load capacity, this upper punch is suitable for general and medium-duty bending operations when used within the specified machine and tooling capacity.

Standard & Custom Press Brake Tooling

In addition to standard press brake punches, WYS Machinery manufactures custom gooseneck press brake tooling according to customer drawings, samples, machine specifications, or specific bending requirements.

Customized options may include different punch angles, tip widths, tip radii, gooseneck profiles, overall heights, tool widths, lengths, shank configurations, and special tooling geometries. OEM-compatible tooling solutions are also available for specific press brake machines and tooling systems.

Whether you require a standard gooseneck punch for improved workpiece clearance or a customized upper tool for a complex bending application, WYS Machinery can provide precision press brake tooling tailored to your machine and production requirements.

Contact WYS Machinery for press brake tooling recommendations, technical support, compatibility confirmation, and a quotation.
