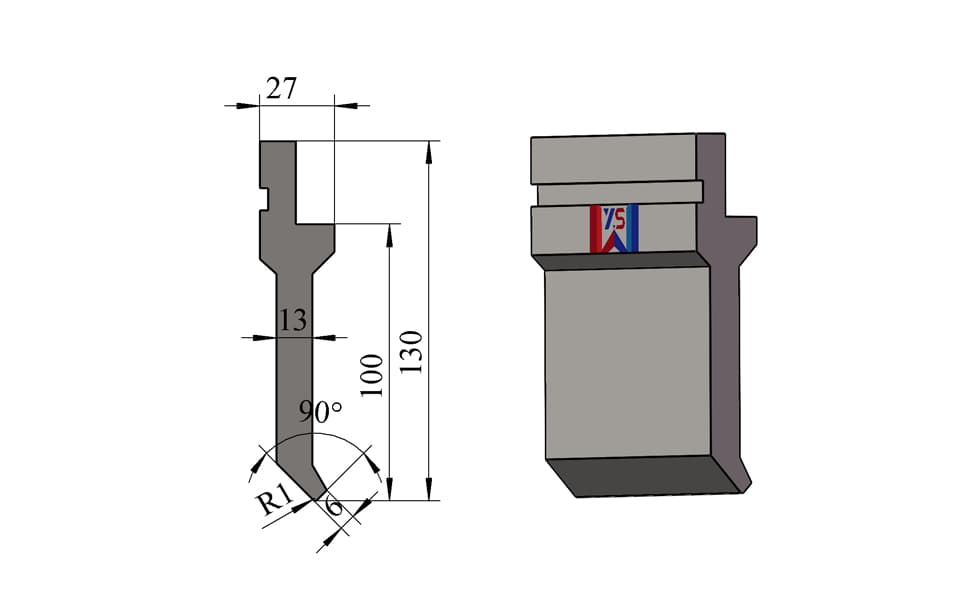

Standard 90° R1 Press Brake Upper Tool – 130 mm, 6 mm Tip

The WYS standard 90° R1 press brake upper tool is a precision-engineered upper punch designed for general sheet metal air bending and industrial metal fabrication. Featuring a 90° punch angle, R1 mm tip radius, 130 mm overall height, 27 mm total tool width, and 6 mm tip width, this upper tool provides a practical solution for a wide range of sheet metal bending applications.

With a 13 mm load-bearing width, the tool provides a defined working support area between the punch and press brake clamping system. Its 130 mm overall height makes it suitable for applications requiring a taller upper tooling configuration, while the R1 mm tip radius provides a relatively sharp bending edge for applications requiring smaller inside bend radii.

Manufactured from 42CrMo alloy steel and precision-machined for dimensional consistency, the tool is hardened to HRC 54 ± 2 for improved strength, wear resistance, and service life. With a 20 ton/m maximum load capacity, this upper punch is suitable for general and lighter-duty sheet metal bending applications when used within the appropriate machine and tooling configuration.

Key Features

• 90° standard punch angle for general-purpose sheet metal bending

• R1 mm tip radius for applications requiring a smaller inside bend radius

• 6 mm tip width for a practical and versatile bending configuration

• 130 mm overall height for applications requiring a taller upper tool configuration

• 13 mm load-bearing width for a defined and stable working support area

• 27 mm total tool width with a practical standard configuration

• Made from 42CrMo alloy steel for strength, durability, and wear resistance

• HRC 54 ± 2 hardness for improved tooling life

• 20 ton/m maximum load capacity for general and lighter-duty bending applications

• Precision-machined working surfaces for accurate and repeatable bending

• Suitable for conventional and CNC press brake machines

• Standard tooling available, with custom configurations available on request

Technical Specifications

Typical Applications

• General sheet metal air bending for mild steel and other commonly processed sheet metal materials

• Cabinet, enclosure, electrical panel, and ductwork fabrication

• General industrial sheet metal fabrication, metal forming, and manufacturing applications

• Applications requiring a smaller inside bend radius with an R1 mm punch tip

• Applications requiring a 130 mm tall upper tooling configuration

• Suitable for workshops using Amada, LVD, Bystronic, and other compatible press brake machines

• Compatible tooling solutions available for major press brake systems, including Amada, TRUMPF, LVD, Bystronic, and WILA, subject to the required machine and tooling configuration

Segmented lengths, custom profiles, special tip radii, customized load-bearing sections, and OEM-compatible shanks are available on request. Contact WYS Machinery for a tailored press brake tooling solution and quotation.

Product Details & Manufacturing Quality

Each WYS press brake upper tool is manufactured with controlled dimensions and precision-machined working surfaces to ensure reliable tooling performance and consistent bending accuracy.

The use of 42CrMo alloy steel combined with HRC 54 ± 2 hardness provides an excellent balance of strength, wear resistance, and service life for regular industrial production. The 13 mm load-bearing width provides a defined support area for the working section of the tool, while the 130 mm overall height provides additional tooling height for applications requiring this configuration.

The R1 mm tip radius and 6 mm tip width provide a relatively sharp working configuration for bending applications where a smaller inside bend radius is required. The actual achievable bend radius and bending angle depend on the material type, material thickness, lower die opening, machine capacity, and process parameters.

With a 20 ton/m maximum load capacity, this upper punch is intended for general and lighter-duty bending operations. It should always be used within the specified tooling and machine capacity to ensure safe and reliable operation.

Standard & Custom Press Brake Tooling

In addition to standard press brake punches, WYS Machinery manufactures custom press brake tooling according to customer drawings, samples, machine specifications, or specific bending requirements.

Customized options may include different punch angles, tip widths, tip radii, overall heights, load-bearing widths, total dimensions, lengths, profiles, shank configurations, and special tooling designs. OEM-compatible tooling solutions are also available for specific press brake machines and tooling systems.

Whether you need a standard upper punch for general sheet metal bending or a customized tool with specific dimensions and working geometry, WYS Machinery can provide precision press brake tooling tailored to your machine and production requirements.

Contact WYS Machinery for press brake tooling recommendations, technical support, compatibility confirmation, and a quotation.
