V6 60° Single-V Press Brake Lower Die – H90 × W15 mm, 60 Ton/m
This V6 60° single-V press brake lower die features a 6 mm V-opening, 60° die angle, 90 mm overall height, 75 mm effective height and 15 mm body width, with a rated load capacity of 60 ton/m. Designed for acute-angle and precision sheet metal bending applications, the die provides a compact V6 bending profile while maintaining reliable support around the forming zone. The V-opening, die angle, effective height, body width, edge geometry, tool length and mounting interface can all be customized according to the customer's workpiece and press brake configuration.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description
V6 60° Single-V Press Brake Lower Die for Acute-Angle Bending
This V6 press brake lower die is designed with a compact single-V structure for sheet metal forming applications requiring a small V-opening and acute bending geometry.
The illustrated model features a 6 mm V-opening, 60° die angle, 90 mm overall height and 15 mm body width, with a rated load capacity of 60 ton/m.
The combination of the V6 opening and 60° groove geometry makes this lower die suitable for applications where the workpiece needs to be formed to an acute included angle or where additional bending allowance is required before reaching the final part geometry.
Its slim body profile also provides a compact lower-tool solution for precision bending operations.
60° V-Groove for Acute-Angle Forming
Unlike conventional 85°, 88° or 90° lower dies, the 60° V-groove provides a much narrower included angle for acute-angle forming.
This configuration can be used for applications requiring:
- Acute-angle air bending
- Pre-bending before subsequent forming operations
- Small V-opening bending
- Compact flange geometry
- Precision sheet metal forming
- Customized acute-angle components
The final tooling configuration should be selected according to the material, sheet thickness, required bend angle and workpiece geometry.

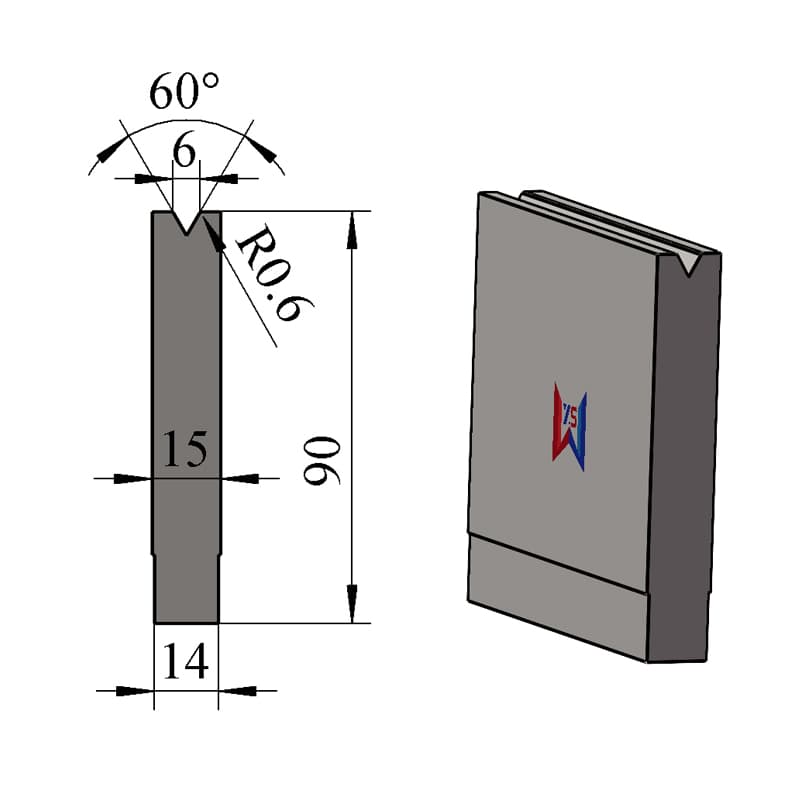

Compact V6 Die Geometry
The illustrated lower die combines a 6 mm V-opening with a narrow 15 mm main body width.
Main dimensions include:
- V6 / 6 mm V-opening
- 60° die angle
- 90 mm overall height
- 75 mm effective height
- 15 mm main body width
- 14 mm bottom mounting width
- Approx. R0.6 shoulder radius
- 60 ton/m load capacity
This compact cross-section makes the die suitable for precision bending applications where a small V-opening and narrow lower-tool profile are required.
Custom Effective Tool Height
The illustrated model has an effective working height of 75 mm.
The effective height is not limited to this dimension and can be manufactured according to the customer's press brake configuration, tooling combination and bending requirements.
The overall tool height, mounting position and effective working height can therefore be coordinated as part of the complete tooling design.
Key Features
- Single-V lower die structure
- V6 / 6 mm V-opening
- 60° acute-angle V-groove
- 90 mm overall height
- 75 mm effective height
- Custom effective heights available
- 15 mm main body width
- 14 mm bottom mounting width
- 60 ton/m load capacity
- Approx. R0.6 shoulder radius
- Compact profile for precision bending
- Suitable for acute-angle forming
- Suitable for small V-opening applications
- Custom V-openings available
- Custom die angles available
- Custom edge dimensions available
- Custom tool lengths and segmentation available
- Custom lower mounting interfaces available
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Single-V Press Brake Lower Die |
| V-Opening | V6 / 6 mm |
| Die Structure | Single-V |
| Die Angle | 60° |
| Overall Tool Height | 90 mm |
| Effective Tool Height | 75 mm / Customized |
| Main Body Width | 15 mm |
| Bottom Mounting Width | 14 mm |
| Shoulder Radius | Approx. R0.6 |
| Load Capacity | 60 ton/m |
| Tool Length | Standard or Customized |
| Segmentation | Available |
| Mounting Interface | Customized |
| Main Application | Acute-Angle Sheet Metal Bending |
Typical Applications
This V6 60° single-V press brake lower die is suitable for applications including:
- Acute-angle sheet metal bending
- Precision air bending
- Small V-opening bending
- Pre-bending operations
- Small flange forming
- Stainless steel sheet components
- Mild steel components
- Electrical cabinet parts
- Sheet metal enclosures
- Precision machinery components
- Customized sheet metal forming
The appropriate tooling specification should be selected according to the material grade, sheet thickness, required bending angle, inside radius, minimum flange dimension and required bending force.
Standard & Custom Options
The V6 60° lower die shown on this page represents one typical tooling configuration only.
WYS Machinery can manufacture customized lower dies with different:
- V-openings
- die angles
- overall heights
- effective heights
- body widths
- shoulder radii
- edge geometries
- tool lengths
- segmented lengths
- load capacities
- bottom mounting profiles
- positioning structures
- clamping interfaces
Different acute-angle and standard-angle lower dies can be produced according to the customer's bending requirements.
Single-V, double-V, multi-V and special lower die configurations are also available.
Compatible Press Brake Tooling Systems
WYS Machinery can manufacture lower dies for different press brake brands, tooling standards and clamping systems.
Available configurations include:
TRUMPF Type, WILA Type, LVD Type, Bystronic Type, Amada / Promecam Type, European Type and other customized press brake tooling systems.
The die is not limited to the bottom mounting structure shown in the drawing. The mounting interface, positioning geometry, overall height, effective height and cross-section can all be adapted to the customer's press brake.
Customers can provide a machine model, existing tooling drawing, lower die cross-section, tooling sample or workpiece drawing for technical evaluation.
Custom V-Opening, Angle and Edge Geometry
The V6 opening and 60° die angle shown on this page are one available configuration.
The V-opening and die angle can be modified according to the customer's:
- Material thickness
- Material grade
- Required bending angle
- Required inside radius
- Flange dimensions
- Workpiece geometry
- Material springback
- Press brake configuration
The shoulder radius and surrounding edge dimensions can also be customized to suit the actual bending process.
Custom Press Brake Tooling Design Service
Customers who are unsure which die angle, V-opening or lower-tool structure should be used can provide:
workpiece drawing, material grade, sheet thickness, required bending angle and press brake model.
Our engineering team can evaluate the bending requirement and recommend an appropriate tooling solution.
The lower die can then be manufactured with the required V-opening, angle, height, effective height, width, radius, length and mounting structure.
Why Choose WYS Machinery
WYS Machinery manufactures standard and customized press brake punches, lower dies and sheet metal bending tooling for a wide range of forming applications.
Our lower tooling capabilities include:
- Single-V lower dies
- Double-V dies
- Multi-V dies
- Small V-opening dies
- Acute-angle press brake dies
- Heavy-duty lower dies
- Segmented tooling
- Customized die angles
- Customized effective heights
- Special lower-tool profiles
- Custom mounting interfaces
- Replacement tooling for different press brake systems
- Tooling designed according to customer workpiece drawings
This allows customers to obtain both standard replacement tooling and application-specific bending solutions according to their production requirements.
