Hydraulic Accumulator for CNC Turret Punch Press
Nitrogen-charged hydraulic accumulator for CNC turret punch presses, designed to store hydraulic energy and rapidly release pressurized oil when additional flow is required during high-speed punching. It also helps stabilize system pressure, absorb hydraulic pressure fluctuations, compensate for minor leakage and, on applicable machines, provide temporary emergency hydraulic power. Multiple specifications are available for different turret punch press brands and models.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description
Hydraulic Accumulator for CNC Turret Punch Press
The Hydraulic Accumulator for CNC Turret Punch Press is an important energy-storage and pressure-stabilizing component installed in the machine's hydraulic system.
During high-speed punching, the hydraulic system may require a large amount of oil flow within a very short period. Supplying the entire instantaneous flow directly from the hydraulic pump can place high demands on the hydraulic power unit.
The accumulator stores pressurized hydraulic energy in advance and releases it rapidly when additional hydraulic flow is required. This helps the punch press respond quickly during punching cycles and supports higher punching frequency and stable machine operation.
In addition to energy storage, the accumulator can help stabilize hydraulic pressure, absorb pressure fluctuations, compensate for minor system leakage and maintain pressure during standby conditions.
Depending on the hydraulic circuit design, it may also provide temporary hydraulic energy for certain emergency movements when normal pump pressure is unavailable.
How the Hydraulic Accumulator Works
This type of accumulator uses compressed nitrogen and hydraulic oil to store hydraulic energy.
When hydraulic system pressure rises, pressurized hydraulic oil enters the accumulator and compresses the nitrogen gas. Energy is therefore stored in the compressed gas.
When the turret punch press requires additional oil flow or system pressure falls, the compressed nitrogen expands and pushes the stored hydraulic oil back into the hydraulic circuit.
The basic operating cycle can therefore be understood as:
Hydraulic Pressure Available → Oil Enters Accumulator → Nitrogen Compresses → Energy Stored
and:
High Flow Demand → Nitrogen Expands → Pressurized Oil Released → Hydraulic System Supplemented
This ability to store and rapidly release hydraulic energy makes the accumulator particularly valuable in high-speed CNC turret punching applications.
Key Functions
Rapid Oil Supply During Punching
During a high-speed punching cycle, the machine may require a large instantaneous hydraulic flow.
The hydraulic accumulator stores pressurized oil in advance and releases it when the punching mechanism requires additional flow.
This supplements the hydraulic pump output and helps the machine achieve rapid punch movement.
For high-speed CNC turret punching, this can contribute to maintaining efficient punching cycles and higher SPM (strokes per minute) performance.
Hydraulic Pressure Stabilization
Punching sheet metal creates rapid changes in hydraulic load.
The accumulator can absorb part of these pressure fluctuations and release hydraulic energy when system pressure falls.
This helps maintain more stable hydraulic pressure during repeated punching operations, contributing to:
- Stable punching force
- Reduced hydraulic pressure fluctuation
- Smoother machine operation
- Reduced vibration and hydraulic shock
- More consistent high-frequency punching performance
Leakage Compensation & Pressure Maintenance
Small internal leakage may occur naturally in hydraulic valves, cylinders and other hydraulic components.
During machine standby, this can cause hydraulic pressure to decrease gradually.
The accumulator can release a small amount of stored hydraulic oil to compensate for minor leakage and maintain system pressure.
This can reduce unnecessary hydraulic pump cycling and help reduce wear on the hydraulic power unit.
Emergency Hydraulic Energy
On hydraulic systems designed for this function, the accumulator can provide temporary hydraulic energy if normal pump pressure is unexpectedly lost.
The stored hydraulic energy may support specific safety or return movements, such as completing a controlled mechanism reset or tool return.
The exact emergency function depends on the hydraulic circuit and machine design.
Key Features
- Designed for CNC turret punch press hydraulic systems
- Stores hydraulic energy using compressed nitrogen
- Provides rapid supplementary hydraulic flow during punching
- Helps support high-speed punching cycles
- Stabilizes hydraulic system pressure
- Helps absorb pressure pulsations and hydraulic shock
- Compensates for minor hydraulic leakage
- Helps maintain standby pressure
- Can reduce unnecessary hydraulic pump cycling
- Emergency hydraulic energy may be available on applicable machine designs
- Multiple capacities and pressure specifications available
- Replacement solutions available for different punch press brands and models
- Suitable for maintenance, repair and replacement applications
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Hydraulic Accumulator |
| Application | CNC Turret Punch Press |
| System | Hydraulic System / Hydraulic Power Unit |
| Main Function | Hydraulic Energy Storage |
| Secondary Functions | Flow Supplement, Pressure Stabilization, Pressure Maintenance |
| Energy Storage Medium | Nitrogen |
| Hydraulic Medium | Hydraulic Oil |
| Gas Pre-Charge | Nitrogen |
| Capacity | Multiple Specifications Available |
| Working Pressure | According to Machine Requirements |
| Connection | Machine-Specific |
| Installation | According to Machine Model |
| Replacement | Available |
| Custom / Model Matching | Available |
Nitrogen Pre-Charge & Maintenance
Correct nitrogen pre-charge is essential for proper accumulator operation.
If nitrogen pressure becomes too low due to long-term operation or leakage, the accumulator's ability to store hydraulic energy will decrease. This may result in reduced supplementary oil flow, unstable hydraulic pressure or reduced machine performance.
The accumulator should therefore be inspected and serviced according to the machine and accumulator specifications.
Only dry nitrogen should be used for gas charging.
The required nitrogen pre-charge pressure must be determined according to the accumulator specification and the hydraulic requirements of the corresponding turret punch press.
Typical Applications
This turret punch press hydraulic accumulator is suitable for:
- CNC turret punch presses
- Hydraulic turret punch presses
- High-speed CNC punching machines
- Punch press hydraulic power units
- High-frequency sheet metal punching
- Hydraulic energy storage
- Instantaneous hydraulic flow supplementation
- Hydraulic pressure stabilization
- Punch press maintenance and overhaul
- Hydraulic accumulator replacement
- CNC turret punch press spare parts replacement
Multi-Brand Turret Punch Press Applications
Hydraulic accumulators are used in many domestic and international CNC turret punch press systems.
However, accumulator specifications can vary considerably between different machine brands and models.
Differences may include:
- Accumulator volume
- Maximum working pressure
- Nitrogen pre-charge pressure
- Thread and connection size
- Installation dimensions
- Mounting orientation
- Hydraulic circuit requirements
WYS MACHINERY provides multiple accumulator models and specifications to meet the requirements of different CNC turret punch presses.

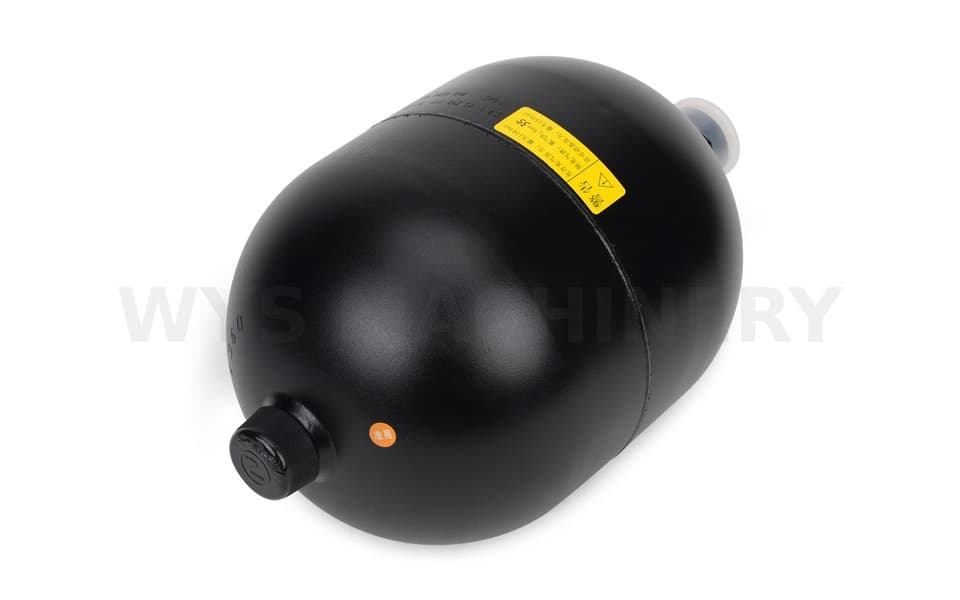

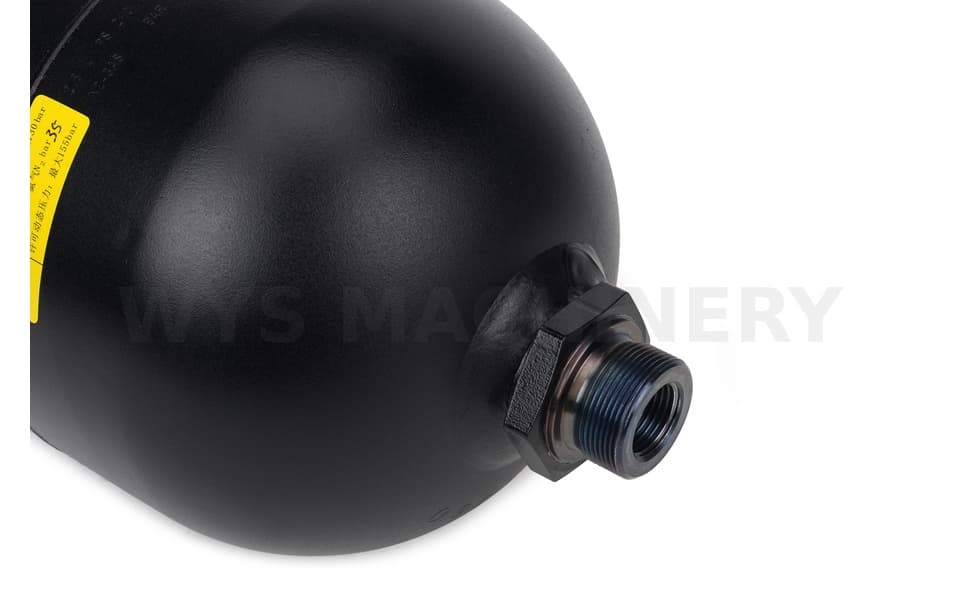

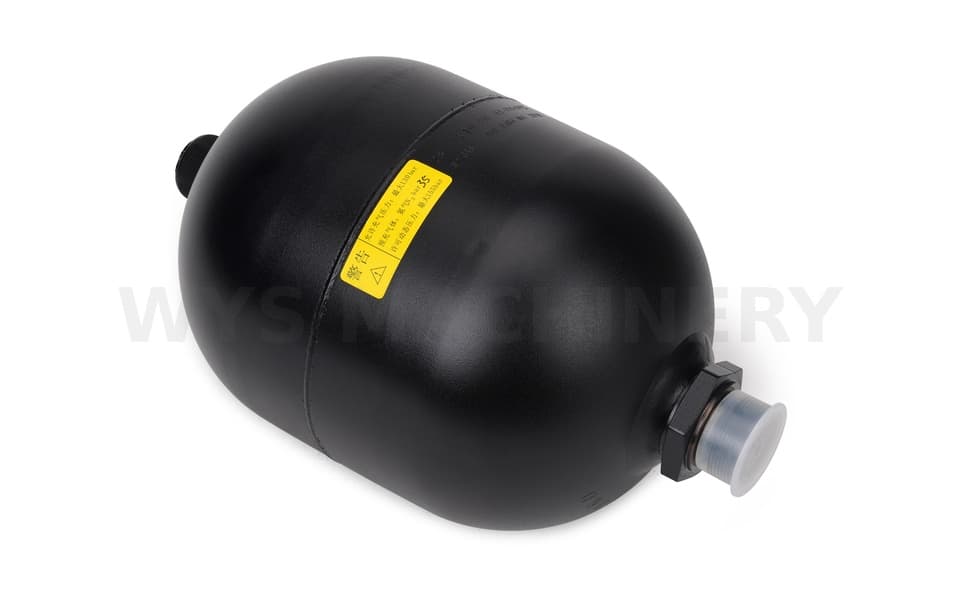

The products shown in the images are for product and manufacturing reference only. The actual accumulator supplied should be selected according to the customer's machine and hydraulic system.
Replacement & Model Matching
For customers looking for a replacement CNC turret punch press hydraulic accumulator, accurate model matching is important.
Customers can provide:
- Machine manufacturer / brand
- CNC turret punch press model
- Original accumulator model
- Original part number
- Accumulator capacity
- Maximum working pressure
- Nitrogen pre-charge specification
- Connection thread
- Photos of the original accumulator
- Nameplate information
Based on the available information, WYS MACHINERY can help identify a suitable accumulator specification for the application.
This is especially useful when the original component is damaged, aging or difficult to source.
Hydraulic Accumulator vs. Hydraulic Oil Return Buffer
Although both components are used in the hydraulic system of a CNC turret punch press, the Hydraulic Accumulator and Hydraulic Oil Return Buffer perform different primary functions.
Hydraulic Accumulator
The accumulator primarily stores hydraulic energy.
It stores pressurized hydraulic oil and releases that energy when additional flow or pressure is required.
Its functional sequence is:
Energy Storage → Rapid Oil Supply → Pressure Support → Stable Punching
Hydraulic Oil Return Buffer
The oil return buffer primarily manages temporary high-flow oil return conditions.
When a large volume of hydraulic oil returns within a short period, it temporarily accommodates part of the return oil and gradually releases it toward the tank as return-line pressure decreases.
Its functional sequence is:
High Return Flow → Temporary Buffering → Pressure Surge Reduction → Gradual Oil Return
Therefore, these are two different hydraulic components with different roles in the turret punch press hydraulic system.
WYS MACHINERY Punch Press Spare Parts
WYS MACHINERY supplies hydraulic components and other CNC turret punch press spare parts for machine maintenance, repair and replacement applications.
In addition to hydraulic accumulators, our punch press accessory range can include hydraulic components, pneumatic components, tooling parts and other machine-specific replacement parts.
For special or older machine models, customers can send us the original part information, photos, drawings or technical specifications. We can assist with product identification and recommend an appropriate replacement solution.
