CNC Turret Punch Tooling Station Adapter Sleeves
CNC turret punch tooling station adapter sleeves allow smaller-station punch tools to be installed in larger turret stations, improving tooling flexibility and reducing the need for duplicate tooling. Available conversions include E-to-D, E-to-C, D-to-C, D-to-B, D-to-A, C-to-B, C-to-A and B-to-A, with custom adapters available for different turret punch tooling and machine configurations.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description

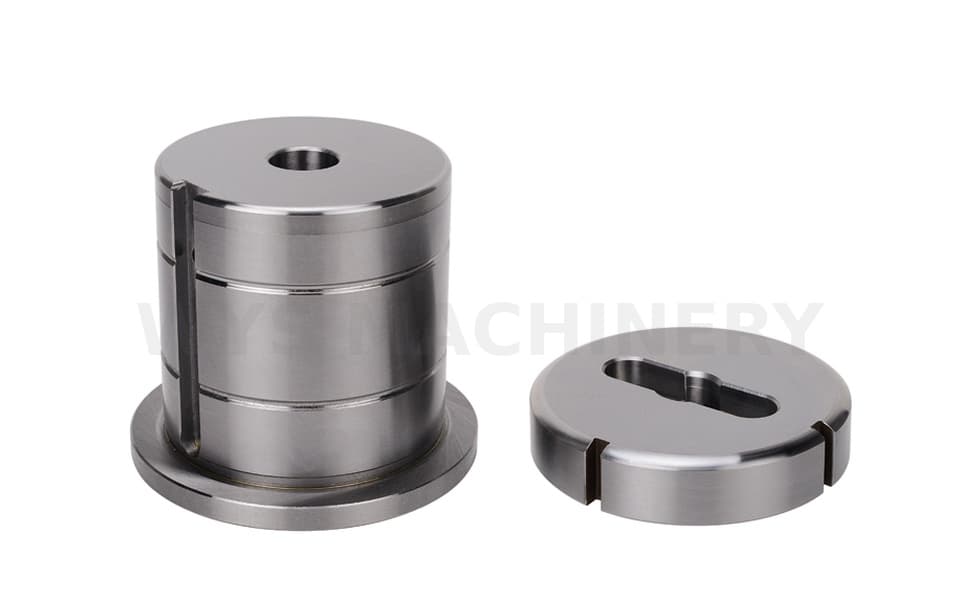

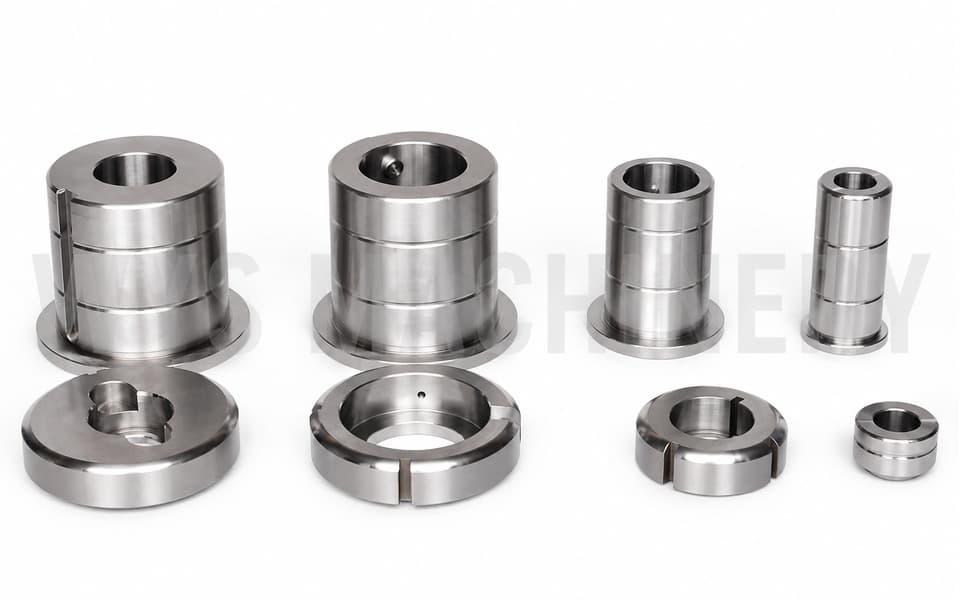

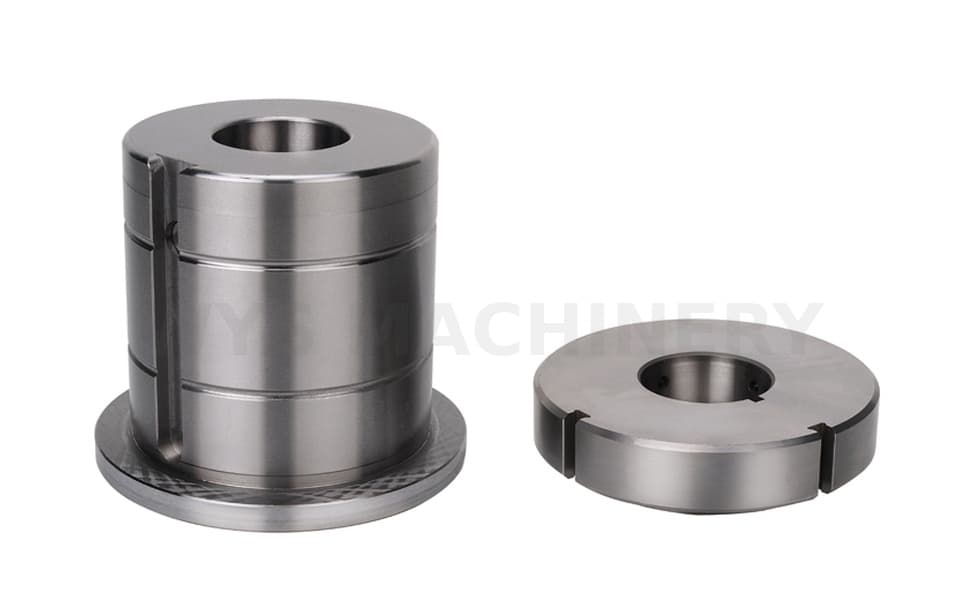

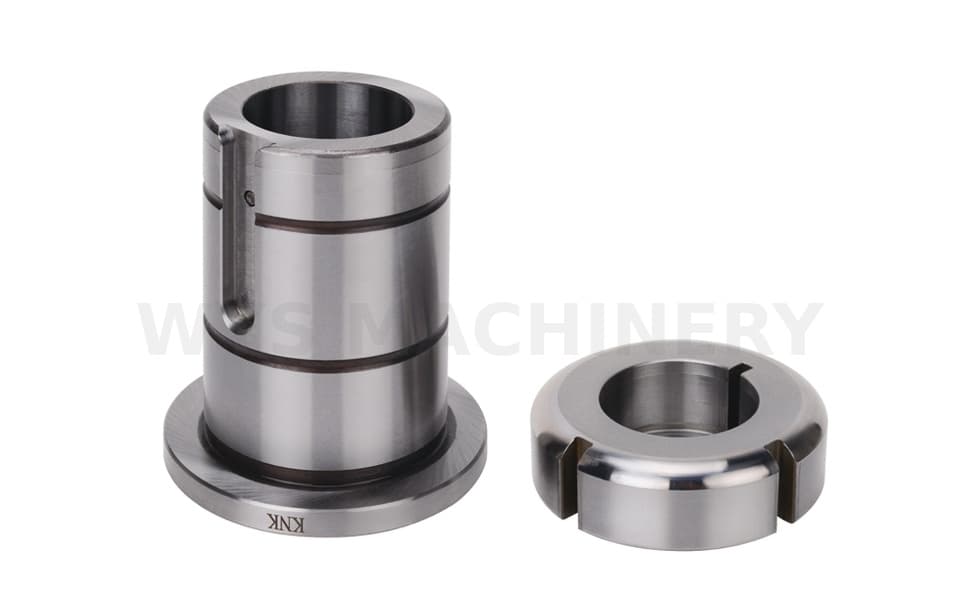

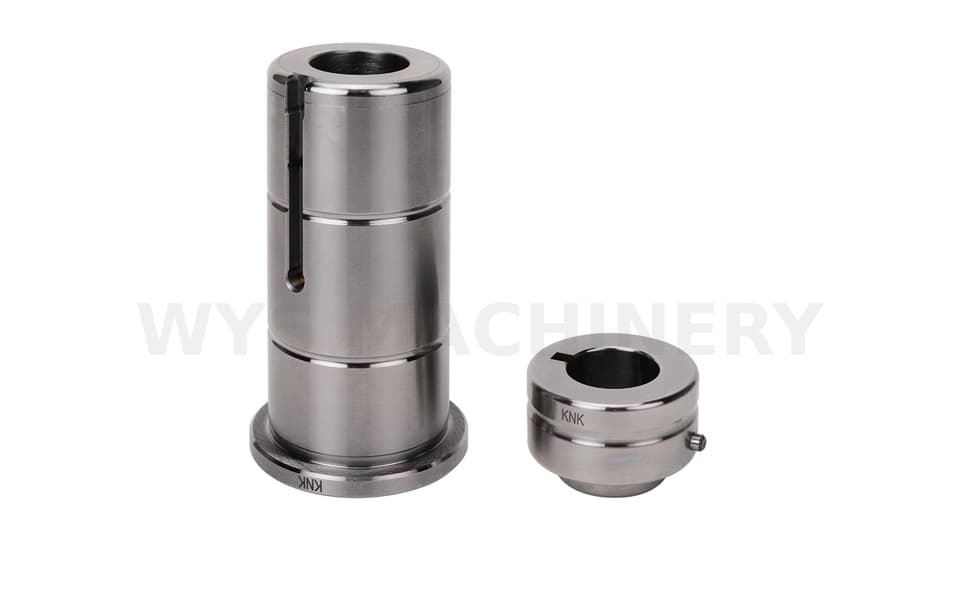

CNC Turret Punch Tooling Station Adapter Sleeves
Turret punch tooling station adapters are precision conversion components designed to adapt punch tooling between different turret station sizes.
For example, when a workshop already has C station tooling but an available D station is required, a D-to-C adapter allows compatible C station tooling to be installed in the D station without purchasing another complete set of tooling.
Station adapters help maximize existing tooling utilization, reduce duplicate tooling costs and provide greater flexibility when arranging tools across the turret. On compatible indexable or rotating stations, adapters can also support directional punching and forming applications where tool orientation needs to be changed.
WYS MACHINERY supplies multiple station conversion configurations for CNC turret punch tooling, with custom adapter solutions available according to machine model, turret station, tooling dimensions and application requirements.
Available Station Conversions
| Adapter Type | Application |
|---|---|
| E-to-D Adapter | D station tooling in a compatible E station |
| E-to-C Adapter | C station tooling in a compatible E station |
| D-to-C Adapter | C station tooling in a compatible D station |
| D-to-B Adapter | B station tooling in a compatible D station |
| D-to-A Adapter | A station tooling in a compatible D station |
| C-to-B Adapter | B station tooling in a compatible C station |
| C-to-A Adapter | A station tooling in a compatible C station |
| B-to-A Adapter | A station tooling in a compatible B station |
Key Features
- Multiple A, B, C, D and E station conversion options
- Allows smaller tooling to be used in compatible larger turret stations
- Maximizes utilization of existing punch tooling
- Reduces the need for duplicate tooling
- Improves turret station arrangement flexibility
- Suitable for punching and forming tooling
- Supports compatible indexable and rotating station applications
- Precision-machined locating and fitting surfaces
- Multiple standard conversion configurations available
- Custom dimensions and adapter configurations available
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Turret Punch Tooling Station Adapter Sleeve |
| Application | CNC Turret Punch Press |
| Tooling Type | Turret Punch Tooling |
| Main Function | Tooling Station Size Conversion |
| Available Conversions | E-D / E-C / D-C / D-B / D-A / C-B / C-A / B-A |
| Typical Configuration | Smaller Tooling to Larger Turret Station |
| Tooling Application | Punching & Forming |
| Index Station Application | Available for Compatible Configurations |
| Dimensions | According to Station and Machine Requirements |
| Customization | Available |
Typical Applications
- CNC turret punch presses
- Thick turret punch tooling
- Punch tooling station conversion
- Existing tooling reuse
- Turret station optimization
- Indexable and rotating turret stations
- Louver forming
- Tab forming
- Directional forming
- Special-shape punching
- Sheet metal fabrication
- Tooling replacement and retrofit
Standard & Custom Solutions
WYS MACHINERY supplies standard and custom turret punch tooling station adapters for different machine and tooling configurations.
For replacement or custom applications, customers can provide the machine manufacturer, machine model, turret station size, existing tooling size, original adapter dimensions, drawings or samples.
Compatibility should be confirmed according to the actual turret station, tooling dimensions and machine configuration.
