H+L Punch Position Sensor for CNC Turret Punch Press
H+L punch position sensor for CNC turret punch press hydraulic systems, designed to detect and provide feedback on punch position and stroke during punching and forming operations. Installed as part of the H+L hydraulic punch control system, the sensor helps the machine monitor punch movement, control punching depth and maintain the required punch position during forming operations. Replacement sensors are available according to the original model and machine configuration.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description

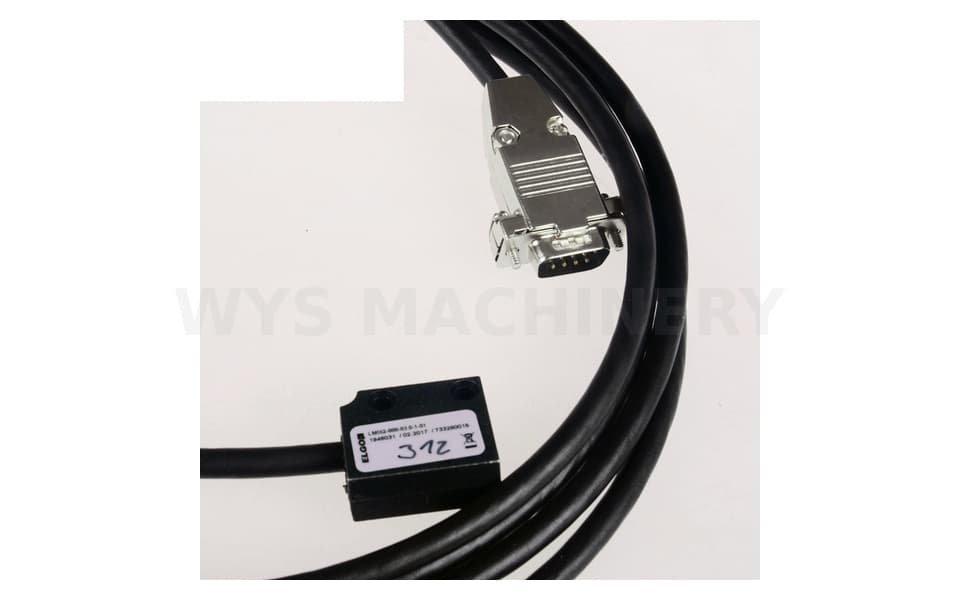

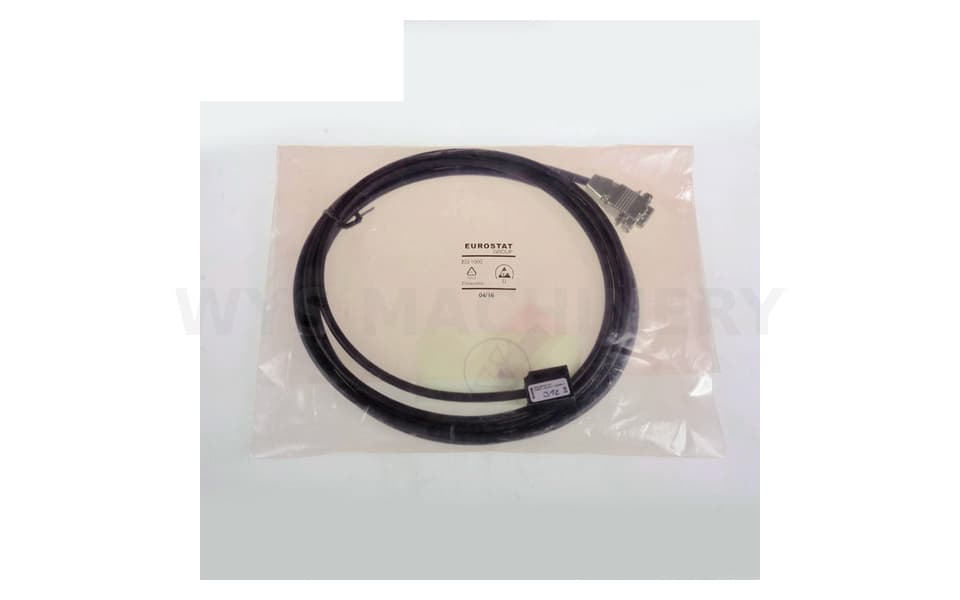

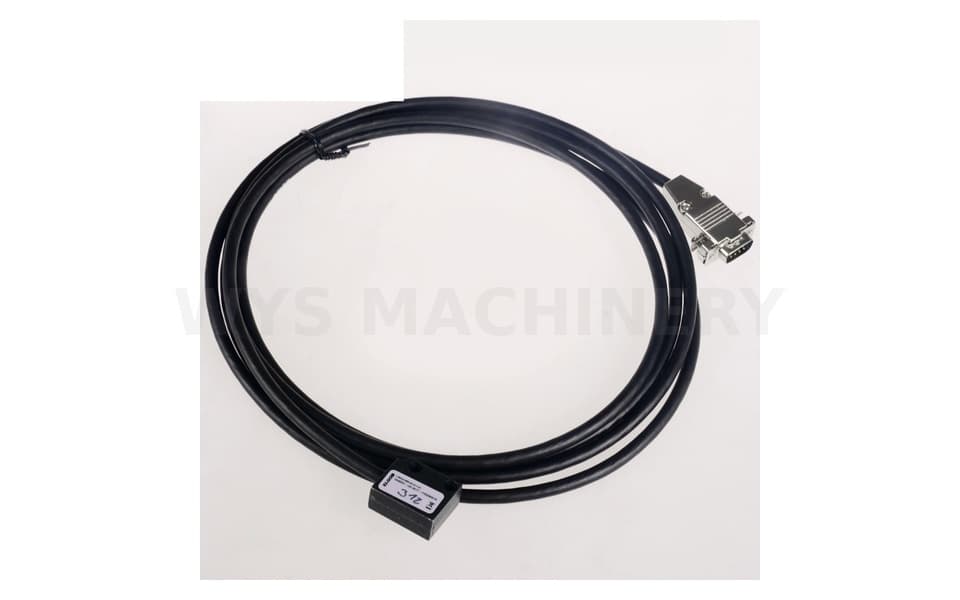

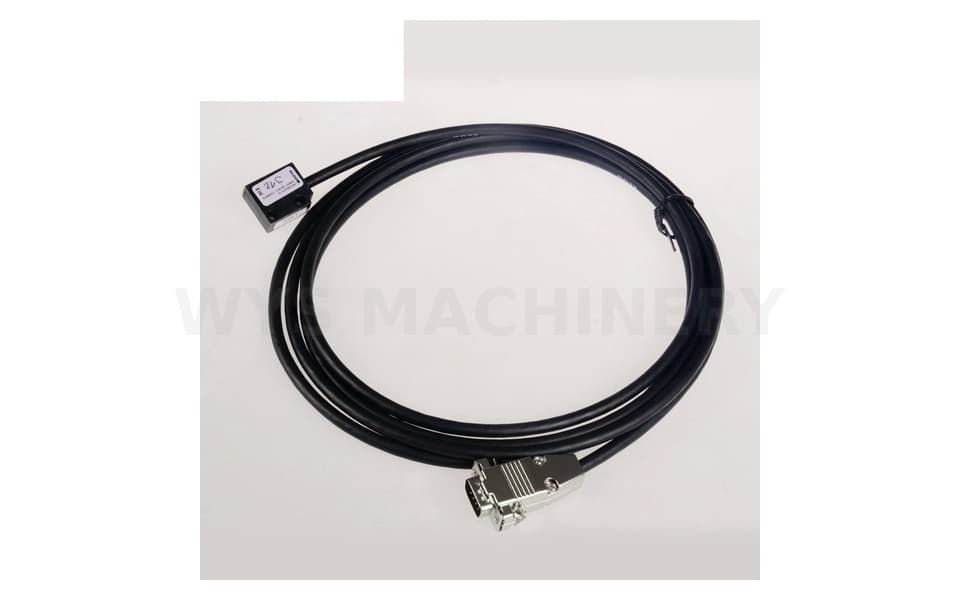

H+L Punch Position Sensor for CNC Turret Punch Press
The H+L Punch Position Sensor is a position feedback component used in the hydraulic punch control system of CNC turret punch presses.
Installed on the punch actuator or related hydraulic punch assembly, the sensor detects the position and movement of the punch and sends position feedback to the machine control system.
This feedback allows the control system to determine the actual punch position during the working cycle and helps control punch stroke and working depth.
In forming applications where the punch must reach or maintain a specified position, accurate position feedback is particularly important for controlling the forming process and maintaining consistent results.
This sensor is used as part of the H+L hydraulic system found on compatible CNC turret punch press configurations.
Main Functions
Punch Position Detection
The sensor detects the actual position of the punch during machine operation and provides position information to the control system.
This allows the CNC and hydraulic control system to monitor punch movement throughout the working cycle.
Punch Stroke Feedback
During punching, the machine needs to know whether the punch has reached the required position.
The sensor provides punch stroke position feedback, helping the control system coordinate hydraulic movement with the programmed punching cycle.
Punching Depth Control
For operations where punch penetration or working depth must be controlled, position feedback allows the machine to determine the punch position more accurately.
The basic control relationship can be understood as:
Punch Movement → Position Detection → Feedback Signal → Machine Control → Hydraulic Adjustment
Forming Position Monitoring
The position sensor becomes especially important during forming operations.
Unlike conventional through-punching, some forming processes require the punch to move to a controlled depth or remain at a specified position during part of the forming cycle.
The sensor provides the position feedback required by the control system to monitor this movement.
How the Position Feedback System Works
During operation, the hydraulic system drives the punch through its programmed stroke.
The position sensor continuously or sequentially detects punch position according to the machine control design.
The resulting signal is transmitted through the sensor cable to the control system.
The process can be summarized as:
Hydraulic Punch Movement → Position Sensor Detection → Electrical Feedback Signal → CNC / Hydraulic Control → Punch Position Control
This closed-loop position information helps the machine coordinate hydraulic actuation with the required punching or forming operation.
Key Features
- Designed for CNC turret punch press applications
- Used with compatible H+L hydraulic punch systems
- Detects punch position and movement
- Provides punch stroke position feedback
- Supports controlled punching depth
- Supports forming position monitoring
- Helps coordinate hydraulic punch movement
- Integrated sensor and cable assembly
- Industrial electrical connector
- Suitable for punch actuator position detection
- Suitable for maintenance and replacement
- Replacement matching according to original sensor model
- Machine-specific configurations available
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | H+L Punch Position Sensor |
| Product Type | Position / Displacement Sensor |
| Application | CNC Turret Punch Press |
| System | H+L Hydraulic Punch Control System |
| Installation | Punch / Hydraulic Actuator Assembly |
| Main Function | Punch Position Detection |
| Feedback Function | Punch Stroke Position Feedback |
| Process Function | Punching Depth & Forming Position Monitoring |
| Signal Connection | Cable with Electrical Connector |
| Cable Length | According to Sensor Model |
| Sensor Specification | Model-Specific |
| Connector Type | Model-Specific |
| Replacement | Available |
| Model Matching | Available |
Punching Depth Control
In standard punching operations, the punch moves through the sheet to complete the programmed hole or contour.
For certain machine configurations and processing requirements, punch position feedback can also be used to monitor or control the working stroke.
Accurate punch position information helps the control system determine whether the punch has reached the required position.
This is particularly useful when the machine requires more precise control of the punch stroke or penetration depth.
Position Feedback in Forming Operations
Position control becomes even more important when a CNC turret punch press performs forming operations rather than simple hole punching.
Depending on the tooling and process, forming operations may require a controlled punch position to produce the required:
- Forming height
- Embossing depth
- Extrusion depth
- Louver geometry
- Countersink depth
- Other sheet metal formed features
The position sensor provides feedback about actual punch movement, allowing the machine control system to monitor whether the required position has been reached.
Therefore, the sensor is not simply an electrical spare part; it is part of the punch motion feedback and forming control system.
Typical Applications
The H+L punch position sensor can be used for:
- CNC turret punch presses
- Hydraulic turret punch presses
- Punch position detection
- Punch stroke monitoring
- Punching depth control
- Forming depth monitoring
- Hydraulic punch actuator feedback
- CNC punching position feedback
- Sheet metal forming operations
- Embossing operations
- Extrusion forming
- Louver forming
- Turret punch maintenance
- Position sensor replacement
Replacement & Model Identification
Different CNC turret punch presses and H+L hydraulic system configurations may use different sensor specifications.
For accurate replacement, customers should provide:
- Machine manufacturer
- CNC turret punch press model
- Original sensor model
- Original part number
- Clear photo of the sensor label
- Connector type
- Cable length
- Installation dimensions
- Photos of the original installation position
If the original part number is unclear, customers can send detailed photos of the sensor, cable, connector and installation location for identification.
WYS MACHINERY can assist with replacement model matching according to the available information.
H+L Hydraulic System Spare Parts
WYS MACHINERY supplies various replacement components used in H+L hydraulic systems for CNC turret punch presses.
Relevant products include hydraulic control and monitoring components used for:
- Hydraulic pressure control
- Punch position feedback
- Hydraulic energy storage
- Return oil buffering
- Punch stroke control
- Hydraulic system maintenance
Replacement components can be matched according to machine model, original part number and existing component specifications.
