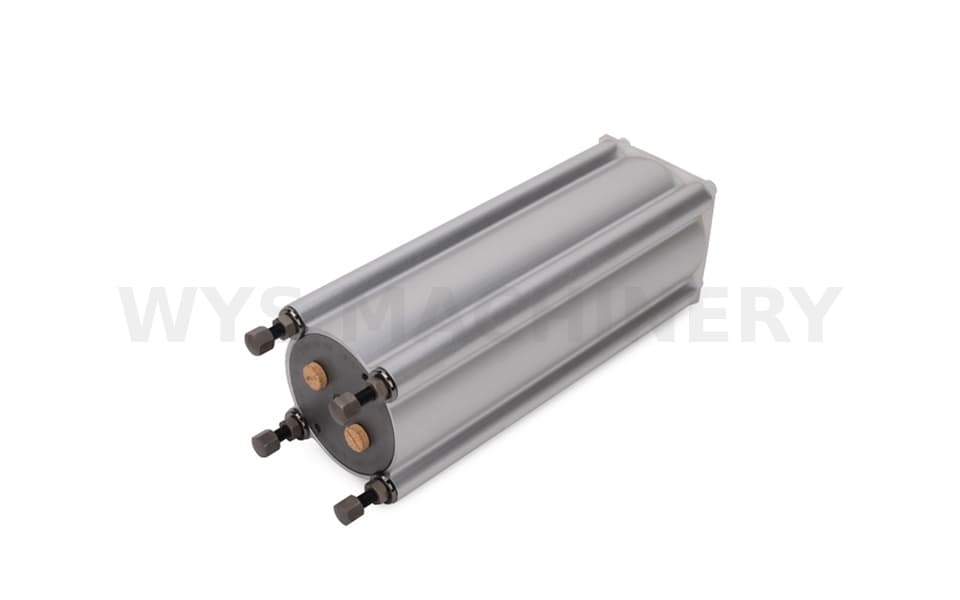

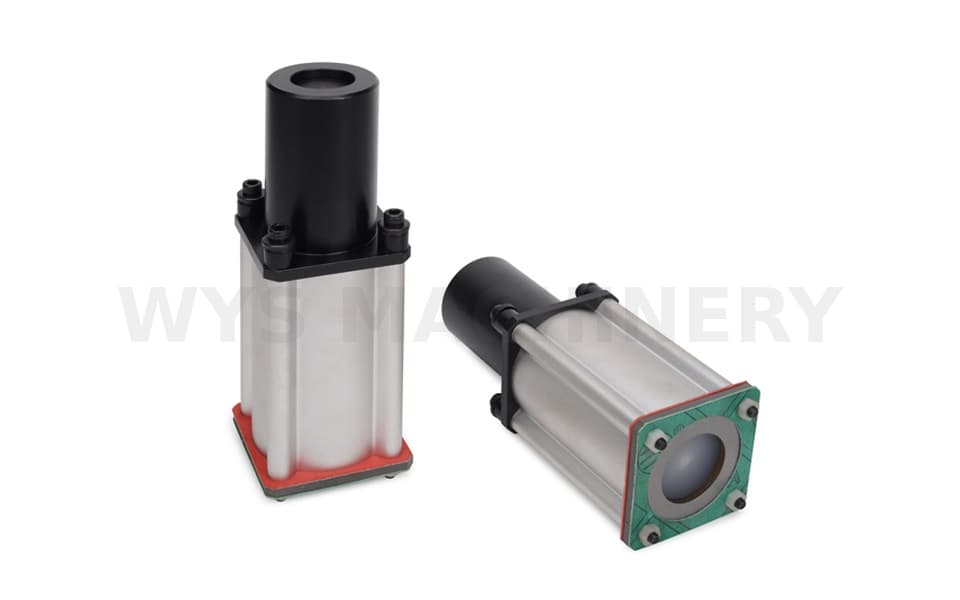

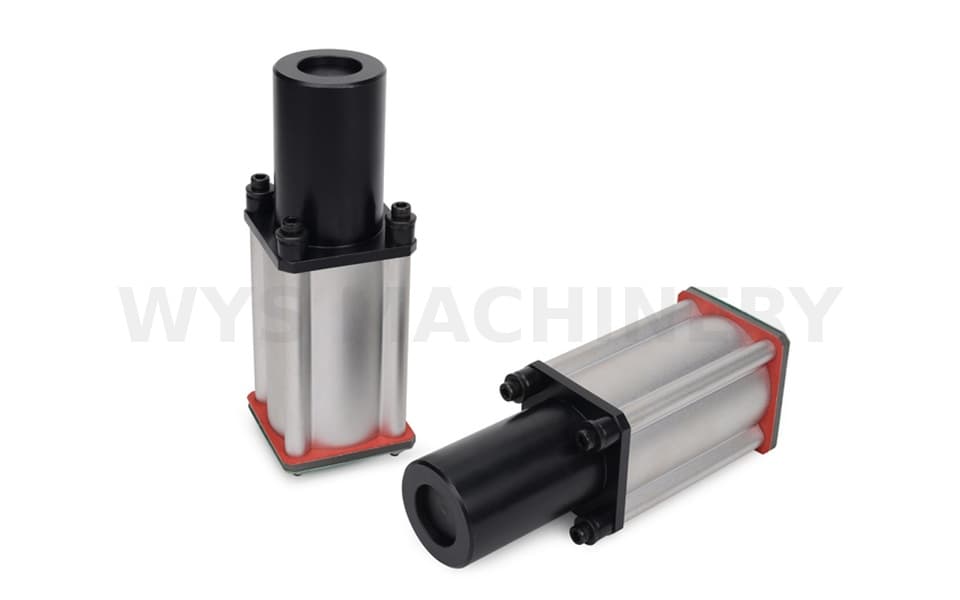

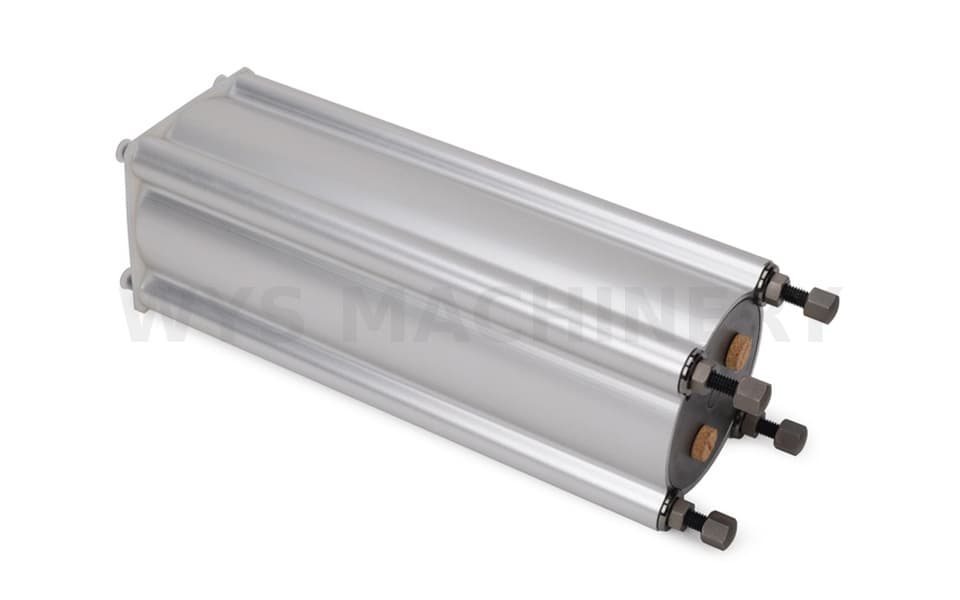

Hydraulic Oil Return Buffer for CNC Turret Punch Press

The Hydraulic Oil Return Buffer is a specialized hydraulic component used in CNC turret punch presses to manage temporary pressure and flow surges generated when hydraulic oil rapidly returns to the tank.

During high-speed operation of a turret punch press, a relatively large volume of hydraulic oil may need to return within a short period. When the instantaneous return flow exceeds what the return circuit can smoothly accommodate, pressure can rise rapidly and create hydraulic shock within the return line.

The oil return buffer provides temporary additional volume for part of this returning hydraulic oil. Instead of forcing the entire oil volume through the return circuit at once, part of the oil enters the buffer, reducing the instantaneous load on the return line.

As the return-line pressure decreases, the temporarily buffered hydraulic oil is gradually released back toward the hydraulic tank.

This process helps smooth the oil-return cycle, reduce pressure surges and protect hydraulic pipelines and associated components.

---

How the Hydraulic Oil Return Buffer Works

The operating principle can be understood as a simple temporary buffering and controlled release process.

When hydraulic oil returns rapidly:

1. Return flow increases

A large amount of hydraulic oil enters the return circuit within a short period.

2. Return-line pressure rises

Because the oil cannot pass through the return circuit and return to the tank instantaneously, temporary pressure and flow fluctuations may occur.

3. Excess return oil enters the buffer

Part of the hydraulic oil is temporarily diverted into the Hydraulic Oil Return Buffer, reducing the instantaneous volume that must pass through the return line.

4. Pressure surge is reduced

The additional buffering volume helps absorb the sudden increase in return flow and reduces hydraulic shock.

5. Buffered oil is gradually released

When return-line pressure falls, the temporarily received hydraulic oil gradually flows out of the buffer and returns to the hydraulic tank.

The buffer therefore acts as a hydraulic return-flow cushioning component, rather than an energy-storage component used to supplement punching power.

---

Key Features

• Specifically designed for CNC turret punch press hydraulic return systems
• Temporarily receives excess hydraulic oil during high-flow return conditions
• Helps reduce instantaneous return-line pressure
• Buffers hydraulic pressure surges and return-flow fluctuations
• Gradually releases buffered oil as return pressure decreases
• Helps smooth hydraulic oil return to the tank
• Reduces hydraulic shock within the return circuit
• Helps protect hydraulic pipes, fittings, seals and related components
• Suitable for high-frequency CNC punching applications
• Robust structure for industrial machine operation
• Replacement solutions available for different punch press models
• Dimensions, capacity, mounting and connections can be supplied according to machine requirements

---

Technical Specifications

Difference Between Oil Return Buffer and Hydraulic Accumulator

Hydraulic Oil Return Buffer

The primary purpose of an oil return buffer is to manage temporary high-flow and pressure conditions in the hydraulic return circuit.

It temporarily accommodates part of the returning hydraulic oil and gradually releases it as return-line pressure decreases.

Its main objective is:

Buffering → Pressure Surge Reduction → Smooth Oil Return → Hydraulic Circuit Protection

Hydraulic Accumulator

A hydraulic accumulator, by comparison, is primarily designed to store hydraulic energy.

When the punch press requires additional hydraulic energy during operation, the accumulator can release stored energy to supplement system flow or pressure.

Its primary purpose is:

Energy Storage → Energy Release → Pressure/Flow Supplement

Therefore, although both components interact with hydraulic pressure, their primary functions within the punch press hydraulic system are different.

Protection of the Hydraulic Return Circuit

Repeated hydraulic pressure shocks can place additional stress on components within the oil-return system.

By smoothing the return process, the turret punch press hydraulic oil return buffer can help reduce unnecessary impact on:

Hydraulic pipelines
Reduces sudden pressure loading during high-flow oil return.

Pipe fittings and connections
Helps reduce repeated hydraulic shock at connection points.

Seals
Smoother pressure changes can reduce unnecessary stress on sealing components.

Return-line components
Helps stabilize the operating conditions of components located in the hydraulic return circuit.

Hydraulic oil tank return system
Allows high instantaneous return flow to be managed more gradually before the oil returns to the tank.

---

Typical Applications

The Hydraulic Oil Return Buffer can be used in:

• CNC turret punch presses
• Hydraulic turret punch presses
• High-speed CNC punching machines
• Punch press hydraulic systems
• Hydraulic oil return circuits
• High-flow hydraulic return applications
• Punch press hydraulic maintenance
• Hydraulic system repair and overhaul
• Replacement of damaged or aging oil return buffers
• CNC turret punch press spare parts replacement

It is particularly useful in hydraulic circuits where large instantaneous return flow may generate pressure surges during machine operation.

---

Multi-Brand CNC Turret Punch Press Applications

Different manufacturers and machine models may use different structures and specifications of hydraulic oil return buffers.

WYS MACHINERY can provide replacement solutions for a wide range of domestic and international CNC turret punch presses.

Depending on the machine, differences may include:

• Buffer capacity
• Overall dimensions
• Installation dimensions
• Hydraulic connections
• Mounting structure
• Working pressure
• Return-flow requirements

Therefore, the replacement component should be selected according to the actual punch press model and hydraulic system.

---

Replacement & Custom Hydraulic Oil Return Buffers

For customers requiring replacement parts, WYS MACHINERY can manufacture or supply CNC turret punch press hydraulic oil return buffers according to existing components or technical information.

Customers can provide:

• CNC turret punch press brand
• Machine model
• Original part number
• Photos of the existing component
• Overall dimensions
• Installation dimensions
• Hydraulic connection specifications
• Working pressure
• Buffer capacity
• Hydraulic circuit information

If the original part number is unavailable, customers can also provide the existing sample, detailed dimensions or drawings for technical confirmation.

This makes it possible to provide replacement solutions for both current and older CNC turret punch press models.

---

WYS MACHINERY Punch Press Spare Parts

In addition to hydraulic oil return buffers, WYS MACHINERY supplies a range of CNC turret punch press parts, hydraulic components, tooling parts and punch press accessories for machine maintenance and replacement applications.

For special or discontinued components, customers can send us the original part information, drawings or samples. We can assist with component identification and provide a suitable manufacturing or replacement solution according to actual machine requirements.
