Murata Wiedemann 114 Series XA Station RO6.8 Punch & Die Tooling

The Murata Wiedemann 114 Series XA Station Punch & Die Tooling is designed for compatible 114 Style XA Station CNC punch press applications.

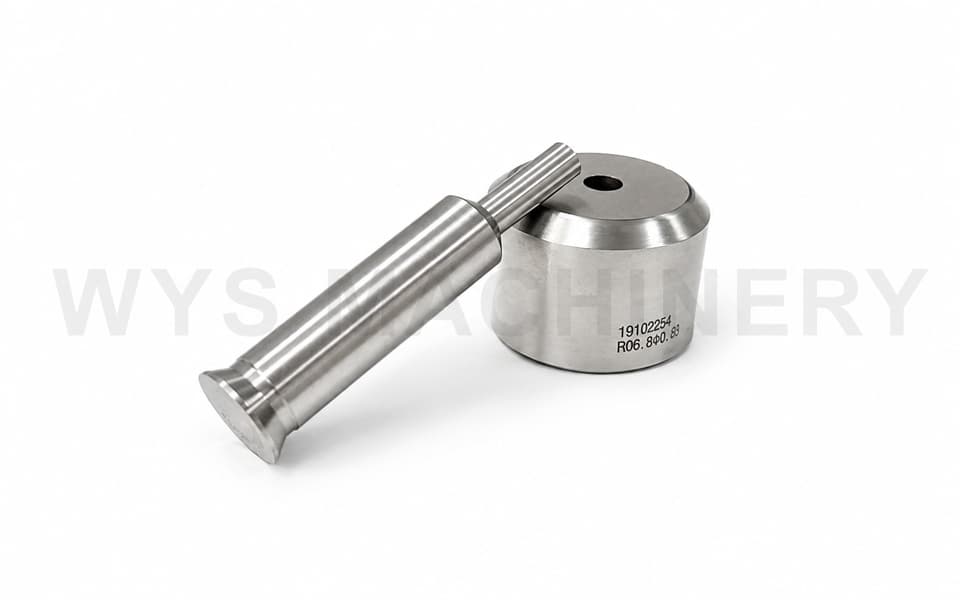

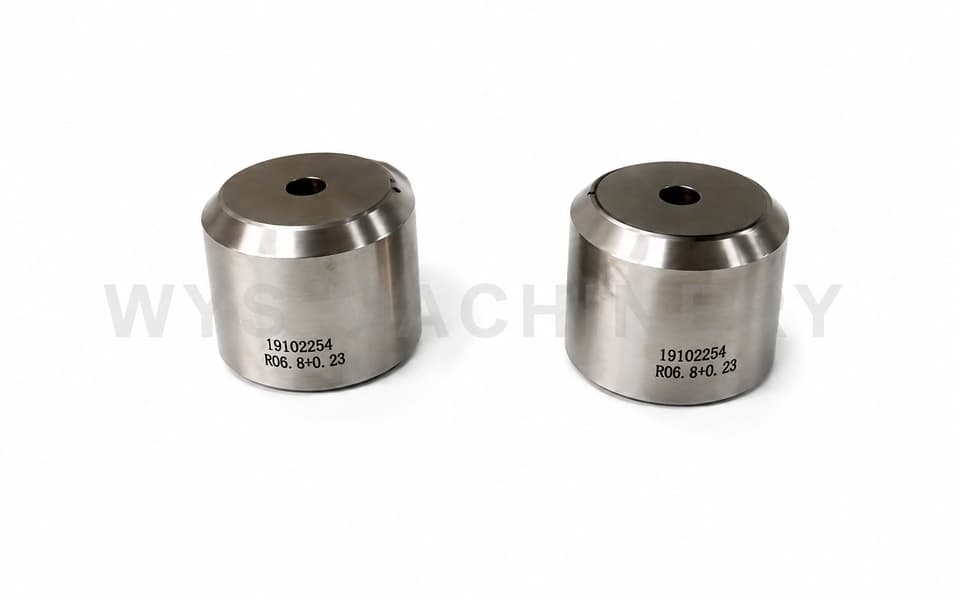

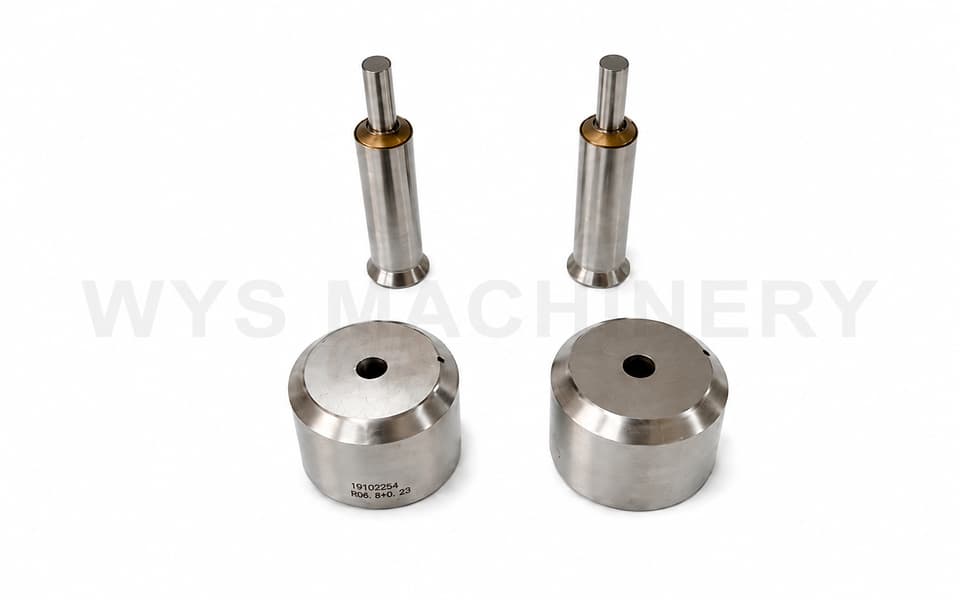

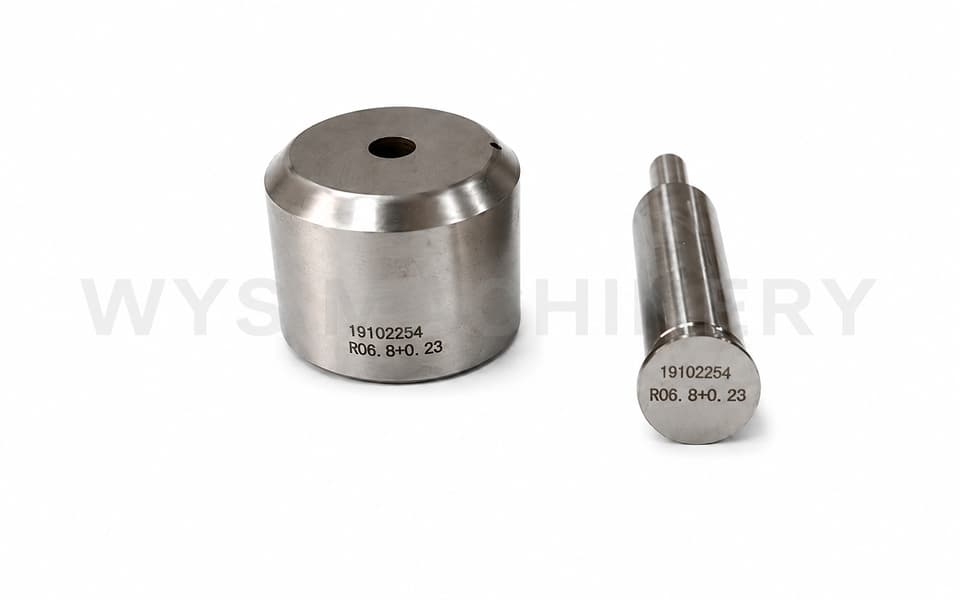

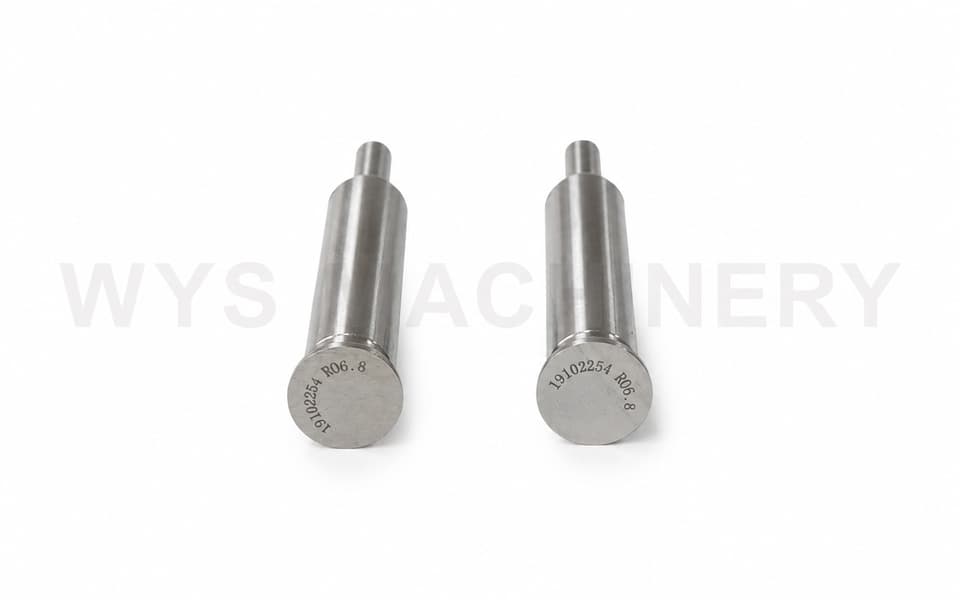

The product shown on this page is an actual tooling sample previously manufactured by WYS Machinery. Its punching profile is RO6.8, representing a round Ø6.8 mm punching size.

RO6.8 is provided as a reference sample rather than a limitation of the available tooling range. We can manufacture XA Station punch and die tooling in different sizes and shapes according to the customer's actual sheet metal processing requirements.

The punch and die are precision manufactured as matching tooling components to provide accurate punching geometry, reliable alignment and repeatable performance during CNC sheet metal punching operations.

Key Features

• 114 Series XA Station Tooling – Designed for compatible Murata Wiedemann 114 Style XA Station punch press applications.
• RO6.8 Sample Specification – The tooling shown in the product images is a previously manufactured Ø6.8 mm round punching sample.
• Punch & Die Matching – Punch and die components can be manufactured as a matched tooling set according to the required application.
• Custom Punching Sizes – Round tooling can be manufactured in different diameters according to customer requirements.
• Multiple Punching Shapes Available – Tooling is not limited to round profiles and can be customized for different punching geometries.
• Custom Die Clearance – Die clearance can be selected according to sheet material, material thickness and punching requirements.
• Precision Machining – Critical dimensions and working areas are accurately manufactured for consistent punching performance.
• Replacement Tooling Available – Individual punch or die components can be manufactured for compatible replacement applications.
• Custom Tooling Design – Customers can provide finished part drawings, and WYS Machinery can assist in developing a suitable punch and die solution.

Technical Specifications

RO6.8 Round Punching Sample

The tooling photographed on this page is a RO6.8 round punch and die sample manufactured for a previous application.

In punch tooling terminology:

RO = Round

RO6.8 = Ø6.8 mm round punching profile

This sample demonstrates one of the possible tooling configurations available for the 114 Series XA Station.

The required diameter can be changed according to the customer's application. Therefore, customers requiring other round hole sizes do not need to select RO6.8 specifically.

Custom Shapes & Sizes

WYS Machinery can manufacture custom Murata Wiedemann 114 Series XA Station tooling according to different sheet metal punching requirements.

Available punching geometries can include standard and customized profiles such as:

• Round (RO)
• Square (SQ)
• Rectangle (RE)
• Oblong
• Slot
• Radius and special profiles
• Customized irregular shapes

The final tooling geometry and dimensions can be manufactured according to the customer's drawing or required punched feature.

For special shapes, customers can send the finished sheet metal part drawing directly to us for tooling evaluation.

Custom Die Clearance

Correct punch-to-die clearance is an important factor in sheet metal punching.

The appropriate clearance depends on several conditions, particularly:

• sheet material;
• sheet thickness;
• material strength;
• punching geometry;
• required edge quality;
• specific punching application.

Therefore, the die clearance does not need to follow a single fixed specification.

Customers can provide their material type and sheet thickness, and the die can be manufactured with suitable clearance according to the actual application.

Punch, Die or Complete Tooling Set

Different customers have different replacement and production requirements.

This XA Station tooling can be supplied as:

Punch Only – For replacement of an existing punch.

Die Only – For replacement or additional die requirements.

Punch & Die Set – Matched punch and die manufactured according to the same punching specification.

For existing tooling replacement, customers can provide tooling information, drawings, dimensions or physical samples for manufacturing reference.

Typical Applications

Murata Wiedemann 114 Series XA Station punch and die tooling can be used for:

• CNC punch press sheet metal processing;
• round hole punching;
• square and rectangular punching;
• slot and oblong hole punching;
• customized profile punching;
• precision sheet metal fabrication;
• replacement punch and die applications;
• standard and custom punch tooling production.

Typical processed materials can include carbon steel, stainless steel, aluminum and other sheet materials within the applicable machine and tooling capacity.

Custom Tooling from Your Part Drawing

For customers who do not know the exact punch and die specification required, providing the finished part drawing is often the simplest solution.

Useful information includes:

• required punching geometry;
• hole or profile dimensions;
• sheet material;
• sheet thickness;
• Murata Wiedemann machine/tooling information;
• required production quantity or application details.

WYS Machinery can evaluate the application and recommend an appropriate punch and die configuration.

This service is particularly useful for customized shapes, special punching applications and customers replacing tooling where the original tooling information is incomplete.

Standard & Custom Murata Wiedemann Type Tooling

WYS Machinery supplies a range of Murata Wiedemann Type punch press tooling for sheet metal fabrication.

In addition to XA Station tooling, compatible tooling solutions can be manufactured for different 114 Series stations and applications.

Our product range includes standard and customized:

• punches;
• dies;
• guides;
• punch and die sets;
• replacement tooling components;
• special shape punch tooling;
• forming and special application tooling.

Whether the requirement is a standard round punch such as the RO6.8 sample shown here or a customized profile manufactured from a customer drawing, tooling can be produced according to the actual application requirements.
