Swiveling Magnetic Back Gauge Bracket for Press Brakes
The Swiveling Magnetic Back Gauge Bracket is designed to support precise angled bending and repeatable positioning on press brakes. Each set includes two adjustable magnetic brackets, mounted on the left and right sides of the workpiece. Powerful magnets secure the brackets directly to compatible press brake dies, while the swiveling supports allow different positioning angles to suit various bending requirements. Ideal for small sheet metal parts and applications requiring consistent angled bends.
Please add the quotation and send it to us and get in touch with us immediately
- Global Customer Support
- Competitive Pricing
- Quality Control
- After-Sales Support
- Technical Assistance
Description

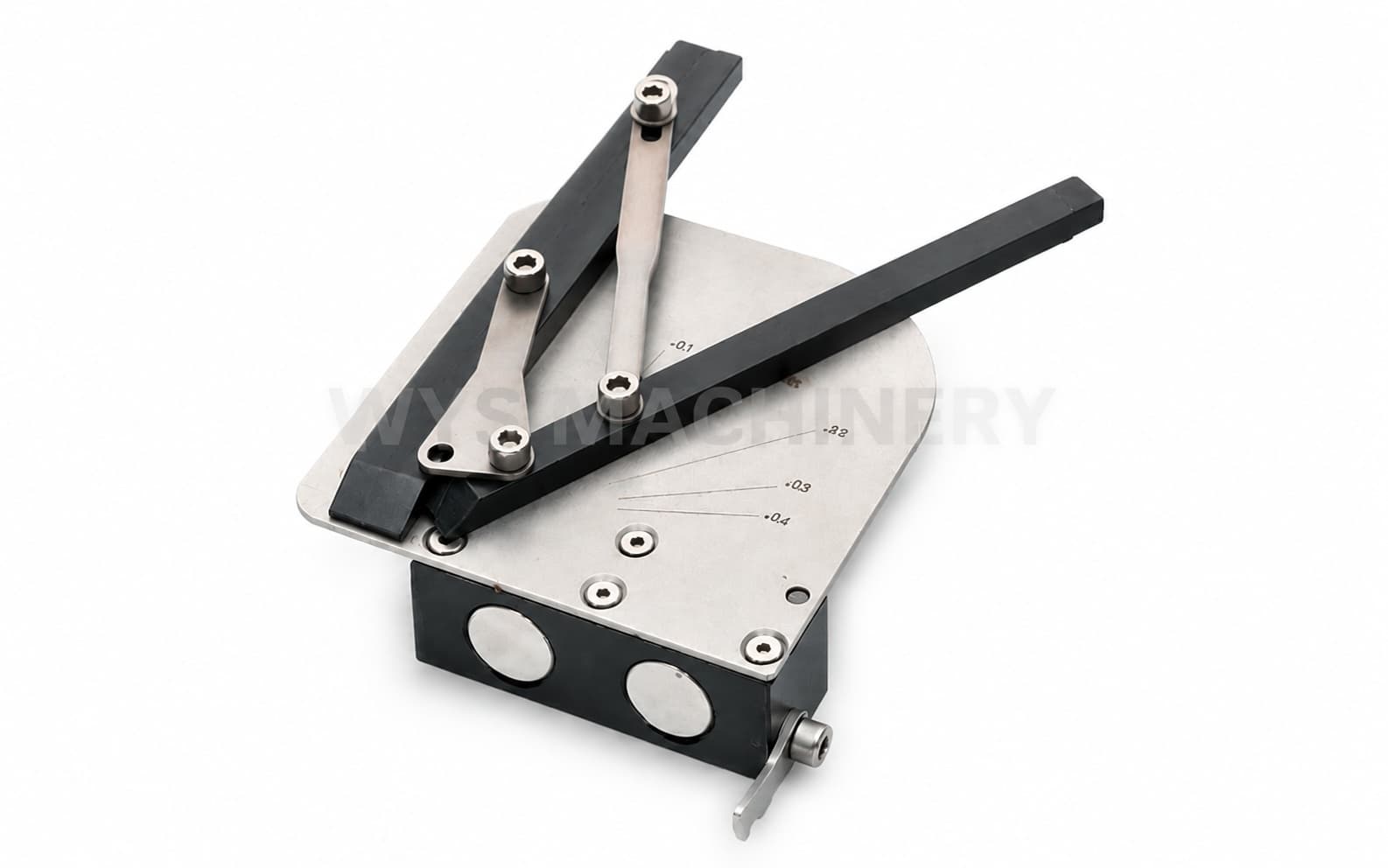

Swiveling Magnetic Back Gauge Bracket for Precise Angled Bending
The Swiveling Magnetic Back Gauge Bracket is a flexible positioning accessory designed to improve accuracy and repeatability in press brake bending operations, especially when processing small sheet metal parts or producing angled bends.
Each set includes two magnetic brackets, positioned on the left and right sides of the workpiece. The brackets attach directly to compatible press brake dies using powerful magnets, allowing convenient installation and repositioning without permanent mounting.
Adjustable Positioning for Angled Bending
The swiveling design allows operators to adjust the support angle according to the workpiece geometry and required bending line. By positioning both brackets appropriately, operators can achieve repeatable alignment at different angles relative to the sheet edge, making the system suitable for non-standard bending applications.
Precise Positioning for Small Sheet Metal Parts
Small workpieces can be difficult to position consistently during press brake operations. The two adjustable supports help guide and align the sheet metal, improving setup consistency and supporting repeatable bending results across multiple parts.
Quick Magnetic Mounting
Powerful magnets secure the brackets directly to compatible press brake dies, making installation and repositioning straightforward. This flexible mounting arrangement helps operators adapt the setup to different bending requirements without modifying the tooling permanently.
Key Benefits
Two-Bracket Set: One bracket for each side of the workpiece.
Swiveling Adjustment: Supports different positioning angles for angled bending.
Magnetic Mounting: Attaches directly to compatible press brake dies.
Repeatable Positioning: Helps maintain consistent alignment during production.
Small-Part Handling: Suitable for compact sheet metal components.
Flexible Setup: Adapts to different workpiece geometries and bending requirements.
Typical Applications
This magnetic back gauge bracket set is suitable for sheet metal fabrication, angled flange bending, small component production, custom metal forming and other press brake applications requiring precise, repeatable workpiece positioning.
Compatibility and Customization
Compatibility depends on the press brake die configuration, available mounting surface and required adjustment range. When requesting a quotation, please provide your tooling dimensions, press brake die type and intended bending angles so that suitability can be confirmed for your application.
