Press Brake Tooling Storage Cabinet for Organized Punch & Die Management

A well-organized tooling system is essential for workshops operating multiple press brake punches and dies. Frequently used tooling needs to be stored safely while remaining easy for operators to identify, access and return after bending operations.

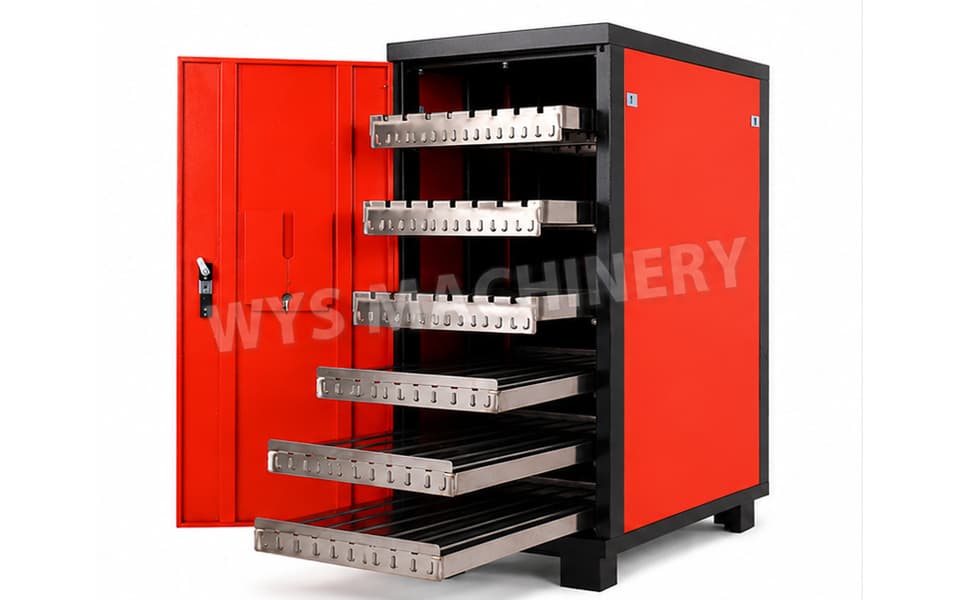

Our Press Brake Tooling Storage Cabinet provides a dedicated storage solution for press brake upper and lower tooling. With overall dimensions of 900 × 500 × 1370 mm, the cabinet combines high storage capacity with a relatively compact footprint, making it suitable for placement near press brakes, tooling preparation areas and sheet metal production lines.

The internal structure contains six storage levels. Three levels are designed for storing press brake punches, while the other three accommodate press brake dies, allowing upper and lower tooling to be organized separately within one cabinet.

The standard configuration provides storage for approximately 21 punch pieces and 18 die pieces.

Six-Level Punch and Die Storage System

Unlike general-purpose workshop cabinets, this press brake tool cabinet is specifically designed around the storage requirements of bending tooling.

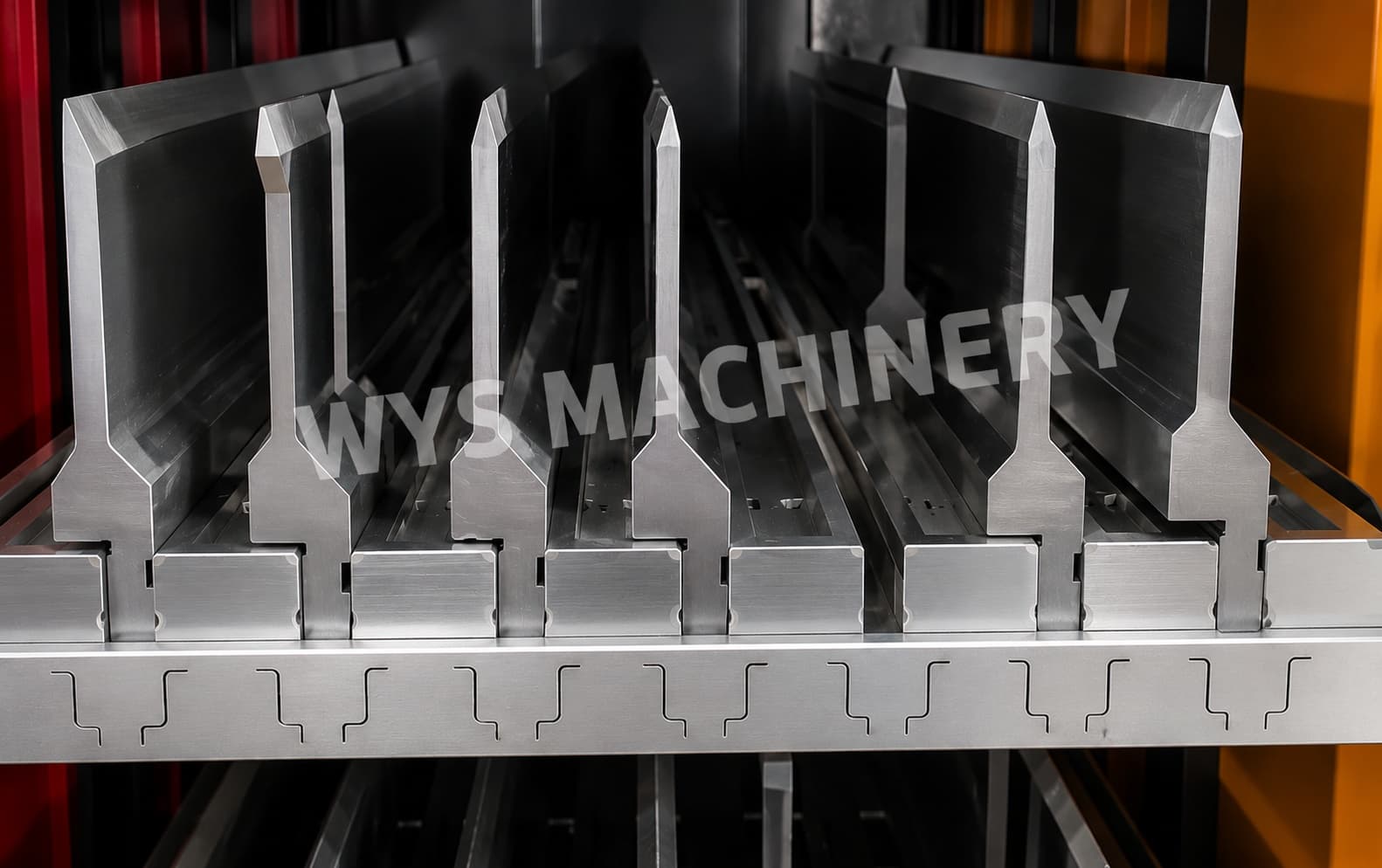

The internal arrangement separates punches and dies into dedicated levels, helping operators organize different tooling profiles, heights and sizes. Individual tools can be placed into separate storage positions rather than stacked together.

This configuration is particularly useful for workshops operating multiple sets of:

• Standard press brake punches
• Gooseneck punches
• Straight punches
• Press brake V-dies
• Single-V dies
• Other compatible upper and lower bending tools

By keeping frequently used tooling in designated positions, the cabinet helps improve tool identification and reduces unnecessary handling during tool changes.

Designed for Workshop Tool Management

Press brake tooling can be heavy, and improper storage may result in tooling being placed directly on workbenches, pallets or workshop floors. This can make tool management inefficient and may expose precision working surfaces to unnecessary contact or damage.

A dedicated press brake die storage cabinet provides a centralized location for tooling when it is not installed on the machine.

For production environments that perform frequent tooling changes, organized storage can help operators locate the required punch or die more quickly and return it to its designated position after use.

Heavy-Duty Cold-Rolled Steel Construction

The cabinet is manufactured from cold-rolled steel plate and designed for industrial workshop use.

With a net weight of approximately 150 kg, the robust structure provides stable support for multiple press brake punches and dies. The standard cabinet can be supplied in red or blue, allowing customers to select a color suitable for their workshop equipment or production environment.

A cabinet-style enclosed configuration can also help keep tooling storage areas cleaner and more orderly.

Tool Storage Capacity

The standard cabinet configuration accommodates:

Press Brake Punches: up to 21 pieces
Press Brake Dies: up to 18 pieces

Actual storage capacity can vary depending on the length, width, height and profile of the tooling being stored.

For customers using special punches, large V-dies, segmented tooling or other non-standard press brake tools, the internal storage arrangement can be adapted accordingly.

Custom Press Brake Tool Storage Solutions

Different press brake workshops use different tooling systems, so a fixed cabinet configuration may not suit every application.

We support custom press brake tooling storage cabinets according to the customer's actual tooling and workshop requirements.

Customization can include cabinet dimensions, storage layout, punch and die positions, storage capacity, cabinet color and other structural details.

Customers can provide their tooling drawings, dimensions, photographs or required storage quantities, and a suitable cabinet configuration can be developed accordingly.

---

Key Features

Dedicated Press Brake Tool Storage
Designed specifically for organized storage of press brake punches and dies rather than general workshop tools.

6-Level Internal Configuration
Three levels for upper punches and three levels for lower dies.

High Tooling Capacity
Standard configuration accommodates approximately 21 punch pieces and 18 die pieces.

Separate Punch & Die Organization
Helps operators identify and manage upper and lower tooling more efficiently.

Heavy-Duty Steel Construction
Cold-rolled steel plate construction provides strength and stability for industrial workshop use.

Compact Footprint
900 × 500 mm floor footprint provides substantial tooling storage without occupying excessive workshop space.

Red or Blue Finish Available
Standard color options can coordinate with different workshop equipment.

Customizable Configuration
Cabinet size, internal storage layout, tooling positions, capacity and color can be adapted to customer requirements.

---

Technical Specifications

Note: Actual tooling capacity depends on the dimensions and profiles of the punches and dies being stored.

---

Typical Applications

This press brake tooling cabinet is suitable for:

Sheet metal fabrication workshops, press brake production lines, tooling preparation areas, metalworking factories, press brake tooling manufacturers and distributors, and workshops operating multiple sets of upper punches and lower dies.

It is especially useful where frequent tool changes require punches and dies to remain organized, protected and easily accessible near the bending machine.
