WYS Standard 90° Press Brake Upper Tool

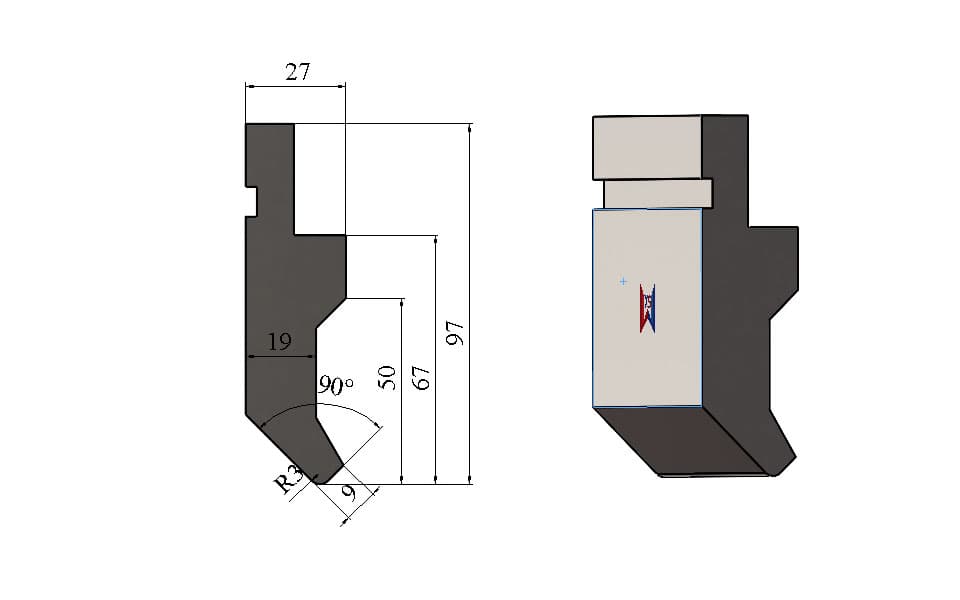

The WYS standard 90° press brake upper tool is designed for general sheet metal bending and fabrication applications. With a 97 mm overall height, 27 mm width, and 90° punch angle, this precision-manufactured upper tool provides reliable bending performance, durability, and consistent results on conventional and CNC press brakes.

Key Features

• 90° standard punch angle for general-purpose sheet metal bending
• R3 mm tip radius for reliable and consistent forming performance
• 97 mm overall height for conventional press brake tooling applications
• 27 mm tool width with a practical standard configuration
• Made from 42CrMo alloy steel for high strength and durability
• HRC 54 ± 2 hardness for improved wear resistance and extended service life
• 100 ton/m maximum load for demanding industrial bending applications
• Precision-machined working surfaces for accurate and repeatable bending
• Suitable for conventional and CNC press brake machines
• Standard tooling available, with custom configurations available on request

Technical Specifications

Typical Applications

• General sheet metal air bending for mild steel and other commonly processed sheet metal materials
• Cabinet, enclosure, electrical panel, and ductwork fabrication
• General industrial sheet metal fabrication, metal forming, and manufacturing applications
• Suitable for workshops using Amada, LVD, Bystronic, and other compatible press brake machines
• Compatible tooling solutions available for major press brake systems, including Amada, TRUMPF, LVD, Bystronic, and WILA, subject to the required machine and tooling configuration

Segmented lengths, custom profiles, special tip radii, and OEM-compatible shanks are available on request. Contact WYS Machinery for a tailored press brake tooling solution and quotation.

Product Details & Manufacturing Quality

Each WYS press brake upper tool is manufactured with controlled dimensions and precision-machined working surfaces to ensure reliable tooling performance and consistent bending accuracy.

The use of 42CrMo alloy steel combined with HRC 54 ± 2 hardness provides an excellent balance of strength, wear resistance, and service life for regular industrial production. The precision-machined working area helps maintain consistent contact with the sheet metal and lower die during the bending process.

The R3 mm punch tip is designed for general-purpose bending applications and can be matched with suitable lower dies according to the required bend angle, material thickness, inside bend radius, and production requirements.

With a 100 ton/m maximum load, this tooling is suitable for demanding bending applications when used within the appropriate machine capacity and tooling configuration.

Standard & Custom Press Brake Tooling

In addition to standard press brake punches, WYS Machinery manufactures custom press brake tooling according to customer drawings, samples, machine specifications, or specific bending requirements.

Customized options may include different punch angles, tip radii, overall dimensions, lengths, profiles, shank configurations, and special tooling designs. OEM-compatible tooling solutions are also available for specific press brake machines and tooling systems.

Whether you need a standard upper punch for general sheet metal bending or a customized solution for a specific application, WYS Machinery can provide precision press brake tooling tailored to your machine and production requirements.

Contact WYS Machinery for press brake tooling recommendations, technical support, compatibility confirmation, and a quotation.
