V12 60° Single-V Press Brake Lower Die – H90 × W18 mm, 70 Ton/m
This V12 60° single-V press brake lower die features a 12 mm V-opening, 60° die angle, 90 mm overall height, 75 mm effective height and 18 mm body width, with a rated load capacity of 70 ton/m. Designed for acute-angle sheet metal bending and precision forming, this lower die combines a compact single-V profile with reliable load capacity. The V-opening, die angle, effective height, body width, shoulder geometry, tool length and mounting interface can all be customized according to the customer's workpiece, press brake and bending requirements.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description
V12 60° Single-V Press Brake Lower Die for Acute-Angle Bending
This V12 press brake lower die is designed with a single-V structure for sheet metal forming applications requiring a 60° acute-angle V-groove.

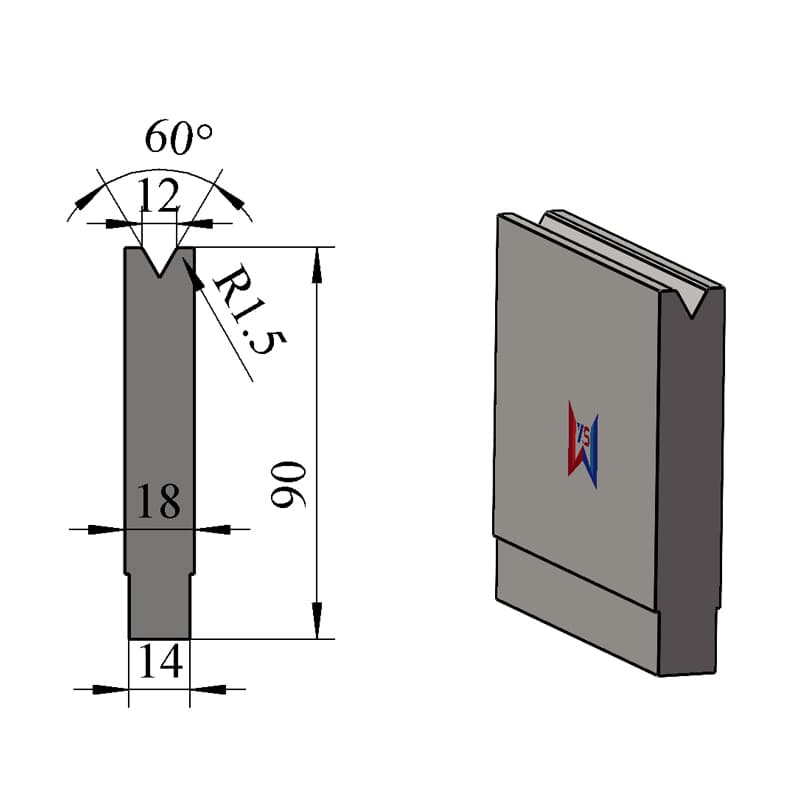

The illustrated configuration features a 12 mm V-opening, 60° die angle, 90 mm overall height and 18 mm body width, with a rated load capacity of 70 ton/m.
The combination of the V12 opening and 60° groove geometry makes this lower die suitable for acute-angle air bending, pre-bending and other forming operations where a narrower included angle is required than with conventional 85°, 88° or 90° lower dies.
The V12 opening provides more forming clearance than smaller V6, V8 and V10 dies while maintaining a compact lower-tool profile for precision bending applications.
60° V-Groove for Acute-Angle Forming
The 60° die geometry is suitable for applications where the workpiece needs to be formed beyond the conventional right-angle bending range.
Typical applications include:
- Acute-angle air bending
- Pre-bending operations
- Precision flange forming
- Components requiring springback compensation
- Multi-stage bending processes
- Customized acute-angle sheet metal parts
The final tooling geometry should be selected according to the material, sheet thickness, required bending angle and workpiece geometry.
V12 Single-V Die Geometry
The illustrated lower die combines a 12 mm V-opening with an 18 mm main body width, providing stable support around the bending zone.
Main dimensions include:
- V12 / 12 mm V-opening
- 60° die angle
- 90 mm overall height
- 75 mm effective height
- 18 mm body width
- 14 mm bottom mounting width
- Approx. R1.5 shoulder radius
- 70 ton/m load capacity
The die angle, shoulder geometry and surrounding edge dimensions can also be customized according to the required bending process.
Custom Effective Tool Height
The illustrated model has a standard effective working height of 75 mm.
The effective height can also be manufactured according to the customer's:
- Press brake configuration
- Upper tooling height
- Machine daylight
- Clamping system
- Existing tooling combination
The overall height and effective working height can therefore be coordinated as part of the complete tooling design.
Key Features
- Single-V lower die structure
- V12 / 12 mm V-opening
- 60° acute-angle V-groove
- 90 mm overall height
- 75 mm effective height
- Custom effective heights available
- 18 mm body width
- 14 mm bottom mounting width
- 70 ton/m load capacity
- Approx. R1.5 shoulder radius
- Suitable for acute-angle bending
- Suitable for precision air bending
- Increased clearance compared with smaller V-openings
- Custom V-openings available
- Custom die angles available
- Custom edge and shoulder geometry available
- Custom tool lengths and segmentation available
- Custom lower mounting interfaces available
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Single-V Press Brake Lower Die |
| V-Opening | V12 / 12 mm |
| Die Structure | Single-V |
| Die Angle | 60° |
| Overall Tool Height | 90 mm |
| Effective Tool Height | 75 mm / Customized |
| Body Width | 18 mm |
| Bottom Mounting Width | 14 mm |
| Shoulder Radius | Approx. R1.5 |
| Load Capacity | 70 ton/m |
| Tool Length | Standard or Customized |
| Segmentation | Available |
| Mounting Interface | Customized |
| Main Application | Acute-Angle Sheet Metal Bending |
Typical Applications
This V12 60° single-V lower die is suitable for press brake bending applications including:
- Acute-angle sheet metal bending
- Precision air bending
- Pre-bending operations
- Precision flange forming
- Stainless steel sheet components
- Mild steel sheet components
- Electrical cabinet parts
- Sheet metal enclosures
- Machinery components
- Customized sheet metal forming
The appropriate tooling specification should be selected according to the material grade, sheet thickness, required bending angle, inside radius, minimum flange dimension and required bending force.
Standard & Custom Options
The V12 60° lower die shown on this page represents one typical tooling configuration only.
WYS Machinery can customize:
- V-opening
- Die angle
- Overall height
- Effective working height
- Body width
- Shoulder radius
- Edge geometry
- Tool length
- Segmented length
- Load capacity
- Bottom mounting profile
- Positioning structure
- Clamping interface
Different acute-angle and standard-angle lower dies can be manufactured according to the customer's actual bending requirements.
Single-V, double-V, multi-V and other customized lower die structures are also available.
Compatible Press Brake Tooling Systems
WYS Machinery can manufacture lower dies for different press brake brands, tooling standards and clamping systems.
Available configurations include:
TRUMPF Type, WILA Type, LVD Type, Bystronic Type, Amada / Promecam Type, European Type and other customized press brake tooling systems.
The die is not limited to the mounting structure shown in the drawing. The bottom mounting interface, positioning geometry, overall height, effective height and die cross-section can all be adapted according to the customer's machine.
Customers can provide a machine model, existing tooling drawing, lower die cross-section, tooling sample or workpiece drawing for technical evaluation.
Custom V-Opening, Angle and Edge Geometry
The V12 opening and 60° die angle shown on this page are one available configuration.
Different V-openings and die angles can be manufactured according to:
- Sheet thickness
- Material grade
- Required bending angle
- Required inside radius
- Minimum flange dimension
- Material springback
- Required bending force
- Press brake configuration
The shoulder radius and surrounding edge geometry can also be customized as part of the complete tooling solution.
Custom Press Brake Tooling Design Service
Customers who are unsure which V-opening, die angle or lower-tool structure should be selected can provide:
workpiece drawing, material grade, sheet thickness, required bending angle and press brake model.
Our engineering team can evaluate the bending requirement and recommend an appropriate tooling solution.
The lower die can then be manufactured with the required V-opening, angle, height, effective height, width, radius, length and mounting structure.
Why Choose WYS Machinery
WYS Machinery manufactures standard and customized press brake punches, lower dies and sheet metal bending tooling for a wide range of forming applications.
Our lower tooling capabilities include:
- Single-V lower dies
- Double-V dies
- Multi-V dies
- Acute-angle press brake dies
- Small and medium V-opening dies
- High-capacity lower dies
- Segmented tooling
- Customized die angles
- Customized effective heights
- Special lower-tool profiles
- Custom mounting interfaces
- Replacement tooling for different press brake systems
- Tooling designed according to customer workpiece drawings
This allows customers to obtain both replacement tooling and application-specific bending solutions according to their actual production requirements.
