A, B, C, D and E Station Thick Turret Alignment Tools

The WYS Machinery A, B, C, D and E Station Thick Turret Alignment Tools are precision maintenance tools developed for checking the center relationship between the upper and lower tooling positions of compatible thick turret punch presses.

During normal punching, the punch must enter the matching lower die with uniform clearance around the entire cutting profile. If the upper tool holder and lower die holder are not correctly centered, the effective clearance becomes uneven. One side of the punch may operate too close to the die while the opposite side has excessive clearance.

This condition may cause:

• Uneven punch and lower-die wear
• Premature cutting-edge rounding
• Punch or die chipping
• Punch-to-die interference
• Burrs concentrated on one side of the hole
• Poor hole geometry
• Punch deflection
• Increased punching force
• Guide and stripper wear
• Unexpected tooling failure
• Unplanned machine downtime

The thick turret alignment tool provides a precision mechanical reference for checking whether the upper and lower tooling positions share the correct centerline.

During an alignment inspection, the corresponding station tool is installed in the machine according to the appropriate maintenance procedure. The upper and lower alignment sections are then brought together under controlled conditions. Smooth and even engagement indicates that the two tooling positions are correctly centered, while binding, uneven contact or abnormal resistance may indicate that the station requires further inspection or adjustment.

The product range includes separate alignment tools for A, B, C, D and E Stations. All five models perform the same basic alignment-checking function, but their outside diameters, mounting interfaces, guide structures and reference dimensions differ according to the applicable station.

Therefore, an alignment tool for one station must not be used as a substitute for another station. The correct specification should always be selected according to the exact machine model, station size and existing tooling configuration.

WYS Machinery can supply individual A, B, C, D or E Station alignment tools, as well as complete multi-station alignment-tool sets. Customized replacement tools can also be manufactured from customer samples, technical drawings or verified machine and tooling dimensions.

Key Features

• Designed for thick turret punch press maintenance
• Available for A, B, C, D and E Stations
• Checks upper and lower tooling-position alignment
• Helps verify punch-and-die concentricity
• Supports uniform punch-to-die clearance
• Helps reduce uneven punch and lower-die wear
• Helps prevent accidental punch-and-die contact
• Supports improved punched-hole quality
• Helps reduce one-sided burr formation
• Helps extend punch, die and guide service life
• Precision-machined reference surfaces
• Station-specific mounting dimensions
• Suitable for preventive maintenance
• Suitable for alignment checks after machine repairs
• Individual station tools available
• Complete A–E Station sets available
• Custom manufacturing from drawings or samples
• Free dimensional confirmation and technical support

Technical Specifications

Available Station Range

A Station Thick Turret Alignment Tool

The A Station Thick Turret Alignment Tool is designed for the compact A Station structure. It provides a precision reference for checking whether the upper punch position and lower die position share the correct centerline.

A Station tooling is often used for relatively small punching profiles and high-frequency hole production. Even limited misalignment can produce uneven clearance and localized cutting-edge wear. Periodic alignment inspection can help protect small punches and matching lower dies from abnormal side loading.

B Station Thick Turret Alignment Tool

The B Station Thick Turret Alignment Tool is manufactured according to the corresponding B Station mounting and guide structure.

B Station tooling is widely used for round, square, rectangular, obround and customized punching applications. Correct station alignment is particularly important for shaped punches because uneven clearance can concentrate cutting forces at corners or along one side of the cutting profile.

C Station Thick Turret Alignment Tool

The C Station Thick Turret Alignment Tool provides a reference for checking the upper and lower center positions of the corresponding C Station.

C Station tooling can be used for larger cutting profiles and various forming applications. Accurate alignment helps distribute the working load more evenly and can reduce abnormal wear on the punch, guide, stripper and matching lower die.

D Station Thick Turret Alignment Tool

The D Station Thick Turret Alignment Tool is designed for the larger dimensions and installation structure of the corresponding D Station.

D Station tooling is commonly selected for large punching profiles, long cutting perimeters and special forming operations. Because these applications may generate relatively high working loads, accurate upper-to-lower alignment is important for reducing lateral force and protecting the tooling system.

E Station Thick Turret Alignment Tool

The E Station Thick Turret Alignment Tool is available for compatible machines equipped with an E Station thick turret configuration.

E Station tooling is generally associated with large tooling capacity and large punching or forming profiles. A larger cutting perimeter or forming area can generate substantial load during operation, making accurate station alignment especially important.

The E Station alignment tool helps check whether the upper tooling position and lower die position share the correct centerline before large punches, dies or forming tools are placed into production.

Because E Station dimensions and installation structures may vary between machine manufacturers and models, customers should provide the exact punch press model, existing tooling dimensions, technical drawing or a suitable sample before manufacturing.

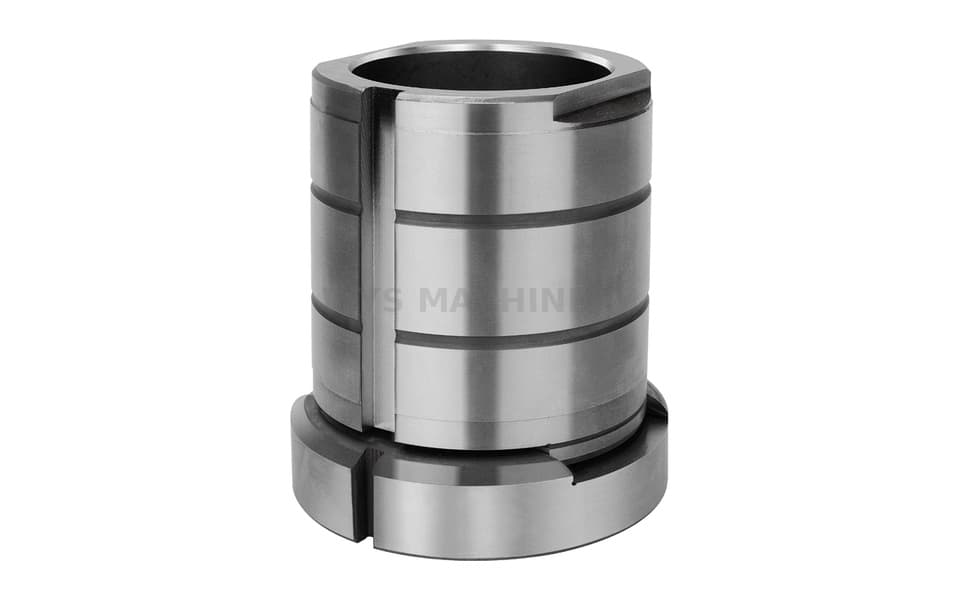

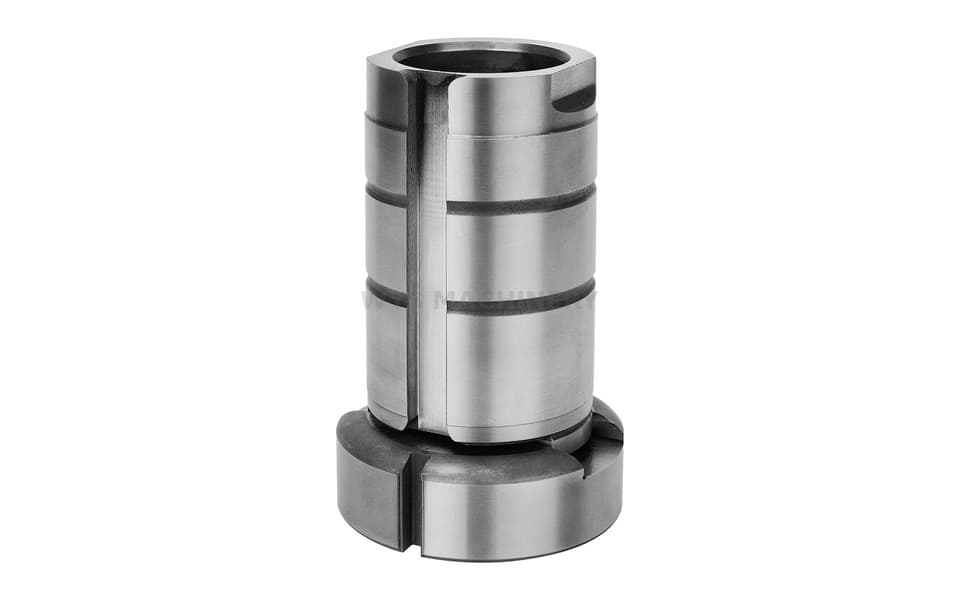

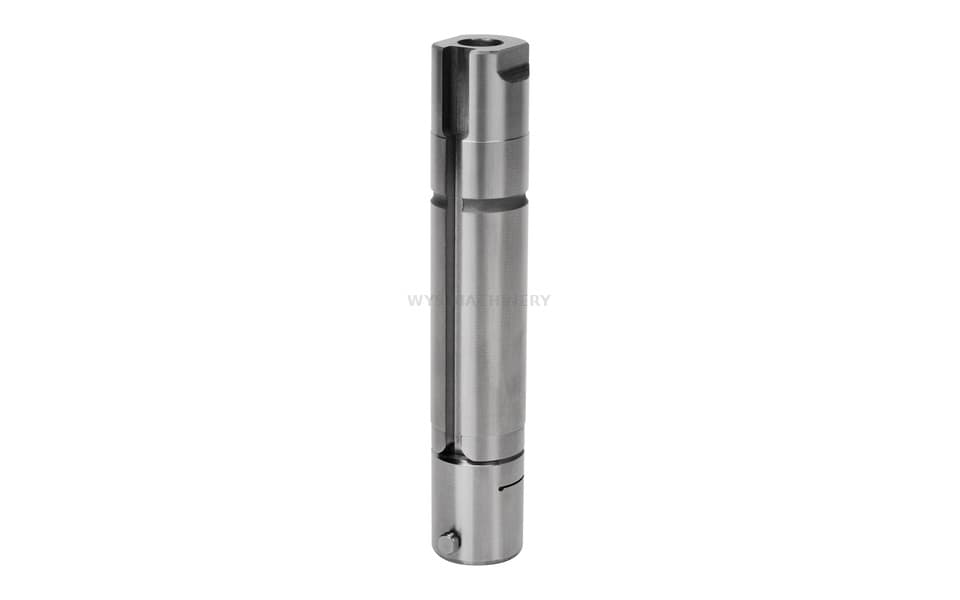

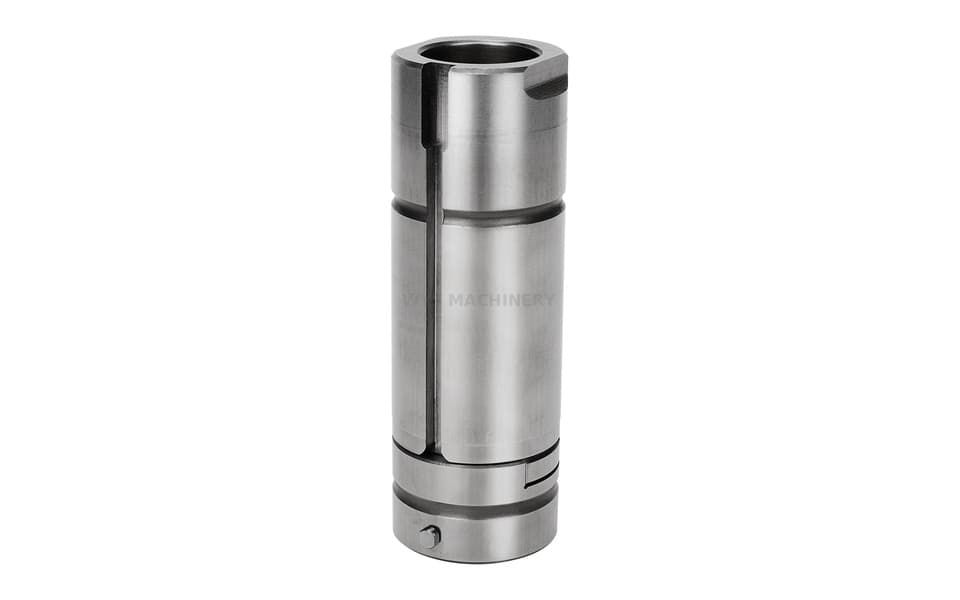

The current website images show A, B, C and D Station alignment tools. E Station tools can be manufactured and supplied according to the confirmed machine configuration.

How the Thick Turret Alignment Tool Works

The alignment tool provides a physical reference between the upper and lower tooling positions.

A typical inspection process includes:

• Confirming the required station
• Cleaning the upper and lower tool holders
• Checking the alignment tool for damage
• Installing the corresponding upper and lower components
• Bringing the components together under controlled conditions
• Observing whether they engage smoothly
• Checking for binding or uneven contact
• Adjusting the station according to the machine manufacturer’s procedure
• Rechecking the center position after adjustment
• Performing a controlled test with suitable production tooling

The alignment tool does not automatically correct the machine. It assists maintenance personnel in identifying whether the upper and lower stations are correctly centered. Any mechanical adjustment should be performed by qualified technicians according to the machine manufacturer’s maintenance instructions.

Why Turret Station Alignment Is Important

Correct station alignment allows the punch to enter the lower die with more uniform clearance around the complete cutting edge.

Proper alignment helps:

• Distribute punching force more evenly
• Reduce localized cutting-edge wear
• Reduce punch and die chipping
• Reduce lateral force on the punch
• Improve burr consistency
• Maintain better hole geometry
• Protect the punch guide and stripper
• Reduce the risk of punch-and-die collision
• Extend tooling maintenance intervals
• Improve production reliability
• Reduce unexpected machine stoppages

Station alignment is only one factor affecting punching quality. Suitable lower-die clearance, sharp cutting edges, correct lubrication, accurate tooling installation and good machine condition are also required.

Center Alignment and Punch-to-Die Clearance

Station alignment and die clearance are closely related, but they are not the same.

Station alignment refers to whether the centerline of the upper tooling position matches the centerline of the lower die position.

Punch-to-die clearance refers to the dimensional difference between the punch cutting profile and the lower-die opening.

A correctly manufactured lower die may still produce uneven working clearance if the upper and lower stations are misaligned. One side of the profile may become too tight while the opposite side becomes too large.

For reliable punching, both correct station alignment and suitable die clearance must be maintained.

Signs That Alignment Should Be Checked

An alignment inspection may be necessary when:

• Burrs are repeatedly heavier on one side
• One side of the punch wears faster
• The lower die shows localized edge damage
• Punch or die chipping occurs repeatedly
• The punch enters the lower die with abnormal resistance
• Shaped holes show uneven geometry
• The guide shows unusual side wear
• Tooling life becomes shorter without a material change
• The machine has experienced a collision
• Turret components have been repaired or replaced
• Large C, D or E Station tools show abnormal loading
• Tooling damage continues after the correct clearance is confirmed

These symptoms can have several possible causes. Tool condition, die clearance, lubrication, material properties, installation and machine condition should be inspected together.

Recommended Inspection Situations

Thick turret alignment can be checked:

• During scheduled preventive maintenance
• After a punch or die collision
• After abnormal tooling breakage
• After turret repair
• After replacing station components
• When one-sided burrs repeatedly appear
• When tooling wear becomes uneven
• Before installing expensive special tooling
• Before large-volume production
• Before using large C, D or E Station tooling
• When overall machine accuracy is being evaluated

The inspection frequency should be determined according to production intensity, processed materials, station size, tooling value, collision history and the machine manufacturer’s recommendations.

Installation and Safety Precautions

Before using the alignment tool:

• Confirm the correct A, B, C, D or E Station specification
• Confirm the exact machine manufacturer and model
• Verify the applicable tooling system
• Clean all reference and seating surfaces
• Remove metal particles, slugs and oil residue
• Inspect the alignment tool for damage
• Make sure no production tooling remains in the station
• Follow the machine manufacturer’s maintenance procedure
• Use an appropriate maintenance or manual-control mode
• Avoid applying normal production punching force
• Stop immediately if abnormal resistance occurs

The alignment tool is a precision inspection product. It should not be used as a production punch or subjected to uncontrolled punching loads.

Storage and Maintenance

To protect its alignment accuracy:

• Clean the tool after every use
• Apply suitable rust-preventive oil
• Protect all precision-ground surfaces
• Store each station tool separately
• Label A, B, C, D and E Station tools clearly
• Avoid dropping or striking the tool
• Do not use damaged components
• Inspect for dents, corrosion and abnormal wear
• Store the tools in protective boxes where possible
• Periodically verify critical reference dimensions

Damage to the precision reference surfaces may affect the reliability of the alignment inspection.

Typical Applications

The A–E Station Thick Turret Alignment Tools are suitable for the inspection and maintenance of compatible CNC thick turret punch presses used in:

• Electrical cabinet manufacturing
• Switchgear and power-distribution equipment
• HVAC sheet metal production
• Machinery guard manufacturing
• Electronic equipment enclosures
• Automotive sheet metal components
• Metal furniture production
• Stainless steel equipment
• Industrial control panels
• Communication equipment cabinets
• Appliance manufacturing
• General precision sheet metal fabrication

They can support alignment checks for thick turret tooling used in round, square, rectangular, obround and special-shaped punching and forming applications.

Manufacturing Quality

WYS Machinery manufactures thick turret alignment tools through controlled machining, precision grinding and dimensional inspection processes.

Quality-control items can include:

• Outside-diameter measurement
• Station-interface dimensional inspection
• Cylindricity inspection
• Concentricity inspection
• Reference-surface inspection
• Straightness checking
• Guide-interface measurement
• Seating-surface inspection
• Surface-finish inspection
• Component engagement testing
• Comparison with customer drawings or samples

Accurate control of the reference surfaces is essential because these surfaces determine the reliability of the alignment inspection.

Standard and Custom Thick Turret Alignment Tools

WYS Machinery can supply:

• A Station thick turret alignment tools
• B Station thick turret alignment tools
• C Station thick turret alignment tools
• D Station thick turret alignment tools
• E Station thick turret alignment tools
• Complete A–E Station alignment tool sets
• Individual replacement alignment tools
• Fixed-station alignment tools
• Customized tools for compatible indexing stations
• Tools manufactured from existing samples
• Tools manufactured from technical drawings
• Tools developed from verified machine dimensions
• OEM and private-label alignment tools

Customers can provide the punch press manufacturer, exact model, station information and existing tooling dimensions. Our engineering team can check the required structure and provide free dimensional confirmation before production.

Ordering Information Required

Station designation alone may not be sufficient to guarantee compatibility. Machines from different manufacturers or model generations may use different mounting, guide, indexing or track structures.

Product Identification and Frequently Asked Questions

What is a thick turret alignment tool?

A thick turret alignment tool is a precision maintenance tool used to check whether the upper punch position and lower die position of a turret punch press share the correct centerline.

What is the difference between an alignment tool and a production punch?

An alignment tool is used for machine inspection and station centering. It does not cut or form sheet metal and should not be used as a production punch.

Which stations are available?

WYS Machinery can supply alignment tools for A, B, C, D and E Stations.

Why are the five station tools different?

Each station has different tooling dimensions, guide structures and mounting interfaces. Therefore, each station requires its corresponding alignment tool.

Can one alignment tool be used for all stations?

No. An A Station alignment tool cannot replace a B, C, D or E Station tool. The correct station-specific tool must be selected.

Why is the E Station tool not shown in the pictures?

The current photographs show A, B, C and D Station products. E Station alignment tools are available but are manufactured according to the confirmed machine and tooling configuration.

Does the alignment tool adjust the machine automatically?

No. It provides a precision reference for checking alignment. Actual machine adjustment should be performed by qualified maintenance personnel.

Can misalignment cause premature tooling wear?

Yes. Misalignment can produce uneven effective die clearance and localized side loading, which may accelerate punch, die, guide and stripper wear.

Can correct alignment completely eliminate tool wear?

No. All production tooling wears over time. Correct alignment helps reduce abnormal wear, but tooling life also depends on the processed material, sheet thickness, die clearance, lubrication, coating, tooling condition and machine settings.

When should turret alignment be checked?

Alignment can be checked during preventive maintenance, after a collision, after turret repairs, when one-sided burrs appear or when tooling wear becomes unusually uneven.

Can the tools be purchased separately?

Yes. A, B, C, D and E Station tools can be supplied individually or as a complete multi-station set.

Can you manufacture an alignment tool from our sample?

Yes. WYS Machinery can manufacture compatible replacement tools from suitable samples, technical drawings or verified machine dimensions.

Are these original machine-manufacturer tools?

No. They are compatible replacement tools manufactured by WYS Machinery. References to machine or tooling systems indicate compatibility and do not imply original manufacture, authorization or official affiliation.
