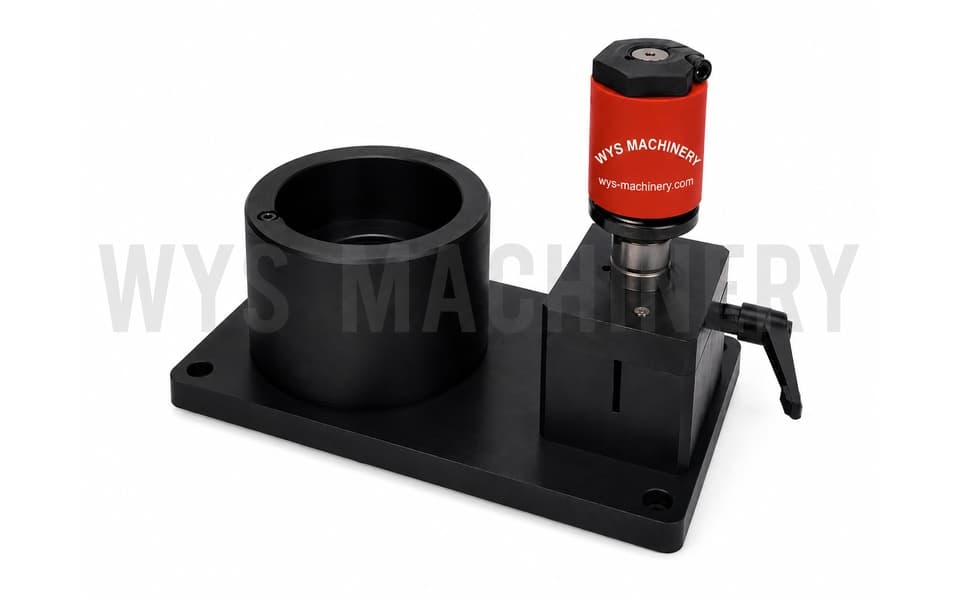

CNC Turret Punch Tooling Disassembly Fixture for A/B/C/D Stations

The CNC Turret Punch Tooling Disassembly Fixture is a dedicated maintenance device used for servicing A, B, C and D station tooling on CNC turret punch presses.

When a punch tool requires inspection, sharpening, repair, replacement or internal component maintenance, the complete tooling assembly can be placed into the fixture.

The fixture securely holds and clamps the guide assembly, allowing the operator to remove the upper punch more easily and safely.

This makes it especially useful for workshops that regularly maintain thick turret punch tooling and need a stable, repeatable method for tool disassembly.

Main Function

The fixture is designed to solve a common tooling maintenance problem:

When the upper punch is installed tightly inside the guide assembly, it can be difficult to remove safely without securely fixing the outer guide structure.

The disassembly fixture provides a stable holding base so the operator can:

Position the Tool → Clamp the Guide Assembly → Release the Upper Punch → Remove the Punch → Inspect / Repair / Replace Components

By holding the guide assembly firmly, the fixture helps reduce unnecessary movement during maintenance and makes punch removal more controlled.

Suitable Tool Stations

This fixture is intended for servicing:

• A Station tooling
• B Station tooling
• C Station tooling
• D Station tooling

It can be used when disassembling tooling for:

• Punch replacement
• Punch sharpening
• Guide inspection
• Spring inspection
• Stripper inspection
• Internal component replacement
• Tool cleaning
• General preventive maintenance

How the Fixture Works

The tooling assembly is placed vertically into the corresponding locating position of the fixture.

The guide assembly is then secured by the clamping mechanism.

Once the guide is held firmly, the operator can work on the upper punch without needing to manually stabilize the whole tool assembly.

This improves:

• Maintenance stability
• Operator convenience
• Disassembly efficiency
• Tool handling safety
• Repeatability during repair work

Key Features

• Designed for CNC turret punch tooling maintenance
• Suitable for A/B/C/D station tooling
• Securely clamps the guide assembly
• Helps remove the upper punch from the guide
• Suitable for punch replacement and sharpening
• Supports routine tooling repair
• Stable heavy-duty base
• Compact workshop maintenance fixture
• Easy manual operation
• Reduces unnecessary movement during disassembly
• Suitable for thick turret tooling service
• Helps improve maintenance efficiency
• Suitable for tooling rooms and sheet metal workshops

Technical Specifications

Typical Maintenance Process

1. Place the Tooling Assembly

Insert the turret punch tooling into the appropriate fixture position.

2. Secure the Guide Assembly

Use the fixture clamping mechanism to hold the guide securely.

3. Release the Punch

After the guide assembly is fixed, loosen and remove the upper punch.

4. Perform Maintenance

The punch and related internal parts can then be:

• Inspected
• Cleaned
• Sharpened
• Repaired
• Replaced
• Lubricated

5. Reassemble the Tool

After servicing, the punch can be reinstalled into the guide assembly and returned to production.

Typical Applications

The fixture is suitable for:

• CNC turret punch tooling maintenance
• Thick turret punch tooling repair
• A station tool disassembly
• B station tool disassembly
• C station tool disassembly
• D station tool disassembly
• Punch sharpening preparation
• Punch replacement
• Guide assembly maintenance
• Tool room operations
• Sheet metal factory maintenance
• Punch press tooling service centers

Why a Dedicated Tooling Disassembly Fixture Is Useful

Turret punch tooling contains precision components that must remain properly aligned and protected during maintenance.

Trying to disassemble a tool without stable support can make servicing more difficult and may increase the risk of:

• Tool slipping
• Damage to the guide
• Damage to the punch
• Improper handling
• Longer maintenance time

A dedicated tooling disassembly fixture provides a controlled maintenance platform and helps technicians perform servicing more efficiently.

Tooling Maintenance Support

This fixture is especially useful for factories operating large numbers of turret punch tools.

Frequent production means punches may require periodic:

• Regrinding
• Replacement
• Cleaning
• Inspection
• Lubrication
• Component servicing

Instead of treating each maintenance operation as an improvised manual process, the fixture provides a standardized way to hold and disassemble the tooling.
