Thick Turret B Station Guide Assembly for CNC Punch Tooling
Precision Thick Turret B Station Guide Assembly designed for CNC turret punch tooling, providing accurate punch guidance, alignment and stable operation during high-frequency sheet metal punching. The samples shown demonstrate our manufacturing capability; internal profiles, dimensions and configurations can be customized according to customer drawings, punching shapes and application requirements. Suitable for round, square, rectangular, obround and other standard or special-shaped thick turret punches.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description
Thick Turret B Station Guide Assembly
The Thick Turret B Station Guide Assembly is a precision component of thick turret punch tooling, designed to guide and support the punch during the punching cycle and help maintain accurate alignment between the punch and die.
Proper punch guidance is particularly important in CNC turret punching, where tooling operates repeatedly at high speed. A precisely manufactured B Station guide assembly helps stabilize punch movement, maintain positioning accuracy and reduce unnecessary lateral movement during operation.

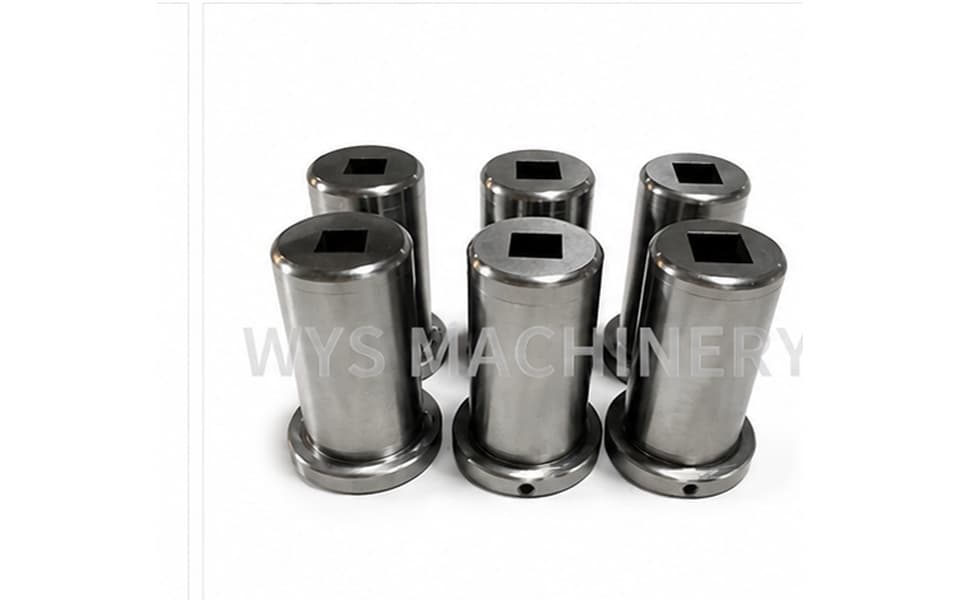

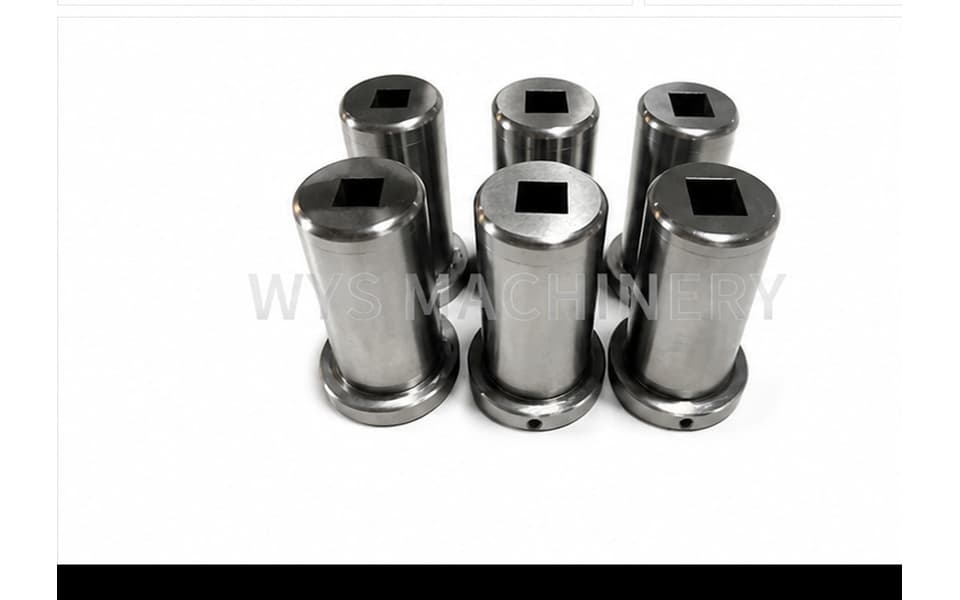

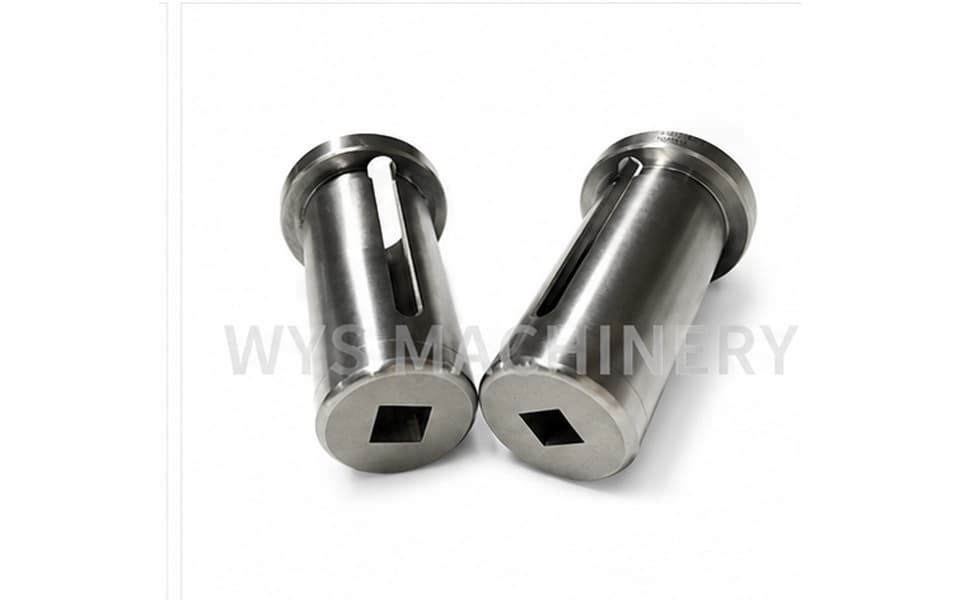

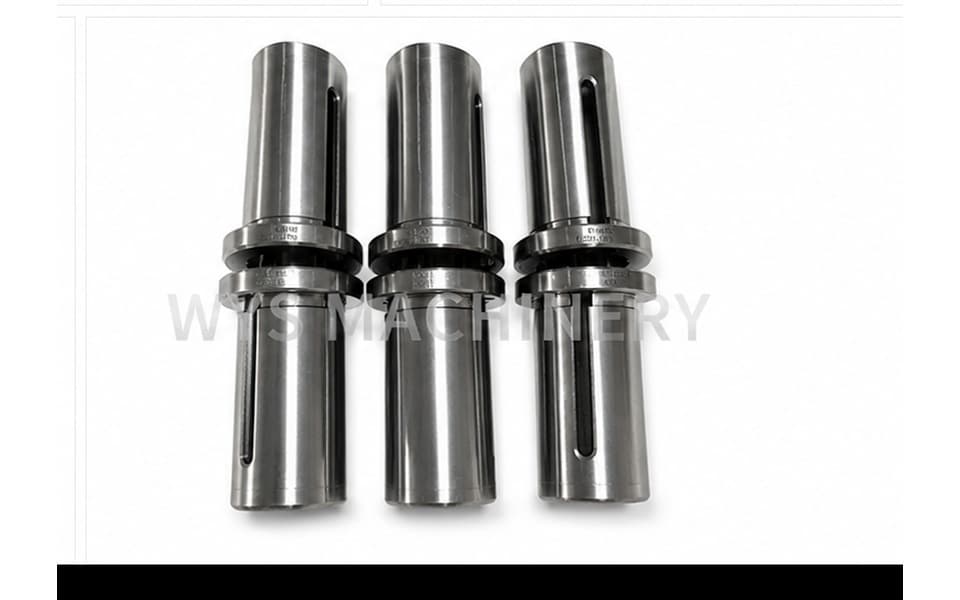

The products shown in the images are sample configurations manufactured by WYS MACHINERY for display purposes. They do not limit the available specifications. Dimensions, internal guide profiles and other structural details can be manufactured according to the customer's tooling requirements, samples or drawings.
Key Features
- Designed for Thick Turret B Station tooling
- Precision-machined guide surfaces for stable punch movement
- Helps maintain punch alignment during repeated punching operations
- Supports accurate positioning between punch and die
- Suitable for CNC turret punch press applications
- Available for round, square, rectangular, obround and other punching profiles
- Special shapes can be manufactured according to customer requirements
- Dimensions and internal profiles can be customized
- Suitable for replacement tooling and new punch tooling assemblies
- Precision manufacturing for reliable fit with matching tooling components
- Available as individual replacement components according to application requirements
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Thick Turret B Station Guide Assembly |
| Tooling System | Thick Turret Punch Tooling |
| Station | B Station |
| Application | CNC Turret Punch Press |
| Component Type | Punch Guide / Guide Assembly |
| Available Shapes | Round, Square, Rectangle, Obround & Special Shapes |
| Internal Profile | Customized to Punch Shape |
| Dimensions | Customizable |
| Manufacturing | Precision Machined |
| Application | Punch Guidance & Alignment |
| Custom Shapes | Available |
| Drawing-Based Production | Available |
| Sample-Based Production | Available |
Note: The products shown in the images are samples for reference. Actual dimensions, profiles and specifications can be manufactured according to customer requirements.
Custom Shapes & Sizes
One of the most important advantages of this product is its customization capability.
The B Station guide assembly must work correctly with the corresponding punch and tooling configuration. Therefore, different punching applications may require different internal profiles and dimensions.
We can manufacture guide assemblies for common punching shapes such as:
- Round
- Square
- Rectangle
- Obround / Slot
- Special geometric profiles
- Customer-specific punching shapes
For non-standard applications, customers can provide the required hole dimensions, punch dimensions, tooling drawings, existing samples or workpiece drawings.
WYS MACHINERY can manufacture the corresponding guide component according to the actual punching application.
Function of the B Station Guide Assembly
During a punching cycle, the punch repeatedly moves through the guide assembly toward the sheet and die.
The guide assembly provides controlled guidance for this movement, helping the punch maintain the required position and orientation throughout repeated punching cycles.
Accurate guidance can contribute to:
Improved punch stability — reducing unwanted lateral movement of the punch.
Consistent tooling alignment — helping maintain the relationship between the punch and lower die.
Reliable punching accuracy — especially important for square, rectangular and other orientation-sensitive shapes.
Reduced abnormal tooling wear — proper guidance can help prevent unnecessary side loading caused by poor alignment.
For this reason, the guide assembly is an important precision component within a thick turret punch tooling system, rather than simply a protective outer sleeve.
Typical Applications
This Thick Turret B Station Guide Assembly is suitable for a wide range of CNC sheet metal punching applications, including:
- General sheet metal fabrication
- Electrical cabinet manufacturing
- Metal enclosure production
- Machinery panels
- HVAC sheet metal components
- Stainless steel sheet punching
- Mild steel sheet punching
- Aluminum sheet processing
- Repetitive CNC turret punching
- Standard and special-shaped hole punching
It can be used when replacing worn guide components or when manufacturing a complete customized B Station punch tooling set.
Precision Manufacturing & Tooling Matching
The dimensional relationship between the punch, guide assembly and die directly affects tooling operation.
For square, rectangular and other shaped punches, profile orientation and guide accuracy are especially important. We therefore manufacture the guide according to the corresponding tooling specifications rather than treating it as a universal component.
For customers ordering replacement parts, providing the machine/tooling type, station size, existing tooling dimensions, photos or drawings can help us confirm the appropriate configuration.
Standard & Custom Thick Turret Punch Tooling
In addition to individual B Station guide assemblies, WYS MACHINERY can provide matching components and complete solutions for thick turret punch tooling.
Customers can send us their required punching shape, dimensions, sheet material, sheet thickness and workpiece drawings. We can assist with tooling selection and manufacture the corresponding punch tooling according to the actual application.
This allows customers to source both standard replacement components and customized tooling for special sheet metal punching requirements.
