V10 88° Press Brake Lower Die for Precision Sheet Metal Bending

This V10 press brake lower die is designed for precision sheet metal bending where a relatively small V-opening and compact lower-tool profile are required.

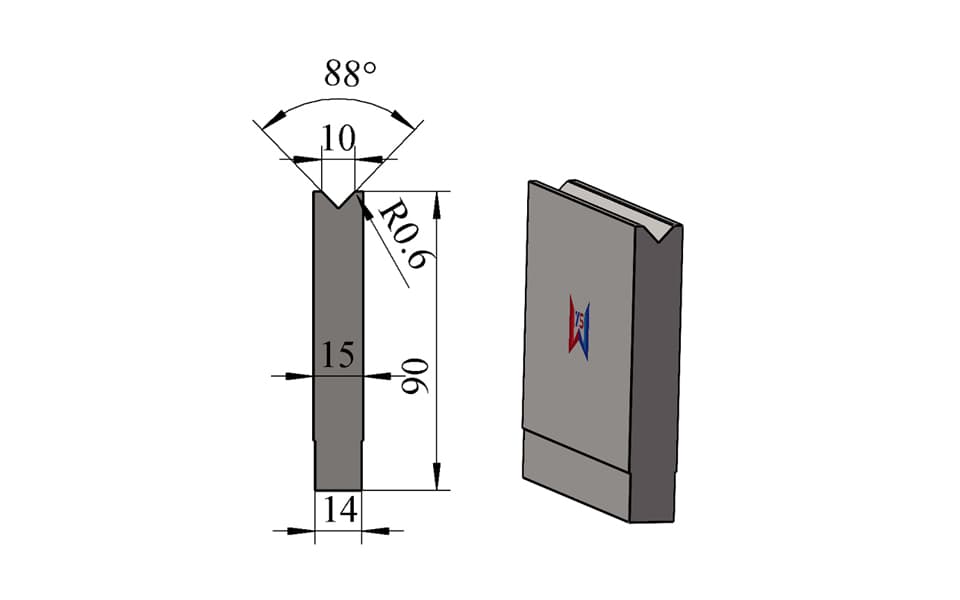

The illustrated die features a 10 mm V-opening, 88° die angle, 90 mm overall height and 15 mm body width, with a rated load capacity of 80 ton/m.

The 88° V-groove geometry is suitable for controlled air bending applications and provides additional flexibility when material springback needs to be considered. Combined with the V10 opening, this die offers a practical solution for forming thin and medium-gauge sheet metal components with consistent bending accuracy.

Compact V10 Die Geometry

With a total width of 15 mm, this lower die maintains a narrow profile while providing reliable bending capacity for precision forming operations.

The 10 mm V-opening is suitable for applications where the workpiece requires:

• a relatively small V-opening
• controlled inside bending radius
• precision flange forming
• compact lower-tool clearance
• consistent bend repeatability

The illustrated design includes an approximate R0.6 shoulder radius around the V-groove area.

Key Features

• V10 / 10 mm V-opening
• 88° die angle
• 90 mm tool height
• 15 mm narrow body width
• 80 ton/m load capacity
• Precision-machined V-groove
• Compact lower die profile
• Suitable for precision air bending
• Suitable for thin and medium-gauge sheet metal forming
• Custom tool lengths available
• Segmented tooling available
• Custom mounting and positioning structures available

Technical Specifications

Specification	Value
Product Type	Press Brake Lower Die
V-Opening	V10 / 10 mm
Die Angle	88°
Tool Height	90 mm
Tool Width	15 mm
Bottom Mounting Width	14 mm
Shoulder Radius	Approx. R0.6
Load Capacity	80 ton/m
Tool Length	Standard or Customized
Segmentation	Available
Mounting Interface	Customized
Application	Precision Sheet Metal Bending

Typical Applications

This V10 88° lower die can be used for a wide range of press brake bending applications, including:

• Precision sheet metal bending
• Thin and medium-gauge metal forming
• Small flange bending
• Electrical cabinet fabrication
• Control panel production
• Sheet metal enclosures
• Stainless steel components
• Mild steel parts
• Machinery covers and housings
• General CNC press brake bending

The actual die specification should be selected according to the sheet material, thickness, bending angle, flange length, required inside radius and bending tonnage.

Standard & Custom Options

The V10 lower die shown on this page represents one typical tooling configuration only.

WYS Machinery can manufacture press brake lower dies with different:

• V-openings
• die angles
• tooling heights
• tooling widths
• shoulder radii
• bottom widths
• tool lengths
• segmented lengths
• load capacities
• mounting profiles
• positioning structures
• clamping interfaces

V-openings such as V6, V8, V10, V12, V16, V20 and other custom sizes can be manufactured according to the customer's workpiece and bending requirements.

Compatible Press Brake Tooling Systems

WYS Machinery can customize lower dies for a wide range of press brake tooling and clamping systems.

Available configurations include:

TRUMPF Type, WILA Type, LVD Type, Bystronic Type, Amada / Promecam Type, European Type and other customized press brake tooling systems.

The lower die body, bottom mounting profile and positioning interface can be adapted according to the customer's machine and tooling system.

Customers can provide an existing tooling drawing, machine model, lower die cross-section, sample or workpiece drawing for evaluation.

Custom Press Brake Die Design Service

For applications where the required V-opening or die structure is not yet determined, customers can provide:

workpiece drawing, material type, sheet thickness, bending angle and press brake model.

Our engineering team can recommend a suitable lower tooling solution according to the actual bending application.

The V-opening, height, width, angle, shoulder radius, length and mounting structure can all be customized to match the customer's production requirements.

Why Choose WYS Machinery

WYS Machinery manufactures both standard and customized press brake dies, punches and sheet metal bending tooling.

Our lower tooling manufacturing capabilities include:

• Standard V-dies
• Narrow V-dies
• Single-V dies
• Multi-V dies
• Heavy-duty lower dies
• Segmented dies
• Special lower-tool profiles
• Custom mounting interfaces
• Replacement dies for different tooling systems
• Custom tooling designed from customer workpiece drawings

This allows customers to source both replacement tooling and application-specific bending solutions according to their actual production needs.
