V100 85° Single-V Press Brake Lower Die – H100 × W125 mm, 150 Ton/m
This V100 85° single-V press brake lower die features a 100 mm V-opening, 100 mm overall height, 85 mm effective height and 125 mm overall width, with a rated load capacity of 150 ton/m. Designed for large V-opening and high-load bending applications, this lower die provides a robust and stable structure for forming thicker sheet and plate materials. The V-opening, die angle, effective height, overall width, edge geometry, tool length and mounting interface can all be customized according to the customer's press brake and workpiece requirements.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description
V100 85° Single-V Press Brake Lower Die for Heavy-Duty Bending
This V100 press brake lower die is designed with a robust single-V structure for demanding sheet metal and plate bending applications requiring a large V-opening and high load capacity.

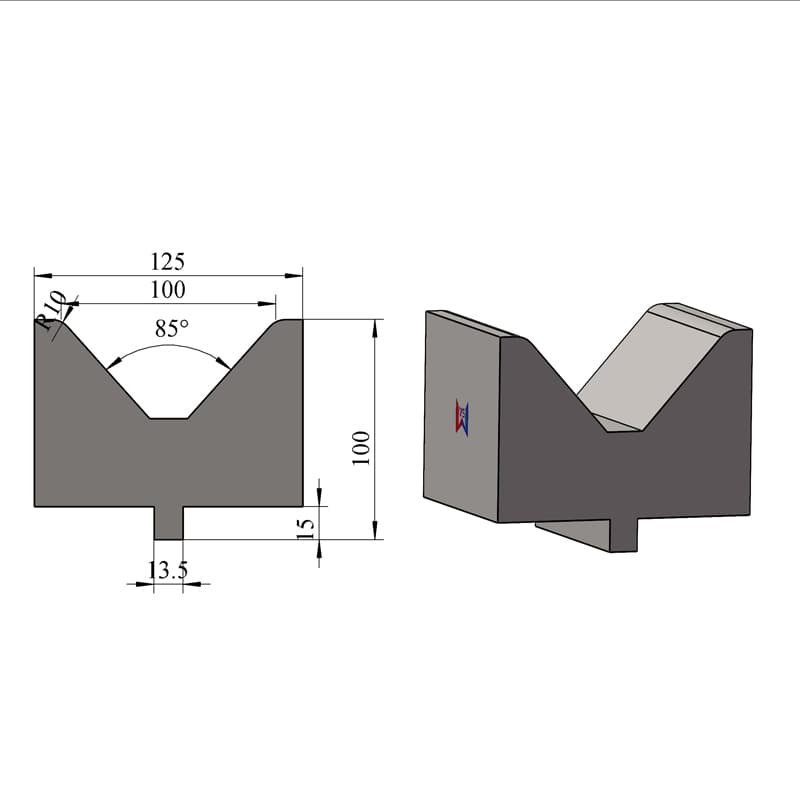

The illustrated configuration features a 100 mm V-opening, 85° die angle, 100 mm overall height and 125 mm overall width, with a rated load capacity of 150 ton/m.
The large V100 opening provides substantial forming clearance and is suitable for applications requiring a larger inside bend radius, thicker material or wider flange geometry.
Its 85° V-groove geometry is suitable for air bending applications and provides additional forming allowance when material springback needs to be considered.
150 Ton/m High Load Capacity
With a rated load capacity of 150 ton/m, this lower die is designed for higher-force bending applications within the specified tooling capacity.
The 125 mm wide die body provides strong support around the V-groove, helping maintain stable tooling performance during repeated production bending.
Actual bending force should always be evaluated according to the material grade, tensile strength, sheet thickness, V-opening and bending length before production.
Large V100 Opening for Heavy Plate Bending
The 100 mm V-opening provides significantly greater bending clearance than smaller V-dies.
This configuration is suitable for applications requiring:
- Larger inside bending radii
- Heavy and thick sheet metal bending
- Wide forming clearance
- Larger flange dimensions
- Increased workpiece clearance
- High-force CNC press brake forming
The required V-opening should be selected according to the actual material thickness, bending radius and forming conditions.
Custom Effective Tool Height
The illustrated die has an overall height of 100 mm and an effective working height of 85 mm.
The effective height is not limited to this dimension and can be customized according to the customer's:
- press brake configuration
- upper tooling height
- clamping system
- machine daylight
- existing tooling combination
This allows the lower die to be integrated into different press brake tooling setups.
V100 Single-V Die Geometry
The illustrated configuration includes:
- V100 / 100 mm V-opening
- 85° die angle
- 100 mm overall height
- 85 mm effective height
- 125 mm overall width
- Approx. R10 shoulder radius
- 150 ton/m load capacity
The V-opening, die angle, radii, edge dimensions and surrounding geometry can also be customized according to the customer's bending process and workpiece drawing.
Key Features
- Single-V lower die structure
- V100 / 100 mm V-opening
- 85° die angle
- 100 mm overall tool height
- 85 mm effective height
- Custom effective heights available
- 125 mm overall body width
- 150 ton/m load capacity
- Approx. R10 shoulder radius
- Large V-opening for heavy-duty bending
- Suitable for larger inside bending radii
- Suitable for thicker sheet and plate materials
- Wide and stable lower-die body
- Custom V-openings available
- Custom die angles available
- Custom edge and radius geometry available
- Custom tool lengths and segmentation available
- Custom mounting interfaces available
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Single-V Press Brake Lower Die |
| V-Opening | V100 / 100 mm |
| Die Structure | Single-V |
| Die Angle | 85° |
| Overall Tool Height | 100 mm |
| Effective Tool Height | 85 mm / Customized |
| Overall Width | 125 mm |
| Shoulder Radius | Approx. R10 |
| Load Capacity | 150 ton/m |
| Tool Length | Standard or Customized |
| Segmentation | Available |
| Mounting Interface | Customized |
| Main Application | Heavy-Duty Sheet & Plate Bending |
Typical Applications
This V100 85° single-V lower die is suitable for demanding press brake bending applications, including:
- Heavy-duty plate bending
- Thick sheet metal forming
- Large V-opening air bending
- Large inside-radius bending
- Stainless steel plate fabrication
- Mild steel plate fabrication
- Structural metal components
- Heavy machinery parts
- Industrial equipment fabrication
- Large sheet metal enclosures
- General high-force CNC press brake bending
The appropriate tooling configuration should be selected according to the material type, material strength, sheet thickness, bending angle, required inside radius, flange length and bending tonnage.
Standard & Custom Options
The V100 lower die shown on this page represents one typical tooling configuration only.
WYS Machinery can customize:
- V-opening
- die angle
- overall height
- effective height
- overall die width
- shoulder radius
- V-groove geometry
- edge dimensions
- tool length
- segmented length
- load capacity
- bottom mounting profile
- positioning structure
- clamping interface
Smaller or larger V-openings can be manufactured according to the customer's sheet thickness, bend radius and forming requirements.
Single-V, multi-V and other customized lower die structures are also available.
Compatible Press Brake Tooling Systems
WYS Machinery can manufacture customized lower dies for different press brake brands, tooling standards and clamping systems.
Available configurations include:
TRUMPF Type, WILA Type, LVD Type, Bystronic Type, Amada / Promecam Type, European Type and other customized press brake tooling systems.
The lower die is not limited to the mounting structure shown in the drawing. The bottom mounting interface, positioning geometry, overall height, effective height and cross-section can all be adapted according to the customer's press brake.
Customers can provide a machine model, existing tooling drawing, lower die cross-section, tooling sample or workpiece drawing for technical evaluation.
Custom V-Opening, Angle and Die Geometry
The V100 opening and 85° angle shown on this page are one available configuration.
Different V-openings and die angles can be manufactured according to:
- Sheet thickness
- Material type and strength
- Required bending angle
- Required inside radius
- Minimum flange dimension
- Material springback
- Required bending force
- Press brake configuration
The shoulder radius, V-groove geometry and die body dimensions can also be customized as part of the complete tooling solution.
Custom Press Brake Tooling Design Service
Customers who are unsure which V-opening or lower die structure should be selected can provide:
workpiece drawing, material grade, sheet thickness, required bending angle and press brake model.
Our engineering team can evaluate the bending requirement and recommend an appropriate tooling solution.
The lower die can then be manufactured with the required V-opening, angle, overall height, effective height, width, radius, length and mounting structure.
Why Choose WYS Machinery
WYS Machinery manufactures both standard and customized press brake punches, lower dies and sheet metal bending tooling for different forming applications.
Our lower die manufacturing capabilities include:
- Single-V dies
- Multi-V dies
- Large V-opening dies
- Heavy-duty lower dies
- High-capacity press brake dies
- Segmented tooling
- Customized die angles
- Customized effective heights
- Customized radius geometry
- Special lower-tool profiles
- Custom mounting interfaces
- Replacement tooling for different press brake systems
- Tooling designed according to customer workpiece drawings
This allows customers to obtain both replacement tooling and application-specific bending solutions according to their actual production requirements.
