V24 30° Single-V Press Brake Lower Die for Acute-Angle Bending

This V24 30° press brake lower die uses a single-V structure for sheet metal forming applications that require a very acute groove angle together with increased forming clearance.

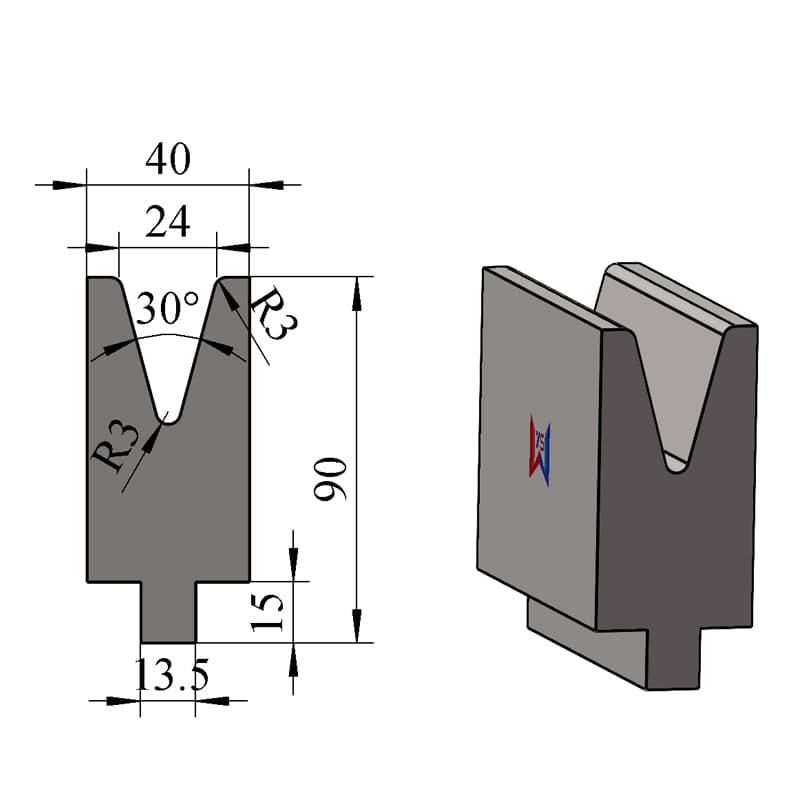

The illustrated configuration features a 24 mm V-opening, 30° die angle, 90 mm overall height, 75 mm effective height and 40 mm body width, with a rated load capacity of 60 ton/m.

In this design, the 40 mm body width also serves as the main load-bearing section width, providing a wide and stable supporting structure around the V-groove during bending.

The combination of the V24 opening and 30° groove angle makes this lower die suitable for very acute-angle air bending, pre-bending and multi-stage forming operations.

Compared with smaller V8, V16 and V20 openings in the same 30° tooling family, the V24 configuration provides greater clearance through the forming zone and is better suited to applications requiring a wider V-opening and larger forming space.

30° V-Groove for Very Acute-Angle Forming

The 30° die angle is suitable for applications where the sheet must be formed to a very acute intermediate angle.

Typical forming requirements can include:

• Very acute-angle air bending
• Pre-bending
• Multi-stage forming
• Hemming preparation
• Sharp flange forming
• Forming with springback allowance
• Customized acute-angle sheet metal profiles

The final tooling configuration should be selected according to the material grade, sheet thickness, required angle, bend radius, flange geometry and forming sequence.

V24 Opening for Increased Forming Clearance

The 24 mm V-opening provides more forming clearance than smaller 30° V-opening dies.

This makes the V24 configuration suitable where the customer requires:

• a wider forming zone,
• more clearance around the workpiece,
• a larger expected inside bend radius,
• or a broader sheet metal profile during acute-angle forming.

Different V-openings can be manufactured according to the customer's actual forming requirements.

Full-Width Load-Bearing Structure

For this configuration:

Body Width: 40 mm
Load-Bearing Section Width: 40 mm

The supporting body beneath the V-groove therefore maintains the full width as the main load-bearing section.

The load-bearing width, body geometry and mounting structure can also be customized according to the required capacity and press brake configuration.

Custom Effective Tool Height

The illustrated lower die has a 90 mm overall height and a 75 mm effective working height.

The effective height is not limited to 75 mm. WYS Machinery can customize it according to the customer's press brake configuration, upper tooling combination, machine daylight, clamping system, existing tooling and required working height.

This allows the lower die to be integrated into different tooling systems rather than being limited to the dimensions shown in the drawing.

Key Features

• Single-V press brake lower die
• V24 / 24 mm V-opening
• 30° very acute-angle groove
• 90 mm overall height
• 75 mm effective height
• 40 mm body width
• 40 mm load-bearing section width
• 13.5 mm bottom mounting width
• Approx. R3 radius geometry
• 60 ton/m rated load capacity
• Suitable for very acute-angle bending
• Suitable for pre-bending and multi-stage forming
• Suitable for hemming preparation
• Greater forming clearance than smaller V-openings
• Full-width load-bearing structure
• Custom V-opening available
• Custom die angle available
• Custom effective height available
• Custom edge geometry available
• Custom tooling length and segmentation
• Custom lower-die mounting interface available

Technical Specifications

Typical Applications

This V24 30° single-V lower die is suitable for:

• Very acute-angle sheet metal bending
• Pre-bending operations
• Multi-stage press brake forming
• Hemming preparation
• Precision flange bending
• Components requiring acute intermediate forming angles
• Stainless steel sheet components
• Mild steel sheet components
• Electrical cabinet parts
• Sheet metal enclosures
• Machinery sheet metal parts
• Customized forming applications

The appropriate tooling configuration should be selected according to the material grade, sheet thickness, required bend angle, inside radius, flange dimensions and required bending force.

Standard & Custom Options

The V24 30° lower die shown on this page represents one typical configuration only.

WYS Machinery can customize the:

• V-opening
• die angle
• overall height
• effective working height
• body width
• load-bearing section width
• radius geometry
• edge dimensions
• tool length
• segmentation
• load capacity
• bottom mounting profile
• positioning structure
• clamping interface

Single-V, double-V, multi-V and other customized lower die structures can also be manufactured according to customer requirements.

Compatible Press Brake Tooling Systems

WYS Machinery can manufacture lower dies for different press brake brands, tooling standards and clamping systems.

Available configurations include:

TRUMPF Type, WILA Type, LVD Type, Bystronic Type, Amada / Promecam Type, European Type and other customized press brake tooling systems.

The lower-die mounting structure shown in the drawing is only one available configuration.

The bottom mounting interface, positioning geometry, overall height, effective height, body width and die cross-section can all be adapted according to the customer's press brake.

Customers can provide a press brake model, existing tooling drawing, tooling cross-section, tooling sample or workpiece drawing for technical evaluation.

Custom V-Opening, Angle and Edge Geometry

The V24 opening and 30° die angle shown here are one available specification rather than fixed limitations.

Different V-openings and die angles can be manufactured according to:

• Material type
• Sheet thickness
• Required bending angle
• Required inside radius
• Minimum flange dimension
• Material springback
• Required bending force
• Press brake configuration

The radius geometry, shoulder profile, edge dimensions and load-bearing body structure can also be customized according to the application.

Custom Press Brake Tooling Design Service

Customers who do not already know the required tooling specification can provide their workpiece drawing, material grade, sheet thickness, required bending angle and press brake model.

Our engineering team can evaluate the forming process and recommend an appropriate lower-die configuration.

The tooling can then be manufactured with the required V-opening, angle, height, effective height, width, radius, tool length and mounting structure.

Why Choose WYS Machinery

WYS Machinery manufactures standard and customized press brake punches, lower dies and sheet metal bending tooling for different sheet metal forming requirements.

Our lower-tooling capabilities include:

• Single-V lower dies
• Double-V dies
• Multi-V dies
• 30° acute-angle lower dies
• Custom-angle press brake dies
• Different V-opening configurations
• Segmented press brake tooling
• Customized effective heights
• Customized load-bearing sections
• Special lower-tool profiles
• Custom mounting interfaces
• Replacement tooling for different press brake systems
• Tooling designed according to customer workpiece drawings

This allows customers to obtain tooling matched to both their machine interface and actual bending application.
