V40 85° Single-V Press Brake Lower Die for Wider V-Opening Bending

This V40 press brake lower die is designed with a robust single-V structure for sheet metal bending applications requiring a relatively wide V-opening and stable lower-tool support.

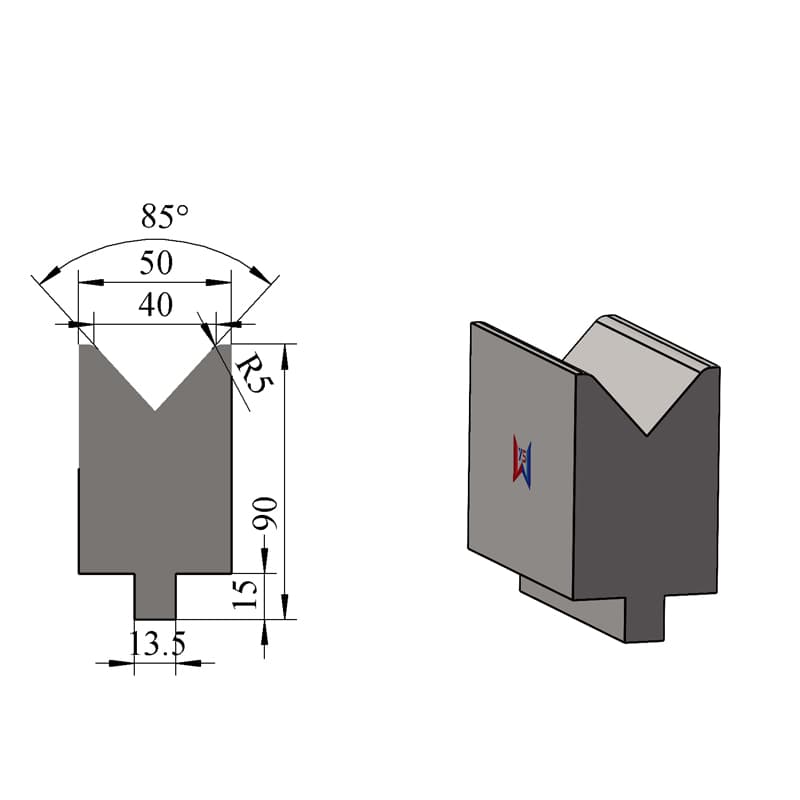

The illustrated model features a 40 mm V-opening, 85° die angle, 90 mm overall height and 50 mm body width, with a rated load capacity of 100 ton/m.

The V40 opening provides greater forming clearance than smaller V-dies and is suitable for applications requiring a larger inside bend radius, wider die opening or increased clearance around the workpiece during bending.

The 85° V-groove geometry is suitable for controlled air bending and provides additional forming allowance when material springback needs to be considered.

Stable 100 Ton/m Lower Die Structure

With a rated load capacity of 100 ton/m, this V40 lower die provides a stable tooling solution for demanding sheet metal bending applications within its specified capacity.

The 50 mm wide body provides strong support around the V-groove and helps maintain consistent tooling performance during repeated production bending.

For safe and accurate production, actual bending tonnage should be determined according to the material grade, tensile strength, sheet thickness, V-opening and bending length.

Flexible Effective Tool Height

The illustrated lower die has an overall height of 90 mm and a standard effective working height of 75 mm.

According to the customer's press brake configuration and tooling combination, the effective height can also be manufactured as:

70 mm or other customized dimensions.

This allows the lower die to be adapted to different punch heights, machine daylight, clamping systems and existing tooling arrangements.

V40 Single-V Die Geometry

The illustrated configuration includes:

• V40 / 40 mm V-opening
• 85° die angle
• 90 mm overall height
• 75 mm effective height
• 50 mm overall width
• Approx. R5 shoulder radius
• 100 ton/m load capacity

The die angle, shoulder radius, edge dimensions and surrounding geometry can also be customized according to the customer's workpiece and bending process.

Key Features

• Single-V lower die structure
• V40 / 40 mm V-opening
• 85° die angle
• 90 mm overall tool height
• 75 mm standard effective height
• 70 mm or customized effective height available
• 50 mm overall body width
• 100 ton/m load capacity
• Approx. R5 shoulder radius
• Wider V-opening for increased bending clearance
• Suitable for larger inside-radius bending requirements
• Robust die body for repeated production bending
• Suitable for controlled air bending
• Custom V-openings available
• Custom die angles available
• Custom shoulder and edge geometry available
• Custom lengths and segmentation available
• Custom lower mounting interfaces available

Technical Specifications

Typical Applications

This V40 85° single-V lower die is suitable for a wide range of press brake bending applications, including:

• Medium-gauge sheet metal bending
• Wider V-opening air bending
• Larger inside-radius bending
• Stainless steel fabrication
• Mild steel fabrication
• Machinery components
• Industrial enclosures
• Electrical cabinets
• Machine covers and housings
• Structural sheet metal components
• General CNC press brake forming

The appropriate lower die should be selected according to the material type, sheet thickness, required bending angle, inside radius, minimum flange length and required bending tonnage.

Standard & Custom Options

The V40 lower die shown on this page represents one typical tooling configuration only.

WYS Machinery can customize:

• V-opening
• die angle
• overall height
• effective working height
• overall die width
• shoulder radius
• shoulder geometry
• edge dimensions
• tool length
• segmented length
• load capacity
• bottom mounting profile
• positioning structure
• clamping interface

In addition to V40, smaller and larger V-openings can be manufactured according to the customer's sheet thickness, required bend radius and forming requirements.

Single-V, multi-V and other customized lower die structures are also available.

Compatible Press Brake Tooling Systems

WYS Machinery can manufacture customized lower dies for different press brake brands, tooling standards and clamping systems.

Available configurations include:

TRUMPF Type, WILA Type, LVD Type, Bystronic Type, Amada / Promecam Type, European Type and other customized press brake tooling systems.

The lower die is not limited to the mounting profile shown in the drawing. The bottom interface, positioning geometry, tool height and cross-section can all be adapted according to the customer's machine and tooling system.

Customers can provide a machine model, existing tooling drawing, lower die cross-section, tooling sample or workpiece drawing for technical evaluation.

Custom V-Opening, Angle and Die Geometry

The V40 opening and 85° die angle shown on this page are one available configuration.

Different V-openings and die angles can be manufactured according to:

• Sheet thickness
• Material type and strength
• Required bending angle
• Required inside radius
• Minimum flange dimension
• Material springback
• Press brake capacity

The shoulder radius, edge geometry and lower die body dimensions can also be customized as part of the complete tooling solution.

Custom Press Brake Tooling Design Service

Customers who are unsure which V-opening or lower die structure should be selected can provide:

workpiece drawing, material grade, sheet thickness, required bending angle and press brake model.

Our engineering team can evaluate the bending requirement and recommend an appropriate lower die configuration.

The tooling can then be manufactured with the required V-opening, angle, overall height, effective height, width, radius, length and mounting structure.

Why Choose WYS Machinery

WYS Machinery manufactures both standard and customized press brake punches, lower dies and sheet metal bending tooling for different press brake systems and forming applications.

Our lower tooling capabilities include:

• Single-V dies
• Multi-V dies
• Medium and large V-opening dies
• High-capacity lower dies
• Segmented press brake dies
• Customized die angles
• Customized effective heights
• Special lower-tool profiles
• Custom mounting interfaces
• Replacement tooling for different press brake systems
• Tooling design based on customer workpiece drawings

This allows customers to obtain both standard replacement tooling and application-specific bending solutions according to their actual production requirements.
