V12 / V16 85° Double-V Press Brake Lower Die – W50 × H26 mm, 80 Ton/m
A commonly used V12 / V16 85° double-V press brake lower die featuring two integrated V-openings in a compact W50 × H26 mm body. With an 80 ton/m load capacity and plug-in mounting system, this 2V lower die provides two practical V-opening options for different sheet metal bending requirements. V-openings, die angles, dimensions, lengths and mounting interfaces can be customized for different press brake tooling systems.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description

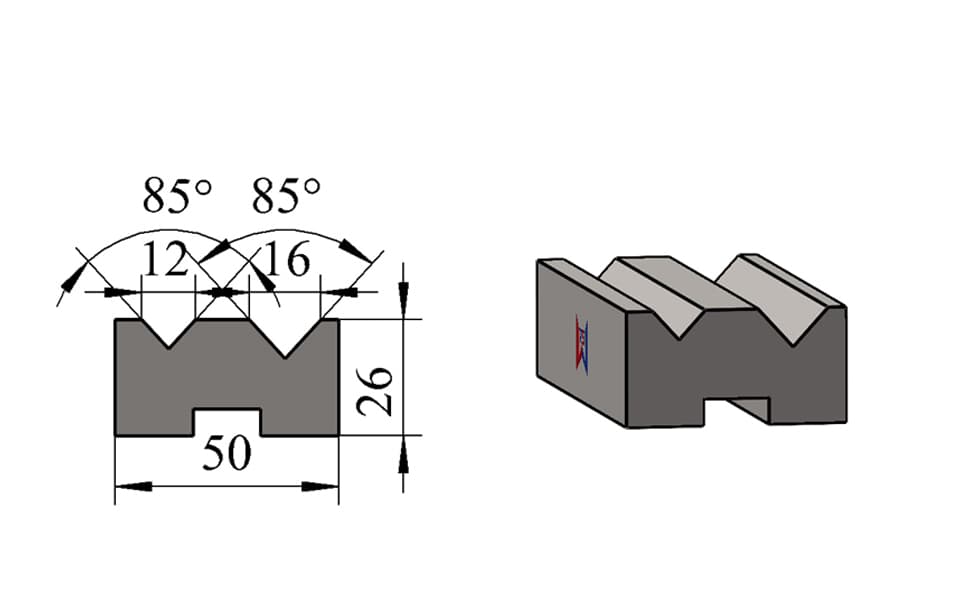

V12 / V16 85° Double-V Press Brake Lower Die
This double-V press brake lower die, also referred to as a 2V lower die, integrates V12 and V16 openings into a single die body.
Both V-grooves feature an 85° die angle. The illustrated configuration has an overall width of 50 mm, an overall height of 26 mm, and a rated load capacity of 80 ton/m.
The V12 / V16 combination is a commonly used double-V configuration for general sheet metal fabrication. By integrating two different V-openings into one lower tool, the die provides greater flexibility when bending jobs require different V-die openings, material thicknesses or target bend geometries.
The illustrated version uses a plug-in mounting system, providing a defined connection with the corresponding lower die holder or press brake table interface.
The V12 / V16 specification shown here represents one available configuration rather than a fixed product limitation. V-opening combinations, angles, die dimensions, lengths, load requirements and mounting structures can all be customized according to the customer's press brake and bending application.
Key Features
- Double-V / 2V press brake lower die
- Integrated V12 and V16 openings
- 85° / 85° V-groove angles
- Commonly used two-V configuration
- Overall width: 50 mm
- Overall height: 26 mm
- Rated load capacity: 80 ton/m
- Plug-in mounting system
- Two working V-openings integrated into one compact die body
- Suitable for different sheet metal bending requirements
- Precision-machined V-groove geometry
- Custom V-opening combinations available
- Custom die angles available
- Custom overall height and width available
- Custom tool length and segmentation available
- Custom lower mounting profiles available
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Double-V Press Brake Lower Die / 2V Die |
| V-Opening 1 | V12 / 12 mm |
| V-Opening 2 | V16 / 16 mm |
| Die Angle | 85° / 85° |
| Overall Width | 50 mm |
| Overall Height | 26 mm |
| Load Capacity | 80 ton/m |
| Number of V-Grooves | 2 |
| Mounting System | Plug-in System |
| Tool Length | Standard or Customized |
| Segmentation | Available |
| V-Opening Combination | Customizable |
| Die Angle | Customizable |
| Mounting Interface | Customizable |
V12 / V16 Double-V Configuration
The illustrated lower die combines a 12 mm V-opening and a 16 mm V-opening within one compact tooling body.
This configuration provides two different forming openings without requiring two completely separate single-V lower dies.
Depending on the bending job, the appropriate V-opening can be selected according to factors such as:
- Sheet thickness
- Material grade
- Required inside bend radius
- Bend angle
- Flange geometry
- Forming force
- Bending method
The V12 / V16 combination shown here is only one available option.
Other double-V combinations can be manufactured according to the customer's production requirements.
Typical Applications
The V12 / V16 double-V press brake die is suitable for a wide range of general sheet metal fabrication applications, including:
- General sheet metal bending
- Precision metal fabrication
- Stainless steel sheet bending
- Carbon steel sheet bending
- Electrical enclosure production
- Control cabinet manufacturing
- Machine cover fabrication
- Equipment housing production
- Mixed-batch bending
- Production requiring different V-opening sizes
- Custom sheet metal components
The appropriate V-opening should be selected according to the actual material, sheet thickness, required bend radius, bend angle and forming method.
Plug-In Lower Die Mounting System
The illustrated V12 / V16 lower die uses a plug-in mounting configuration.
The bottom profile engages with a corresponding lower die holder or tooling interface, providing positioning and support during the bending process.
The plug-in structure shown in this product is one reference mounting configuration only.
WYS Machinery can customize the bottom geometry according to the customer's:
- Press brake model
- Existing lower die holder
- Tooling system
- Existing die drawing
- Existing tooling sample
- Required mounting dimensions
The complete lower die cross-section can therefore be adapted to different press brake systems.
Custom Double-V Press Brake Dies
WYS Machinery manufactures standard and customized double-V press brake dies for different sheet metal bending requirements.
The dimensions shown in this product drawing represent one manufactured configuration only.
Customers can customize:
V-opening combinations, V-groove angles, overall height, overall width, shoulder geometry, die body structure, load capacity, tool length, segmented length, bottom profile and mounting interface.
For special bending applications, customers can provide the workpiece drawing, sheet thickness, material specification, required bend angle and press brake information.
Our engineering team can evaluate the application and develop a suitable lower die configuration.
Compatible Press Brake Tooling Systems
WYS Machinery can manufacture double-V and multi-V lower dies for different press brake tooling standards and machine configurations.
Available configurations include:
AMADA / Promecam Type, TRUMPF Type, WILA Type, LVD Type, Bystronic Type, European Type and other customized press brake tooling systems.
The plug-in mounting profile and dimensions shown on this page are therefore only one reference configuration.
The V-opening, height, width, angle and complete lower mounting structure can be redesigned according to the customer's existing machine and tooling system.
Standard & Custom Lower Die Solutions
WYS Machinery manufactures a wide range of press brake lower tooling, including:
Single-V Dies · Double-V Dies · Multi-V Dies · Acute-Angle Dies · Wide-Opening Dies · High-Tonnage Dies · Segmented Dies · Special Lower Dies · Custom Press Brake Tooling
Different lower die structures can be selected or customized according to the actual bending process and press brake configuration.
