V64 85° Stepped-Base Single-V Press Brake Lower Die – H75 × W80 mm, 100 Ton/m
This V64 85° stepped-base single-V press brake lower die features a 64 mm V-opening, 85° die angle, 75 mm overall height and 80 mm main body width, with a 60 mm bottom base width and 20 mm stepped mounting section. The rated load capacity is 100 ton/m. Unlike conventional plug-in single-V lower dies, this configuration uses a stepped-base mounting structure rather than a narrow plug-in shank. The V-opening, die angle, overall height, body width, base dimensions, groove radius, tool length and mounting interface can all be customized according to the customer's press brake and bending requirements.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description
V64 85° Stepped-Base Single-V Press Brake Lower Die
This V64 85° press brake lower die uses a single-V working groove combined with a stepped lower mounting structure, providing a stable lower-tool configuration for larger V-opening sheet metal bending applications.

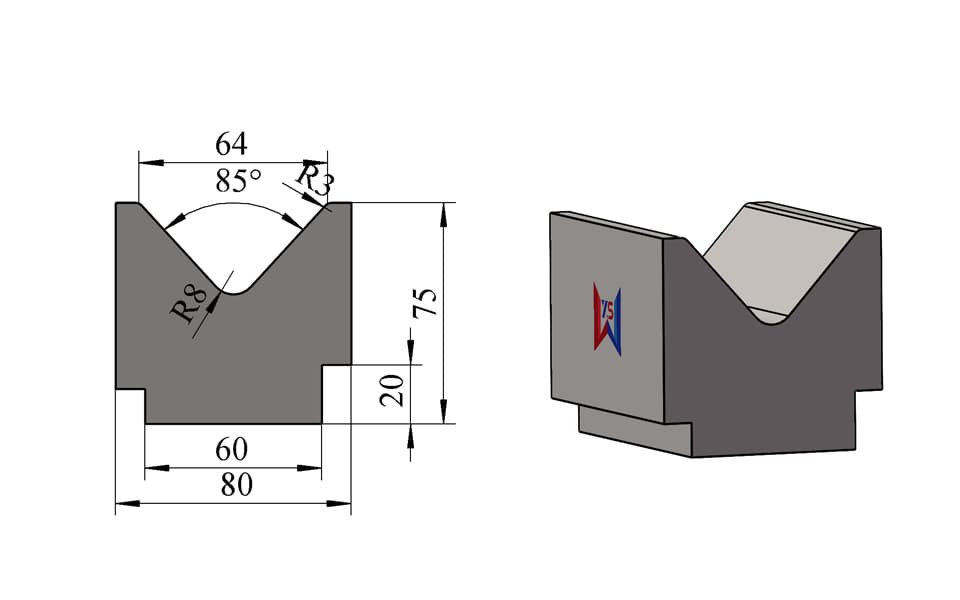

The illustrated model features:
V-Opening: V64 / 64 mm
Die Angle: 85°
Overall Height: 75 mm
Main Body Width: 80 mm
Bottom Base Width: 60 mm
Stepped Section Height: 20 mm
Groove Shoulder Radius: R3
V-Bottom Radius: R8
Rated Load Capacity: 100 ton/m
The lower mounting profile is structurally different from the narrow plug-in mounting configuration used on many other single-V dies. Its 80 mm upper body transitions to a 60 mm wide stepped base, creating a distinct mounting geometry for compatible lower-die holders and machine arrangements.
The dimensions shown represent one available configuration only. WYS Machinery can manufacture different die cross-sections according to the customer's machine, tooling holder and workpiece requirements.
V64 Opening for Large Forming Clearance
The 64 mm V-opening provides a large working zone for sheet metal bending.
Compared with smaller V32, V40 and V50 lower dies, the V64 opening provides additional forming clearance and is suitable for applications requiring:
- A larger forming space
- A larger expected inside bend radius
- Greater workpiece clearance
- Wider flange and sheet geometry
- Larger V-opening air-bending applications
The correct V-opening should always be selected according to the material grade, sheet thickness, desired bend radius, minimum flange size and required bending force.
85° V-Groove for Precision Air Bending
The illustrated lower die uses an 85° V-groove, suitable for precision air-bending applications where additional angular allowance may be required to compensate for springback.
The actual final bend angle depends on several factors, including:
- Material type
- Sheet thickness
- Punch angle
- V-opening
- Material springback
- Inside bend radius
- Flange dimensions
- Bending force
The 85° configuration is not a fixed limitation. Different die angles can also be manufactured according to the customer's forming requirements.
Stepped-Base Mounting Structure
A key feature of this lower die is its stepped-base structure.
The illustrated geometry includes:
Main Body Width: 80 mm
Bottom Base Width: 60 mm
Stepped Section Height: 20 mm
This differs from a typical plug-in lower die, which normally uses a narrow mounting shank beneath the main tool body.
The stepped-base structure provides a broader and more substantial mounting profile and can be adapted according to the lower-die holder or machine interface.
The base width, step height, body width and positioning geometry can all be customized.
R3 Shoulder Radius and R8 V-Bottom Radius
The illustrated V64 groove includes two clearly defined radius features:
Shoulder Radius: R3
V-Bottom Radius: R8
These radii influence the geometry around the working groove and can be modified when different forming conditions require alternative edge or bottom-radius geometry.
The groove radii are not limited to the values shown.
Key Features
- V64 / 64 mm V-opening
- 85° single-V groove
- 75 mm overall height
- 80 mm main body width
- 60 mm bottom base width
- 20 mm stepped mounting section
- R3 shoulder radius
- R8 V-bottom radius
- 100 ton/m rated load capacity
- Stepped-base mounting structure
- Different from plug-in mounting dies
- Large forming clearance
- Suitable for larger V-opening air bending
- Custom V-opening available
- Custom die angle available
- Custom groove radius available
- Custom body and base dimensions
- Custom step geometry
- Custom tool length and segmentation
- Custom mounting interface available
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Stepped-Base Single-V Press Brake Lower Die |
| Die Structure | Single-V |
| V-Opening | V64 / 64 mm |
| Die Angle | 85° / Customized |
| Overall Height | 75 mm / Customized |
| Main Body Width | 80 mm / Customized |
| Bottom Base Width | 60 mm / Customized |
| Stepped Section Height | 20 mm / Customized |
| Shoulder Radius | R3 / Customized |
| V-Bottom Radius | R8 / Customized |
| Load Capacity | 100 ton/m |
| Mounting Structure | Stepped Base |
| Tool Length | Standard / Customized |
| Segmentation | Available |
| Mounting Interface | Stepped Base / Customized |
| Main Application | Large V-Opening Precision Air Bending |
Typical Applications
This V64 85° stepped-base single-V lower die is suitable for:
- Large V-opening sheet metal air bending
- Precision near-right-angle bending
- Applications requiring increased forming clearance
- Applications requiring a larger expected inside radius
- Springback-compensation bending
- Precision flange forming
- Stainless steel sheet bending
- Mild steel sheet bending
- Industrial machinery components
- Structural sheet metal components
- Electrical cabinet and enclosure production
- Customized press brake forming
- Tooling systems requiring a stepped lower-die base
The final tooling configuration should be selected according to the material grade, sheet thickness, bend angle, required radius, flange dimensions and required bending force.
Standard & Custom Options
The V64 85° lower die displayed on this page represents one stepped-base configuration only.
WYS Machinery can customize:
- V-opening
- die angle
- overall height
- main body width
- base width
- stepped section height
- shoulder radius
- V-bottom radius
- edge geometry
- tool length
- segmented length
- load capacity
- bottom mounting profile
- positioning structure
- clamping interface
In addition to stepped-base single-V dies, WYS Machinery can manufacture plug-in single-V dies, wide-base single-V dies, T-type single-V dies, double-V dies, multi-V dies and special customized lower dies.
Compatible Press Brake Tooling Systems
WYS Machinery can manufacture lower dies for different press brake brands, tooling standards and clamping systems.
Available configurations include:
TRUMPF Type, WILA Type, LVD Type, Bystronic Type, Amada / Promecam Type, European Type and other customized press brake tooling systems.
The stepped-base structure shown here is one available configuration only.
The bottom mounting profile, base width, step height, overall height, body width and complete die cross-section can all be adapted according to the customer's press brake.
Customers can provide a machine model, existing lower-die drawing, die-holder dimensions, tooling cross-section, tooling sample or workpiece drawing for technical evaluation.
Custom V-Opening and Die Angle
The V64 opening and 85° groove shown here are not fixed limitations.
Different V-openings and angles can be manufactured according to:
- Material grade
- Sheet thickness
- Required bending angle
- Desired inside radius
- Minimum flange dimension
- Material springback
- Required forming clearance
- Required bending force
- Press brake configuration
This allows the tooling geometry to be designed around the customer's actual workpiece rather than limiting the application to one standard lower die.
Custom Mounting Structure
Single-V lower dies can use different mounting and base structures.
WYS Machinery can manufacture:
Plug-in Mounting Structure
Full-Width Wide-Base Structure
Stepped-Base Structure
T-Type Structure
Other Customized Lower-Die Interfaces
The mounting profile can be designed according to the customer's lower-die holder and machine configuration.
Custom Press Brake Tooling Design Service
Customers can provide:
workpiece drawings, material grade, sheet thickness, required bend angle, desired radius, existing tooling information and press brake model.
Our engineering team can evaluate the forming requirement and recommend an appropriate lower-die configuration.
The tooling can then be manufactured with the required V-opening, angle, height, width, base geometry, groove radius, tool length and mounting structure.
Why Choose WYS Machinery
WYS Machinery manufactures standard and customized press brake punches, lower dies and sheet metal bending tooling for different machine configurations and forming requirements.
Our lower-tooling capabilities include:
- Stepped-base single-V lower dies
- Wide-base single-V lower dies
- Plug-in single-V lower dies
- T-type single-V lower dies
- Double-V dies
- Multi-V dies
- Large V-opening lower dies
- Custom-angle lower dies
- Customized V-openings
- Customized tool heights
- Customized base structures
- Customized radii
- Segmented tooling
- Special lower-tool profiles
- Custom mounting interfaces
- Replacement tooling for different press brake systems
- Tooling manufactured according to customer drawings
The products shown on our website demonstrate available tooling structures and manufacturing capabilities, while final dimensions and mounting systems can be adapted to actual production requirements.
