WILA American Style 28° Acute-Angle Top Tool – H98mm, R1, 100 Ton/m
This WILA American Style 28° acute-angle top tool features a 98 mm working height, R1 mm tip radius and maximum load capacity of 100 ton/m. Its 12.7 mm tang and shoulder-loaded mounting profile are designed for compatible American Style clamping systems. The narrow working tip is suitable for deep acute bending, hemming pre-bends and multi-stage sheet metal forming.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description
This WILA American Style 28° acute-angle top tool is developed for deep acute bending and the pre-bending stage of sheet metal hemming. Its narrow working profile allows the sheet to be formed beyond a conventional right angle when paired with a suitable acute-angle lower die.

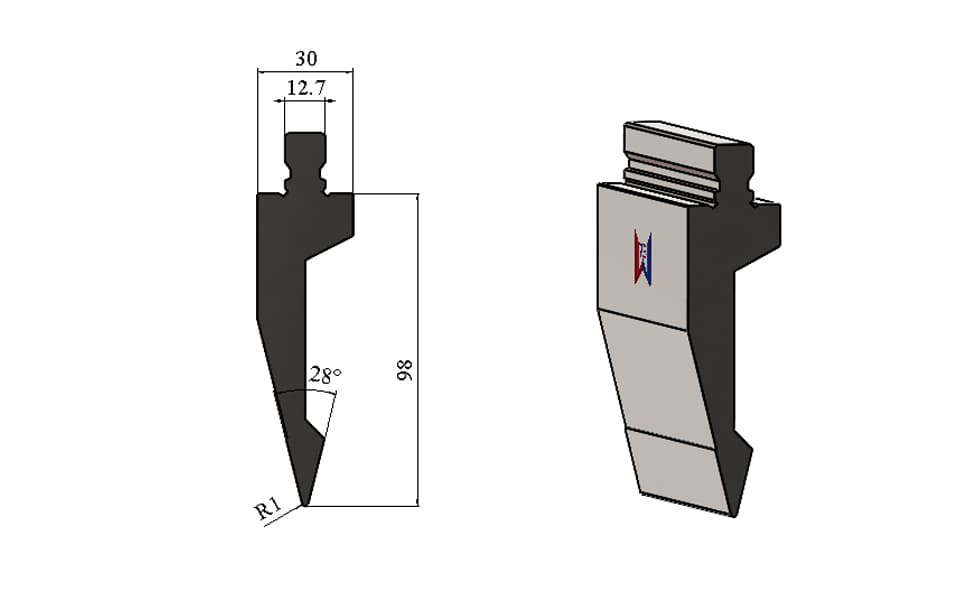

The punch has a compact 98 mm working height, a 30 mm body width and an R1 mm tip radius. This combination provides accurate bend-line positioning while retaining a maximum rated load of 100 ton/m.
Its 12.7 mm upper tang fits compatible American Style clamping systems. The bending force is transferred through the tool shoulders, supporting stable seating and accurate alignment during production.
Manufactured from 42CrMo alloy steel and hardened to HRC54±2, the punch provides reliable strength, dimensional stability and resistance to tip wear.
Key Features
- American Style upper-tool mounting profile
- 12.7 mm tang for compatible clamping systems
- Shoulder-loaded structure for stable force transmission
- Narrow 28° profile for deep acute-angle bending
- Suitable for pre-bending before hemming or flattening
- Compact 98 mm working height
- 30 mm tool-body width
- R1 mm tip radius for precise bend-line control
- Maximum load capacity of 100 ton/m
- Manufactured from 42CrMo alloy steel
- Working area hardened to HRC54±2
- Precision-machined working and mounting surfaces
- Continuous and segmented tool lengths available
- Dimensions, angles and mounting profiles can be customized
Technical Specifications
| Parameter | Specification |
|---|---|
| Tool Type | American Style Press Brake Top Tool |
| Product Compatibility | WILA American Style Tooling System |
| Punch Profile | Acute-Angle Punch |
| Working Height (H) | 98 mm |
| Tool Body Width | 30 mm |
| Upper Tang Width | 12.7 mm |
| Tip Angle (α) | 28° |
| Tip Radius (R) | 1 mm |
| Maximum Load | 100 ton/m |
| Load Transfer | Shoulder-Loaded |
| Material | 42CrMo Alloy Steel |
| Hardness | HRC54±2 |
| Length | Continuous or segmented, customizable |
| Primary Application | Acute bending and hemming pre-bending |
Typical Applications
This American Style 28° punch is suitable for:
- Deep acute-angle sheet metal bending
- Pre-bending before flattening or hemming
- Forming open, closed or teardrop hems through multiple stages
- Folded safety edges on panels and covers
- Electrical cabinets and control enclosures
- Metal doors and equipment housings
- HVAC panels and ventilation components
- Appliance and metal-furniture parts
- Mild steel, stainless steel and aluminium fabrication
- CNC hydraulic and servo-electric press brakes
In a typical hemming process, this punch creates the initial acute fold. The workpiece is then transferred to a flattening die, hemming table or dedicated hemming tool to complete the required edge.
The correct lower-die opening must be selected according to the material grade, sheet thickness, required inside radius and final hem profile. The bending force must remain within the rated capacities of the upper punch, lower die, clamping system and press brake.
Product Details & Manufacturing Quality
The punch is manufactured from selected 42CrMo alloy steel, providing a dependable balance of strength, toughness and fatigue resistance. Its working area is hardened to HRC54±2 to improve resistance to wear and deformation during repeated acute-angle forming.
Precision machining maintains the accuracy of the 28° working profile, R1 mm tip and shoulder-loaded mounting surfaces. Consistent geometry supports stable installation, accurate punch-to-die alignment and repeatable bending results.
Because acute bending concentrates forming pressure around a relatively narrow tool tip, the punch radius and lower-die opening should be checked against the material thickness and ductility. This is particularly important when bending stainless steel, high-strength material or components with demanding inside-radius requirements.
Standard & Custom American Style Press Brake Tooling
WYS Machinery manufactures standard and customized American Style acute-angle punches, gooseneck punches, straight punches, heavy-duty punches, lower dies, hemming tools and press brake adapters.
Customers can provide their workpiece drawings, material grade, sheet thickness and required final profile. Our technical team can recommend an appropriate acute-angle punch, lower die and forming sequence.
Available customization options include:
- Working height and tool-body width
- Punch angle and tip radius
- Tang and shoulder dimensions
- Load-bearing section and rated capacity
- Continuous or segmented tool lengths
- Customized section arrangements
- Acute-angle punch-and-die combinations
- Pre-bending and flattening solutions
- Surface blackening or protective coating
- Mounting profiles for different press brake systems
This product is manufactured as compatible replacement press brake tooling. It is not presented as an original WILA-manufactured product and does not imply official affiliation, authorization or endorsement by WILA.
