WILA American Style 90° Gooseneck Top Tool – H100mm, R0.8, 100 Ton/m
This WILA American Style 90° gooseneck top tool features a 100 mm working height, R0.8 mm tip radius and maximum load capacity of 100 ton/m. Its 12.7 mm tang and shoulder-loaded mounting profile fit compatible American Style clamping systems, while the recessed gooseneck body provides clearance for return flanges, box walls and multi-stage sheet metal bending.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description
This WILA American Style 90° gooseneck top tool is designed for sheet metal components that require a compact punch-tip radius and additional clearance around previously formed flanges. Its recessed profile helps prevent interference when producing boxes, enclosures, return bends and other multi-bend components.
The punch has a 100 mm working height and an R0.8 mm tip radius, providing concentrated bend-line control for suitable sheet-metal applications. Its 90° working angle can be used for forming open bends and specific bottom-bending applications when paired with an appropriate lower die.
The 12.7 mm upper tang fits compatible American Style clamping systems. Bending force is transmitted through the tool shoulders, providing stable seating and reliable load transfer. The punch is rated for a maximum load of 100 ton/m.
Manufactured from 42CrMo alloy steel and hardened to HRC54±2, this gooseneck punch provides dependable strength, wear resistance and dimensional stability for repeatable press brake production.
Key Features
- American Style upper-tool mounting profile
- 12.7 mm tang for compatible clamping systems
- Shoulder-loaded structure for stable force transfer
- Gooseneck profile for flange and side-wall clearance
- 90° working angle
- R0.8 mm tip radius for precise bend-line control
- 100 mm working height
- 65 mm maximum profile width
- 12 mm load-bearing width near the punch tip
- Maximum load capacity of 100 ton/m
- Manufactured from 42CrMo alloy steel
- Working area hardened to HRC54±2
- Continuous and segmented lengths available
- Tool profile and dimensions can be customized

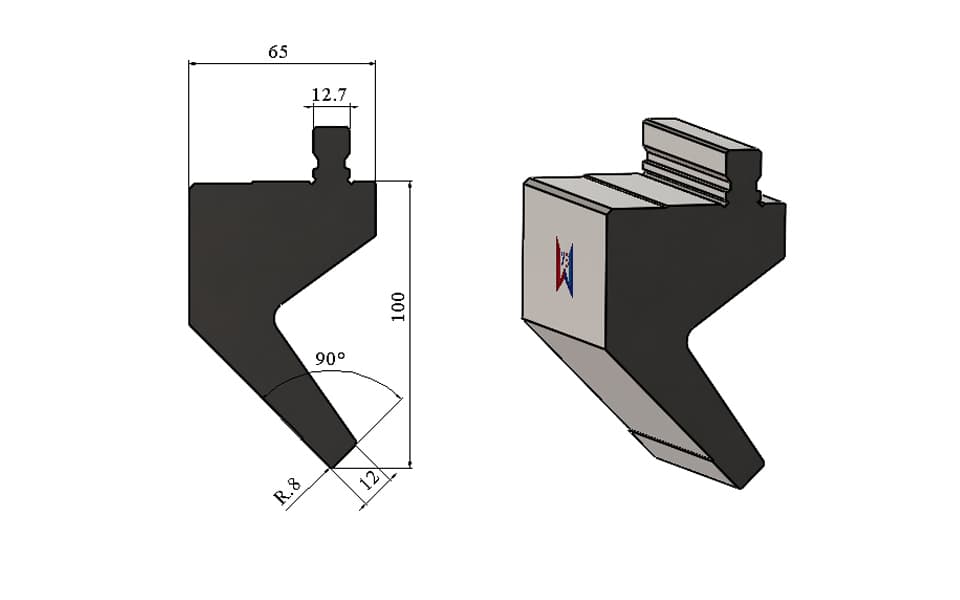

Technical Specifications
| Parameter | Specification |
|---|---|
| Tool Type | American Style Press Brake Top Tool |
| Product Compatibility | WILA American Style Tooling System |
| Punch Profile | Gooseneck Punch |
| Working Height (H) | 100 mm |
| Maximum Profile Width | 65 mm |
| Upper Tang Width | 12.7 mm |
| Tip Load-Bearing Width | 12 mm |
| Tip Angle (α) | 90° |
| Tip Radius (R) | 0.8 mm |
| Maximum Load | 100 ton/m |
| Load Transfer | Shoulder-Loaded |
| Material | 42CrMo Alloy Steel |
| Hardness | HRC54±2 |
| Length | Continuous or segmented, customizable |
| Primary Application | Flange-clearance and box bending |
Typical Applications
This American Style gooseneck punch is suitable for:
- Bending near previously formed flanges
- Return-flange and reverse-flange bending
- Boxes, trays and enclosure components
- Electrical cabinets and control panels
- Metal doors and equipment housings
- Machinery guards and protective covers
- HVAC panels and ventilation components
- Multi-stage sheet metal bending
- Components requiring a relatively small punch-tip radius
- Mild steel, stainless steel and aluminium fabrication
- CNC hydraulic and servo-electric press brakes
Important Note About the 90° Punch Angle
A 90° punch does not automatically produce a finished 90° bend in every application. During air bending, material springback may cause the released workpiece angle to remain greater than 90°.
The finished angle depends on:
- Material grade and tensile strength
- Sheet thickness
- Lower-die angle and V-opening
- Punch penetration
- Inside bend radius
- Air bending, bottom bending or coining method
Where springback compensation is required, an acute-angle punch may be more suitable. The tooling combination and forming method should be confirmed according to the workpiece drawing and material specifications.
Product Details & Manufacturing Quality
The punch is manufactured from selected 42CrMo alloy steel to provide a reliable balance of strength, toughness and fatigue resistance. Its working area is hardened to HRC54±2, improving resistance to tip wear and deformation during repeated production.
Precision machining controls the 90° working angle, R0.8 mm tip radius, mounting tang and shoulder surfaces. Accurate geometry supports stable clamping, consistent tool alignment and repeatable bending results.
The recessed gooseneck body creates space around previously formed parts of the workpiece. However, actual usable clearance depends on the flange height, workpiece angle, bend position and forming sequence. The component drawing should therefore be checked before the final tooling profile is selected.
The required bending force must remain within the rated capacities of the punch, lower die, clamping system and press brake.
Standard & Custom American Style Press Brake Tooling
WYS Machinery manufactures standard and customized American Style gooseneck punches, straight punches, heavy-duty punches, acute-angle punches, lower dies and press brake adapters.
Customers can provide their workpiece drawings, material grade, sheet thickness and bending sequence. Our technical team can evaluate the required flange clearance and recommend an appropriate punch profile, lower-die opening and forming method.
Available customization options include:
- Working height and overall profile dimensions
- Gooseneck depth and clearance profile
- Punch angle and tip radius
- Tang and shoulder dimensions
- Load-bearing width and rated capacity
- Continuous or segmented tool lengths
- Customized section arrangements
- Reversed or mirrored gooseneck profiles
- Surface blackening or protective coating
- Mounting profiles for different press brake systems
This product is manufactured as compatible replacement press brake tooling. It is not presented as an original WILA-manufactured product and does not imply official affiliation, authorization or endorsement by WILA.
