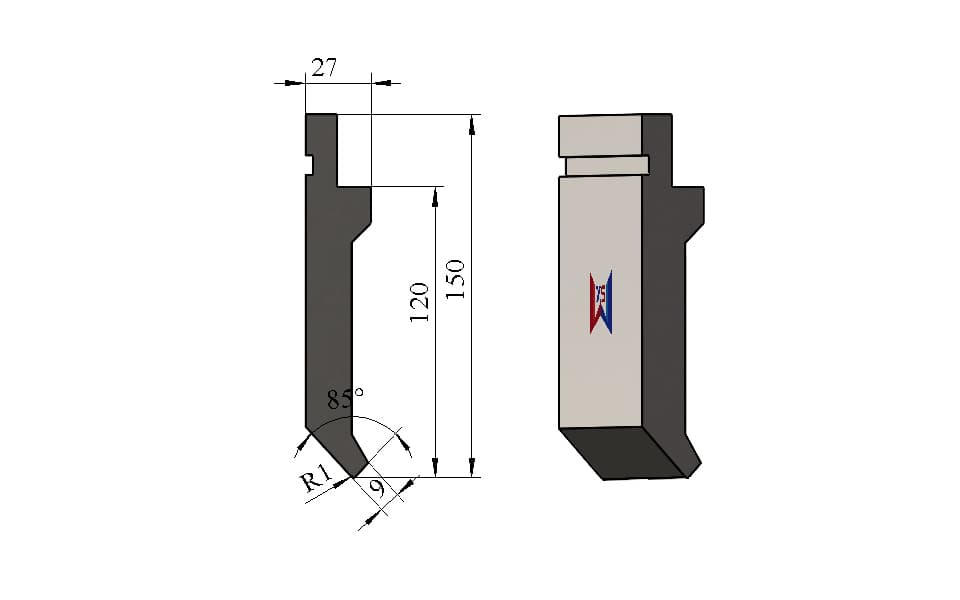

85° R1 High Press Brake Upper Punch – 150 mm Height, 27 mm Width, 100 Ton/m

Key Features

• 85° punch angle for accurate and controlled sheet metal bending
• R1 tip radius for consistent forming and reliable bending results
• 150 mm overall height for extended tooling reach and increased working clearance
• 27 mm total width for a practical and stable tooling configuration
• 9 mm tip width for reliable workpiece contact
• 100 ton/m load capacity for demanding industrial bending applications
• High tooling profile suitable for applications requiring additional reach
• Suitable for deeper and more complex sheet metal bending operations
• Manufactured from 42CrMo alloy steel
• Heat treated to HRC 54 ± 2 for high wear resistance and dimensional stability
• Suitable for CNC press brake machines and precision sheet metal fabrication
• Available as standard or customized press brake tooling
• Free tooling design service available based on customer drawings

Technical Specifications

Typical Applications

This 85° R1 high press brake upper punch is designed for applications where a taller tooling profile provides advantages over conventional 97 mm or 120 mm punches.

Typical applications include:

• Deep sheet metal bending
• Complex profile bending
• CNC press brake bending
• Large or deep components
• Industrial equipment fabrication
• Machinery components
• Electrical cabinets and enclosures
• Automotive sheet metal components
• Structural metal parts
• Multi-step bending operations
• Precision sheet metal fabrication
• Applications requiring increased tooling reach

The 150 mm overall height provides additional working reach compared with standard-height upper punches. This can be advantageous when the workpiece geometry requires more space between the machine/tool holder and the bending area.

The 9 mm tip width and R1 radius provide a practical combination for general-purpose forming while maintaining controlled contact with the workpiece.

With a 100 ton/m load capacity, this punch is suitable for demanding industrial bending applications, subject to the actual workpiece material, thickness, bending length, die opening, bending method, and press brake capacity.

The tooling can be supplied for press brake applications involving major brands and tooling systems, including Amada, TRUMPF, LVD, Bystronic, and WILA, according to the specific machine and tooling interface.

Product Details & Manufacturing Quality

The punch is manufactured from 42CrMo alloy steel, selected for its high strength, toughness, wear resistance, and durability in demanding press brake applications.

The working area is heat treated to approximately HRC 54 ± 2, helping maintain the accuracy of the punch profile and providing reliable wear resistance during repeated bending operations.

The key feature of this tooling is its 150 mm overall height. Compared with conventional 97 mm and 120 mm upper punches, the extended height provides additional reach and working space for certain deep or complex bending applications.

The 85° punch angle combined with an R1 tip radius provides a balanced geometry suitable for a wide range of sheet metal forming operations.

The 100 ton/m load capacity provides a high-strength tooling solution for industrial production. Actual allowable bending force should always be evaluated according to the material type, sheet thickness, bending length, die opening, bending method, and machine specifications.

Standard & Custom Press Brake Tooling

We manufacture standard press brake punches and dies as well as customized tooling for different machines and workpiece requirements.

The 150 mm high configuration is particularly useful when a standard-height punch does not provide sufficient reach or when the customer's workpiece geometry requires additional tooling height.

If you have a special bending requirement, simply send us your 2D/3D workpiece drawing, bending drawing, existing tooling drawing, or machine information.

Our engineering team can provide a free press brake tooling design service and recommend a suitable tooling configuration based on the actual workpiece.

Customization options include:

• Overall tooling height
• Total tooling width
• Tip width
• Tip radius
• Punch angle
• Tooling length
• Clearance and relief areas
• Special interference-avoidance structures
• Gooseneck punches
• Special-shaped punches
• Machine-specific tooling dimensions
• Customized upper and lower tooling sets

We can also help evaluate tooling reach, workpiece clearance, bending sequence, flange interference, and machine compatibility before production.

This enables us to provide both standard high press brake tooling and custom-designed bending tools for specialized applications.
