T-Type 60° Single-V Press Brake Lower Die – H80 × B60 mm, 60 Ton/m
This T-type 60° single-V press brake lower die features an 80 mm overall height and 80 mm effective height, a 60 mm wide base, and a rated load capacity of 60 ton/m. The illustrated T-type structure is designed for acute-angle air bending, pre-bending and multi-stage sheet metal forming. Standard configurations include V6, V8, V10, V12, V16, V20 and V25, with additional TR-series groove-radius options. The V-opening, die angle, load-bearing section width, V-groove radius, tool height, base geometry, tool length and mounting interface can all be customized according to customer requirements.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description
T-Type 60° Single-V Press Brake Lower Die with Wide 60 mm Base
This T-type single-V press brake lower die combines a wide supporting base with a vertical single-V working section, providing a stable lower-tool structure for acute-angle sheet metal bending applications.
The illustrated configuration has an 80 mm overall height, while the effective working height is also 80 mm. The bottom base is 60 mm wide and 18 mm high, and the rated load capacity is 60 ton/m.
The upper working section uses a 60° single-V groove. Different V-openings, load-bearing section widths and V-groove radii are available, allowing the same T-shaped die structure to be configured for different sheet thicknesses, bend radii and workpiece geometries.
The dimensions shown represent available configurations rather than fixed limitations. WYS Machinery can manufacture the complete lower-die profile according to the customer's press brake and bending requirements.
60° V-Groove for Acute-Angle Bending
The 60° die angle is suitable for applications requiring acute-angle forming, pre-bending or an intermediate bend before subsequent forming operations.
Typical forming requirements can include:
- Acute-angle air bending
- Pre-bending
- Multi-stage forming
- Precision flange bending
- Forming requiring springback allowance
- Intermediate forming before secondary operations
- Customized sheet metal profiles
The final tooling specification should be selected according to the material grade, sheet thickness, V-opening, required angle, inside radius, flange dimensions and bending force.
Wide T-Shaped Base Structure
The 60 mm wide T-shaped base provides a broad supporting platform underneath the vertical working section.
This structural design can be used where the customer requires:
- A wide lower-tool supporting surface
- A T-shaped mounting profile
- A specific die-holder arrangement
- Customized positioning geometry
- A non-standard lower-die interface
The base width, height, mounting profile and complete cross-section can also be modified according to the machine configuration.
Custom V-Opening, Load-Bearing Width and Groove Radius
Three important working dimensions are identified in the drawing:
V – V-Opening
The width of the V-groove.
S – Load-Bearing Section Width
The width of the main supporting section below the V-groove.
R – V-Groove Radius / Edge Radius
The radius geometry around the working groove.
These parameters can be selected from the available standard combinations below or customized according to the customer's actual bending application.

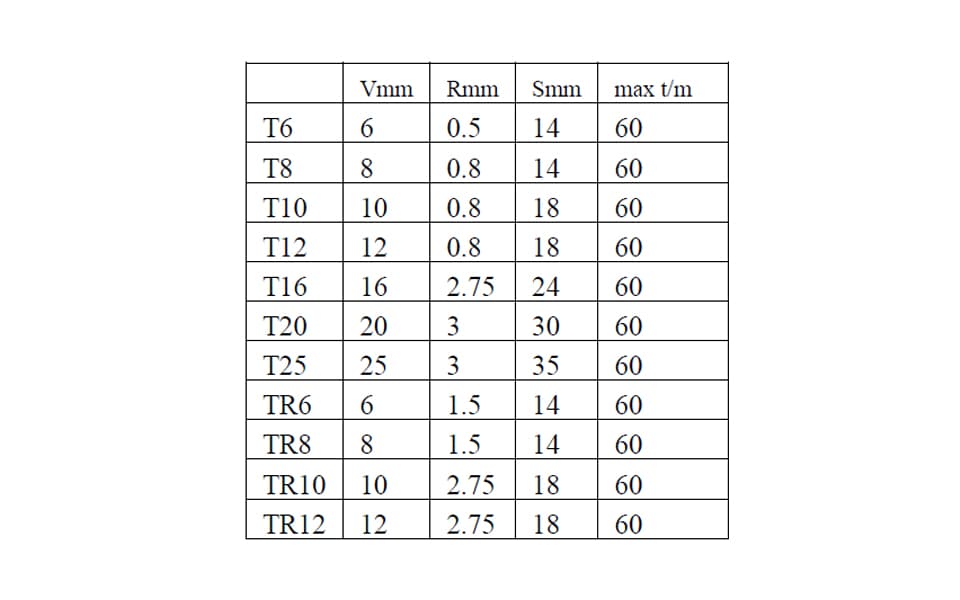

Available T-Type 60° Lower Die Specifications
| Model | V-Opening V (mm) | Radius R (mm) | Load-Bearing Width S (mm) | Max. Capacity (t/m) |
|---|---|---|---|---|
| T6 | 6 | 0.5 | 14 | 60 |
| T8 | 8 | 0.8 | 14 | 60 |
| T10 | 10 | 0.8 | 18 | 60 |
| T12 | 12 | 0.8 | 18 | 60 |
| T16 | 16 | 2.75 | 24 | 60 |
| T20 | 20 | 3 | 30 | 60 |
| T25 | 25 | 3 | 35 | 60 |
| TR6 | 6 | 1.5 | 14 | 60 |
| TR8 | 8 | 1.5 | 14 | 60 |
| TR10 | 10 | 2.75 | 18 | 60 |
| TR12 | 12 | 2.75 | 18 | 60 |
These values represent available standard configurations. Non-standard V-openings, groove radii and load-bearing widths can also be manufactured according to customer requirements.
T-Series and TR-Series Groove Options
The specification range includes both T-series and TR-series configurations.
Examples include:
- T6: V6, R0.5, S14
- T8: V8, R0.8, S14
- T10: V10, R0.8, S18
- T12: V12, R0.8, S18
- TR6: V6, R1.5, S14
- TR8: V8, R1.5, S14
- TR10: V10, R2.75, S18
- TR12: V12, R2.75, S18
This gives customers additional groove-radius choices while retaining the same T-type wide-base lower-die structure.
Overall Height Equals Effective Height
For the illustrated configuration:
Overall Height: 80 mm
Effective Height: 80 mm
The height can also be customized according to the customer's machine and existing tooling system.
Different heights may be required to match:
- Existing press brake punches
- Existing lower tooling
- Machine daylight
- Clamping systems
- Required bending centerline
- Customer-specific tooling combinations
Key Features
- T-type single-V lower die
- 60° acute-angle V-groove
- 80 mm overall height
- 80 mm effective height
- 60 mm wide base
- 18 mm base height
- 60 ton/m rated load capacity
- Standard V6, V8, V10, V12, V16, V20 and V25 options
- T-series and TR-series radius options
- Custom V-opening
- Custom die angle
- Custom load-bearing section width
- Custom V-groove radius
- Custom overall and effective height
- Custom base geometry
- Custom tooling length and segmentation
- Custom mounting interface
- Suitable for different press brake tooling systems
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | T-Type Single-V Press Brake Lower Die |
| Structure | T-Type / Single-V |
| Standard Illustrated Angle | 60° |
| Die Angle | 60° / Customized |
| Overall Height | 80 mm |
| Effective Height | 80 mm / Customized |
| Base Width | 60 mm |
| Base Height | 18 mm |
| Standard V-Opening Range | V6–V25 |
| Standard Load-Bearing Width S | 14–35 mm |
| Standard Radius R | 0.5–3 mm |
| Load Capacity | 60 ton/m |
| Tool Length | Standard / Customized |
| Segmentation | Available |
| Mounting Interface | Customized |
| Main Application | Acute-Angle Air Bending / Pre-Bending |
Typical Applications
This 60° T-type single-V press brake lower die is suitable for:
- Acute-angle sheet metal bending
- Pre-bending
- Multi-stage press brake forming
- Precision flange bending
- Intermediate-angle forming
- Stainless steel sheet bending
- Mild steel sheet bending
- Electrical cabinet components
- Sheet metal enclosure production
- Industrial machinery components
- Customized forming applications
- Applications requiring a wide lower-die base
- Applications requiring multiple V-opening options within one tooling family
The appropriate tooling specification should be selected according to the material grade, sheet thickness, required angle, inside radius, flange dimensions and required bending force.
Standard & Custom Options
The tooling shown on this page represents one T-type lower-die family and does not limit WYS Machinery's manufacturing capability.
The following specifications can be customized:
- V-opening
- die angle
- overall height
- effective height
- base width
- base height
- working-section width
- load-bearing section width
- V-groove radius
- edge geometry
- tool length
- segmented length
- load capacity
- bottom mounting structure
- positioning geometry
- clamping interface
WYS Machinery can also manufacture standard single-V dies, double-V dies, multi-V dies and other special custom lower dies according to customer requirements.
Compatible Press Brake Tooling Systems
WYS Machinery can manufacture lower dies for different press brake brands, tooling standards and clamping systems.
Available configurations include:
TRUMPF Type, WILA Type, LVD Type, Bystronic Type, Amada / Promecam Type, European Type and other customized press brake tooling systems.
The T-shaped structure illustrated on this page is only one available design.
The bottom mounting profile, positioning geometry, base structure, overall height, effective height and complete lower-die cross-section can all be adapted according to the customer's press brake.
Customers can provide a machine model, existing tooling drawing, lower-die cross-section, die-holder dimensions, tooling sample or workpiece drawing for technical evaluation.
Custom V-Opening and Die Angle
The standard specification table includes V6, V8, V10, V12, V16, V20 and V25, but customers are not limited to these sizes.
Different V-openings can be manufactured according to:
- Material type
- Sheet thickness
- Required bend angle
- Required inside radius
- Minimum flange dimension
- Material springback
- Required forming clearance
- Bending force
- Press brake configuration
The 60° groove angle can also be customized when another die angle is more appropriate for the customer's bending process.
Custom Load-Bearing Width and V-Groove Radius
The load-bearing section width S and V-groove radius R can be customized together with the V-opening.
This allows the complete working profile to be designed around the customer's actual forming process rather than requiring the customer to select only from fixed standard tooling.
For special bending applications, WYS Machinery can manufacture the complete die cross-section according to a drawing or design a suitable configuration based on the finished workpiece.
Custom Press Brake Tooling Design Service
Customers can provide:
workpiece drawings, material grade, sheet thickness, required bend angle, desired inside radius, existing tooling information and press brake model.
Our engineering team can evaluate the bending requirement and recommend a suitable tooling configuration.
The lower die can then be manufactured with the required V-opening, angle, height, base width, load-bearing width, groove radius, tool length and mounting structure.
