88° R1 Press Brake Upper Punch – 120 mm, 6 mm Tip

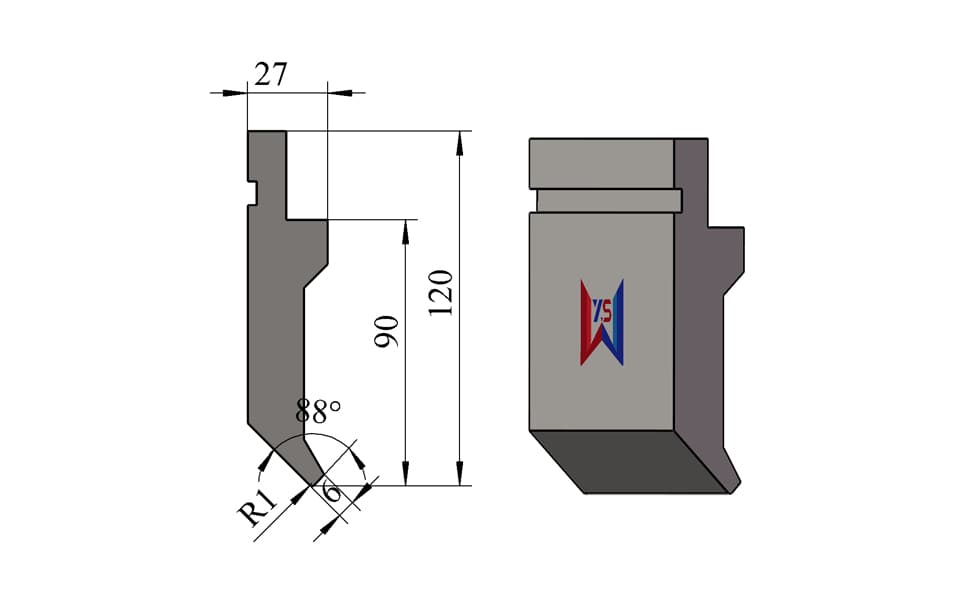

The WYS 88° R1 press brake upper punch is a precision upper tooling solution designed for sheet metal bending, forming, and industrial fabrication applications. Its 88° punch angle and R1 mm tip radius provide a practical tooling configuration for accurate and repeatable bending operations where a relatively small punch radius is required.

Featuring a 120 mm overall height, 27 mm total tool width, and 6 mm tip width, this upper punch provides a stable tooling configuration for compatible press brake machines. The extended 120 mm tool height can provide additional working clearance for specific bending applications and workpiece geometries.

With a 100 ton/m maximum load capacity, this press brake upper punch is suitable for general and heavy-duty bending applications when operated within the appropriate machine and tooling conditions. Actual allowable loading should be evaluated according to the press brake capacity, material type, sheet thickness, bending length, die opening, and specific bending application.

Key Features

• 88° punch angle for general-purpose sheet metal bending
• R1 mm tip radius for controlled punch-to-workpiece contact
• 120 mm overall height for applications requiring additional tooling height
• 27 mm total tool width for compatible press brake tooling systems
• 6 mm tip width for precise and controlled bending contact
• 100 ton/m maximum load capacity for demanding industrial bending applications
• Precision-machined working surfaces for accurate and repeatable bending
• Suitable for conventional and CNC press brake machines
• Suitable for a wide range of sheet metal bending and forming applications
• Custom press brake tooling configurations available on request

Technical Specifications

Typical Applications

• General sheet metal bending for mild steel and commonly processed sheet metal materials
• Stainless steel bending and industrial metal fabrication
• Electrical cabinet, enclosure, and panel manufacturing
• Machinery components and general industrial fabrication
• Sheet metal forming and precision bending operations
• Applications requiring a relatively small punch radius for specific bending geometries
• Applications benefiting from additional tooling height and working clearance
• General-purpose and heavy-duty CNC press brake production
• Custom sheet metal manufacturing and fabrication

The appropriate upper punch and lower V-die combination should be selected according to the material type, sheet thickness, required bending angle, inside radius, bending length, machine capacity, and tooling interface.

Product Details & Manufacturing Quality

Each WYS press brake upper punch is manufactured with controlled dimensions and precision-machined working surfaces to provide reliable tooling performance, dimensional consistency, and repeatable bending accuracy.

The 88° punch geometry provides a defined working angle for sheet metal bending, while the R1 mm tip radius provides a relatively small contact radius between the upper tool and workpiece. This configuration is suitable for applications where the bending geometry requires a controlled and relatively small punch radius.

The 120 mm overall height, 27 mm total width, and 6 mm tip width provide the dimensional foundation of this upper tooling configuration. The increased tool height can be advantageous for specific workpieces where additional clearance is required around the upper tooling.

With a 100 ton/m maximum load capacity, this upper punch is suitable for general and heavy-duty sheet metal bending applications when used within the specified machine and tooling capacity.

The final bending result depends on multiple factors, including material type, material thickness, tensile strength, lower die opening, bending method, machine parameters, and workpiece geometry. Proper tooling selection is therefore important for achieving the required bending accuracy and tool service life.

Standard & Custom Press Brake Tooling

In addition to standard press brake punches, WYS Machinery manufactures custom press brake tooling according to customer drawings, samples, machine specifications, or specific bending requirements.

Customized options may include different punch angles, tip radii, tip widths, overall heights, tool widths, tooling lengths, shank configurations, and special tooling geometries. OEM-compatible tooling solutions can also be evaluated for specific press brake machines and tooling systems.

Whether you require a standard upper punch for general sheet metal bending or a customized tool for a specific forming application, WYS Machinery can provide precision press brake tooling tailored to your machine and production requirements.

Contact WYS Machinery for press brake tooling recommendations, technical support, compatibility confirmation, and a quotation.
