V8 88° Press Brake Lower Die – H90 × W14 mm, 80 Ton/m
This V8 88° press brake lower die features an 8 mm V-opening, 90 mm height, 14 mm width and 80 ton/m load capacity. Its compact profile makes it suitable for precision sheet metal bending applications requiring a small V-opening and narrow lower die body. The dimensions shown represent one typical configuration. The V-opening, die angle, height, width, length, shoulder radius and mounting interface can all be customized according to the customer's press brake and bending requirements.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description
V8 88° Press Brake Lower Die for Precision Sheet Metal Bending
This V8 press brake lower die is designed for precision sheet metal bending applications where a compact lower-tool profile and small V-opening are required.
The die features an 8 mm V-opening, 88° die angle, 90 mm overall height and 14 mm body width, with a rated load capacity of 80 ton/m.
Its narrow profile allows the tool to be used in bending applications where lower-tool clearance is limited, while the V8 opening is suitable for forming relatively thin sheet materials and small flange geometries.
The 88° V-groove geometry provides a practical solution for controlled air bending and can assist in achieving the required final angle when material springback must be considered.
Compact V8 Lower Die Design
With an overall width of only 14 mm, this lower die provides a slim tooling profile while maintaining reliable bending capacity.
The 8 mm V-opening is suitable for applications requiring:
- small V-opening bending
- precision flange forming
- relatively small inside bending radii
- compact tooling clearance
- accurate sheet metal bending

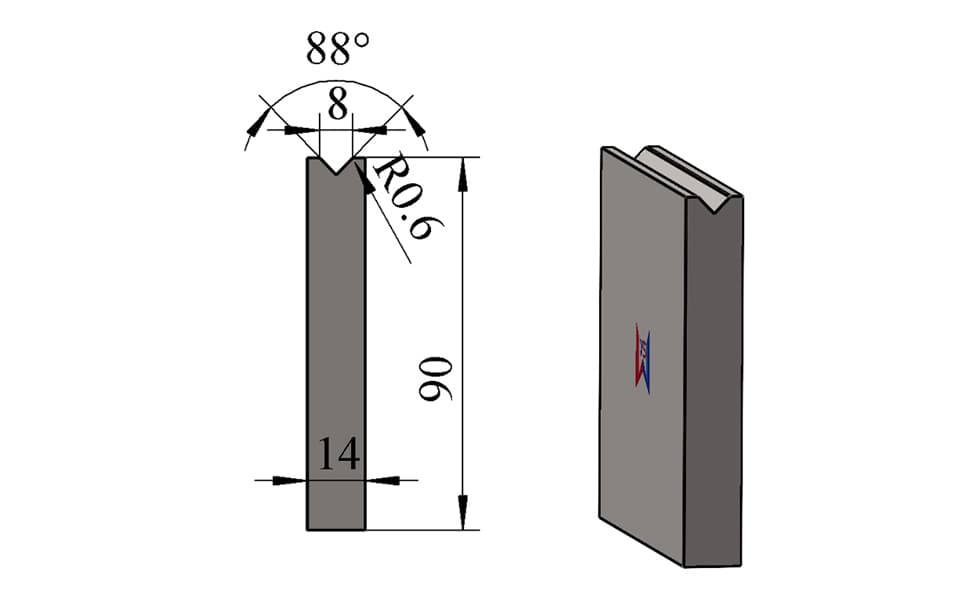

The illustrated configuration includes an approximate R0.6 shoulder radius around the V-groove area.
Key Features
- V8 V-opening
- 88° die angle
- 90 mm tool height
- 14 mm narrow die width
- 80 ton/m load capacity
- Precision-machined V-groove
- Compact lower die profile
- Suitable for precision sheet metal bending
- Tool length can be customized
- Segmented tooling available
- Mounting structure can be customized
- Suitable for both standard and custom press brake tooling applications
Technical Specifications
Specification Value Product Type Press Brake Lower Die V-Opening V8 / 8 mm Die Angle 88° Tool Height 90 mm Tool Width 14 mm Shoulder Radius Approx. R0.6 Load Capacity 80 ton/m Tool Length Standard or Customized Segmentation Available Mounting Interface Customized Application Precision Sheet Metal Bending Typical Applications
This V8 press brake lower die is suitable for a wide range of sheet metal bending applications, including:
- Thin sheet metal bending
- Precision flange bending
- Electrical cabinets and enclosures
- Control panels
- Sheet metal housings
- Stainless steel fabrication
- Mild steel fabrication
- Precision metal components
- General CNC press brake bending
- Custom sheet metal forming
The appropriate die configuration can be selected according to the material type, sheet thickness, bending angle, flange length, inside radius and required bending tonnage.
Standard & Custom Options
The lower die shown on this page represents one typical tooling configuration only.
WYS Machinery can manufacture customized press brake lower dies with different:
- V-openings
- Die angles
- Tool heights
- Tool widths
- Shoulder radii
- Tool lengths
- Load capacities
- Segmented lengths
- Bottom profiles
- Mounting interfaces
- Clamping and positioning structures
Different V-openings such as V6, V8, V10, V12, V16, V20 and other customized sizes can be produced according to the actual bending application.
Compatible Press Brake Tooling Systems
Different press brake manufacturers use different tooling mounting and positioning systems.
WYS Machinery can manufacture customized lower dies for different press brake tooling systems, including:
TRUMPF Type, WILA Type, LVD Type, Bystronic Type, Amada / Promecam Type, European Type and other customized tooling systems.
Customers can provide a tooling drawing, machine model, tooling cross-section, existing tool sample or workpiece drawing for technical evaluation.
Custom Press Brake Die Design
Customers who are unsure about the required V-opening, die angle or lower die structure can provide:
workpiece drawing, material type, sheet thickness, bending angle and press brake model.
Our engineering team can recommend a suitable tooling solution according to the actual bending application.
The height, width, V-opening, angle, radius, length and mounting structure can all be customized according to customer requirements.
Why Choose WYS Machinery
WYS Machinery manufactures both standard and customized press brake punches, lower dies and sheet metal bending tooling.
Our capabilities include:
- Standard V-dies
- Narrow V-dies
- Heavy-duty lower dies
- Single-V dies
- Multi-V dies
- Segmented press brake dies
- Special lower-tool profiles
- Custom mounting interfaces
- Replacement tooling for different press brake systems
- Tooling design based on customer workpiece drawings
This allows customers to obtain both standard replacement tooling and customized bending solutions according to their actual production requirements.
Request a Quote
