H120 T-Type 26° Single-V Press Brake Lower Die – B60 mm, 20 Ton/m
This H120 T-type 26° single-V press brake lower die features a 120 mm overall height and 120 mm effective height, a 60 mm wide base, and a rated load capacity of 20 ton/m. Designed for very sharp acute-angle bending, pre-bending, hemming preparation and multi-stage sheet metal forming, this high-profile T-type lower die is available with standard V6, V8, V10 and V12 configurations. The V-opening, die angle, load-bearing section width, V-groove radius, tool height, base geometry, tool length and mounting interface can all be customized according to the customer's actual bending requirements.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description
H120 T-Type 26° Single-V Press Brake Lower Die with 60 mm Wide Base
This T-type single-V press brake lower die combines a wide supporting base with a high-profile vertical working section and a very sharp 26° V-groove, providing a specialized lower-tool solution for very acute-angle sheet metal forming.
The illustrated configuration has:
Overall Height: 120 mm
Effective Height: 120 mm
Base Width: 60 mm
Base Height: 18 mm
Die Angle: 26°
Rated Load Capacity: 20 ton/m
Compared with the H80 version of the same T-type structure, the H120 configuration provides additional vertical working height and more clearance around the workpiece while maintaining the same wide-base design concept.
The dimensions shown represent one available configuration rather than a manufacturing limitation. WYS Machinery can customize the complete lower-die cross-section according to the customer's press brake, tooling combination and workpiece geometry.
26° V-Groove for Very Sharp Acute-Angle Forming
The 26° single-V groove is designed for applications requiring a very sharp intermediate bend angle.
Compared with 30°, 45°, 60°, 85° and 88° lower dies, the 26° geometry provides greater angular clearance for very acute forming processes.
Typical applications include:
- Very sharp acute-angle air bending
- Pre-bending
- Hemming preparation
- Multi-stage forming
- Sharp flange forming
- Intermediate bending before secondary operations
- Forming where significant springback allowance must be considered
- Customized acute-angle sheet metal profiles
The final tooling configuration should be selected according to the material grade, sheet thickness, V-opening, required bend angle, inside radius, flange geometry and required bending force.
Increased H120 Working Height
A key feature of this lower die is the 120 mm overall and effective height.
Compared with the H80 T-type version, the H120 design can provide:
- Increased lower-tool working height
- Additional workpiece clearance
- A higher bending centerline
- Compatibility with taller upper tooling
- Better matching with existing tooling sets
- More flexibility for special machine or clamping arrangements
The overall and effective height can also be customized according to customer requirements.
Wide T-Shaped Base Structure
The 60 mm wide T-shaped base provides a broad supporting platform beneath the tall working section.
This structure can be adapted to different press brake machines, die holders and tooling interfaces.
WYS Machinery can customize the:
- Base width
- Base height
- Working-section width
- Bottom mounting profile
- Positioning geometry
- Complete lower-die cross-section
Custom V-Opening, Load-Bearing Width and Groove Radius
Three important working dimensions are shown in the drawing:
V – V-Opening
The width of the V-groove.
S – Load-Bearing Section Width
The width of the main supporting section beneath the V-groove.
R – V-Groove Radius / Edge Radius
The radius geometry around the working groove.
These parameters can be selected from the standard configurations below or manufactured according to the customer's bending requirements.
Available H120 T-Type 26° Lower Die Specifications

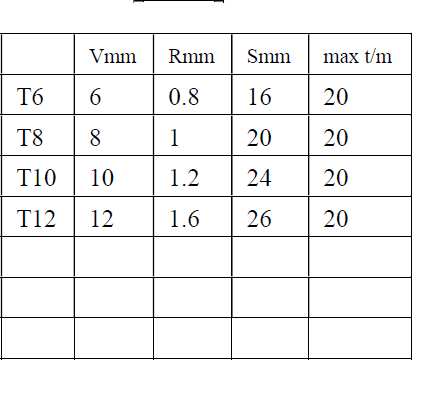

| Model | V-Opening V (mm) | Radius R (mm) | Load-Bearing Width S (mm) | Max. Capacity (t/m) |
|---|---|---|---|---|
| T6 | 6 | 0.8 | 16 | 20 |
| T8 | 8 | 1.0 | 20 | 20 |
| T10 | 10 | 1.2 | 24 | 20 |
| T12 | 12 | 1.6 | 26 | 20 |
These values represent standard available configurations. Different V-openings, groove radii, load-bearing widths and other cross-sectional dimensions can also be manufactured according to customer requirements.
Compact V6–V12 Series
The standard H120 26° T-type family includes:
V6, V8, V10 and V12
The standard geometry is:
T6 – V6 / R0.8 / S16
T8 – V8 / R1.0 / S20
T10 – V10 / R1.2 / S24
T12 – V12 / R1.6 / S26
This compact V-opening range is particularly suited to very acute-angle forming applications where a narrow groove profile is required.
20 Ton/m Rated Load Capacity
All standard configurations in this H120 26° T-type series are rated at:
20 ton/m
The appropriate tooling configuration should still be selected according to the actual material, thickness, bending force and workpiece geometry.
Key Features
- H120 T-type single-V lower die
- 26° very sharp acute-angle V-groove
- 120 mm overall height
- 120 mm effective height
- 60 mm wide base
- 18 mm base height
- 20 ton/m rated load capacity
- Standard V6, V8, V10 and V12
- Compact V-opening range for very acute forming
- Increased working height compared with H80 version
- Custom V-opening
- Custom die angle
- Custom load-bearing section width
- Custom V-groove radius
- Custom overall and effective height
- Custom base geometry
- Custom tool length and segmentation
- Custom mounting interface
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | H120 T-Type Single-V Press Brake Lower Die |
| Structure | T-Type / Single-V |
| Die Angle | 26° / Customized |
| Overall Height | 120 mm |
| Effective Height | 120 mm / Customized |
| Base Width | 60 mm |
| Base Height | 18 mm |
| Standard V-Opening Range | V6–V12 |
| Standard Load-Bearing Width S | 16–26 mm |
| Standard Radius R | 0.8–1.6 mm |
| Load Capacity | 20 ton/m |
| Tool Length | Standard / Customized |
| Segmentation | Available |
| Mounting Interface | Customized |
| Main Application | Very Sharp Acute-Angle Bending / Pre-Bending |
Typical Applications
This H120 26° T-type single-V press brake lower die is suitable for:
- Very sharp acute-angle sheet metal bending
- Pre-bending operations
- Hemming preparation
- Multi-stage press brake forming
- Sharp flange bending
- Intermediate forming
- Workpieces requiring increased lower-tool clearance
- Stainless steel sheet bending
- Mild steel sheet bending
- Precision sheet metal components
- Electrical cabinet and enclosure parts
- Industrial machinery components
- Customized forming applications
- Applications requiring a high-profile lower die
- Applications requiring a wide T-type base
The appropriate tooling configuration should be selected according to the material grade, sheet thickness, required bend angle, inside radius, minimum flange dimension and required bending force.
Standard & Custom Options
The H120 26° T-type lower die shown on this page represents one available structural family only.
WYS Machinery can customize:
- V-opening
- die angle
- overall height
- effective height
- base width
- base height
- working-section width
- load-bearing section width
- V-groove radius
- edge geometry
- tool length
- segmented length
- load capacity
- bottom mounting structure
- positioning geometry
- clamping interface
WYS Machinery can also manufacture standard single-V dies, double-V dies, multi-V dies and other special lower dies according to customer requirements.
Compatible Press Brake Tooling Systems
WYS Machinery can manufacture lower dies for different press brake brands, tooling standards and clamping systems.
Available configurations include:
TRUMPF Type, WILA Type, LVD Type, Bystronic Type, Amada / Promecam Type, European Type and other customized press brake tooling systems.
The T-shaped base shown here is only one available design.
The bottom mounting profile, positioning geometry, overall height, effective height, base dimensions and complete lower-die cross-section can all be adapted according to the customer's press brake.
Customers can provide a machine model, existing tooling drawing, lower-die cross-section, die-holder dimensions, tooling sample or workpiece drawing for technical evaluation.
Custom V-Opening and Die Angle
The standard specification range includes V6, V8, V10 and V12, but customers are not limited to these configurations.
Different V-openings and die angles can be manufactured according to:
- Material type
- Sheet thickness
- Required bending angle
- Required inside radius
- Minimum flange dimension
- Material springback
- Required forming clearance
- Required bending force
- Press brake configuration
The illustrated 26° groove can also be changed when another acute angle is more suitable for the customer's forming process.
Custom Load-Bearing Width and V-Groove Radius
The load-bearing section width S and V-groove radius R can be customized together with the V-opening.
This allows the complete working profile to be designed around the customer's actual bending process rather than requiring the customer to use only fixed standard tooling dimensions.
For special applications, WYS Machinery can manufacture the complete lower-die cross-section according to a customer drawing or design a suitable tooling configuration based on the finished workpiece.
Custom Press Brake Tooling Design Service
Customers can provide:
workpiece drawings, material grade, sheet thickness, required bend angle, desired inside radius, existing tooling information and press brake model.
Our engineering team can evaluate the forming requirement and recommend an appropriate lower-die solution.
The tooling can then be manufactured with the required V-opening, angle, height, base dimensions, load-bearing width, groove radius, tool length and mounting structure.
Why Choose WYS Machinery
WYS Machinery manufactures standard and customized press brake punches, lower dies and sheet metal bending tooling for different forming requirements.
Our lower-tooling capabilities include:
- H120 T-type single-V lower dies
- Standard-height T-type lower dies
- Standard single-V lower dies
- Double-V dies
- Multi-V dies
- Wide-base lower dies
- 26° very acute-angle lower dies
- Custom-angle lower dies
- Customized V-openings
- Customized tooling heights
- Customized load-bearing sections
- Customized groove radii
- Segmented tooling
- Special lower-tool profiles
- Custom mounting systems
- Replacement tooling for different press brake systems
- Tooling designed according to customer workpiece drawings
The products displayed on our website demonstrate available tooling structures and manufacturing capabilities, while final dimensions and mounting systems can be adapted to the customer's actual production requirements.
