H120 T-Type 45° Single-V Press Brake Lower Die with 60 mm Wide Base

This T-type single-V press brake lower die combines a wide supporting base with a tall vertical working section and a 45° V-groove, providing a stable high-profile lower-tool structure for acute-angle sheet metal bending.

The illustrated configuration has:

Overall Height: 120 mm
Effective Height: 120 mm
Base Width: 60 mm
Base Height: 18 mm
Die Angle: 45°
Rated Load Capacity: 50 ton/m

Compared with the H80 version of the same T-type structure, the H120 configuration provides increased vertical working height and additional clearance around the workpiece while retaining the same wide-base design concept.

The tooling shown is one available configuration rather than a fixed limitation. WYS Machinery can manufacture the complete lower-die profile according to the customer's press brake, tooling combination and workpiece requirements.

45° V-Groove for Sharp Acute-Angle Bending

The illustrated lower die uses a 45° single-V groove, making it suitable for sharp acute-angle air bending, pre-bending and multi-stage forming.

Compared with wider 60°, 85° or 88° lower dies, the 45° geometry provides additional angular clearance where the workpiece must be formed to a more acute intermediate angle.

Typical applications can include:

• Sharp acute-angle air bending
• Pre-bending
• Multi-stage forming
• Precision flange bending
• Intermediate forming before subsequent operations
• Forming requiring additional angular allowance
• Customized sheet metal profiles

The final tooling geometry should be selected according to the material grade, sheet thickness, V-opening, required bend angle, inside radius, flange dimensions and required bending force.

Increased H120 Working Height

A key characteristic of this lower die is the 120 mm overall and effective height.

Compared with a shorter H80 T-type lower die, the H120 design can provide:

• Increased lower-tool working height
• Additional workpiece clearance
• A higher bending centerline
• Compatibility with taller upper tooling
• Better matching with existing tooling combinations
• More flexibility for special machine arrangements

The overall and effective height can also be customized according to customer requirements.

Wide T-Shaped Base Structure

The 60 mm wide T-shaped base provides a broad supporting platform beneath the vertical working section.

This type of structure can be adapted to different lower-tool holders and press brake configurations.

WYS Machinery can customize the:

• Base width
• Base height
• Working-section position
• Bottom mounting profile
• Positioning geometry
• Complete lower-die cross-section

Custom V-Opening, Load-Bearing Width and Groove Radius

Three key working dimensions are identified in the drawing:

V – V-Opening
The opening width of the V-groove.

S – Load-Bearing Section Width
The width of the supporting section beneath the V-groove.

R – V-Groove Radius / Edge Radius
The radius geometry around the working groove.

These dimensions can be selected from the standard configurations below or customized according to the customer's actual bending application.

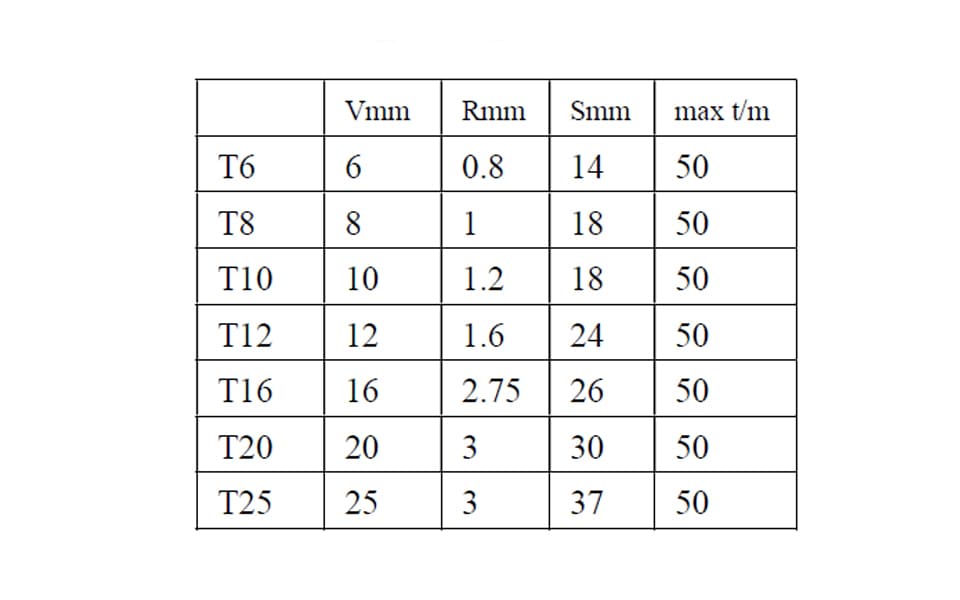

Available H120 T-Type 45° Lower Die Specifications

These values represent available standard configurations. Different V-openings, radii, load-bearing widths and other cross-sectional dimensions can also be manufactured according to customer requirements.

Standard V6–V25 Range

The standard H120 45° T-type family includes:

V6, V8, V10, V12, V16, V20 and V25

Smaller V-openings provide a more compact forming zone, while larger V-openings provide increased forming clearance.

The appropriate V-opening should be selected according to the sheet thickness, desired bend radius, minimum flange size and forming process.

50 Ton/m Rated Capacity

All standard models in this H120 45° T-type series are rated at:

50 ton/m

The appropriate tooling configuration should still be selected according to actual bending-force requirements, material properties and the complete tooling geometry.

Key Features

• H120 T-type single-V lower die
• 45° sharp acute-angle V-groove
• 120 mm overall height
• 120 mm effective height
• 60 mm wide base
• 18 mm base height
• 50 ton/m rated load capacity
• Standard V6, V8, V10, V12, V16, V20 and V25
• Increased working height compared with H80 version
• Custom V-opening
• Custom die angle
• Custom load-bearing section width
• Custom V-groove radius
• Custom overall and effective height
• Custom base geometry
• Custom tool length and segmentation
• Custom mounting interface

Technical Specifications

Typical Applications

This H120 45° T-type single-V press brake lower die is suitable for:

• Sharp acute-angle sheet metal bending
• Pre-bending operations
• Multi-stage press brake forming
• Precision flange bending
• Intermediate-angle forming
• Workpieces requiring increased lower-tool clearance
• Stainless steel sheet bending
• Mild steel sheet bending
• Electrical cabinet components
• Sheet metal enclosures
• Industrial machinery components
• Customized forming applications
• Applications requiring a higher lower-die working height
• Applications requiring a wide T-type base

The appropriate tooling configuration should be selected according to the material grade, sheet thickness, required bend angle, inside radius, minimum flange dimension and required bending force.

Standard & Custom Options

The H120 45° T-type lower die shown on this page represents one available structural configuration only.

WYS Machinery can customize:

• V-opening
• die angle
• overall height
• effective height
• base width
• base height
• vertical working-section width
• load-bearing section width
• V-groove radius
• edge geometry
• tool length
• segmented length
• load capacity
• bottom mounting structure
• positioning geometry
• clamping interface

WYS Machinery can also manufacture standard single-V dies, double-V dies, multi-V dies and other special lower dies according to customer requirements.
