V50 85° Single-V Press Brake Lower Die for Large V-Opening Bending

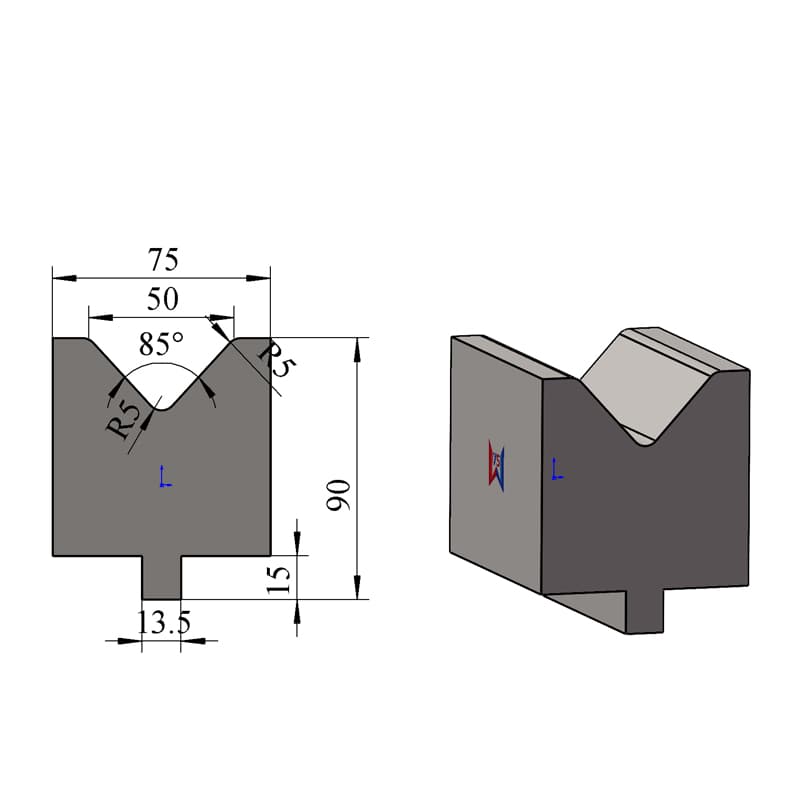

This V50 press brake lower die is designed with a robust single-V structure for sheet metal bending applications requiring a large V-opening and stable lower-tool support.

The illustrated model features a 50 mm V-opening, 85° die angle, 90 mm overall height and 75 mm overall width, with a rated load capacity of 100 ton/m.

The V50 opening provides significantly greater forming clearance than smaller V-dies and is suitable for applications requiring a larger inside bend radius, wider flange clearance or thicker sheet metal within the allowable bending capacity.

The 85° V-groove geometry is suitable for air bending applications and provides additional forming allowance where material springback needs to be considered.

Large V-Opening for Increased Bending Clearance

The 50 mm V-opening offers more working clearance during the bending process and allows the workpiece to form around a larger bending radius.

This makes the die suitable for applications where:

• a wider V-opening is required
• a larger inside radius is preferred
• thicker sheet metal needs to be bent
• greater workpiece clearance is necessary
• wider flange geometries are involved

The actual V-opening should be selected according to the material, thickness, bending angle and required inside radius.

100 Ton/m Load Capacity

With a rated load capacity of 100 ton/m, this V50 lower die is suitable for demanding sheet metal bending applications within the specified capacity.

The 75 mm wide body provides substantial support around the V-groove, helping maintain stable tooling performance during repeated production bending.

Actual bending tonnage should always be calculated according to the sheet thickness, material strength, bending length and selected V-opening.

Flexible Effective Tool Height

The illustrated lower die has an overall height of 90 mm and a standard effective working height of 75 mm.

Depending on the customer's machine and tooling configuration, the effective height can also be manufactured as:

70 mm or other customized dimensions.

This allows the lower die to be matched with different punches, machine daylight, clamping systems and existing tooling arrangements.

V50 Single-V Die Geometry

The illustrated configuration includes:

• V50 / 50 mm V-opening
• 85° die angle
• 90 mm overall height
• 75 mm effective height
• 75 mm overall width
• Approx. R5 radius at the bottom of the V-groove
• Approx. R5 shoulder radius
• 100 ton/m load capacity

The V-opening, die angle, shoulder radius, V-bottom radius, edge dimensions and surrounding geometry can also be customized according to the customer's workpiece and bending requirements.

Key Features

• Single-V lower die structure
• V50 / 50 mm V-opening
• 85° die angle
• 90 mm overall height
• 75 mm standard effective height
• 70 mm or customized effective height available
• 75 mm overall body width
• 100 ton/m load capacity
• Approx. R5 V-bottom radius
• Approx. R5 shoulder radius
• Large V-opening for increased bending clearance
• Suitable for larger inside-radius bending
• Stable wide-body lower die structure
• Suitable for medium and heavier-gauge sheet metal applications
• Custom die angles available
• Custom V-openings available
• Custom tool lengths and segmentation available
• Custom mounting structures available

Technical Specifications

Typical Applications

This V50 85° single-V lower die is suitable for a wide range of press brake bending applications, including:

• Medium and heavier-gauge sheet metal bending
• Large V-opening air bending
• Larger inside-radius bending
• Stainless steel fabrication
• Mild steel fabrication
• Machinery structural parts
• Industrial equipment components
• Heavy sheet metal enclosures
• Machine covers and housings
• Fabricated metal structures
• General CNC press brake forming

The appropriate lower die should be selected according to the material type, material strength, sheet thickness, bending angle, required inside radius, minimum flange length and bending tonnage.

Standard & Custom Options

The V50 lower die shown on this page represents one typical tooling configuration only.

WYS Machinery can customize:

• V-opening
• die angle
• overall height
• effective working height
• overall die width
• V-bottom radius
• shoulder radius
• shoulder geometry
• edge dimensions
• tool length
• segmented length
• load capacity
• bottom mounting profile
• positioning structure
• clamping interface

In addition to V50, smaller and larger V-openings can be manufactured according to the customer's sheet thickness, required bend radius and forming requirements.

Single-V, multi-V and other customized lower die structures are also available.

Compatible Press Brake Tooling Systems

WYS Machinery can manufacture customized lower dies for different press brake brands, tooling standards and clamping systems.

Available configurations include:

TRUMPF Type, WILA Type, LVD Type, Bystronic Type, Amada / Promecam Type, European Type and other customized press brake tooling systems.

The lower die is not limited to the mounting structure shown in the drawing. The bottom interface, positioning geometry, tool height, effective height and overall cross-section can all be adapted according to the customer's machine.

Customers can provide a machine model, existing tooling drawing, die cross-section, tooling sample or workpiece drawing for technical evaluation.

Custom V-Opening, Angle and Die Geometry

The V50 opening and 85° angle shown on this page are one available configuration.

Different V-openings and die angles can be manufactured according to:

• Sheet thickness
• Material type and tensile strength
• Required bending angle
• Required inside radius
• Minimum flange dimension
• Material springback
• Required bending tonnage
• Press brake configuration

The V-bottom radius, shoulder radius, edge geometry and die body dimensions can also be customized as part of the complete tooling solution.

Custom Press Brake Tooling Design Service

Customers who are unsure which V-opening or lower die structure should be selected can provide:

workpiece drawing, material grade, sheet thickness, required bending angle and press brake model.

Our engineering team can evaluate the actual bending requirement and recommend a suitable lower tooling solution.

The lower die can then be manufactured with the required V-opening, angle, overall height, effective height, width, radius, length and mounting structure.

Why Choose WYS Machinery

WYS Machinery manufactures both standard and customized press brake punches, lower dies and sheet metal bending tooling for different forming applications.

Our lower die manufacturing capabilities include:

• Single-V dies
• Multi-V dies
• Medium and large V-opening dies
• High-capacity lower dies
• Segmented press brake dies
• Customized V-bottom radii
• Customized die angles
• Customized effective heights
• Special lower-tool profiles
• Custom mounting interfaces
• Replacement tooling for different press brake systems
• Tooling designed according to customer workpiece drawings

This allows customers to obtain both standard replacement tooling and application-specific bending solutions according to their actual production requirements.
