H120 T-Type 60° Single-V Press Brake Lower Die – B60 mm, 60 Ton/m
This H120 T-type 60° single-V press brake lower die features a 120 mm overall height and 120 mm effective height, a 60 mm wide base, and a rated load capacity of 60 ton/m. Designed for acute-angle bending, pre-bending and multi-stage sheet metal forming, this high-profile T-type lower die is available with standard V6, V8, V10, V12, V16, V20 and V25 configurations, together with TR-series radius options. The V-opening, die angle, load-bearing section width, V-groove radius, tool height, base geometry, tool length and mounting interface can all be customized according to the customer's workpiece and press brake requirements.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description
H120 T-Type 60° Single-V Press Brake Lower Die with 60 mm Wide Base
This T-type single-V press brake lower die combines a wide supporting base with an extended vertical working section and a 60° V-groove, providing a stable high-profile lower-tool structure for acute-angle sheet metal bending.
The illustrated configuration has:
Overall Height: 120 mm
Effective Height: 120 mm
Base Width: 60 mm
Base Height: 18 mm
Die Angle: 60°
Rated Load Capacity: 60 ton/m
Compared with the H80 version of this T-type lower die, the H120 design provides increased vertical working height and additional clearance around the workpiece while retaining the same wide-base structural concept.
The configuration shown is one available design rather than a fixed manufacturing limitation. WYS Machinery can manufacture the complete lower-die cross-section according to the customer's press brake, workpiece geometry and bending requirements.
60° V-Groove for Acute-Angle Bending
The illustrated lower die uses a 60° single-V groove, suitable for acute-angle air bending, pre-bending and multi-stage forming.
The 60° geometry provides more angular clearance than conventional 85° or 88° lower dies and can be used where the workpiece needs to reach an acute intermediate angle before subsequent forming.
Typical applications include:
- Acute-angle air bending
- Pre-bending
- Multi-stage forming
- Precision flange bending
- Intermediate-angle forming
- Bending requiring springback allowance
- Customized sheet metal profiles
The final tooling configuration should be selected according to the material grade, sheet thickness, V-opening, required bend angle, inside radius, flange size and bending force.
Increased H120 Working Height
A key feature of this lower die is the 120 mm overall and effective height.
Compared with the H80 T-type version, the H120 configuration provides additional working height and can be selected when the application requires:
- Increased lower-tool height
- Additional workpiece clearance
- A higher bending centerline
- Compatibility with taller upper tooling
- Matching with an existing tooling set
- Special machine or clamping arrangements
The overall and effective height can also be customized according to the customer's machine configuration.
Wide T-Shaped Base Structure
The 60 mm wide T-shaped base provides a broad supporting platform beneath the vertical working section.
This type of lower-die structure can be adapted to different machine and die-holder arrangements.
WYS Machinery can customize:
- Base width
- Base height
- Working-section position
- Bottom mounting profile
- Locating geometry
- Complete tooling cross-section
Custom V-Opening, Load-Bearing Width and Groove Radius
Three key working dimensions are identified in the drawing:
V – V-Opening
The opening width of the V-groove.
S – Load-Bearing Section Width
The width of the supporting section below the V-groove.
R – V-Groove Radius / Edge Radius
The radius geometry around the working groove.
These parameters can be selected from the standard configurations below or customized according to the customer's actual forming requirements.

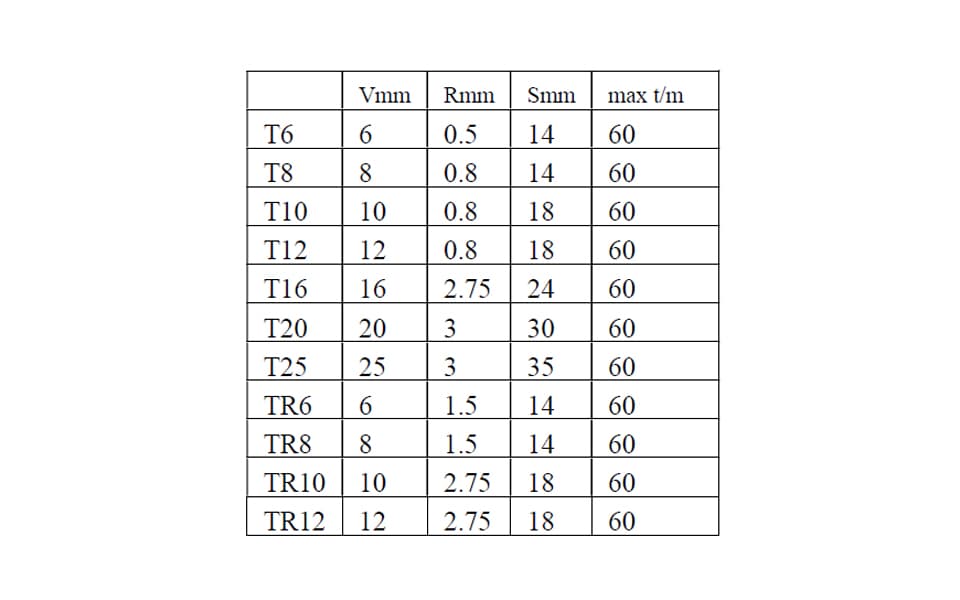

Available H120 T-Type 60° Lower Die Specifications
| Model | V-Opening V (mm) | Radius R (mm) | Load-Bearing Width S (mm) | Max. Capacity (t/m) |
|---|---|---|---|---|
| T6 | 6 | 0.5 | 14 | 60 |
| T8 | 8 | 0.8 | 14 | 60 |
| T10 | 10 | 0.8 | 18 | 60 |
| T12 | 12 | 0.8 | 18 | 60 |
| T16 | 16 | 2.75 | 24 | 60 |
| T20 | 20 | 3.0 | 30 | 60 |
| T25 | 25 | 3.0 | 35 | 60 |
| TR6 | 6 | 1.5 | 14 | 60 |
| TR8 | 8 | 1.5 | 14 | 60 |
| TR10 | 10 | 2.75 | 18 | 60 |
| TR12 | 12 | 2.75 | 18 | 60 |
These values represent available standard configurations. Non-standard V-openings, groove radii, load-bearing widths and other cross-sectional dimensions can also be manufactured according to customer requirements.
T-Series and TR-Series Groove Options
The H120 60° series includes both T-series and TR-series groove configurations.
Examples include:
T6 – V6 / R0.5 / S14
T8 – V8 / R0.8 / S14
T10 – V10 / R0.8 / S18
T12 – V12 / R0.8 / S18
Larger-radius TR alternatives include:
TR6 – V6 / R1.5 / S14
TR8 – V8 / R1.5 / S14
TR10 – V10 / R2.75 / S18
TR12 – V12 / R2.75 / S18
This allows customers to choose different groove-radius characteristics while retaining the same H120 T-type wide-base structure.
Standard V6–V25 Range
The standard H120 60° T-type family includes:
V6, V8, V10, V12, V16, V20 and V25
Smaller V-openings provide a more compact forming zone, while larger V-openings provide increased forming clearance.
The appropriate V-opening should be selected according to the sheet thickness, desired bend radius, minimum flange size and required forming process.
Key Features
- H120 T-type single-V lower die
- 60° acute-angle V-groove
- 120 mm overall height
- 120 mm effective height
- 60 mm wide base
- 18 mm base height
- 60 ton/m rated load capacity
- Standard V6, V8, V10, V12, V16, V20 and V25 options
- T-series and TR-series radius configurations
- Increased working height compared with H80 version
- Custom V-opening
- Custom die angle
- Custom load-bearing section width
- Custom V-groove radius
- Custom overall and effective height
- Custom base geometry
- Custom tooling length and segmentation
- Custom lower-die mounting interface
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | H120 T-Type Single-V Press Brake Lower Die |
| Structure | T-Type / Single-V |
| Die Angle | 60° / Customized |
| Overall Height | 120 mm |
| Effective Height | 120 mm / Customized |
| Base Width | 60 mm |
| Base Height | 18 mm |
| Standard V-Opening Range | V6–V25 |
| Standard Load-Bearing Width S | 14–35 mm |
| Standard Radius R | 0.5–3.0 mm |
| Load Capacity | 60 ton/m |
| Tool Length | Standard / Customized |
| Segmentation | Available |
| Mounting Interface | Customized |
| Main Application | Acute-Angle Air Bending / Pre-Bending |
Typical Applications
This H120 60° T-type single-V press brake lower die is suitable for:
- Acute-angle sheet metal bending
- Pre-bending
- Multi-stage press brake forming
- Precision flange bending
- Intermediate-angle forming
- Workpieces requiring increased lower-tool clearance
- Stainless steel sheet bending
- Mild steel sheet bending
- Electrical cabinet components
- Sheet metal enclosures
- Industrial machinery parts
- Customized forming applications
- Applications requiring a higher lower-die working height
- Applications requiring a wide T-type base
The appropriate tooling configuration should be selected according to the material grade, sheet thickness, required bend angle, inside radius, flange dimensions and required bending force.
Standard & Custom Options
The H120 60° T-type lower die shown on this page represents one available structural configuration only.
WYS Machinery can customize:
- V-opening
- die angle
- overall height
- effective height
- base width
- base height
- vertical working-section width
- load-bearing section width
- V-groove radius
- edge geometry
- tool length
- segmented length
- load capacity
- bottom mounting structure
- positioning geometry
- clamping interface
WYS Machinery can also manufacture standard single-V dies, double-V dies, multi-V dies and other special lower dies according to customer requirements.
Compatible Press Brake Tooling Systems
WYS Machinery can manufacture lower dies for different press brake brands, tooling standards and clamping systems.
Available configurations include:
TRUMPF Type, WILA Type, LVD Type, Bystronic Type, Amada / Promecam Type, European Type and other customized press brake tooling systems.
The T-shaped base shown here is only one available design.
The bottom mounting profile, locating geometry, overall height, effective height, base dimensions and complete lower-die cross-section can all be adapted according to the customer's press brake.
Customers can provide a machine model, existing tooling drawing, lower-die cross-section, die-holder dimensions, tooling sample or workpiece drawing for technical evaluation.
Custom V-Opening and Die Angle
The standard specification range includes V6, V8, V10, V12, V16, V20 and V25, but customers are not limited to these sizes.
Different V-openings and die angles can be manufactured according to:
- Material type
- Sheet thickness
- Required bending angle
- Required inside radius
- Minimum flange dimension
- Material springback
- Required forming clearance
- Required bending force
- Press brake configuration
The illustrated 60° groove can also be changed when another angle is more suitable for the customer's bending application.
Custom Load-Bearing Width and V-Groove Radius
The load-bearing section width S and V-groove radius R can be customized together with the V-opening.
This allows the complete working profile to be adapted to the actual workpiece instead of requiring the customer to use one fixed standard geometry.
For special bending applications, WYS Machinery can manufacture the complete lower-die profile according to a customer drawing or design a suitable configuration based on the finished component.
Custom Press Brake Tooling Design Service
Customers can provide:
workpiece drawings, material grade, sheet thickness, required bending angle, desired inside radius, existing tooling information and press brake model.
Our engineering team can evaluate the bending requirement and recommend an appropriate tooling solution.
The lower die can then be manufactured with the required V-opening, angle, height, base dimensions, load-bearing width, groove radius, tool length and mounting structure.
Why Choose WYS Machinery
WYS Machinery manufactures standard and customized press brake punches, lower dies and sheet metal bending tooling for different sheet metal forming requirements.
Our lower-tooling capabilities include:
- H120 T-type single-V lower dies
- Standard-height T-type lower dies
- Standard single-V lower dies
- Double-V dies
- Multi-V dies
- Wide-base lower dies
- 60° acute-angle lower dies
- Custom-angle lower dies
- Customized V-openings
- Customized tooling heights
- Customized load-bearing sections
- Customized groove radii
- Segmented tooling
- Special lower-tool profiles
- Custom mounting systems
- Replacement tooling for different press brake systems
- Tooling designed according to customer workpiece drawings
The products displayed on our website demonstrate available tooling structures and manufacturing capabilities, while final dimensions and mounting systems can be adapted to the customer's actual production requirements.
