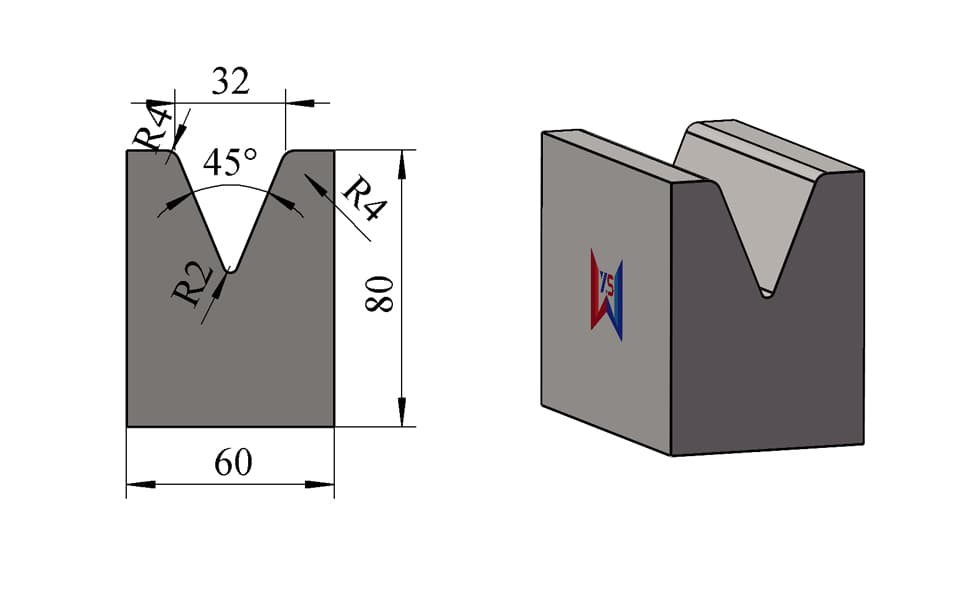

V32 45° Wide-Base Single-V Press Brake Lower Die

This V32 45° press brake lower die combines a compact 32 mm V-opening with a 45° acute-angle groove and a full-width 60 mm base, providing a stable lower-tool configuration for acute-angle air bending and pre-bending applications.

The illustrated configuration features:

V-Opening: V32 / 32 mm
Die Angle: 45°
Overall Height: 80 mm
Overall / Base Width: 60 mm
Shoulder Radius: R4
V-Bottom Radius: R2
Rated Load Capacity: 100 ton/m

The lower body maintains the full 60 mm width from top to bottom, which distinguishes it from plug-in lower dies that normally use a narrower mounting shank below the working body.

The dimensions shown represent one available configuration only. WYS Machinery can manufacture different V-openings, die angles, heights, widths, radii, lengths and mounting structures according to customer requirements.

45° Groove for Acute-Angle Bending

The illustrated lower die uses a 45° single-V groove, suitable for applications requiring a more acute forming angle than conventional 85°, 88° or 90° lower dies.

Typical applications can include:

• Acute-angle air bending
• Pre-bending
• Multi-stage forming
• Precision flange bending
• Intermediate-angle forming
• Forming requiring additional springback allowance
• Customized sheet metal profiles

The final tooling configuration should be selected according to the material grade, sheet thickness, required bend angle, V-opening, inside radius, flange geometry and bending force.

V32 Opening for Balanced Forming Clearance

The 32 mm V-opening provides greater forming clearance than smaller V-opening dies while retaining a relatively compact lower-die body.

This makes the V32 configuration suitable for applications requiring:

• Moderate-to-large forming clearance
• Larger expected inside bend radii
• Broader sheet geometry
• Acute-angle forming with a compact wide-base structure

The correct V-opening should always be selected according to the actual material and bending process.

Wide-Base Structure Instead of Plug-in Mounting

A key structural feature of this lower die is its full-width 60 mm base.

A typical plug-in lower die uses a narrow bottom shank that inserts into a compatible die holder.

This model instead maintains the full 60 mm body width as the mounting base, making it structurally different from plug-in tooling.

The wide-base geometry can be suitable for machines or lower-die holders designed for:

• Full-width lower-tool support
• Wide mounting surfaces
• Alternative die-holder configurations
• Customized positioning geometry
• Non-plug-in lower-die interfaces

The mounting structure can also be redesigned according to the customer's machine.

R4 Shoulder Radius and R2 V-Bottom Radius

The illustrated groove includes two clearly defined radius features:

Shoulder Radius: R4
V-Bottom Radius: R2

These radii form part of the working profile and can also be customized according to the V-opening, sheet thickness and forming requirements.

Key Features

• V32 / 32 mm V-opening
• 45° acute-angle single-V groove
• 80 mm overall height
• 60 mm full-width base
• R4 shoulder radius
• R2 V-bottom radius
• 100 ton/m rated load capacity
• Full-width wide-base structure
• Different from plug-in mounting dies
• Suitable for acute-angle bending
• Suitable for pre-bending and multi-stage forming
• Custom V-opening available
• Custom die angle available
• Custom groove radii available
• Custom height and width
• Custom tool length and segmentation
• Custom mounting interface

Technical Specifications

Typical Applications

This V32 45° wide-base single-V lower die is suitable for:

• Acute-angle sheet metal bending
• Pre-bending
• Multi-stage press brake forming
• Precision flange bending
• Intermediate-angle forming
• Stainless steel sheet bending
• Mild steel sheet bending
• Electrical cabinet components
• Sheet metal enclosure production
• Industrial machinery components
• Customized press brake forming
• Applications requiring a full-width lower-die base

The appropriate tooling configuration should be selected according to the material grade, sheet thickness, required bend angle, inside radius, flange dimensions and required bending force.

Standard & Custom Options

The V32 45° wide-base lower die shown on this page represents one available configuration only.

WYS Machinery can customize:

• V-opening
• die angle
• overall height
• effective height
• overall width
• base width
• shoulder radius
• V-bottom radius
• edge geometry
• tool length
• segmented length
• load capacity
• bottom mounting profile
• positioning structure
• clamping interface

In addition to wide-base single-V dies, WYS Machinery can manufacture plug-in single-V dies, stepped-base dies, T-type single-V dies, double-V dies, multi-V dies and other customized lower-die structures.

Compatible Press Brake Tooling Systems

WYS Machinery can manufacture lower dies for different press brake brands, tooling standards and clamping systems.

Available configurations include:

TRUMPF Type, WILA Type, LVD Type, Bystronic Type, Amada / Promecam Type, European Type and other customized press brake tooling systems.

The full-width wide-base structure shown here is only one available configuration.

The bottom mounting profile, base width, overall height, groove geometry and complete die cross-section can all be adapted according to the customer's press brake.

Customers can provide a machine model, existing lower-die drawing, die-holder dimensions, tooling cross-section, tooling sample or workpiece drawing for technical evaluation.

Custom V-Opening and Die Angle

The V32 opening and 45° groove shown here are one available specification rather than fixed limitations.

Different V-openings and die angles can be manufactured according to:

• Material grade
• Sheet thickness
• Required bending angle
• Desired inside radius
• Minimum flange dimension
• Material springback
• Required forming clearance
• Required bending force
• Press brake configuration

This allows the lower die to be designed around the actual workpiece instead of limiting the customer to one fixed standard profile.

Custom Mounting Structure

Single-V press brake lower dies can use different mounting structures.

WYS Machinery can manufacture:

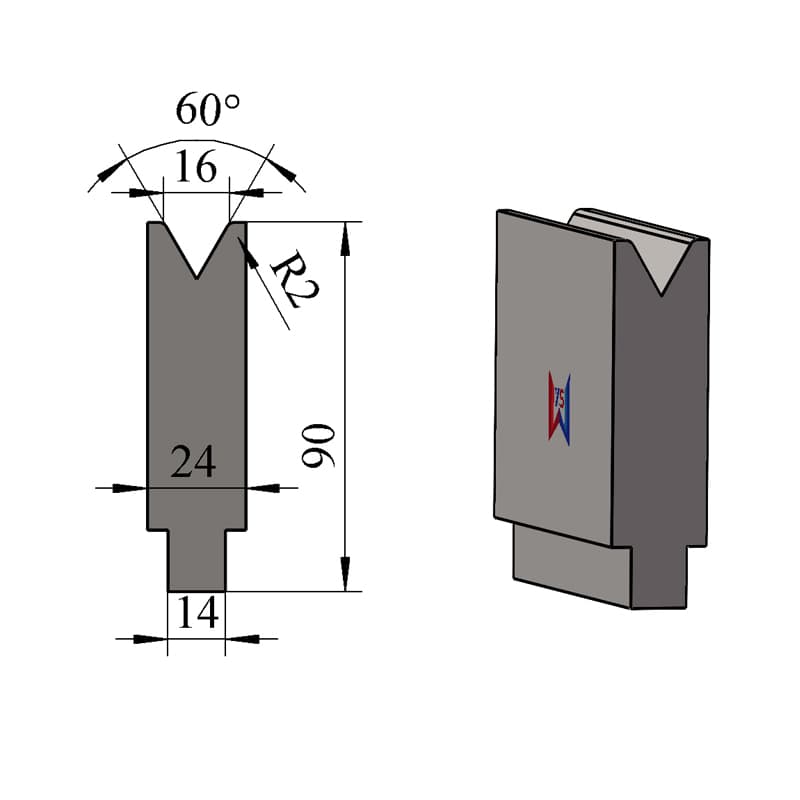

Plug-in Mounting Structure
Full-Width Wide-Base Structure
Stepped-Base Structure

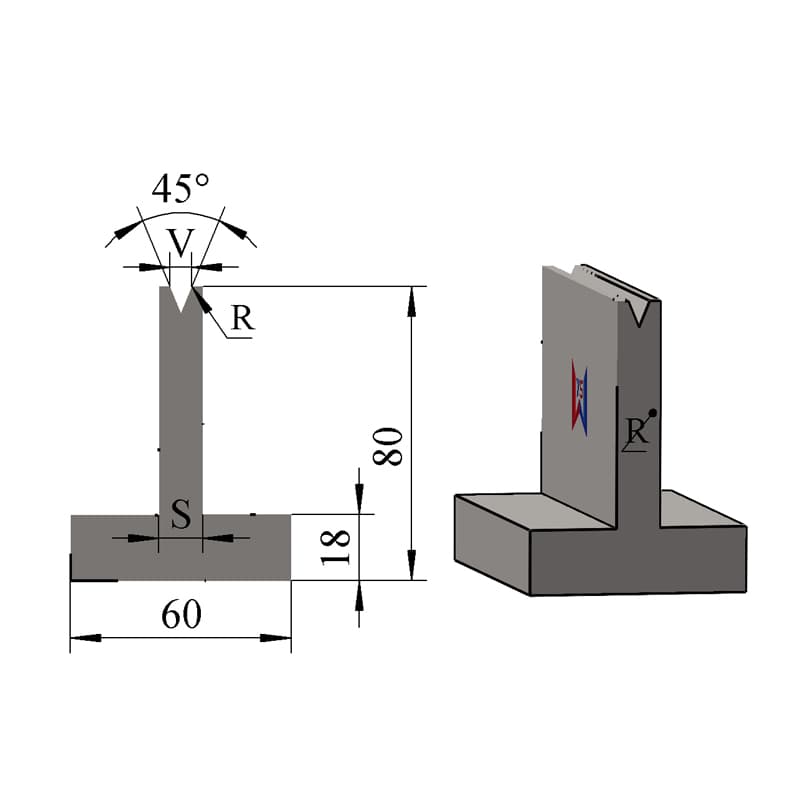

T-Type Structure
Other Customized Lower-Die Interfaces

The appropriate structure can be selected according to the customer's machine, lower-die holder and tooling arrangement.

Custom Press Brake Tooling Design Service

Customers can provide their workpiece drawings, material grade, sheet thickness, required bend angle, desired radius, existing tooling information and press brake model.

Our engineering team can evaluate the forming requirement and recommend an appropriate lower-die configuration.

The tooling can then be manufactured with the required V-opening, angle, height, width, groove radii, tool length and mounting structure.

Why Choose WYS Machinery

WYS Machinery manufactures standard and customized press brake punches, lower dies and sheet metal bending tooling for different machine configurations and forming requirements.

Our lower-tooling capabilities include:

• Wide-base single-V lower dies
• Plug-in single-V lower dies
• Stepped-base single-V lower dies
• T-type single-V lower dies
• Double-V dies
• Multi-V dies
• Acute-angle lower dies
• Custom-angle lower dies
• Customized V-openings
• Customized tool heights
• Customized base structures
• Customized groove radii
• Segmented tooling
• Special lower-tool profiles
• Custom mounting interfaces
• Replacement tooling for different press brake systems
• Tooling manufactured according to customer drawings

The products displayed on our website demonstrate available tooling structures and manufacturing capabilities, while final dimensions and mounting arrangements can be adapted to the customer's actual production requirements.
