105mm Split-Type Interchangeable Press Brake Punch Holder – 100 Ton/m
The 105mm split-type interchangeable press brake punch holder is a reusable upper tooling body designed for different replaceable punch inserts. With a 75mm effective height and 100 ton/m load capacity, the holder can be combined with radius, standard-angle or custom punch inserts, helping reduce tooling investment while increasing flexibility for different sheet metal bending applications. Custom dimensions, holder structures and press brake interfaces are available according to customer requirements.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description
Split-Type Interchangeable Press Brake Punch Holder
This 105mm split-type interchangeable press brake punch holder is designed as the reusable body of a modular press brake upper tooling system.
Unlike a conventional one-piece punch, the holder and working insert are manufactured as separate components. The same punch holder can therefore be used with different replaceable punch inserts for different bending radii, angles and workpiece profiles.

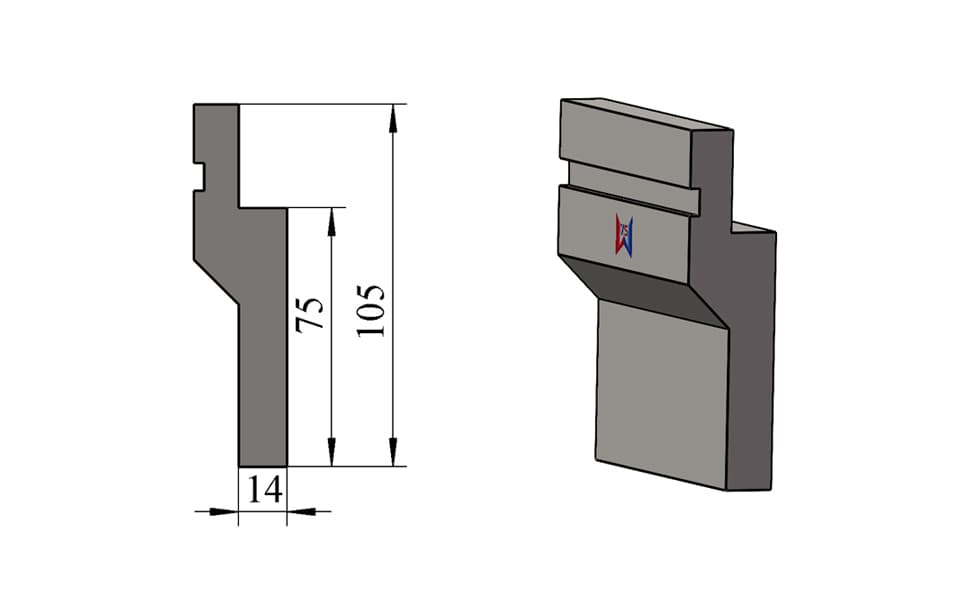

The model shown has a total height of 105 mm, an effective height of 75 mm, a holder width of 14 mm, and a load capacity of 100 ton/m.
Reusable Holder for Different Punch Inserts
The main advantage of this design is that the punch holder can remain in service while only the lower working insert is changed.
Compatible inserts may include radius punch inserts, standard-angle inserts, acute-angle inserts and specially designed profile or forming inserts.
When a different bending requirement is introduced, manufacturers can replace the working insert instead of purchasing or manufacturing another complete upper punch. This helps reduce tooling cost and makes the tooling system more flexible for factories producing multiple sheet metal parts.
Key Features
- Reusable split-type punch holder
- Modular upper tooling construction
- Compatible with different replaceable punch inserts
- 105 mm total height
- 75 mm effective height
- 14 mm holder width
- 100 ton/m load capacity
- Suitable for radius, standard and custom-profile inserts
- Helps reduce complete tooling replacement cost
- Custom holder dimensions and structures available
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Split-Type Interchangeable Press Brake Punch Holder |
| Tool Position | Upper Tool / Punch |
| Total Height | 105 mm |
| Effective Height | 75 mm |
| Holder Width | 14 mm |
| Load Capacity | 100 ton/m |
| Structure | Reusable Holder + Replaceable Punch Insert |
| Compatible Inserts | Radius, Standard-Angle and Custom Inserts |
| Holder Height | Customizable |
| Holder Width | Customizable |
| Holder Structure | Customizable |
| Insert Interface | Customizable |
| Press Brake Interface | Customizable |
Typical Applications
This interchangeable punch holder is suitable for sheet metal bending operations where several punch profiles are used on the same press brake.
Typical applications include different-radius bending, standard sheet metal bending, custom profile bending, prototype production, small-batch manufacturing and production environments requiring frequent tooling changes.
The modular design is particularly useful when several punch inserts share the same holder body and machine mounting interface.
Manufacturing & Design Advantages
Separating the reusable holder from the working punch insert provides greater flexibility in tooling configuration.
Instead of replacing the complete upper tool whenever the required bending radius or punch profile changes, only the compatible insert needs to be replaced. This allows one holder to support multiple bending applications and can reduce the number of complete punches required in production.
For customized applications, the holder-to-insert connection can be designed according to the required load capacity, punch geometry and press brake configuration.
Standard & Custom Options
The dimensions shown on this page represent one available configuration and do not define the manufacturing limits of WYS Machinery.
The following parameters can be customized:
- Total holder height
- Effective height
- Holder width
- Holder cross-section
- Insert connection structure
- Punch insert profile
- Working radius
- Working angle
- Load requirement
- Press brake mounting interface
Custom versions can be manufactured for AMADA, Trumpf-type, WILA-type, LVD-type, Bystronic-type and other press brake tooling systems.
Customers can provide the workpiece drawing, material thickness, required bending profile and press brake information. WYS Machinery can design a suitable punch holder and interchangeable insert combination according to the actual bending requirement.
