T-Type 85° Single-V Press Brake Lower Die – H80 × B60 mm, 100 Ton/m
This T-type 85° single-V press brake lower die features an 80 mm overall height and 80 mm effective height, a 60 mm wide base, and a rated load capacity of 100 ton/m. Its wide T-shaped structure provides a stable lower-tool configuration for precision sheet metal bending. Standard configurations include V6, V8, V10, V12, V16, V20 and V25, while the V-opening, die angle, load-bearing section width, V-groove radius, overall height, base dimensions, tool length and mounting interface can all be customized according to customer requirements.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description

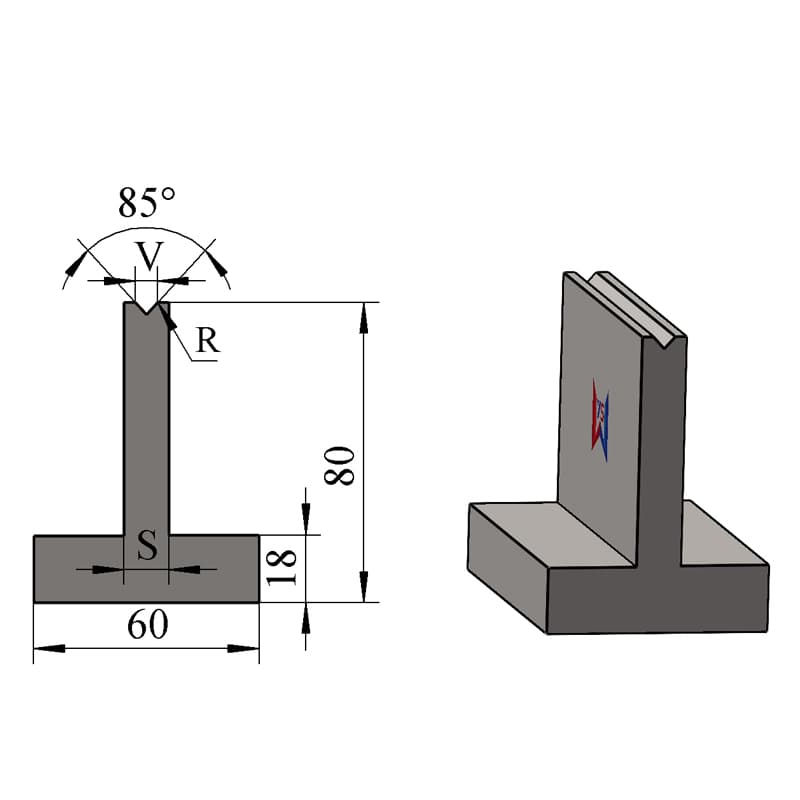

T-Type 85° Single-V Press Brake Lower Die with 60 mm Wide Base
This T-type single-V press brake lower die combines a wide supporting base with a vertical single-V working section, providing a stable lower-tool structure for sheet metal bending applications.
The illustrated configuration has an 80 mm overall height, and its effective working height is also 80 mm. The bottom base is 60 mm wide and 18 mm high, while the rated load capacity is 100 ton/m.
The upper working section uses an 85° single-V groove. Different V-openings, load-bearing widths and V-groove radii are available, allowing the same T-type structure to be adapted to different material thicknesses, bend radii and forming requirements.
The dimensions shown represent available configurations rather than fixed limitations. WYS Machinery can manufacture the complete die cross-section according to the customer's press brake and workpiece requirements.
85° Single-V Groove for Precision Air Bending
The illustrated lower die uses an 85° V-groove, making it suitable for air-bending applications where additional angular allowance may be required before the material springs back toward the final bend angle.
The final bending result depends on factors such as:
- Material grade
- Sheet thickness
- V-opening
- Punch angle
- Material springback
- Required inside bend radius
- Minimum flange dimension
- Bending force
For this reason, the 85° geometry is not the only available configuration. The die angle can also be customized according to the actual forming process.
Wide T-Shaped Base Structure
The 60 mm wide T-shaped base is one of the key structural characteristics of this lower die.
Compared with a narrow straight-body lower die, the wide base provides a broader supporting platform beneath the vertical working section.
This type of structure can be manufactured for applications requiring:
- A wider lower-tool supporting surface
- Different die-holder configurations
- Customized positioning geometry
- Alternative lower-die mounting interfaces
- Special machine or tooling arrangements
The base width and mounting profile can also be modified according to customer requirements.
Custom V-Opening, Load-Bearing Width and V-Groove Radius
Three important dimensions can be selected or customized on this lower die:
V – V-Opening
The opening width of the bending groove.
S – Load-Bearing Section Width
The width of the main supporting section beneath the V-groove.
R – V-Groove Radius / Edge Radius
The radius geometry around the V-groove.
These dimensions can be selected from the standard combinations below or manufactured according to the customer's actual workpiece requirements.

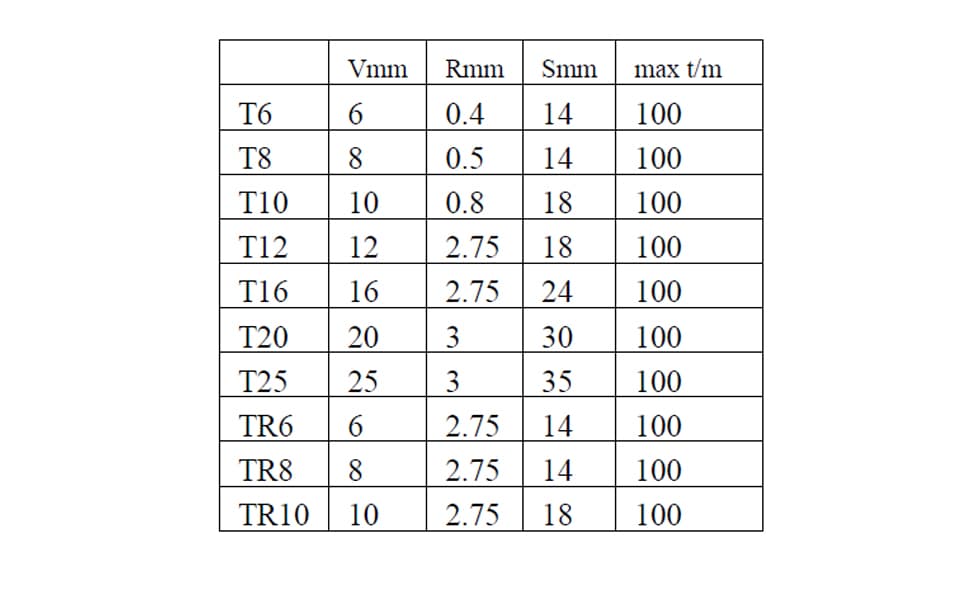

Available T-Type Lower Die Specifications
| Model | V-Opening V (mm) | Radius R (mm) | Load-Bearing Width S (mm) | Max. Capacity (t/m) |
|---|---|---|---|---|
| T6 | 6 | 0.4 | 14 | 100 |
| T8 | 8 | 0.5 | 14 | 100 |
| T10 | 10 | 0.8 | 18 | 100 |
| T12 | 12 | 2.75 | 18 | 100 |
| T16 | 16 | 2.75 | 24 | 100 |
| T20 | 20 | 3 | 30 | 100 |
| T25 | 25 | 3 | 35 | 100 |
| TR6 | 6 | 2.75 | 14 | 100 |
| TR8 | 8 | 2.75 | 14 | 100 |
| TR10 | 10 | 2.75 | 18 | 100 |
These values represent available standard configurations. Non-standard V-openings, radii and load-bearing widths can also be manufactured according to customer requirements.
T-Series and TR-Series Groove Options
The standard specification range includes both T-series and TR-series configurations.
The T6, T8 and T10 versions use smaller groove radii:
T6 – R0.4
T8 – R0.5
T10 – R0.8
The corresponding TR configurations use a larger R2.75 radius:
TR6 – R2.75
TR8 – R2.75
TR10 – R2.75
This gives customers additional groove-radius options while retaining the T-type wide-base lower-die structure.
Overall Height Equals Effective Height
For the illustrated configuration:
Overall Height: 80 mm
Effective Height: 80 mm
The tool height can also be customized according to the customer's machine and tooling combination.
Different effective heights may be required to match:
- Existing press brake punches
- Existing lower tooling
- Machine daylight
- Clamping systems
- Required bending centerline
- Customer-specific tooling arrangements
Key Features
- T-type single-V lower die structure
- 85° illustrated groove angle
- 80 mm overall height
- 80 mm effective height
- 60 mm wide base
- 18 mm base height
- 100 ton/m rated load capacity
- Standard V6, V8, V10, V12, V16, V20 and V25 configurations
- T-series and TR-series radius options
- Custom V-opening available
- Custom die angle available
- Custom load-bearing section width
- Custom V-groove radius
- Custom overall and effective height
- Custom base width and geometry
- Custom tooling length and segmentation
- Custom mounting interface
- Suitable for different press brake tooling systems
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | T-Type Single-V Press Brake Lower Die |
| Structure | T-Type / Single-V |
| Standard Illustrated Angle | 85° |
| Die Angle | 85° / Customized |
| Overall Height | 80 mm |
| Effective Height | 80 mm / Customized |
| Base Width | 60 mm |
| Base Height | 18 mm |
| Standard V-Opening Range | V6–V25 |
| Standard Load-Bearing Width S | 14–35 mm |
| Standard Radius R | 0.4–3 mm |
| Load Capacity | 100 ton/m |
| Tool Length | Standard / Customized |
| Segmentation | Available |
| Mounting Interface | Customized |
| Main Application | Precision Press Brake Air Bending |
Typical Applications
This 85° T-type single-V press brake lower die is suitable for applications such as:
- Precision sheet metal air bending
- Near-right-angle bending
- Bending requiring springback allowance
- Precision flange forming
- Stainless steel sheet bending
- Mild steel bending
- Electrical cabinet manufacturing
- Sheet metal enclosure production
- Industrial machinery components
- Customized press brake forming
- Applications requiring a wide lower-die base
- Applications requiring different V-openings within one tooling family
The appropriate V-opening and tooling geometry should be selected according to the material grade, sheet thickness, required bending angle, inside radius, flange size and required bending force.
Standard & Custom Options
The tooling displayed on this page represents one T-type lower-die family and does not limit WYS Machinery's manufacturing capability.
The following parameters can be customized:
- V-opening
- die angle
- overall height
- effective height
- base width
- base height
- working-section width
- load-bearing section width
- V-groove radius
- edge geometry
- tool length
- segmented length
- load capacity
- bottom mounting profile
- positioning structure
- clamping interface
WYS Machinery can also manufacture standard single-V dies, double-V dies, multi-V dies and special custom lower dies according to customer requirements.
Compatible Press Brake Tooling Systems
WYS Machinery can manufacture lower dies for different press brake brands, tooling standards and clamping systems.
Available configurations include:
TRUMPF Type, WILA Type, LVD Type, Bystronic Type, Amada / Promecam Type, European Type and other customized press brake tooling systems.
The T-shaped structure illustrated on this page is only one available configuration.
The bottom mounting profile, locating geometry, base structure, effective height and complete tooling cross-section can all be adapted according to the customer's press brake.
Customers can provide a machine model, existing tooling drawing, lower-die cross-section, die-holder dimensions, tooling sample or workpiece drawing for technical evaluation.
Custom V-Opening and Die Angle
The standard specification table includes V6, V8, V10, V12, V16, V20 and V25, but customers are not limited to these sizes.
Different V-openings can be manufactured according to:
- Sheet thickness
- Material grade
- Required bend angle
- Required inside radius
- Minimum flange dimension
- Springback characteristics
- Required forming clearance
- Bending force
- Machine configuration
The 85° groove angle can also be changed when another angle is more suitable for the customer's bending process.
Custom Load-Bearing Width and V-Groove Radius
The load-bearing width S and radius R can be customized together with the V-opening.
This allows the complete working profile of the die to be designed around the required bending process rather than forcing the customer to use one fixed standard geometry.
For special bending applications, WYS Machinery can manufacture the lower die according to a customer drawing or design a suitable tooling cross-section based on the finished workpiece.
Custom Press Brake Tooling Design Service
Customers can provide:
workpiece drawings, material grade, sheet thickness, required bend angle, desired inside radius, existing tooling information and press brake model.
Our engineering team can evaluate the bending requirement and recommend a suitable tooling configuration.
The lower die can then be manufactured with the required V-opening, angle, height, base width, load-bearing width, radius, length and mounting structure.
Why Choose WYS Machinery
WYS Machinery manufactures both standard and customized press brake punches, lower dies and sheet metal bending tooling.
Our lower-tooling capabilities include:
- T-type single-V lower dies
- Standard single-V lower dies
- Double-V dies
- Multi-V dies
- Wide-base lower dies
- 85° press brake dies
- Custom-angle dies
- Customized V-openings
- High-load lower dies
- Customized load-bearing sections
- Customized effective heights
- Customized groove radii
- Segmented tooling
- Special lower-tool profiles
- Custom mounting systems
- Replacement tooling for different press brake systems
- Tooling designed according to customer workpiece drawings
The products shown on our website demonstrate available tooling structures and manufacturing capabilities, while the final dimensions and mounting arrangement can be adapted to the customer's actual production requirements.
