V80 85° Stepped-Base Single-V Press Brake Lower Die – H80 × W95 mm, 100 Ton/m
This V80 85° stepped-base single-V press brake lower die features an 80 mm V-opening, 85° die angle, 80 mm overall height and 95 mm main body width, with a 60 mm bottom base width and 20 mm stepped mounting section. The rated load capacity is 100 ton/m. Unlike conventional plug-in single-V lower dies, this model uses a stepped-base mounting structure rather than a narrow plug-in shank. The V-opening, die angle, tool height, body width, base width, step height, groove radius, tool length and mounting interface can all be customized according to the customer's press brake and bending requirements.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description
V80 85° Stepped-Base Single-V Press Brake Lower Die
This V80 85° press brake lower die combines a large single-V working groove with a stepped lower mounting structure, providing a robust lower-tool configuration for sheet metal air-bending applications requiring a large V-opening and substantial forming clearance.

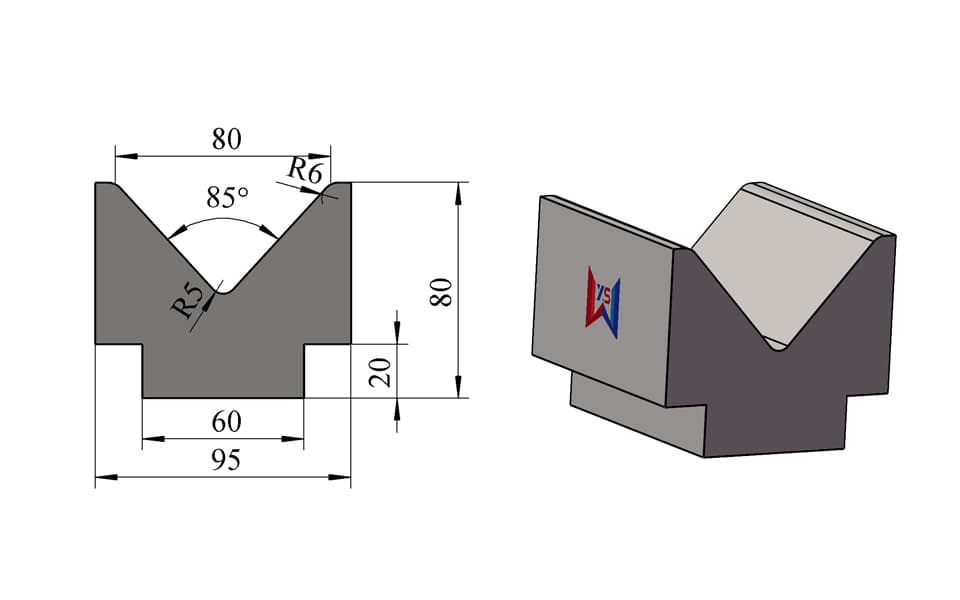

The illustrated model features:
V-Opening: V80 / 80 mm
Die Angle: 85°
Overall Height: 80 mm
Main Body Width: 95 mm
Bottom Base Width: 60 mm
Stepped Section Height: 20 mm
Shoulder Radius: R6
V-Bottom Radius: R5
Rated Load Capacity: 100 ton/m
The lower mounting profile differs from the narrow plug-in configuration used on many other single-V dies. In this design, the 95 mm main body transitions to a 60 mm wide stepped base, providing a distinctive lower-tool mounting geometry.
The tooling shown on this page represents one available configuration only. WYS Machinery can manufacture the complete lower-die cross-section according to the customer's machine, die holder and workpiece requirements.
V80 Opening for Large Forming Clearance
The 80 mm V-opening provides a large forming zone and substantial workpiece clearance during bending.
Compared with smaller V-opening dies, the V80 configuration provides:
- Greater forming clearance
- A broader working zone
- More space around the workpiece
- Suitability for applications requiring a larger expected bend radius
- More flexibility for heavier or larger sheet-metal components, subject to actual bending-force requirements
The appropriate V-opening should be selected according to the material grade, sheet thickness, required inside radius, minimum flange dimension and bending force.
85° V-Groove for Precision Air Bending
The illustrated model uses an 85° single-V groove.
This geometry is suitable for precision air-bending applications where some angular allowance may be required to compensate for material springback.
The final bend result depends on multiple factors, including:
- Material type
- Sheet thickness
- Punch angle
- V-opening
- Material springback
- Inside bend radius
- Flange dimensions
- Required bending force
The 85° angle shown here is one available configuration. Other die angles can also be manufactured according to the customer's actual forming process.
Stepped-Base Mounting Structure
A key feature of this lower die is its stepped-base mounting structure.
The illustrated geometry includes:
Main Body Width: 95 mm
Bottom Base Width: 60 mm
Stepped Section Height: 20 mm
This differs from a typical plug-in lower die, which uses a narrower bottom mounting shank inserted into a corresponding die holder.
The stepped-base design provides a wider and more substantial lower-tool body while retaining a narrower mounting base.
The base width, step height, body width and positioning geometry can all be customized according to the customer's machine and die-holder requirements.
R6 Shoulder Radius and R5 V-Bottom Radius
The illustrated V80 groove includes two clearly defined radius features:
Shoulder Radius: R6
V-Bottom Radius: R5
These radii form part of the working geometry around the V-groove and can be adjusted according to the required forming process.
The groove radius, shoulder radius and edge geometry are not limited to the dimensions shown.
Key Features
- V80 / 80 mm V-opening
- 85° single-V groove
- 80 mm overall height
- 95 mm main body width
- 60 mm bottom base width
- 20 mm stepped mounting section
- R6 shoulder radius
- R5 V-bottom radius
- 100 ton/m rated load capacity
- Stepped-base mounting structure
- Different from plug-in mounting dies
- Large forming clearance
- Suitable for large V-opening air bending
- Custom V-opening available
- Custom die angle available
- Custom groove and shoulder radii
- Custom body and base dimensions
- Custom step geometry
- Custom tool length and segmentation
- Custom mounting interface available
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Stepped-Base Single-V Press Brake Lower Die |
| Die Structure | Single-V |
| V-Opening | V80 / 80 mm |
| Die Angle | 85° / Customized |
| Overall Height | 80 mm / Customized |
| Main Body Width | 95 mm / Customized |
| Bottom Base Width | 60 mm / Customized |
| Stepped Section Height | 20 mm / Customized |
| Shoulder Radius | R6 / Customized |
| V-Bottom Radius | R5 / Customized |
| Load Capacity | 100 ton/m |
| Mounting Structure | Stepped Base |
| Tool Length | Standard / Customized |
| Segmentation | Available |
| Mounting Interface | Stepped Base / Customized |
| Main Application | Large V-Opening Precision Air Bending |
Typical Applications
This V80 85° stepped-base single-V lower die is suitable for:
- Large V-opening sheet metal air bending
- Precision near-right-angle bending
- Applications requiring increased forming clearance
- Applications requiring a larger expected inside bend radius
- Springback-compensation bending
- Precision flange forming
- Stainless steel sheet bending
- Mild steel sheet bending
- Structural sheet metal components
- Industrial machinery parts
- Electrical cabinet and enclosure production
- Customized press brake forming
- Tooling systems requiring a stepped lower-die base
The final tooling configuration should be selected according to the material grade, sheet thickness, required bend angle, inside radius, flange dimensions and required bending force.
Standard & Custom Options
The V80 85° lower die shown on this page represents one stepped-base configuration only.
WYS Machinery can customize:
- V-opening
- die angle
- overall height
- main body width
- bottom base width
- stepped section height
- shoulder radius
- V-bottom radius
- edge geometry
- tool length
- segmented length
- load capacity
- bottom mounting profile
- positioning structure
- clamping interface
In addition to stepped-base single-V lower dies, WYS Machinery can manufacture plug-in single-V dies, wide-base single-V dies, T-type single-V dies, double-V dies, multi-V dies and other special custom lower dies.
Compatible Press Brake Tooling Systems
WYS Machinery can manufacture lower dies for different press brake brands, tooling standards and clamping systems.
Available configurations include:
TRUMPF Type, WILA Type, LVD Type, Bystronic Type, Amada / Promecam Type, European Type and other customized press brake tooling systems.
The stepped-base structure shown here is one available configuration only.
The bottom mounting profile, base width, step height, overall height, main body width and complete tooling cross-section can all be adapted according to the customer's press brake.
Customers can provide a machine model, existing lower-die drawing, die-holder dimensions, tooling cross-section, tooling sample or workpiece drawing for technical evaluation.
Custom V-Opening and Die Angle
The V80 opening and 85° groove shown here are not fixed limitations.
Different V-openings and die angles can be manufactured according to:
- Material grade
- Sheet thickness
- Required bending angle
- Desired inside radius
- Minimum flange dimension
- Material springback
- Required forming clearance
- Required bending force
- Press brake configuration
This allows the lower die to be designed around the actual workpiece rather than limiting the customer to a fixed standard profile.
Custom Mounting Structure
Single-V lower dies can use different mounting and base structures.
WYS Machinery can manufacture:
Plug-in Mounting Structure
Full-Width Wide-Base Structure
Stepped-Base Structure
T-Type Structure
Other Customized Lower-Die Interfaces
The mounting profile can be designed according to the customer's machine, lower-die holder and tooling system.
Custom Press Brake Tooling Design Service
Customers can provide:
workpiece drawings, material grade, sheet thickness, required bend angle, desired radius, existing tooling information and press brake model.
Our engineering team can evaluate the forming requirement and recommend a suitable lower-die configuration.
The tooling can then be manufactured with the required V-opening, angle, height, width, base geometry, groove radius, tool length and mounting structure.
Why Choose WYS Machinery
WYS Machinery manufactures standard and customized press brake punches, lower dies and sheet metal bending tooling for different machine configurations and forming requirements.
Our lower-tooling capabilities include:
- Stepped-base single-V lower dies
- Wide-base single-V lower dies
- Plug-in single-V lower dies
- T-type single-V lower dies
- Double-V dies
- Multi-V dies
- Large V-opening lower dies
- Custom-angle lower dies
- Customized V-openings
- Customized tooling heights
- Customized base structures
- Customized groove radii
- Segmented tooling
- Special lower-tool profiles
- Custom mounting interfaces
- Replacement tooling for different press brake systems
- Tooling manufactured according to customer drawings
The products displayed on our website demonstrate available tooling structures and manufacturing capabilities, while final dimensions and mounting systems can be adapted to the customer's actual production requirements.
