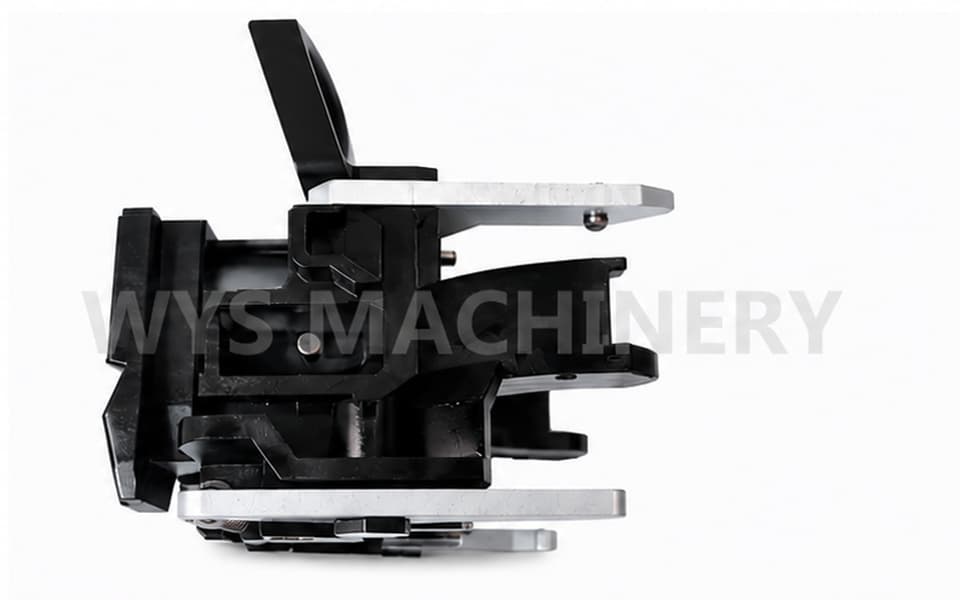

TRUMPF Type Tool Cartridge for Punching Tools

The TRUMPF Type Tool Cartridge is an important accessory used in the punching tool setup and tool-changing system. It is designed to securely accommodate and support punching tooling while allowing the assembled tool to be handled, prepared and changed efficiently.

Unlike the punch, stripper or die that directly performs the sheet metal punching operation, the tool cartridge functions primarily as a tool carrying, retaining and setup component within the punching system.

TRUMPF itself uses the term Tool Cartridge, including RTC Tool Cartridge, for this type of punching-tool accessory. Official documentation describes the cartridge as supporting efficient setup and reliable tool changes while securely holding the tooling.

For this reason, Tool Cartridge is the preferred technical term for this product rather than the more generic “tool holder.”

Key Features

• Designed for TRUMPF Type punching tooling systems
• Professional tool cartridge structure for punching-tool setup
• Securely retains and supports the tooling assembly
• Helps facilitate efficient punching-tool changes
• Integrated cartridge arms for reliable tool retention
• Mechanical spring-loaded retaining structure
• Handle design for convenient handling and transportation
• Robust structural design for repeated industrial use
• Suitable as a punching machine tooling accessory
• Available according to different machine and tooling requirements
• Replacement and customized solutions can be supplied according to samples or technical information

Technical Specifications

What Is a Tool Cartridge?

A tool cartridge is not the cutting tool itself. Instead, it forms part of the system used to hold, retain, transport and prepare the punching tooling for machine operation.

A complete punching tool may contain components such as the punch, stripper and die. The cartridge provides the supporting structure required to keep the tooling securely arranged for setup and tool-changing operations.

TRUMPF's official description emphasizes secure tool retention, efficient handling and reliable tool changes as key functions of its RTC Tool Cartridge.

This distinction is important when customers are searching for replacement parts:

Punch / Die / Stripper → performs or supports the actual punching operation

Tool Cartridge → holds and supports the tooling for setup and tool-changing operations

Therefore, referring to this component simply as a Tool Holder is less precise.

Designed for Efficient Tool Setup and Change

One of the primary functions of the cartridge is to make punching-tool setup and changeover more efficient.

The cartridge structure securely retains the tooling while allowing the complete assembly to be prepared and handled as a unit. This is especially important in production environments where different punching, cutting or forming tools need to be changed according to the machining program.

TRUMPF also identifies the RTC Tool Cartridge as an accessory intended to support efficient tool setup.

Secure Tool Retention

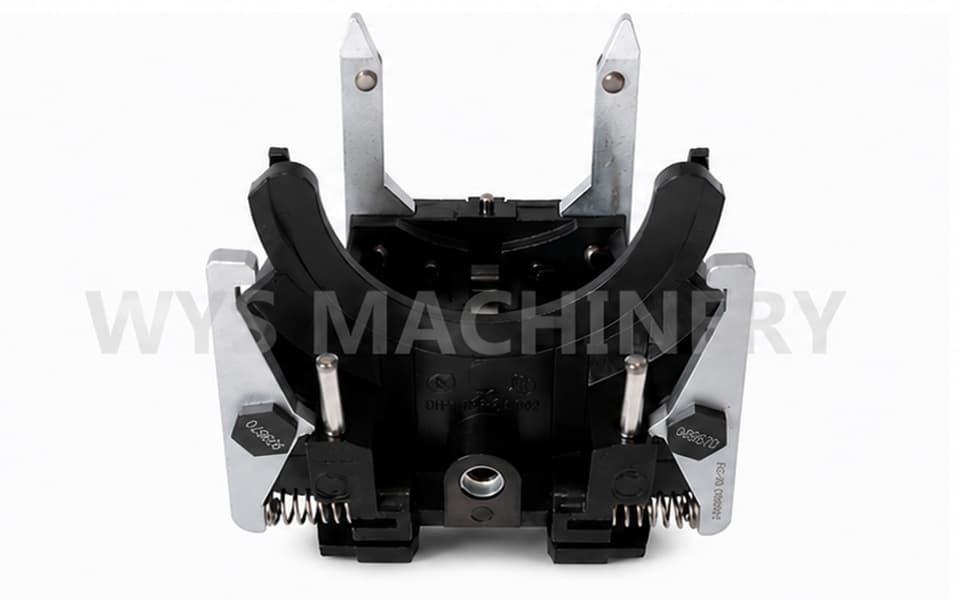

The cartridge incorporates multiple mechanical components and retaining arms designed to maintain stable positioning of the tooling.

A reliable retention system is important because punching tools may be subjected to repeated handling, machine movement and rapid production cycles.

The spring-loaded arm structure helps maintain secure engagement while still allowing the cartridge to be opened and the tooling changed when required.

Ergonomic Handling

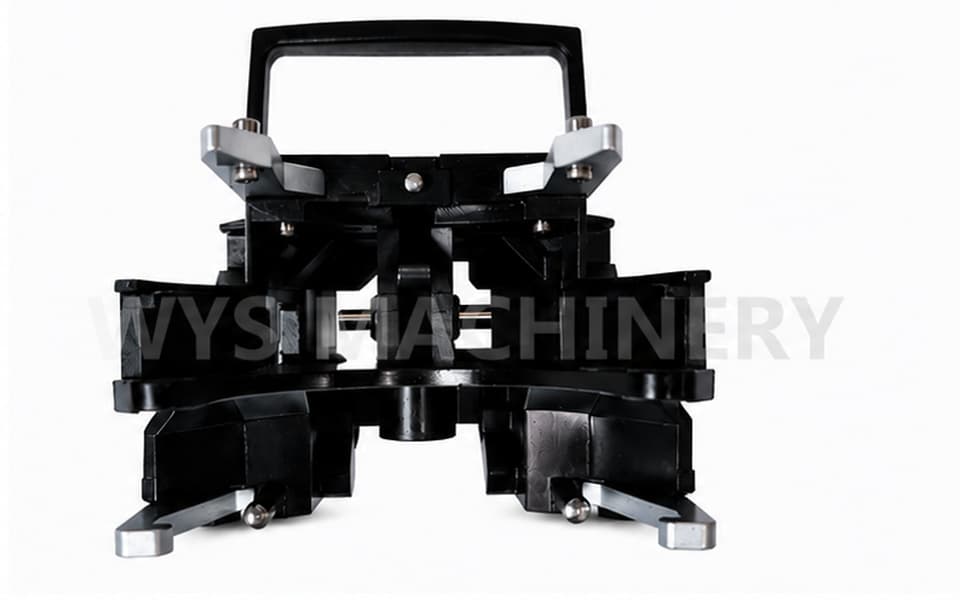

The integrated handle makes the cartridge easier to carry, position and manage during tool preparation.

This is particularly useful when operators prepare multiple tooling sets before production or replace tools between different punching jobs.

The objective is not only to hold the tooling, but also to simplify the overall workflow surrounding tool preparation, storage, handling and changeover.

Punching Tool Accessory Applications

TRUMPF Type tool cartridges can be used as part of tooling systems for a variety of punching operations, including:

• Standard hole punching
• Contour punching
• Slitting and cutting
• Forming operations
• Embossing
• Marking
• Special punching applications
• Custom punch tooling

TRUMPF itself categorizes tool cartridges within its punching-tool accessories and uses them as part of the tool setup process.

Tool Cartridge vs. Tool Holder

For website terminology, I recommend making this distinction clear:

This terminology will also prevent confusion with the die holder and punch holder products elsewhere on your website.

Replacement Tool Cartridge Solutions

For customers looking for a replacement punching tool cartridge, the correct configuration should be determined according to the actual machine and tooling system.

Customers can provide:

• Machine model
• Tooling system
• Existing cartridge photos
• Existing cartridge dimensions
• Tool size
• Part number, if available
• Sample cartridge
• Other technical requirements

Based on this information, we can evaluate the appropriate TRUMPF Type tool cartridge / cartridge assembly solution.

Standard & Custom Punching Tool Support

In addition to tool cartridges, WYS Machinery supplies punching tools and related tooling components for sheet metal punching applications.

Customers can send us their machine information, existing tooling information, sample photos or component drawings. We can help evaluate the tooling configuration and provide suitable standard or customized punching-tool solutions.

This makes the tool cartridge page useful not only for customers searching for a replacement cartridge, but also for customers sourcing a complete punching tooling system.
