V12 88° Press Brake Lower Die for Precision Sheet Metal Bending

This V12 press brake lower die is designed for precision sheet metal bending applications requiring a compact V-die with a 12 mm V-opening.

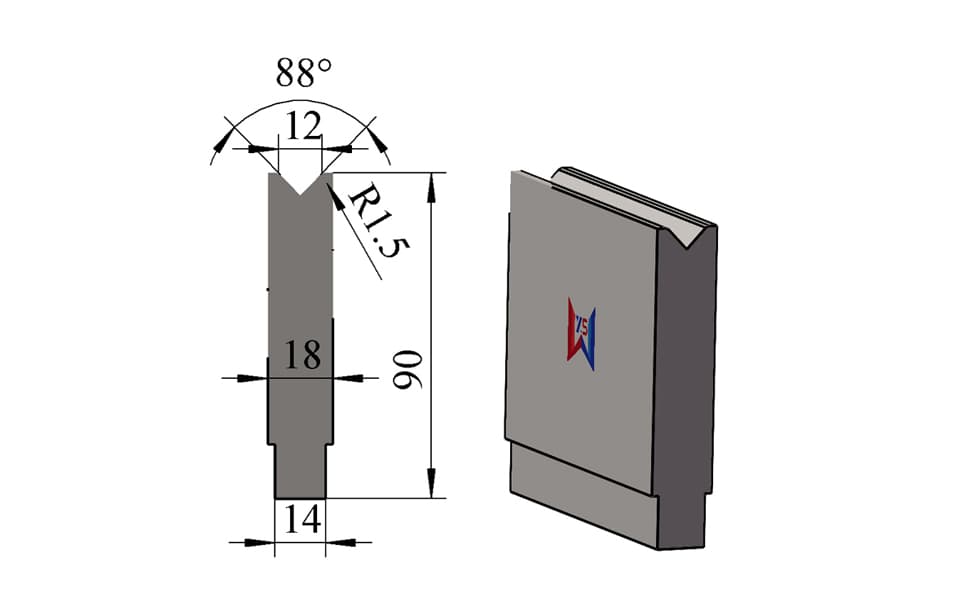

The illustrated model has a 90 mm overall height, 18 mm body width and 88° V-groove angle, with a rated load capacity of 80 ton/m. The die combines a relatively compact body with reliable bending capacity for a wide range of sheet metal forming operations.

The 88° die angle is suitable for controlled air bending and provides flexibility when compensating for material springback. The V12 opening makes this die suitable for many common precision bending applications involving thin and medium-gauge sheet materials.

Flexible Effective Tool Height

Although the illustrated die has an overall height of 90 mm, the effective working height does not have to remain fixed.

Depending on the customer's machine, tooling combination and bending requirements, the effective height can be manufactured as:

75 mm, 70 mm or other customized dimensions.

This flexibility makes it possible to adapt the lower die to different press brake configurations, tooling heights and bending setups without limiting the customer to one standard geometry.

Compact V12 Die Geometry

The die has a 18 mm main body width, providing a compact lower-tool profile for applications where tooling clearance is important.

The illustrated design also includes an approximate R1.5 shoulder radius around the V-groove area.

The V12 configuration is suitable for applications requiring:

• precision air bending
• relatively small V-opening
• controlled inside bending radius
• compact lower-tool geometry
• accurate flange forming
• repeatable bending performance

Key Features

• V12 / 12 mm V-opening
• 88° die angle
• 90 mm overall height
• 70 mm, 75 mm or customized effective height available
• 18 mm body width
• 80 ton/m load capacity
• Approx. R1.5 shoulder radius
• Precision-machined V-groove
• Compact lower die design
• Custom tool lengths available
• Segmented tooling available
• Custom mounting and positioning structures
• Suitable for standard and customized press brake applications

Technical Specifications

Typical Applications

This V12 88° press brake lower die is suitable for a wide range of sheet metal forming operations, including:

• Precision sheet metal bending
• Air bending
• Thin and medium-gauge metal forming
• Electrical cabinet production
• Control panel fabrication
• Sheet metal enclosures
• Stainless steel components
• Mild steel parts
• Machinery covers and housings
• Precision flange bending
• General CNC press brake applications

The appropriate die specification should be selected according to the material type, sheet thickness, required bending angle, inside radius, flange length and bending tonnage.

Standard & Custom Options

The V12 lower die shown on this page represents one typical configuration only.

WYS Machinery can manufacture press brake lower dies with customized:

• V-openings
• die angles
• overall heights
• effective heights
• body widths
• shoulder radii
• bottom mounting widths
• tool lengths
• segmented lengths
• load capacities
• lower mounting profiles
• positioning structures
• clamping interfaces

Different V-openings such as V6, V8, V10, V12, V16, V20 and other custom sizes can be manufactured according to the actual sheet thickness and bending requirements.

The tooling geometry is not limited to the dimensions shown in the drawing.

Compatible Press Brake Tooling Systems

WYS Machinery can manufacture customized press brake lower dies for different machine brands, tooling standards and clamping systems.

Available configurations include:

TRUMPF Type, WILA Type, LVD Type, Bystronic Type, Amada / Promecam Type, European Type and other customized press brake tooling systems.

The lower die mounting profile, positioning structure, overall height and effective working height can be adapted according to the customer's machine configuration.

Customers can provide a machine model, existing tooling drawing, die cross-section, sample or workpiece drawing for technical evaluation.

Custom Press Brake Die Design Service

For customers who are unsure which V-opening, die angle or tooling height should be selected, the following information can be provided:

workpiece drawing, material type, sheet thickness, required bending angle and press brake model.

Our engineering team can recommend a suitable lower die according to the actual bending application.

The V-opening, height, effective height, width, angle, radius, length and mounting structure can all be customized according to customer requirements.

Why Choose WYS Machinery

WYS Machinery manufactures both standard and customized press brake dies, punches and sheet metal bending tooling.

Our lower die manufacturing capabilities include:

• Standard V-dies
• Narrow V-dies
• Single-V dies
• Multi-V dies
• Heavy-duty lower dies
• Segmented dies
• Customized tooling heights
• Special lower-tool profiles
• Custom mounting interfaces
• Replacement dies for different press brake systems
• Tooling design based on customer workpiece drawings

Customers can source both standard replacement tooling and customized bending solutions according to their actual production requirements.
