V20 60° Single-V Press Brake Lower Die for Acute-Angle Bending

This V20 press brake lower die is designed with a single-V structure for sheet metal forming applications requiring a 60° groove and a relatively wide V-opening.

The illustrated configuration features a 20 mm V-opening, 60° die angle, 90 mm overall height and 30 mm body width, with a rated load capacity of 60 ton/m.

The combination of the V20 opening and 60° V-groove geometry makes this lower die suitable for acute-angle air bending, pre-bending and multi-stage forming operations where a narrower included angle is required than with conventional 85°, 88° or 90° lower dies.

Compared with smaller V-opening acute-angle dies, the V20 opening provides increased forming clearance and can accommodate applications requiring a larger inside bending radius or wider flange geometry.

60° V-Groove for Acute-Angle Forming

The 60° die angle is suitable for bending operations where the workpiece must be formed beyond the conventional right-angle range.

Typical applications include:

• Acute-angle air bending
• Pre-bending operations
• Multi-stage bending
• Precision flange forming
• Components requiring springback allowance
• Customized acute-angle sheet metal parts

The final tooling geometry should be selected according to the material, sheet thickness, required bending angle and workpiece design.

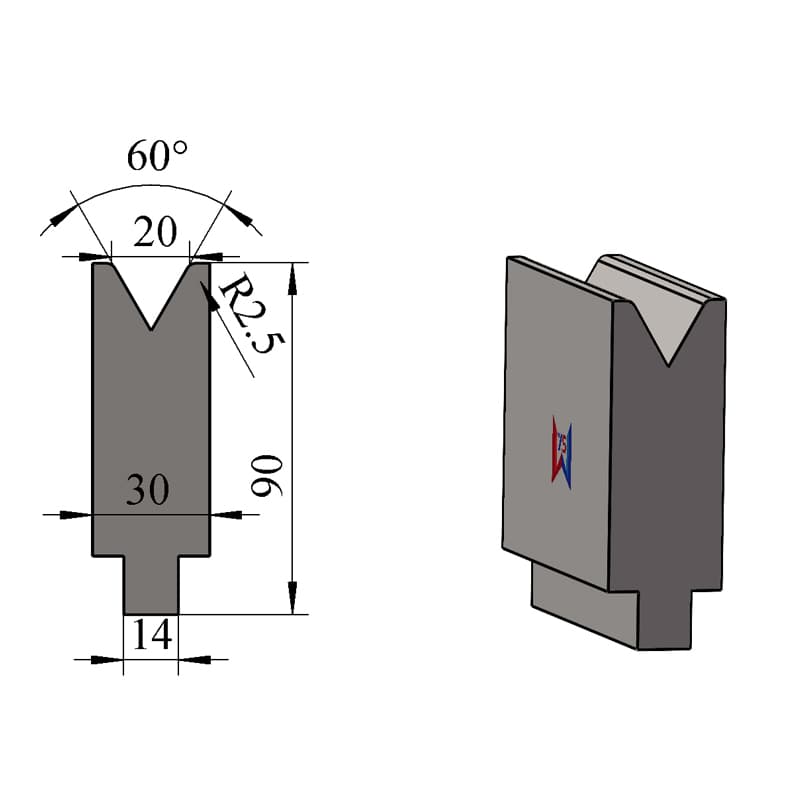

V20 Single-V Die Geometry

The illustrated lower die combines a 20 mm V-opening with a 30 mm body width, providing stable support around the forming zone.

Main dimensions include:

• V20 / 20 mm V-opening
• 60° die angle
• 90 mm overall height
• 75 mm effective height
• 30 mm body width
• 14 mm bottom mounting width
• Approx. R2.5 shoulder radius
• 60 ton/m load capacity

The die angle, shoulder geometry and surrounding edge dimensions can also be customized according to the customer's bending process and workpiece requirements.

Custom Effective Tool Height

The illustrated model has a standard effective working height of 75 mm.

The effective height can also be manufactured according to the customer's:

• Press brake configuration
• Upper tooling height
• Machine daylight
• Clamping system
• Existing tooling combination

The overall height and effective working height can therefore be coordinated as part of the complete tooling design.

Key Features

• Single-V lower die structure
• V20 / 20 mm V-opening
• 60° acute-angle V-groove
• 90 mm overall height
• 75 mm effective height
• Custom effective heights available
• 30 mm body width
• 14 mm bottom mounting width
• 60 ton/m load capacity
• Approx. R2.5 shoulder radius
• Suitable for acute-angle bending
• Increased forming clearance compared with smaller V-openings
• Suitable for pre-bending and multi-stage forming
• Stable lower-tool body
• Custom V-openings available
• Custom die angles available
• Custom shoulder and edge geometry available
• Custom tool lengths and segmentation available
• Custom lower mounting interfaces available

Technical Specifications

Typical Applications

This V20 60° single-V lower die is suitable for press brake forming applications including:

• Acute-angle sheet metal bending
• Precision air bending
• Pre-bending operations
• Multi-stage forming
• Precision flange bending
• Stainless steel sheet components
• Mild steel sheet components
• Electrical cabinet parts
• Sheet metal enclosures
• Machinery components
• Customized metal forming

The appropriate tooling specification should be selected according to the material grade, sheet thickness, required bending angle, inside radius, minimum flange dimension and required bending force.

Standard & Custom Options

The V20 60° lower die shown on this page represents one typical tooling configuration only.

WYS Machinery can customize:

• V-opening
• Die angle
• Overall height
• Effective working height
• Body width
• Shoulder radius
• Edge geometry
• Tool length
• Segmented length
• Load capacity
• Bottom mounting profile
• Positioning structure
• Clamping interface

Different acute-angle and standard-angle lower dies can be manufactured according to the customer's bending requirements.

Single-V, double-V, multi-V and other customized lower die structures are also available.

Compatible Press Brake Tooling Systems

WYS Machinery can manufacture lower dies for different press brake brands, tooling standards and clamping systems.

Available configurations include:

TRUMPF Type, WILA Type, LVD Type, Bystronic Type, Amada / Promecam Type, European Type and other customized press brake tooling systems.

The die is not limited to the mounting structure shown in the drawing. The bottom mounting interface, positioning geometry, overall height, effective height and die cross-section can all be adapted according to the customer's machine.

Customers can provide a machine model, existing tooling drawing, lower die cross-section, tooling sample or workpiece drawing for technical evaluation.

Custom V-Opening, Angle and Edge Geometry

The V20 opening and 60° die angle shown on this page are one available configuration.

Different V-openings and die angles can be manufactured according to:

• Sheet thickness
• Material grade
• Required bending angle
• Required inside radius
• Minimum flange dimension
• Material springback
• Required bending force
• Press brake configuration

The shoulder radius and surrounding edge geometry can also be customized as part of the complete tooling solution.

Custom Press Brake Tooling Design Service

Customers who are unsure which V-opening, die angle or lower-tool structure should be selected can provide:

workpiece drawing, material grade, sheet thickness, required bending angle and press brake model.

Our engineering team can evaluate the bending requirement and recommend an appropriate tooling solution.

The lower die can then be manufactured with the required V-opening, angle, height, effective height, width, radius, length and mounting structure.

Why Choose WYS Machinery

WYS Machinery manufactures standard and customized press brake punches, lower dies and sheet metal bending tooling for a wide range of forming applications.

Our lower tooling capabilities include:

• Single-V lower dies
• Double-V dies
• Multi-V dies
• Acute-angle press brake dies
• Small and medium V-opening dies
• High-capacity lower dies
• Segmented tooling
• Customized die angles
• Customized effective heights
• Special lower-tool profiles
• Custom mounting interfaces
• Replacement tooling for different press brake systems
• Tooling designed according to customer workpiece drawings

This allows customers to obtain both replacement tooling and application-specific bending solutions according to their actual production requirements.
