V50 45° Stepped-Base Single-V Press Brake Lower Die – H80 × W85 mm, 100 Ton/m
This V50 45° stepped-base single-V press brake lower die features a 50 mm V-opening, 45° die angle, 80 mm overall height and 85 mm main body width, with a 60 mm bottom mounting base and 20 mm stepped section. The rated load capacity is 100 ton/m. Unlike conventional plug-in single-V lower dies, this model uses a stepped-base mounting structure rather than a narrow plug-in shank. The V-opening, die angle, overall height, body width, bottom base dimensions, groove radii, tool length and mounting interface can all be customized according to the customer's press brake and bending requirements.
Please add the quotation and send it to us and get in touch with us immediately
- Global service 24/7
- Lowest price for all products
- Best quality with Production Process
- After-Sale Warranty
- Technical Support
Description

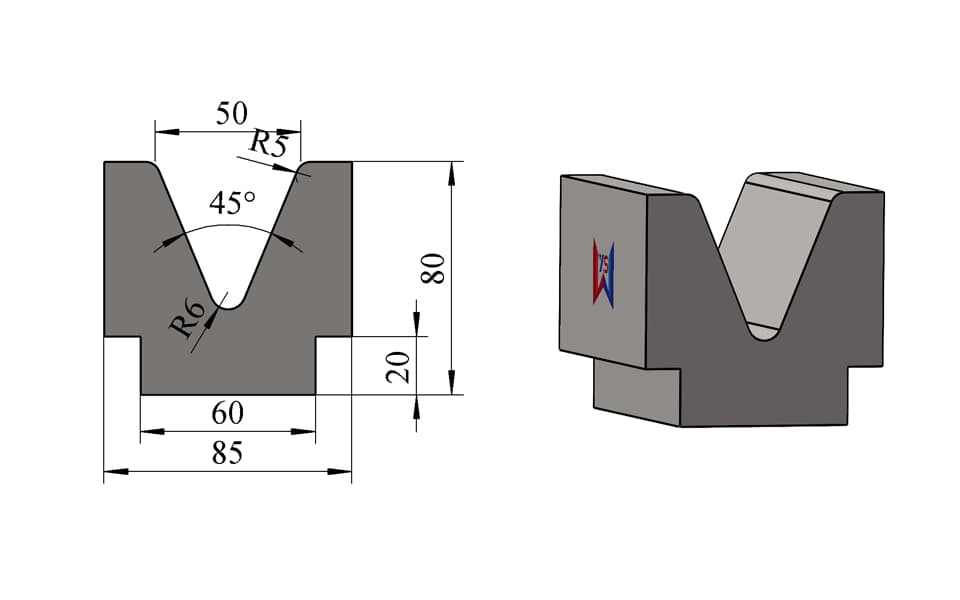

V50 45° Stepped-Base Single-V Press Brake Lower Die
